阿普奇 E5S | 多USB双显示 无风扇嵌入式工控机
产品描述
阿普奇 E5S 是E系列低功耗无风扇嵌入式工控机的新一代型号——在E5的传统嵌入式BOX架构基础上，将处理器从J1900升级到J6412/Alder Lake-N多选平台，I/O密度大幅提升，并首次引入aDoor模块化扩展。
核心平台提供四种CPU选择：
• J6412（Elkhart Lake, 4核, 10W）
• N95（Alder Lake-N, 4核4线程, 15W）
• N97（Alder Lake-N, 4核4线程, 12W）
• i3-N305（Alder Lake-N, 8核8线程, 15W）
从10W低功耗到8核高性能的全梯度覆盖，用户按算力需求灵活选配。DDR4 SO-DIMM 3200MHz（可扩展内存, 非板载焊接）——相比E5的板载DDR3L, E5S的内存更灵活、性能更高。
I/O密度全面升级：
• COM: 6路——COM1/2为RS232/485 DB9/M（BIOS控制），JCOM3/4/5/6为wafer内置插针
• USB: 10路——4×USB3.0+2×USB2.0(前置面板)+2×USB2.0(内置)+2×USB2.0(内置)
• 显示: DP++(4096×2160@60Hz)+HDMI+LVDS/eDP三显——DP支持真正的4K@60Hz，LVDS/eDP为集成面板PC提供内部显示接口
存储保持E系列传统双方案：2.5寸SATA3.0硬盘位（15+7Pin）+ M.2 Key-M（SATA SSD, 2280）——SATA3.0带宽比E5的SATA2.0翻倍。
aDoor模块化扩展是E5S的新特性——通过aDoor接口可选配额外I/O模块（如额外COM/LAN/GPIO），为用户提供灵活的I/O定制方案。
网络采用双Intel i210-AT工业千兆，Mini PCIe+SIM支持4G通信，GPIO内置，DC 12-28V宽压，超紧凑机身无风扇设计。
多CPU可选+6COM+10USB+DP 4K三显+aDoor扩展——E5S在嵌入式BOX形态中实现了接近模块化IPC的I/O密度。
|
Model |
E5S |
|||
|
Processor System |
CPU | Intel® Elkhart Lake J6412 | Intel® Alder Lake N97 | Intel® Alder Lake CoreTM i3-N305 |
| Base Frequency | 2.0 GHz | 2.0 GHz | 1 GHz | |
| Max Turbo Frequency | 2.60 GHz | 3.60 GHz | 3.8 GHz | |
| Cache | 1.5MB | 6MB | 6MB | |
| Total Cores/Threads | 4/4 | 4/4 | 8/8 | |
| Chipset | SoC | |||
| BIOS | AMI UEFI BIOS | |||
|
Memory |
Socket | 1 * DDR4-SODIMM, up to 3200MHz | ||
| Capacity | Max. 32GB | |||
|
Graphics |
Controller | Intel® UHD Graphics | ||
|
Ethernet |
Controller | 2 * Intel® i210-AT (10/100/1000 Mbps, RJ45) | ||
|
Storage |
SATA | 1 * SATA3.0 Connector (2.5-inch hard disk with 15+7Pin) | ||
| M.2 | 1 * M.2 Key-M Slot (SATA SSD, 2280) | |||
|
Expansion Slots |
aDoor | 1 * aDoor | ||
| Mini PCIe | 1 * Mini PCIe Slot (PCIe2.0x1+USB2.0) | |||
|

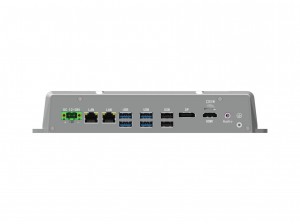

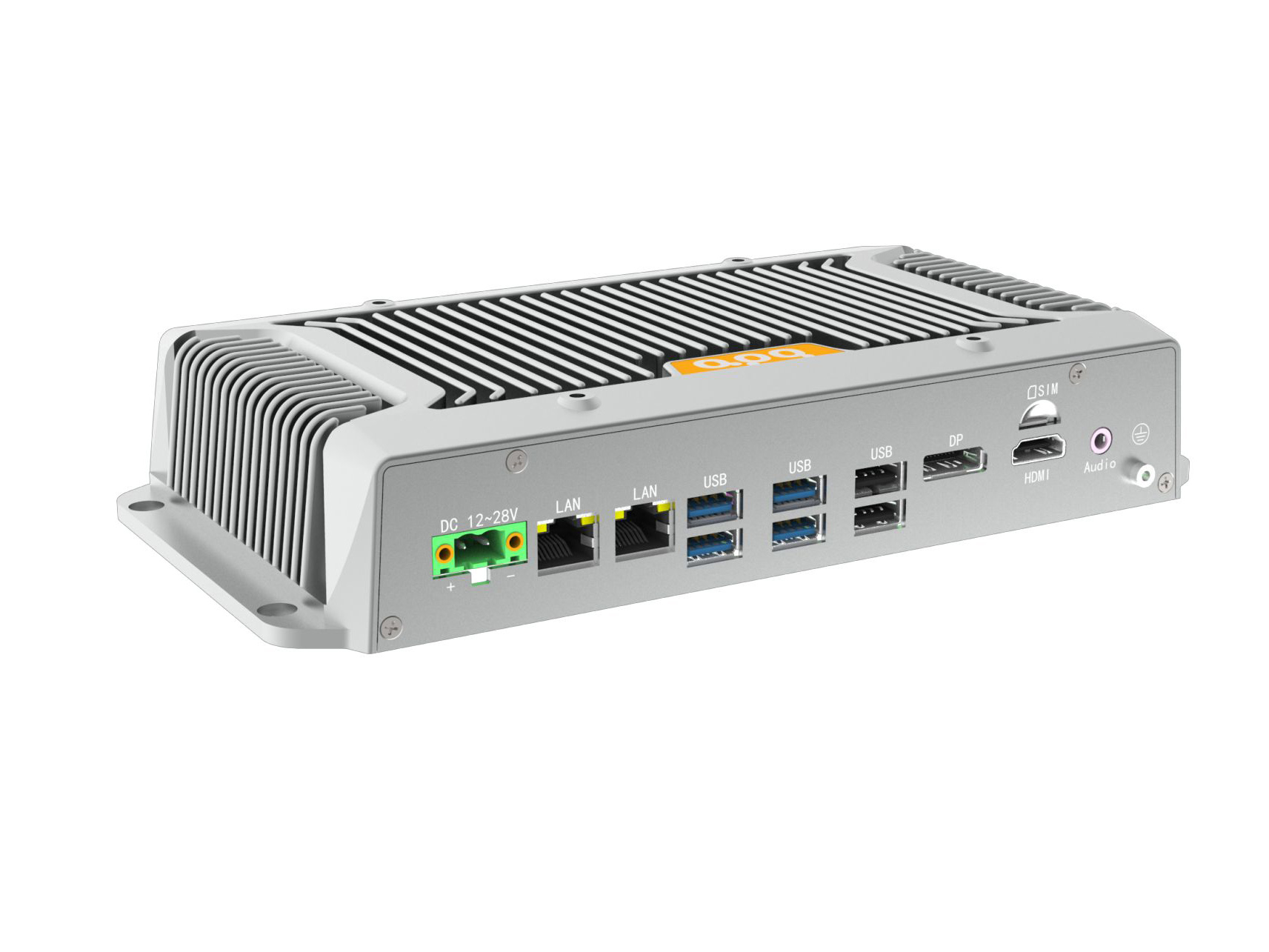

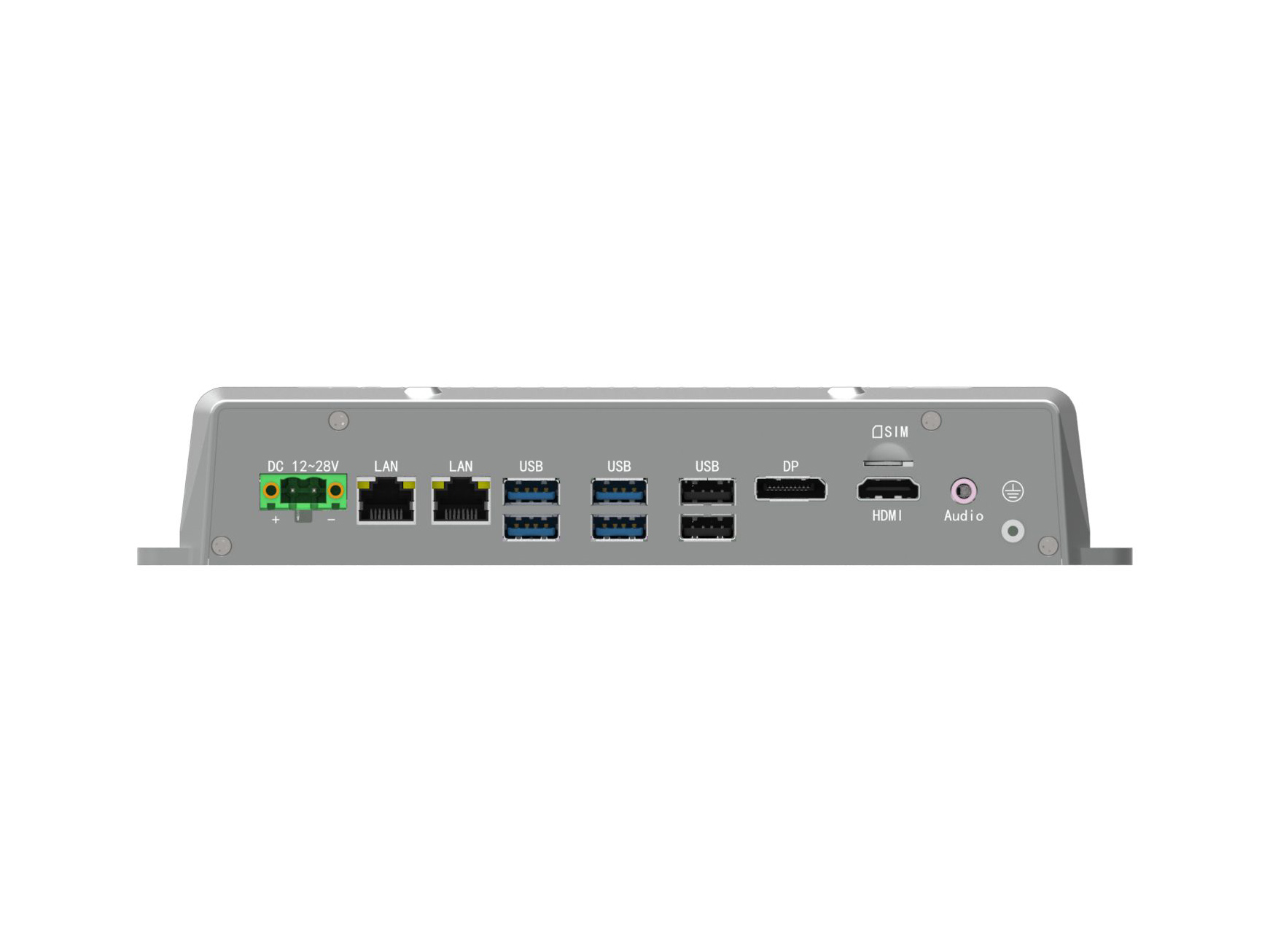

Front I/O |
USB | 4 * USB3.0 (Type-A) 2 * USB2.0 (Type-A) |
||
| Ethernet | 2 * RJ45 | |||
| Display | 1 * DP++: max resolution up to 4096x2160@60Hz 1 * HDMI (Type-A): max resolution up to 2048x1080@60Hz |
|||
| Audio | 1 * 3.5mm Jack (Line-Out + MIC, CTIA) | |||
| SIM | 1 * Nano-SIM Card slot (Mini PCIe module provides functional support) | |||
| Power | 1 * Power Input Connector (12~28V) | |||
|

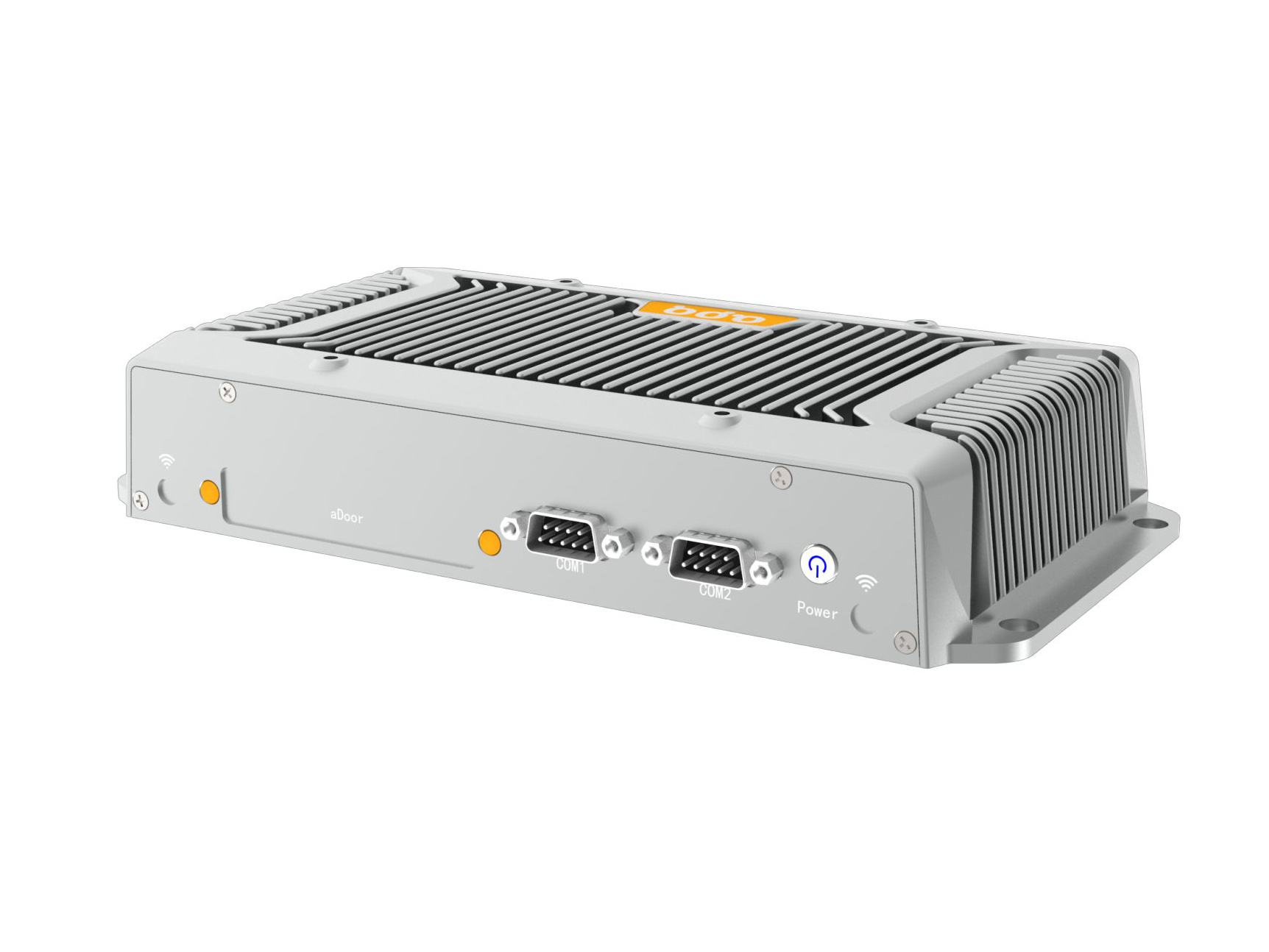

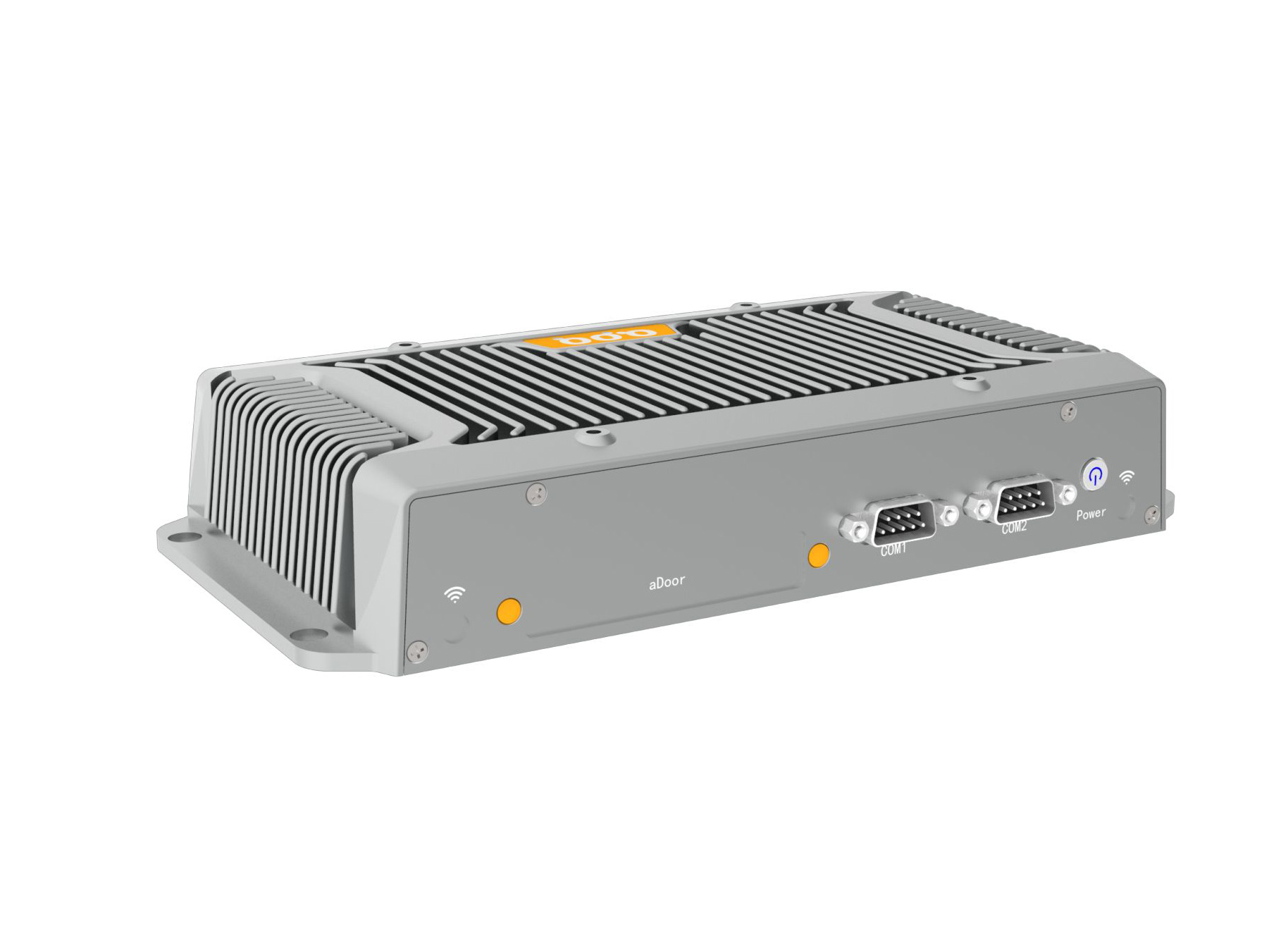

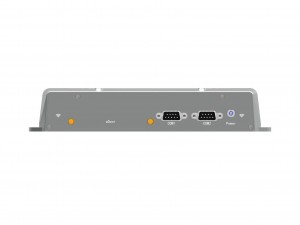

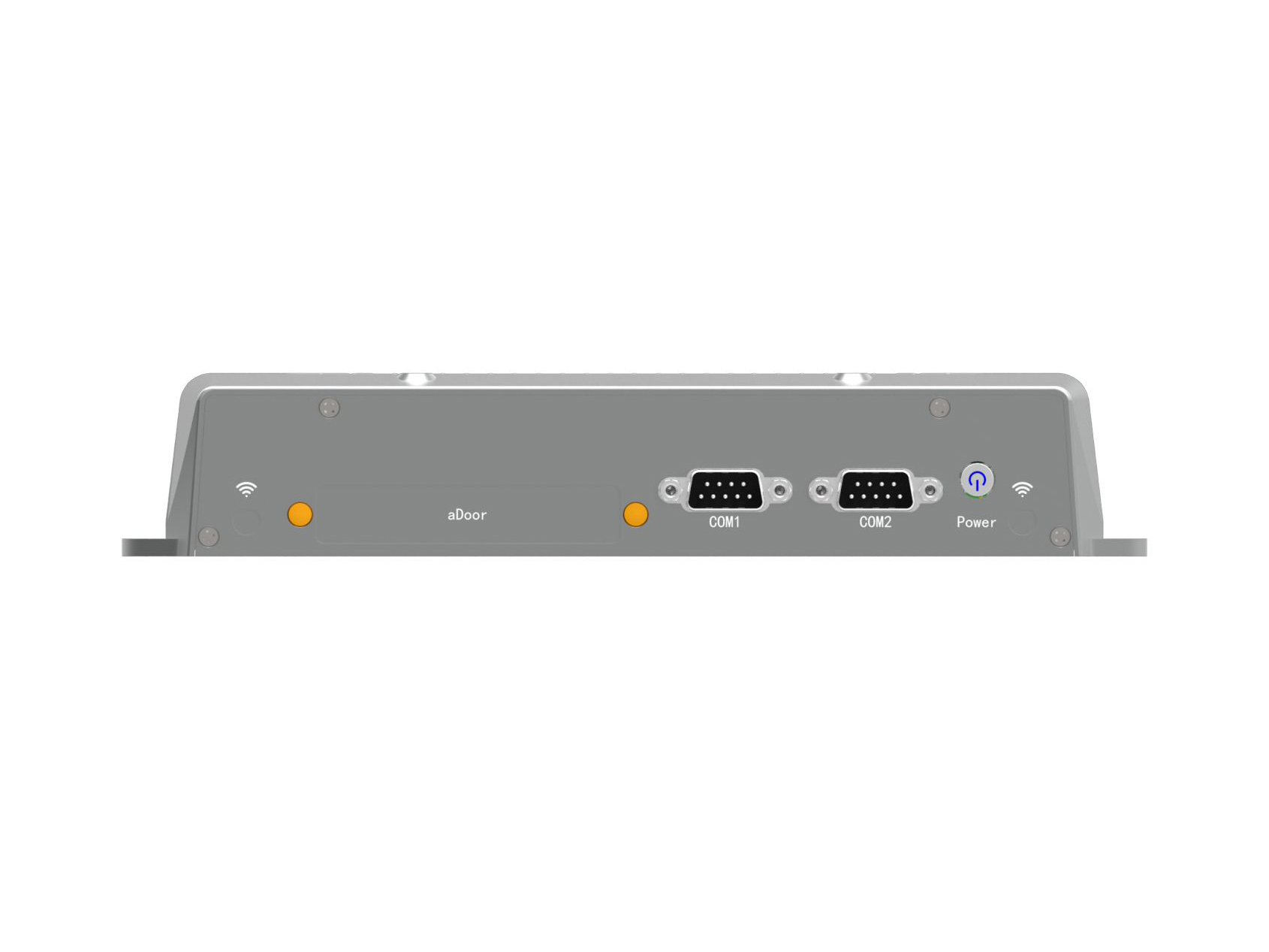

Rear I/O |
Button | 1 * Power Button with Power LED | ||
| Serial | 2 * RS232/485 (COM1/2, DB9/M, BIOS control) | |||
|
Internal I/O |
Front Panel | 1 * Front Panel (3x2Pin, PHD2.0) | ||
| FAN | 1 * SYS FAN (4x1Pin, MX1.25) | |||
| Serial | 2 * COM (JCOM3/4, 5x2Pin, PHD2.0) 2 * COM (JCOM5/6, 5x2Pin, PHD2.0) |
|||
| USB | 2 * USB2.0 (F_USB2_TP, 5x2Pin, PHD2.0) 2 * USB2.0 (F_USB2_1, 5x2Pin, PHD2.0) |
|||
| Display | 1 * LVDS/eDP (default LVDS, wafer, 25x2Pin 1.00mm) | |||
| Audio | 1 * Speaker (2-W (per channel)/8-Ω Loads, 4x1Pin, PH2.0) | |||
| GPIO | 1 * 16bits DIO (8xDI and 8xDO, 10x2Pin, PHD2.0) | |||
| LPC | 1 * LPC (8x2Pin, PHD2.0) | |||
|
Power Supply |
Type | DC | ||
| Power Input Voltage | 12~28VDC | |||
| Connector | 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) | |||
| RTC Battery | CR2032 Coin Cell | |||
|
OS Support |
Windows | Windows 10/11 | ||
| Linux | Linux | |||
|
Watchdog |
Output | System Reset | ||
| Interval | Programmable 1 ~ 255 sec | |||
|

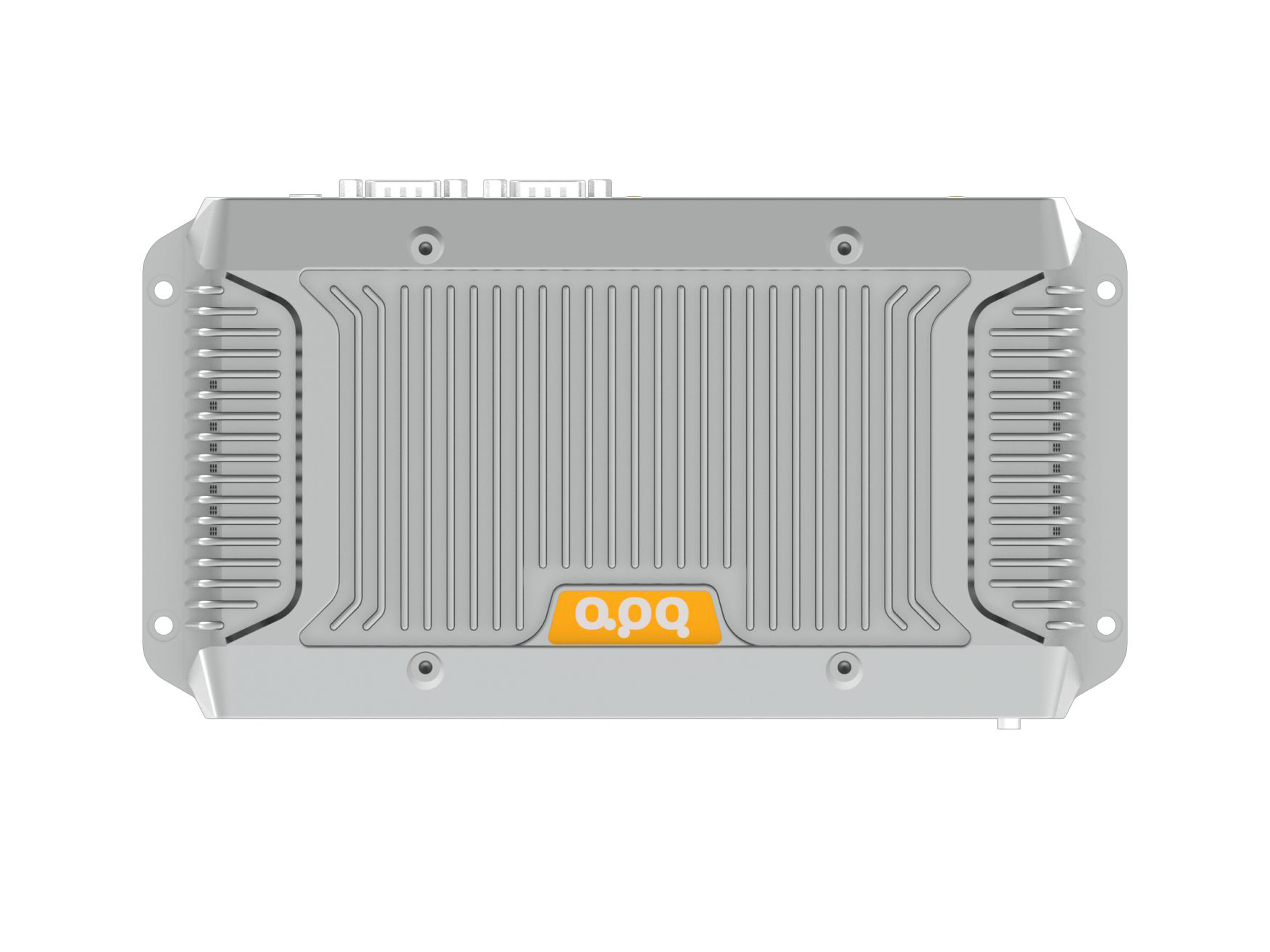

Mechanical |
Enclosure Material | Radiator: Aluminum, Box: SGCC | ||

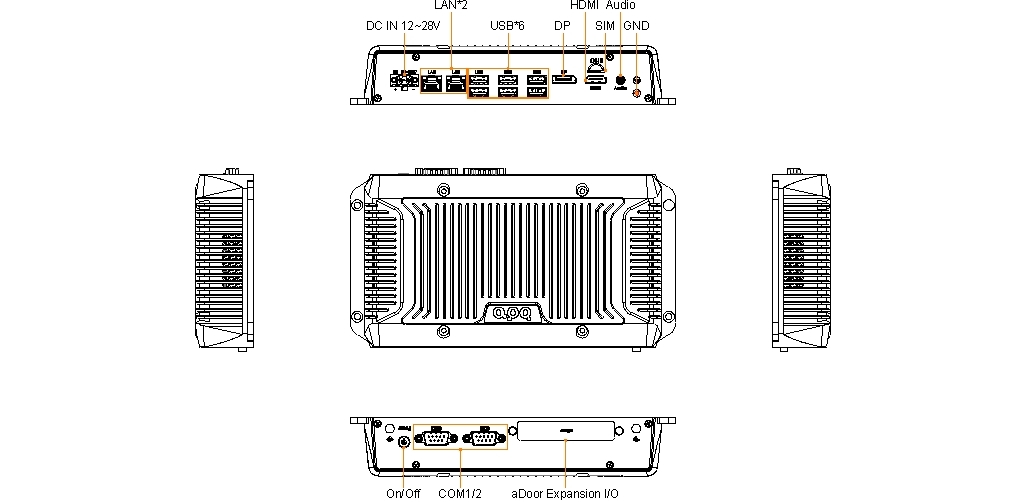

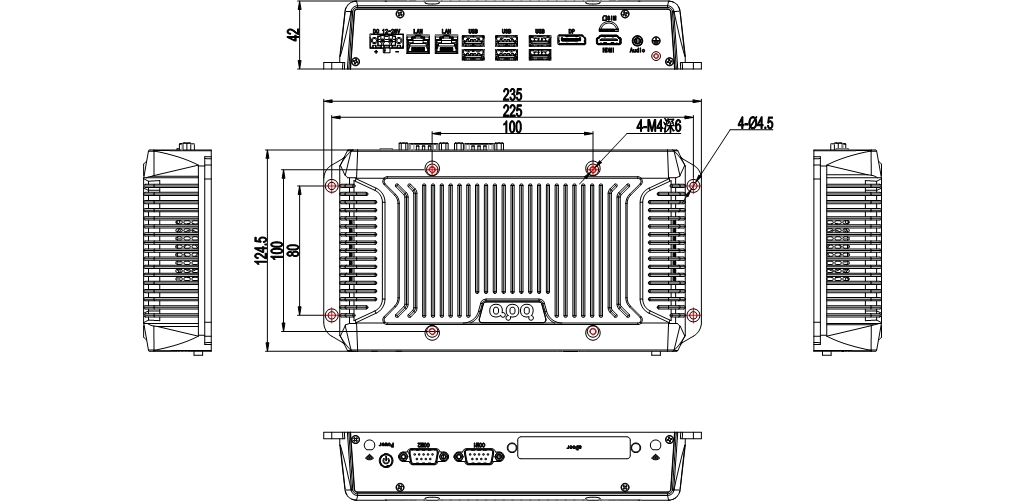

| Dimensions | 235mm(L) * 124.5mm(W) * 42mm(H) | |||
| Weight | Net: 1.2Kg, Total: 2.2Kg (include packaging) | |||
| Mounting | VESA, Wallmount, Desk mounting | |||
|

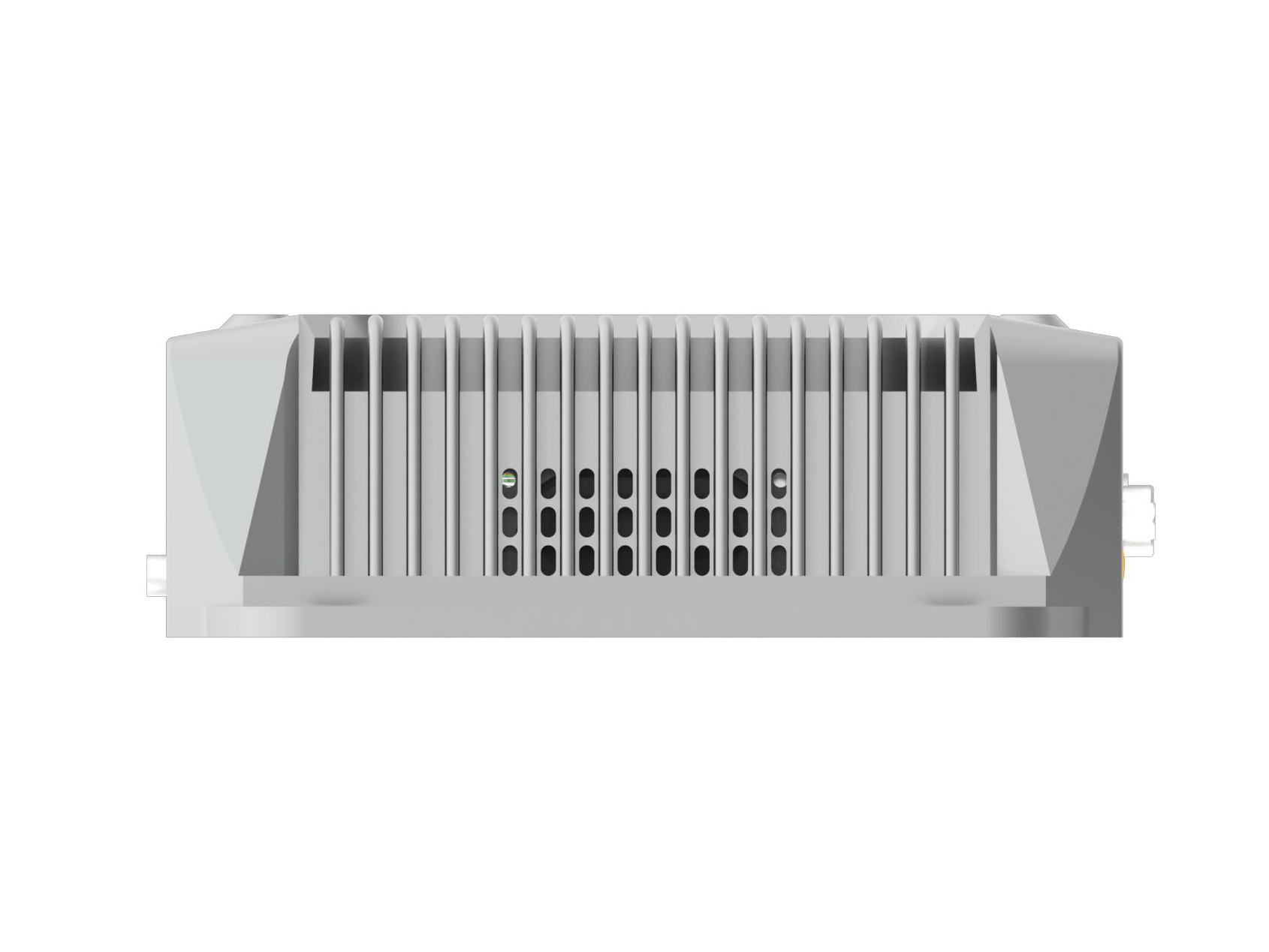

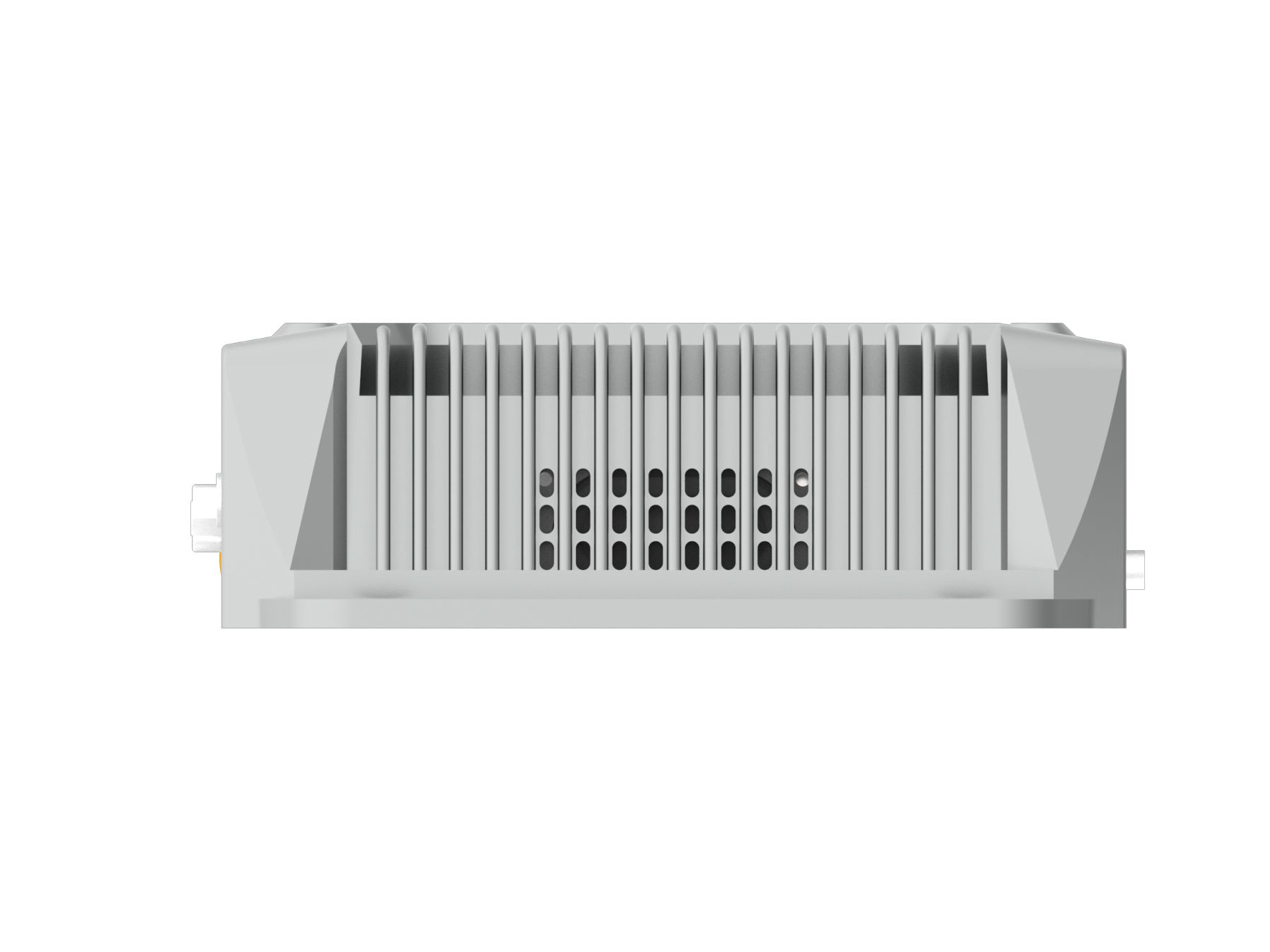

Environment |
Heat Dissipation System | Passive heat dissipation | ||
| Operating Temperature | -20~60℃ | |||
| Storage Temperature | -40~80℃ | |||
| Relative Humidity | 5 to 95% RH (non-condensing) | |||
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |||
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |||
-
