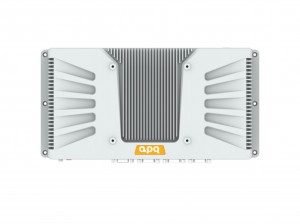

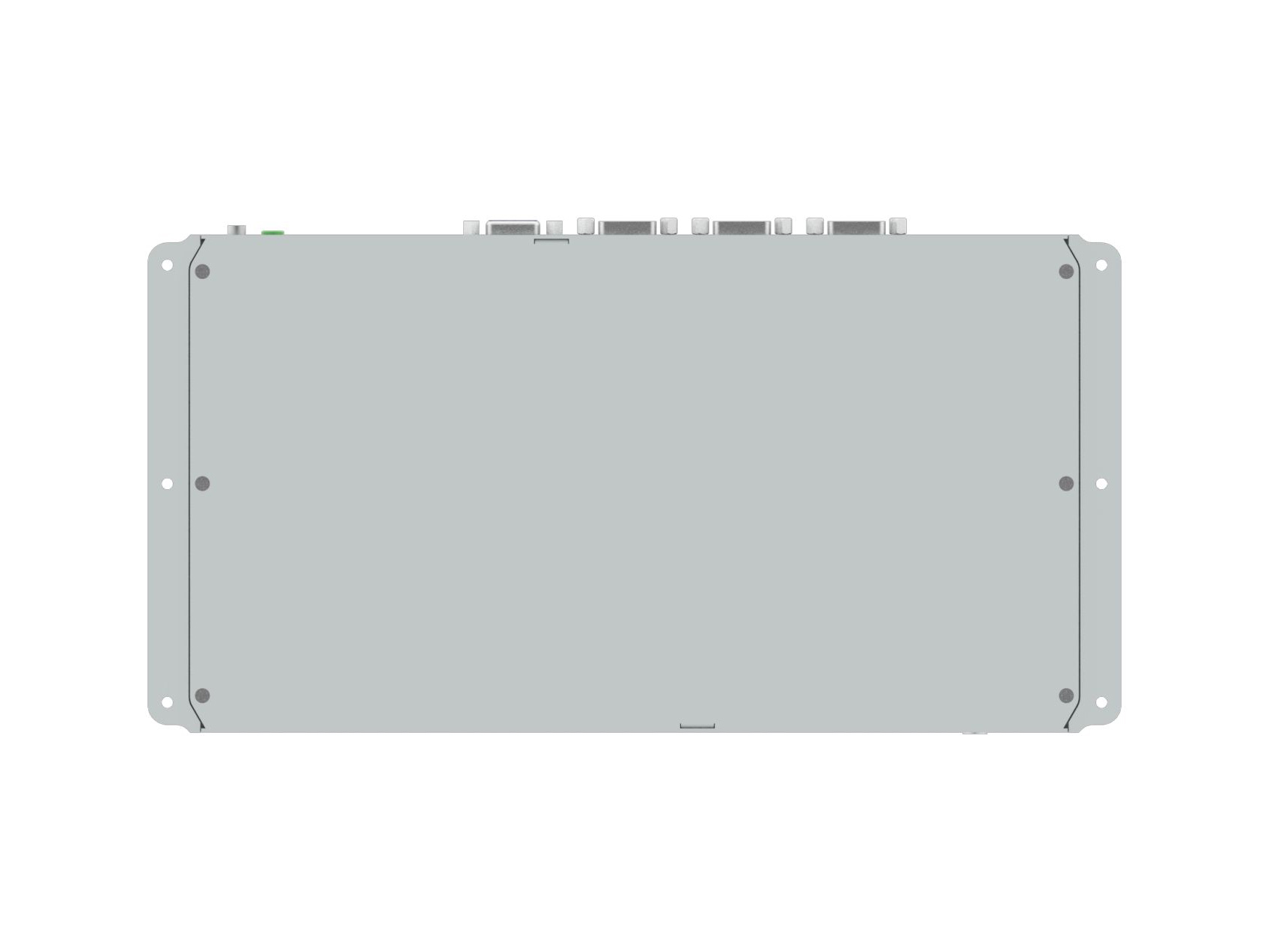

阿普奇 E5M | 多串口带隔离 无风扇嵌入式工控机
产品描述
阿普奇 E5M 是E系列嵌入式工控机中的工业串口专精型号——以全DB9接口的6路串口和MXM可扩展隔离模块为核心特色，是面向工业自动化多设备串口通信的专业平台。
核心配置采用成熟的低功耗平台（DDR3L SO-DIMM 1333MHz可插拔内存），双Intel i210-AT工业千兆网口。2.5寸SATA2.0硬盘位+M.2 Key-M（SATA SSD, 2280）双存储方案。
串口是E5M的核心——6路COM全部采用DB9/M标准工业接口（非wafer内置插针）：
• COM1/2: RS232/485双模，直接连接PLC和变频器
• COM3/4/5/6: RS232，连接传感器、仪表和HMI
全部DB9接口意味着所有串口设备都可通过标准串口线即插即用——无需打开机箱跳线、无需端子转接线。这在需要频繁更换设备和维护的工业现场中具有明显的便利性优势。
MXM隔离模块是E5M的差异化特色——通过内置MXM插槽（LPC+GPIO信号），可选配APQ MXM隔离COM模块或GPIO扩展模块。隔离方案通过光电耦合器将串口电路与外部工业设备电气分离，从根本上阻断感应电压和接地环路对控制器造成的隐性损伤。
aDoor扩展接口额外提供USB×4/LAN×2扩展能力。
USB配置：1×USB3.0+3×USB2.0(前置)+4×USB2.0(后置)+3×USB2.0(wafer内置)=11路。显示VGA+HDMI+LVDS/eDP三屏。
6路全DB9 COM+MXM隔离+11USB+aDoor+LVDS——E5M以传统DB9接口的工业便利性和MXM隔离保护的双重优势，是为多设备串口通信和工业电气安全要求较高的场景设计的专业嵌入式IPC。
|
Model |
E5M |
|
|
Processor System |
CPU | Intel® Celeron® Processor J1900, FCBGA1170 |
| TDP | 10W | |
| Chipset | SOC | |
| BIOS | AMI UEFI BIOS | |
|
Memory |
Socket | 1 * DDR3L-1333MHz SO-DIMM Slot |
| Max Capacity | 8GB | |
|
Graphics |
Controller | Intel® HD Graphics |
|
Ethernet |
Controller | 2 * Intel® i210-AT (10/100/1000 Mbps, RJ45) |
|
Storage |
SATA | 1 * SATA2.0 Connector (2.5-inch hard disk with 15 + 7pin) |
| M.2 | 1 * M.2 Key-M Slot (support SATA SSD, 2280) | |
|
Expansion Slots |
MXM/aDoor | 1 * MXM Slot (LPC + GPIO, support COM/GPIO MXM card) |
| Mini PCIe | 1 * Mini PCIe Slot (PCIe2.0 + USB2.0, with 1 * Nano SIM Card) | |
|

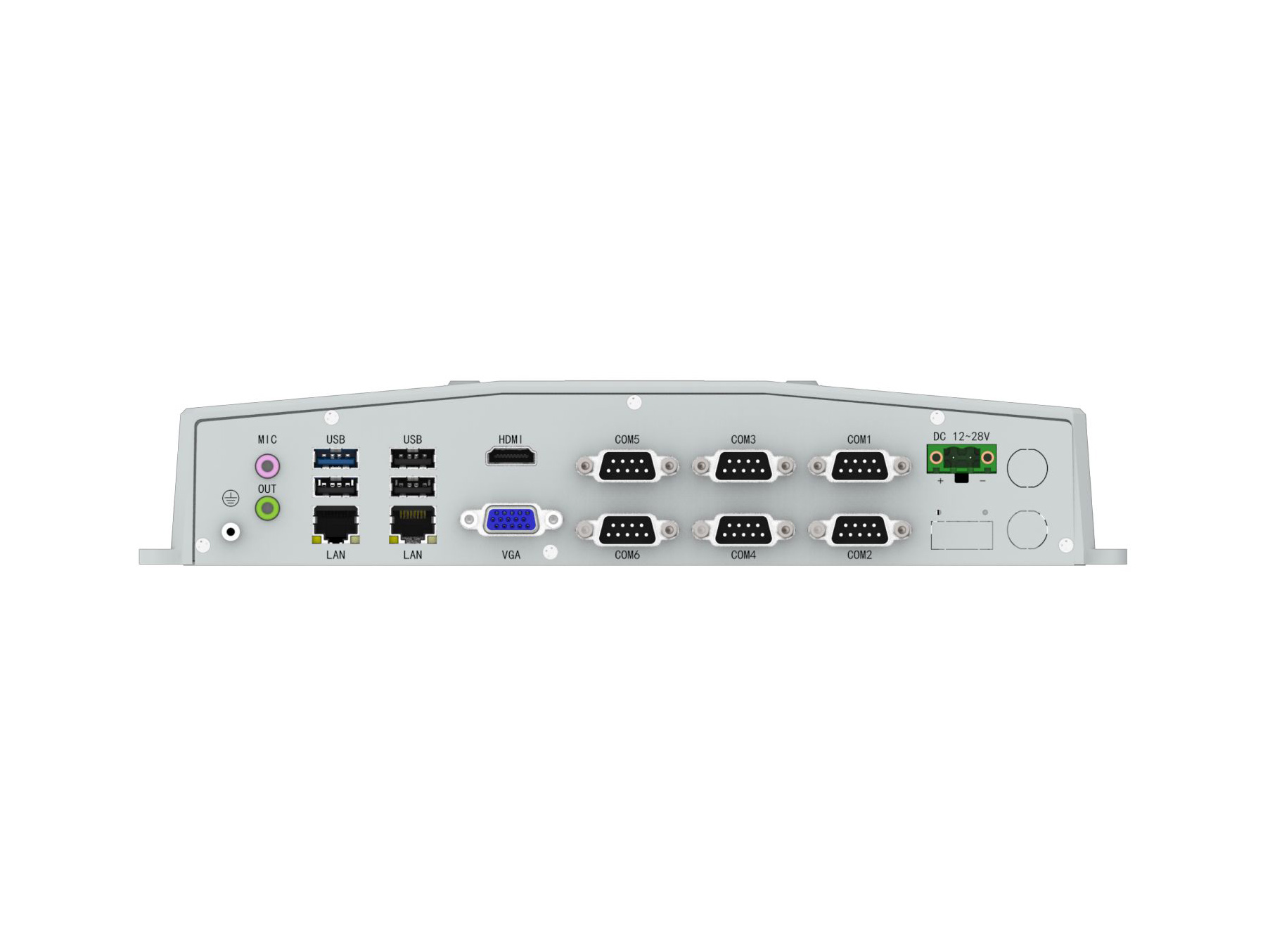

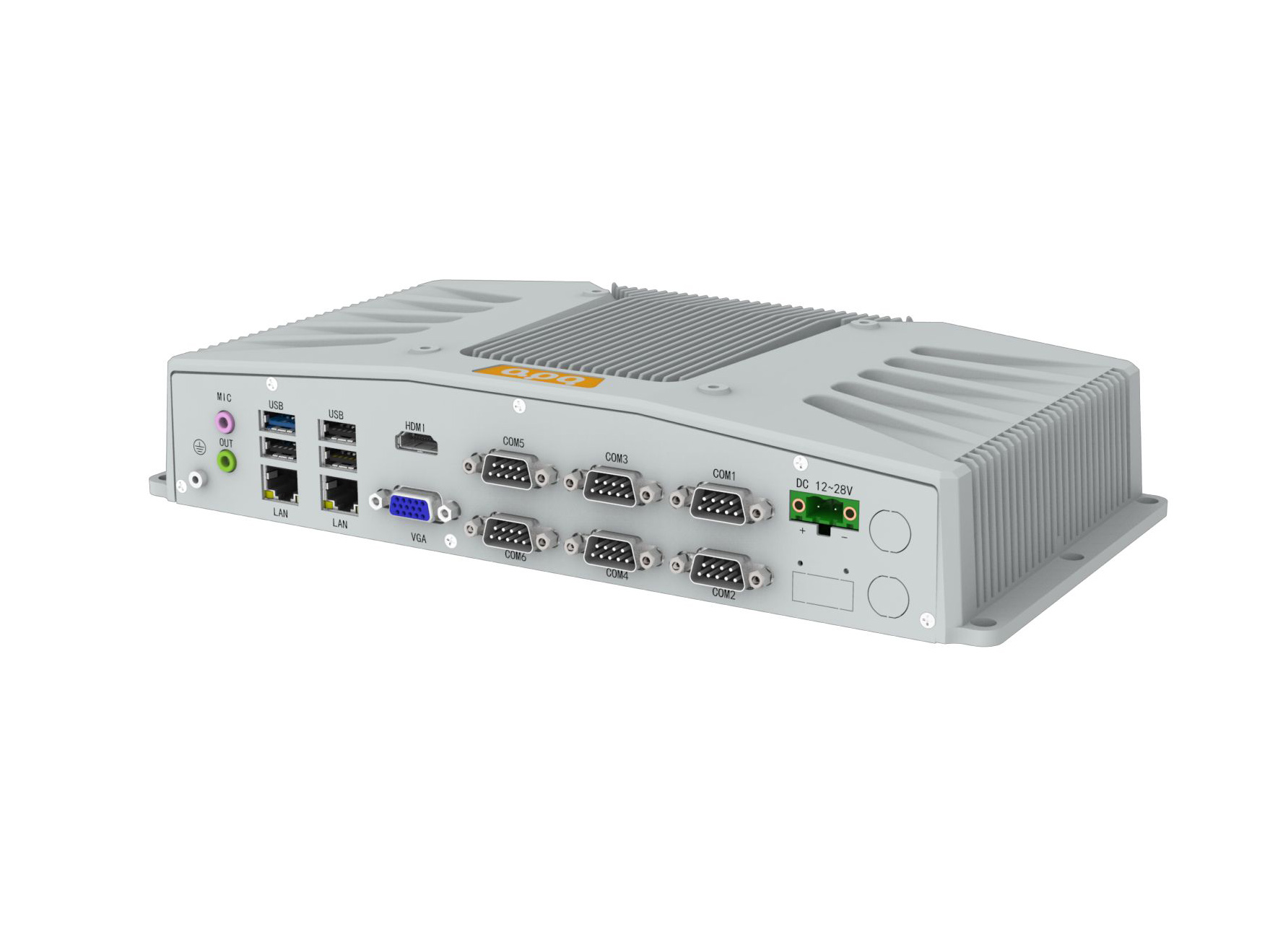

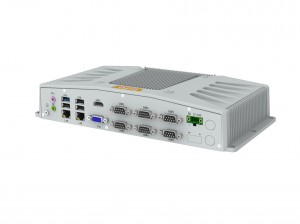

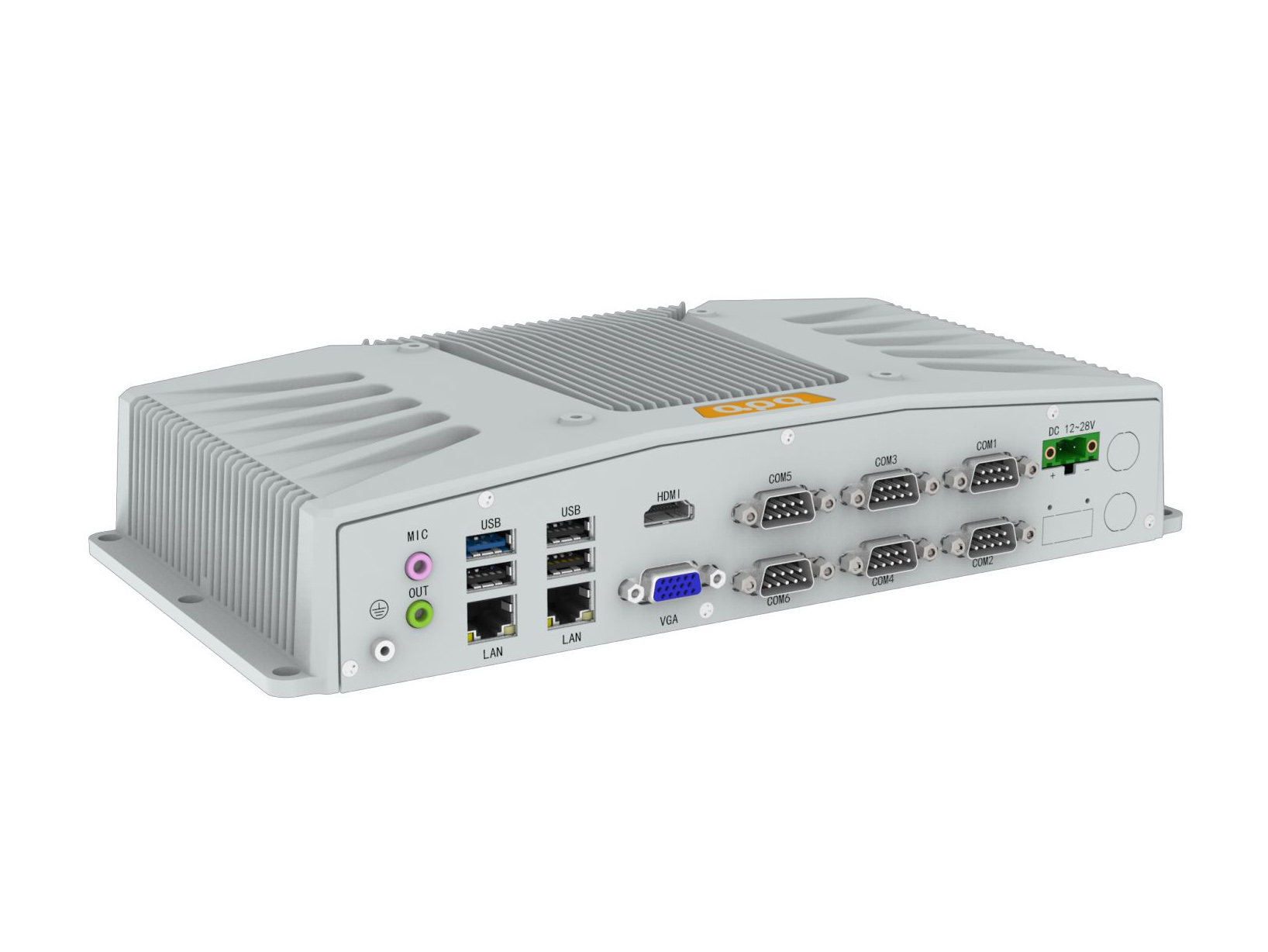

Front I/O |
USB | 1 * USB3.0 (Type-A) 3 * USB2.0 (Type-A) |
| Ethernet | 2 * RJ45 | |
| Display | 1 * VGA: max resolution up to 1920*1280 @ 60Hz 1 * HDMI: max resolution up to 1920*1280 @ 60Hz |
|
| Audio | 1 * 3.5mm Line-out Jack 1 * 3.5mm MIC Jack |
|
| Serial | 2 * RS232/485 (COM1/2, DB9/M) 4 * RS232 (COM3/4/5/6, DB9/M) |
|
| Power | 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) | |
|

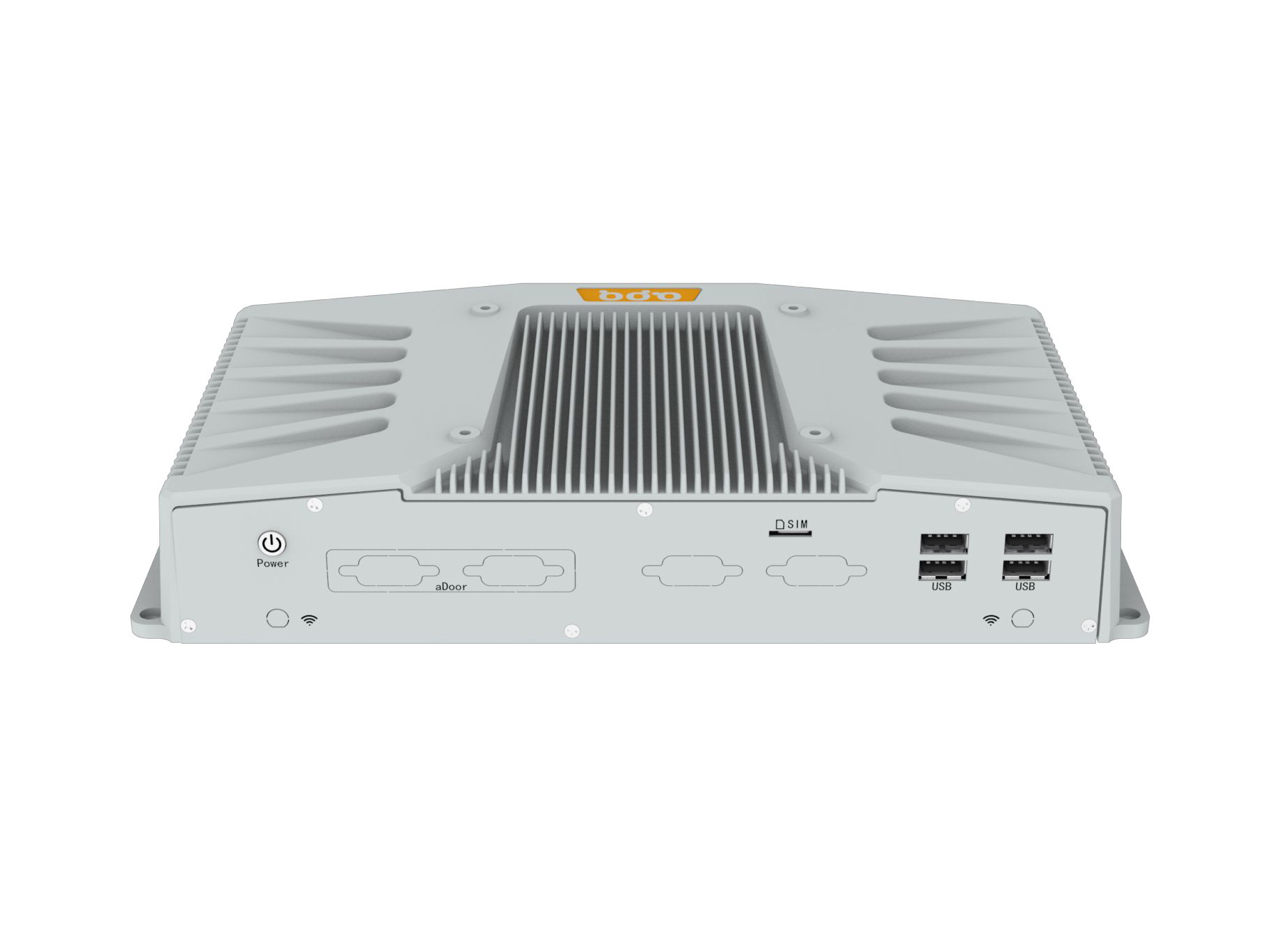

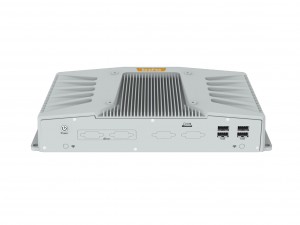

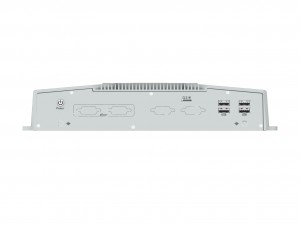

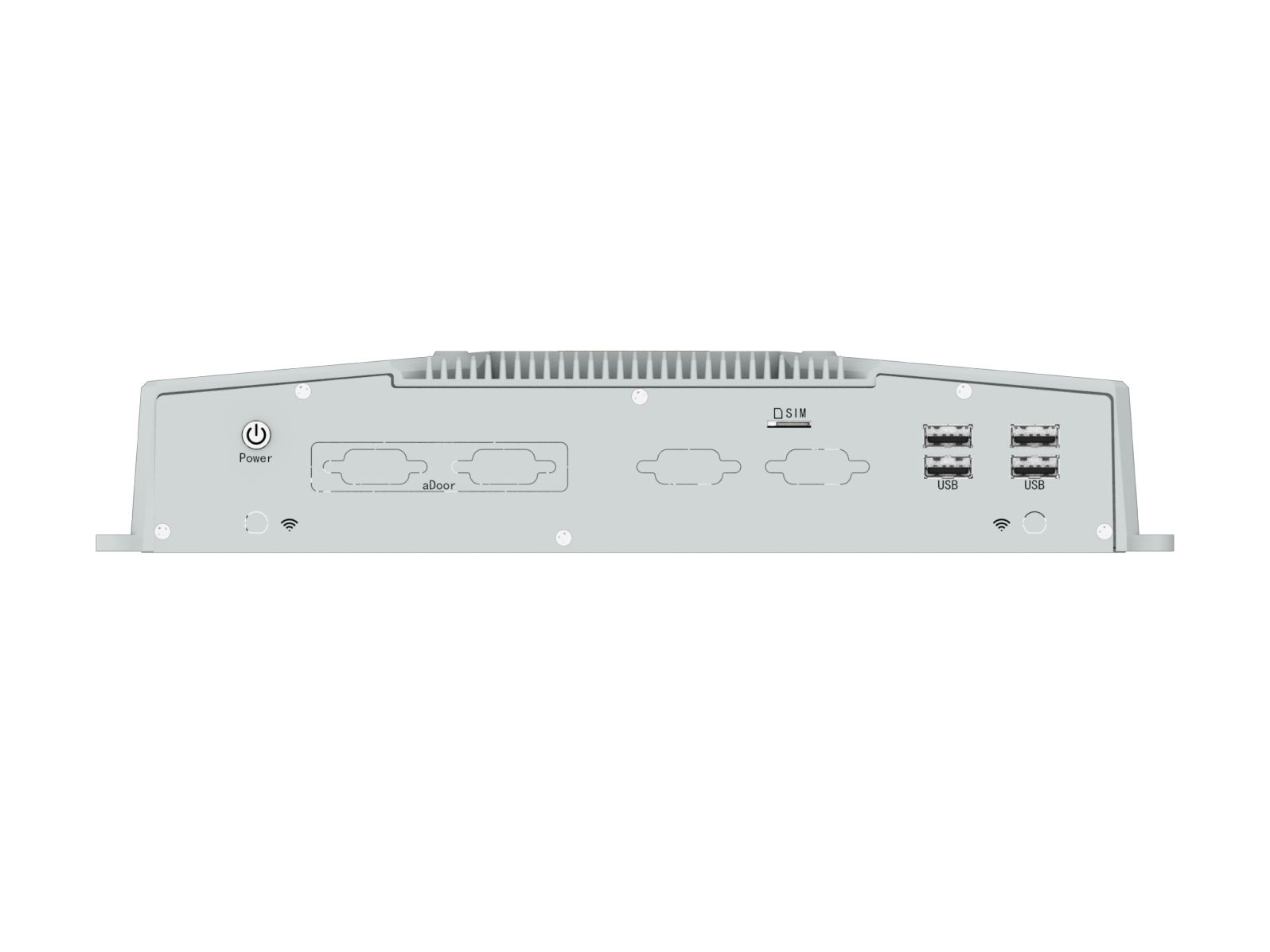

Rear I/O |
USB | 4 * USB2.0 (Type-A) |
| SIM | 1 * Nano SIM Card slot | |
| Button | 1 * Power Button with LED | |
|
Internal I/O |
Front Panel | 1 * TFront Panel (3 * USB2.0 + Front Panel, wafer) 1 * Front Panel (wafer) |
| FAN | 1 * SYS FAN (wafer) | |
| LPC | 1 * LPC (wafer) | |
| PS/2 | 1 * PS/2 (PS/2 keyboard + mouse, wafer) | |
| USB | 2 * USB2.0 (wafer) | |
| Power | 1 * DCIN (Power input, wafer) | |
| Display | 1 * LVDS/eDP (Default LVDS, wafer) | |
| GPIO | 1 * 16bits DIO (8xDI and 8xDO, wafer) | |
| Audio | 1 * Front Audio (Line-Out + MIC, header) 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) |
|
|
Power Supply |
Type | DC |
| Power Input Voltage | 12~28VDC | |
| Connector | 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 7/8.1/10 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | Radiator: Aluminum alloy, Box: SGCC |
| Dimensions | 293.5mm(L) * 149.5mm(W) * 54.5mm(H) | |
| Weight | Net: 2.1Kg
Total: 3.1Kg (include packaging) |
|
| Mounting | VESA, Wall mounted, Desk mounting | |
|
Environment |

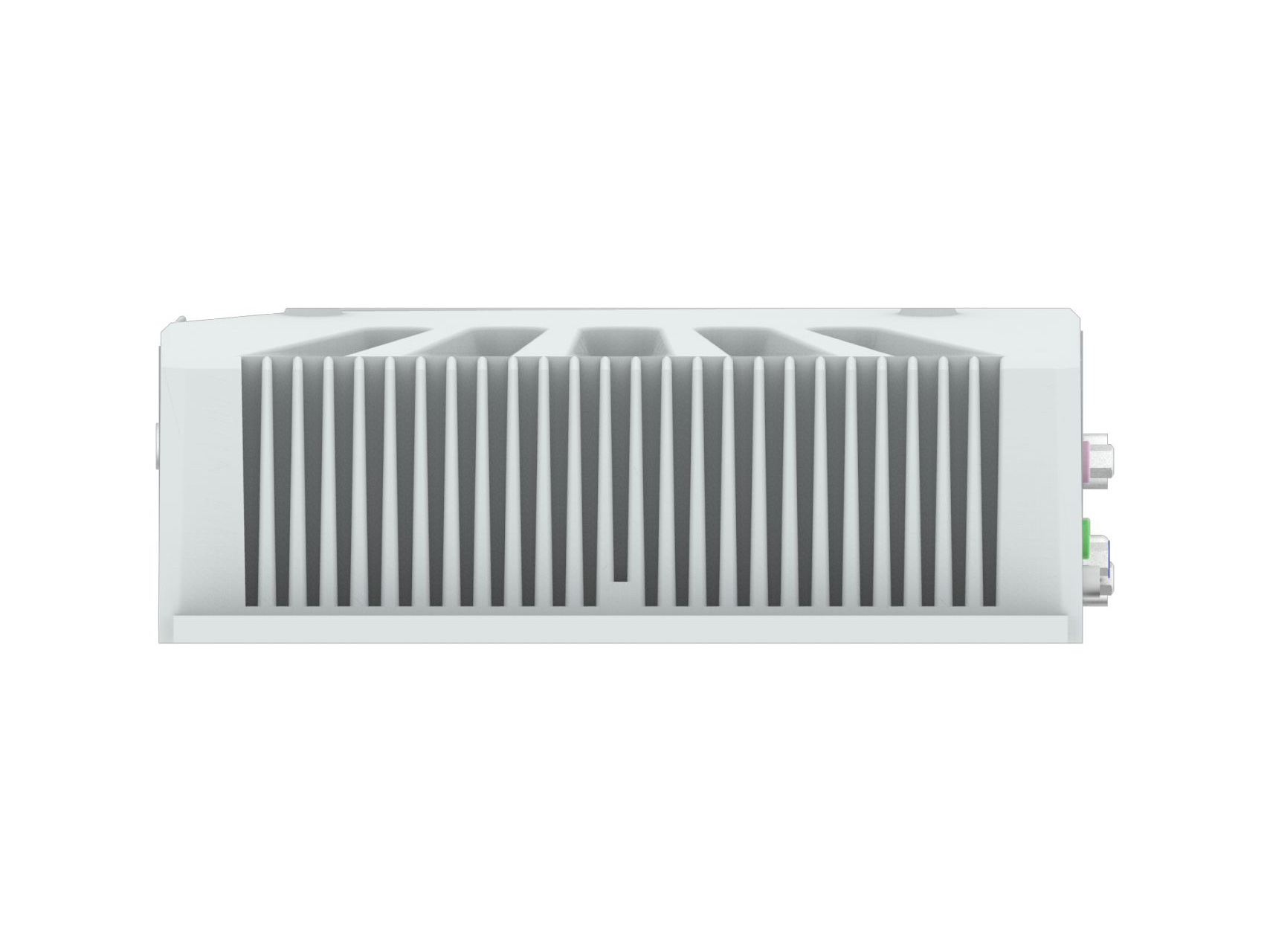

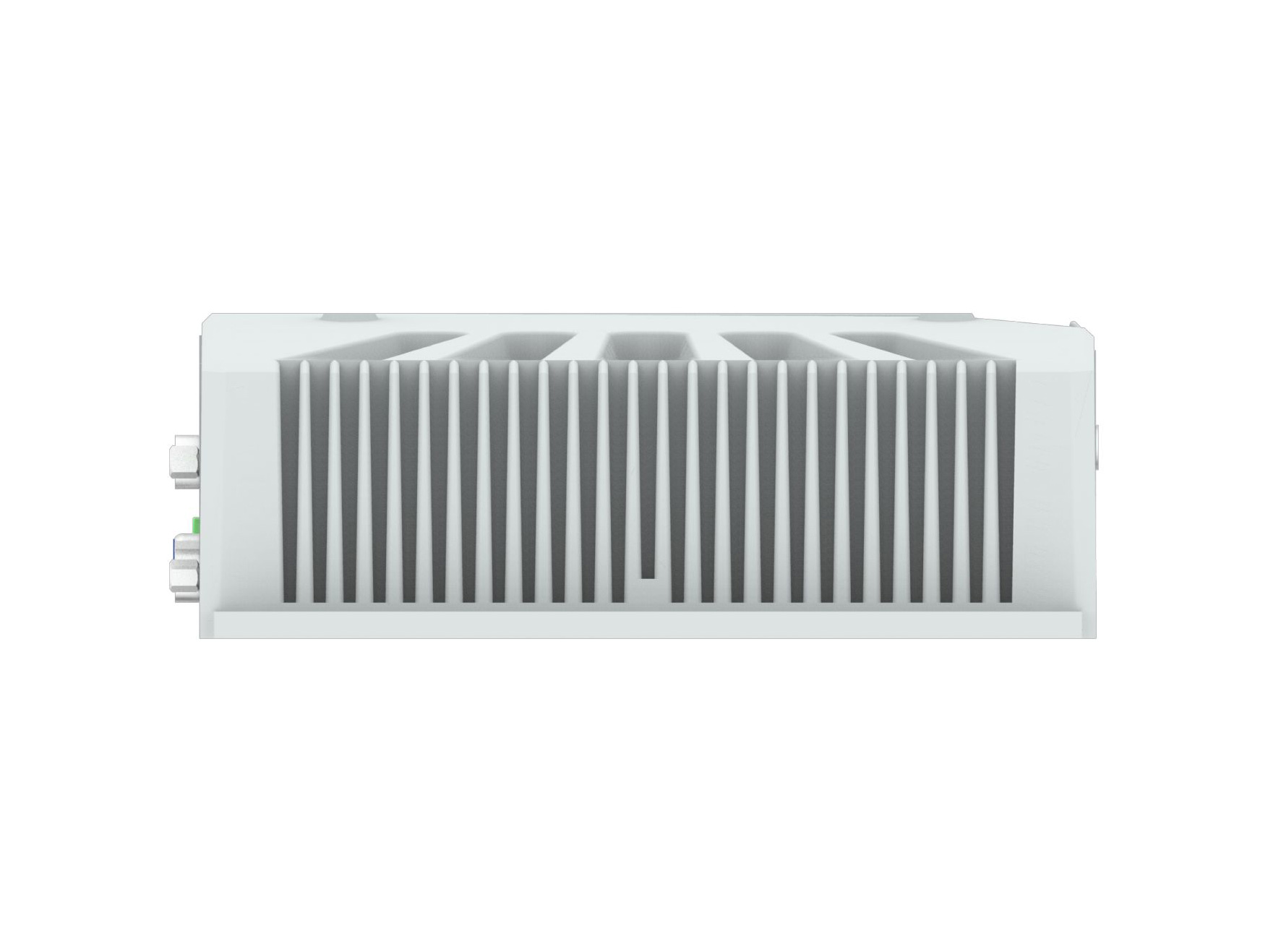

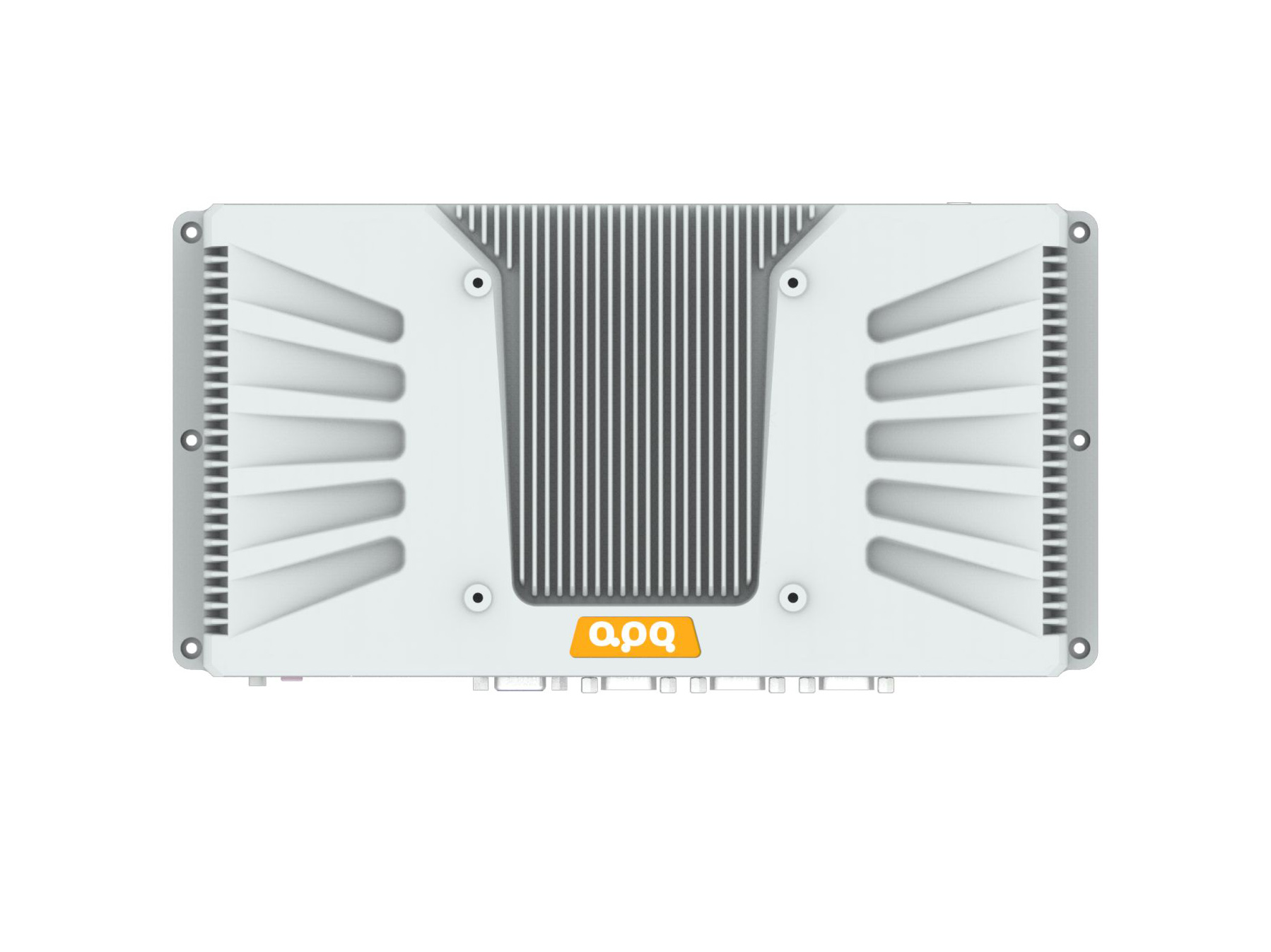

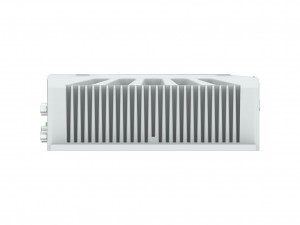

Heat Dissipation System | Passive heat dissipation |
| Operating Temperature | -20~60℃ | |
| Storage Temperature | -40~80℃ | |
| Relative Humidity | 5 to 95% RH (non-condensing) | |
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
| Certification | CE/FCC, RoHS | |
-
