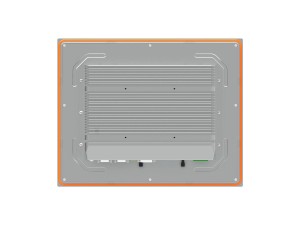

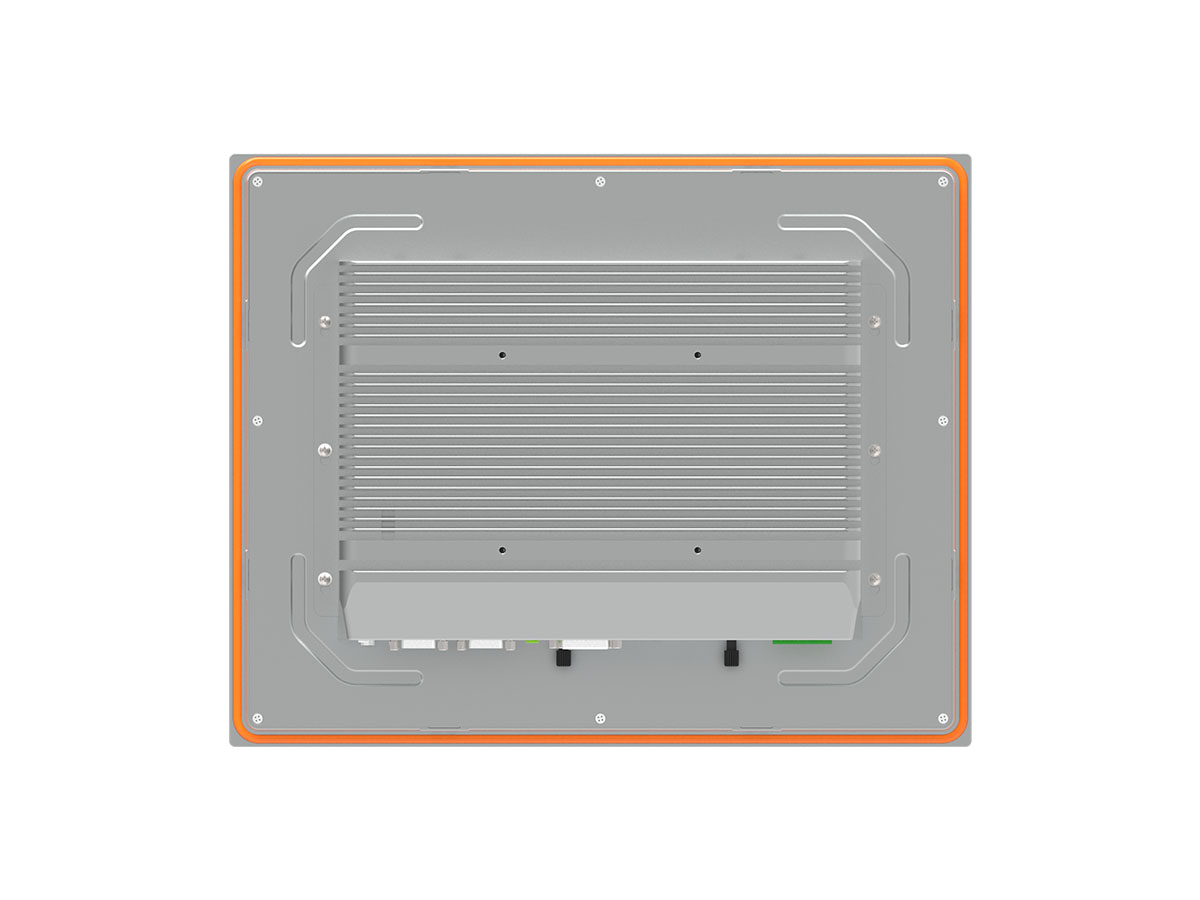

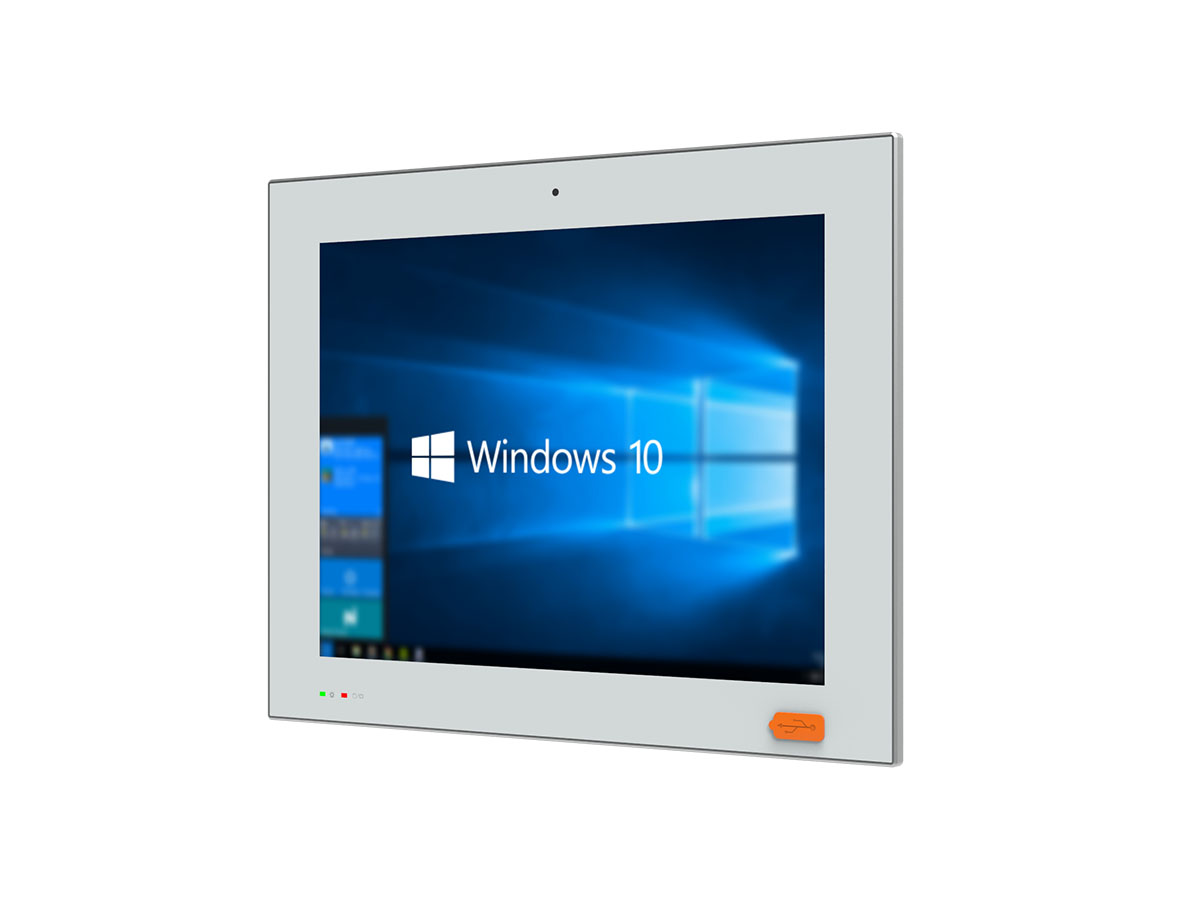

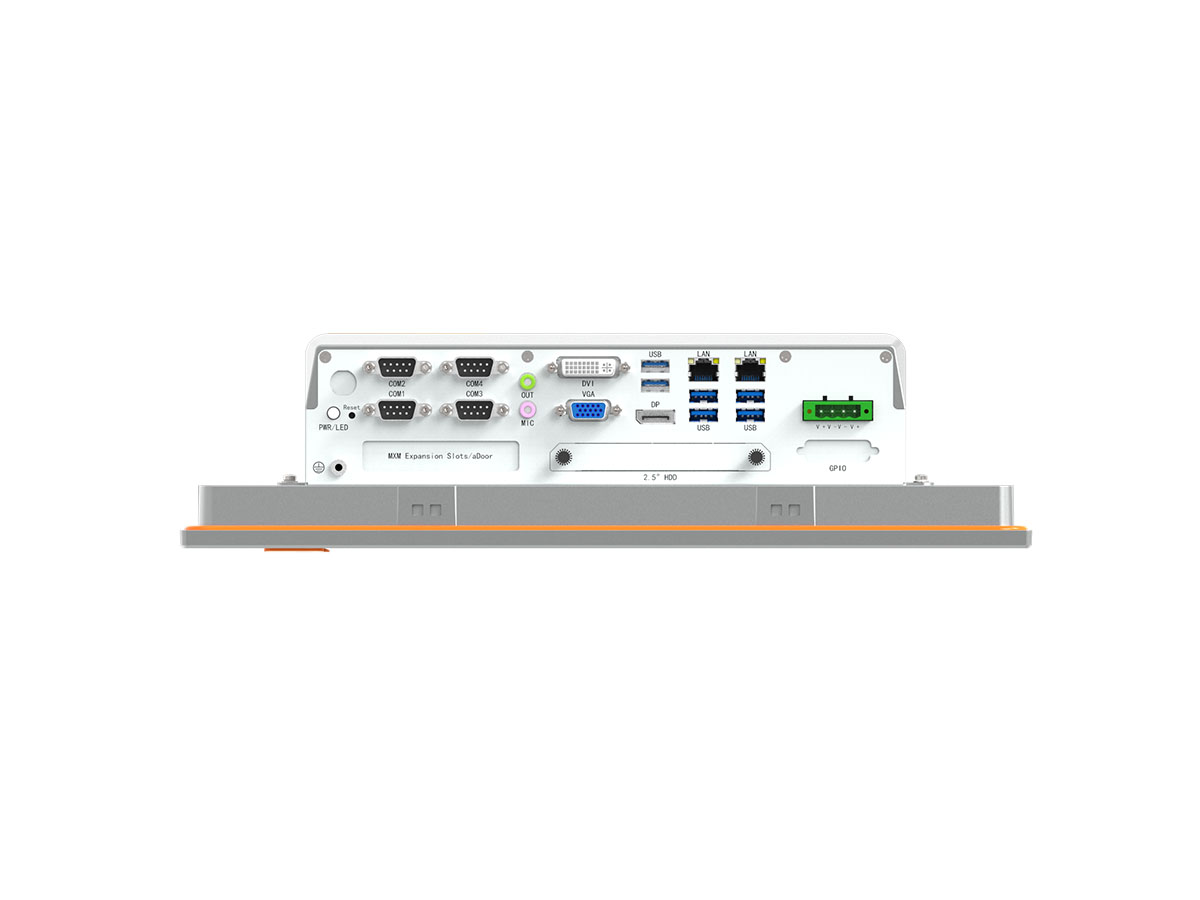

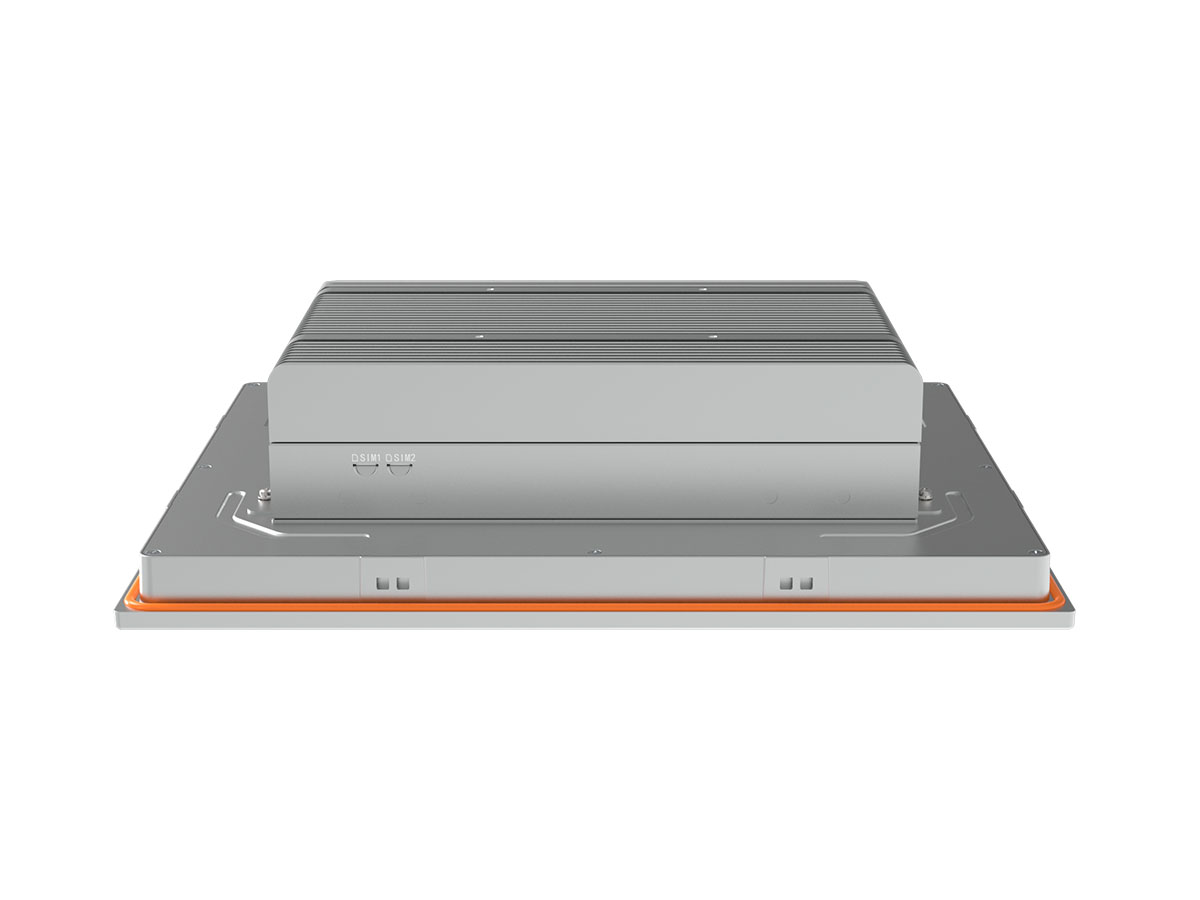

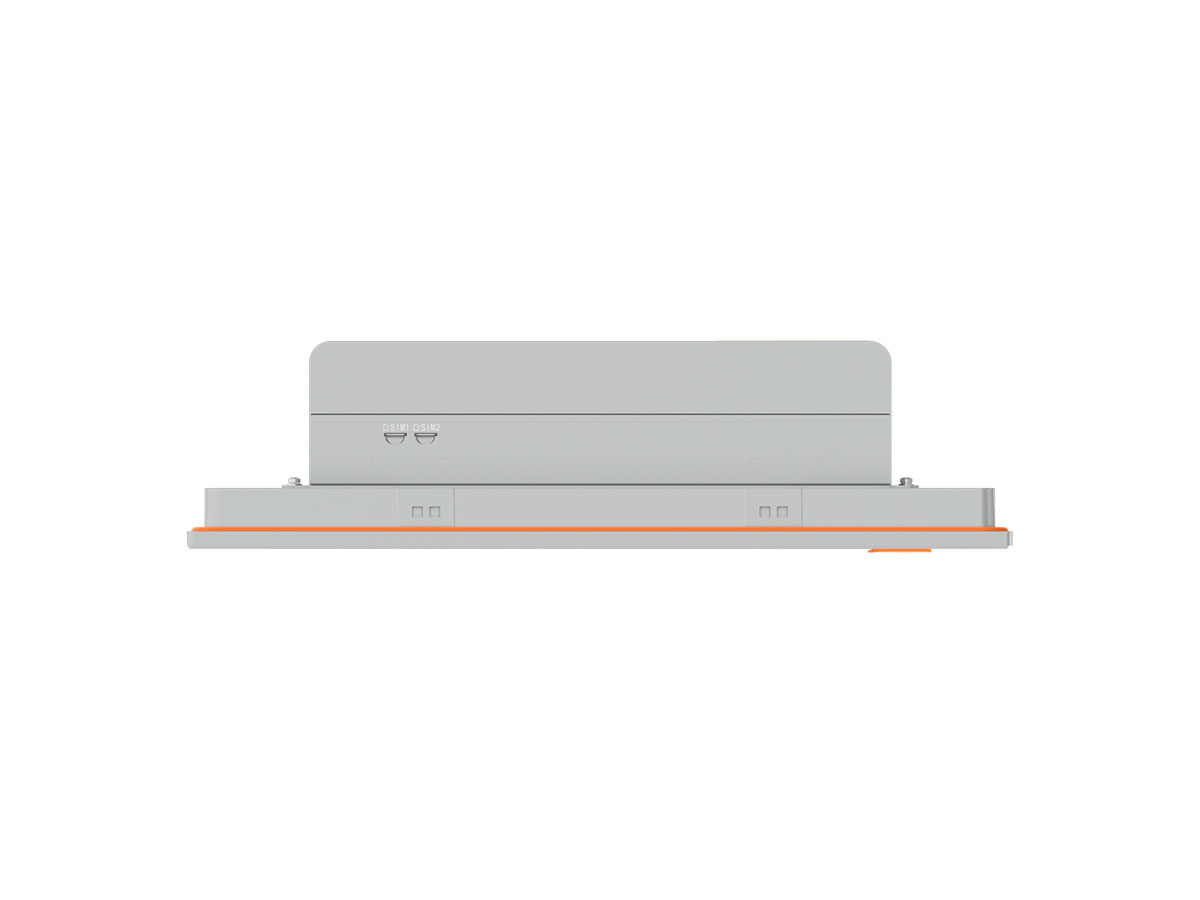

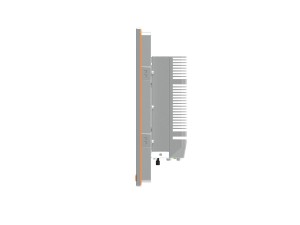

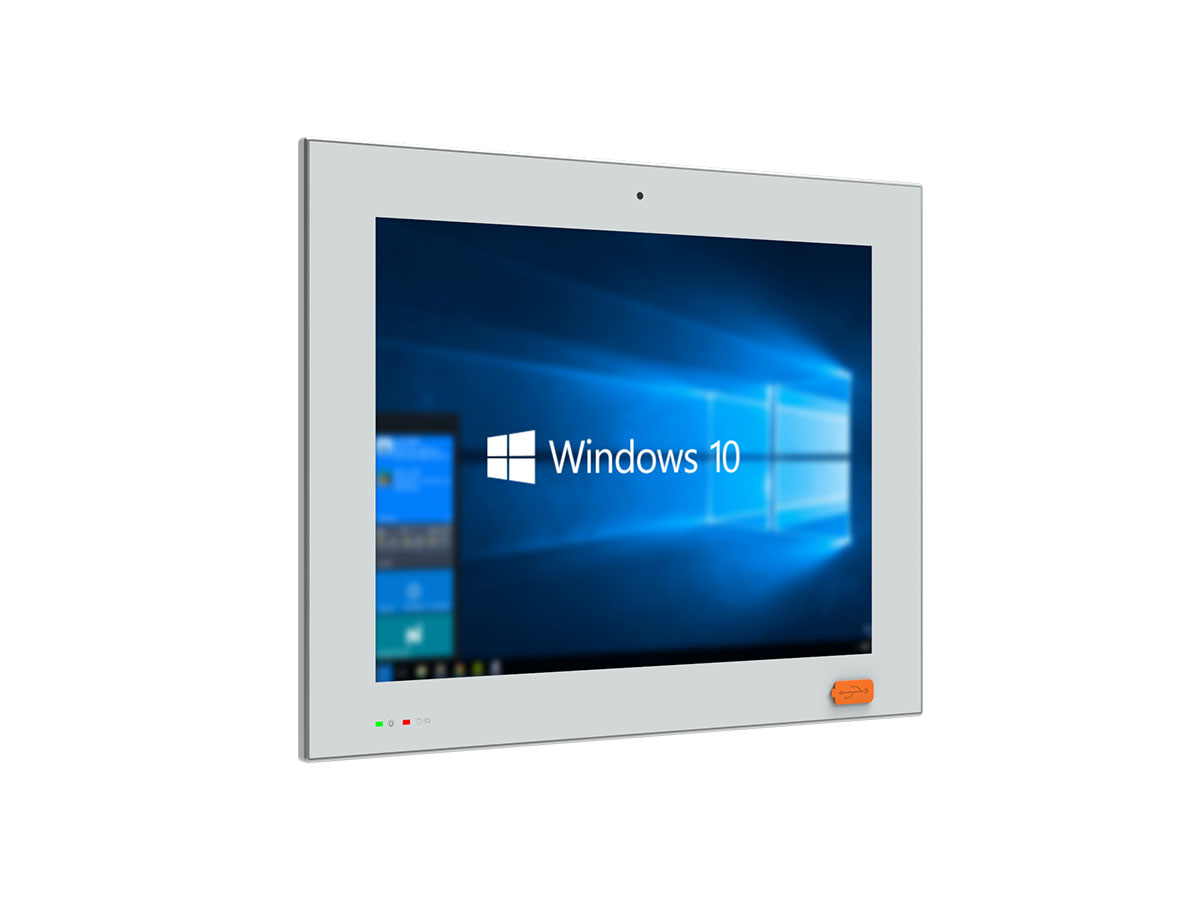

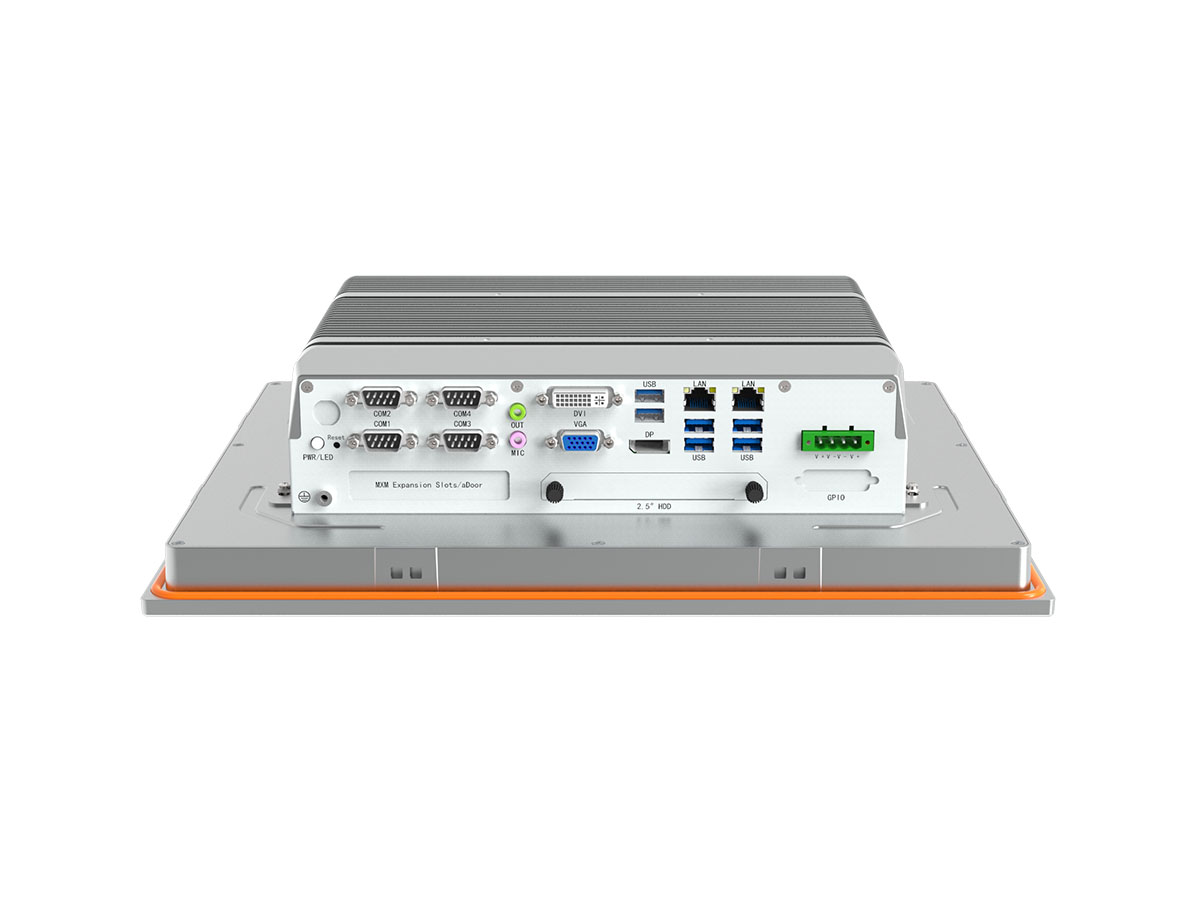

Note: The product image shown above is the PL150CQ-E7L-Q670 model
阿普奇 PLxxxCQ-E7L-Q670 | 8USB无风扇 12.1-27寸10点电容触控一体机
远程管理
状态监控
远程运维
安全控制
联系我们
扫码即可添加微信，售前客服为您提供咨询服务
阿普奇 PLxxxCQ-E7L-Q670 | 8USB无风扇 12.1-27寸10点电容触控一体机
产品描述
阿普奇 PLxxxCQ-E7L-Q670 系列是阿普奇模块化无风扇工业触控一体机产品线的旗舰系列。该产品隶属于阿普奇工业一体机（PL系列），采用全屏电容触摸屏设计和无风扇被动散热架构，提供从12.1英寸到27英寸共9种屏幕尺寸的模块化选择，涵盖方屏与宽屏。
核心配置方面，搭载Intel 12/13/14代酷睿桌面处理器（TDP 35W, LGA1700），搭配企业级Intel Q670芯片组与2×SO-DIMM DDR4双通道3200MHz内存（最大64GB）。网络方面配备1×Intel i225-V 2.5GbE网卡 + 1×Intel i219-LM千兆网卡。存储方面提供2×SATA3.0 2.5英寸硬盘位（含一路快拆设计）、1×M.2 Key-M（PCIe Gen4 x4 + SATA3.0, NVMe/SATA自动识别）和1×M.2 Key-E（2230 Wi-Fi/BT）。
扩展系统是该系列的一大亮点：创新的aDoor模块化扩展总线可灵活选配4×LAN/4×POE/6×COM/16×GPIO扩展卡，2×Mini PCIe（含Nano SIM卡槽）支持4G/5G通信扩展。前置面板集成了8路USB3.2接口（含2路10Gbps Gen2x1和6路5Gbps Gen1x1）和4路COM口，同时提供了AT/ATX模式切换按钮、OS恢复按钮等运维便利设计。全系标配10点投射电容触摸屏（透光率≥85%，硬度≥6H），前面板满足IP65防护等级。
显示系统提供HDMI1.4b、DP1.4a和内部LVDS共3路显示输出，DP1.4a最高支持4K@60Hz分辨率。无风扇被动散热设计使12.1~15.6英寸型号可适应-20~60℃宽温环境，并通过IEC 60068-2-64振动和IEC 60068-2-27冲击认证。享受阿普奇3年超长质保和30分钟快速响应服务。
|
Model |
PL121CQ-E7L | PL150CQ-E7L | PL156CQ-E7L | PL170CQ-E7L | PL185CQ-E7L | PL191CQ-E7L | PL215CQ-E7L | PL238CQ-E7L | PL270CQ-E7L | |
|
LCD |
Display Size | 12.1" | 15.0" | 15.6" | 17.0" | 18.5" | 19.0" | 21.5" | 23.8" | 27.0" |
| Display Type | XGA TFT-LCD | XGA TFT-LCD | FHD TFT-LCD | SXGA TFT-LCD | WXGA TFT-LCD | WXGA TFT-LCD | FHD TFT-LCD | FHD TFT-LCD | FHD TFT-LCD | |
| Max.Resolution | 1024 x 768 | 1024 x 768 | 1920 x 1080 | 1280 x 1024 | 1366 x 768 | 1440 x 900 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | |
| Luminance | 350 cd/m2 | 300 cd/m2 | 350 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 300 cd/m2 | |
| Aspect Ratio | 4:3 | 4:3 | 16:9 | 5:4 | 16:9 | 16:10 | 16:9 | 16:9 | 16:9 | |
| Viewing Angle | 80/80/80/80° | 88/88/88/88° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | 85/85/80/80° | 89/89/89/89° | 89/89/89/89 | 89/89/89/89 | |
| Max. Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | |
| Backlight Lifetime | 30,000 hr | 70,000 hr | 50,000 hr | 30,000 hr | 30,000 hr | 30,000 hr | 50,000 hr | 30,000 Hrs | 30,000 Hrs | |
| Contrast Ratio | 800:1 | 2000:1 | 800:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:01:00 | 3000:01:00 | |
|
Touchscreen |
Touch Type | Projected Capacitive Touch | ||||||||
| Controller | USB signal | |||||||||
| Input | Finger/Capacitive Touch Pen | |||||||||
| Light Transmission | ≥85% | |||||||||
| Hardness | ≥6H | |||||||||
|
Processor System |
CPU | Intel® 12/13/14th Generation Core / Pentium/ Celeron Desktop CPU | ||||||||
| TDP | 35W | |||||||||
| Socket | LGA1700 | |||||||||
| Chipset | Q670 | |||||||||
| BIOS | AMI 256 Mbit SPI | |||||||||
|
Memory |
Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz | ||||||||
| Max Capacity | 64GB, Single Max. 32GB | |||||||||
|
Graphics |
Controller | Intel® UHD Graphics | ||||||||
|
Ethernet |
Controller | 1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45) 1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45) |
||||||||
|
Storage |
SATA | 1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm) 1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional) |
||||||||
| M.2 | 1 * M.2 Key-M (PCle x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)
1 * M.2 Key-E (PCle x1 Gen 3 + USB 2.0, 2230) |
|||||||||
|
Expansion Slots |
aDoor | 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) | ||||||||
| Mini PCIe | 2 * Mini PCIe (PCIe3.0 x1 + USB 2.0, with 1*Nano SIM Card) | |||||||||
|
Front I/O |
Ethernet | 2 * RJ45 | ||||||||
| USB | 2 * USB3.2 Gen2x1 (Type-A, 10Gbps) 6 * USB3.2 Gen 1x1 (Type-A, 5Gbps) |
|||||||||
| Display | 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz 1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz |
|||||||||
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | |||||||||
| Serial | 2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M, Full Lanes) |
|||||||||
| Button | 1 * Power Button + Power LED 1 * AT/ATX Button 1 * OS Recover Button 1 * System Reset Button |
|||||||||
|
Rear I/O |
Antenna | 4 * Antenna hole | ||||||||
| SIM | 1 * Nano SIM card slots(SIM1) | |||||||||
|
Internal I/O |
USB | 6 * USB2.0 (wafer) | ||||||||
| LCD | 1 * LVDS (wafer): LVDS Resolution up to 1920*1200 @ 60Hz | |||||||||
| Front Panel | 1 * FPanel (PWR+RST+LED, wafer) | |||||||||
| Audio | 1 * Audio (Header) 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) |
|||||||||
| Serial | 2 * RS232 (COM5/6, wafer) | |||||||||
| GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer) | |||||||||
| LPC | 1 * LPC (wafer) | |||||||||
| SATA | 3 * SATA 7P Connector, up to 600MB/s | |||||||||
| SATA Power | 3 * SATA Power (wafer) | |||||||||
| FAN | 1 * CPU FAN (wafer) 2 * SYS FAN (KF2510-4A) |
|||||||||
|
Power Supply |
Type | DC, AT/ATX | ||||||||
| Power Input Voltage | 9~36VDC, P≤240W 18~60VDC, P≤400W |
|||||||||
| Connector | 1 * 4Pin Connector, P=5.00/5.08 | |||||||||
| RTC Battery | CR2032 Coin Cell | |||||||||
|
OS Support |
Windows | Windows 10/11 | ||||||||
| Linux | Linux | |||||||||
|
Watchdog |
Output | System Reset | ||||||||
| Interval | Programmable 1 ~ 255 sec | |||||||||
|
Mechanical |
Enclosure Material | Radiator: Aluminum alloy, Box: SGCC | ||||||||
| Mounting | VESA, Embedded | |||||||||

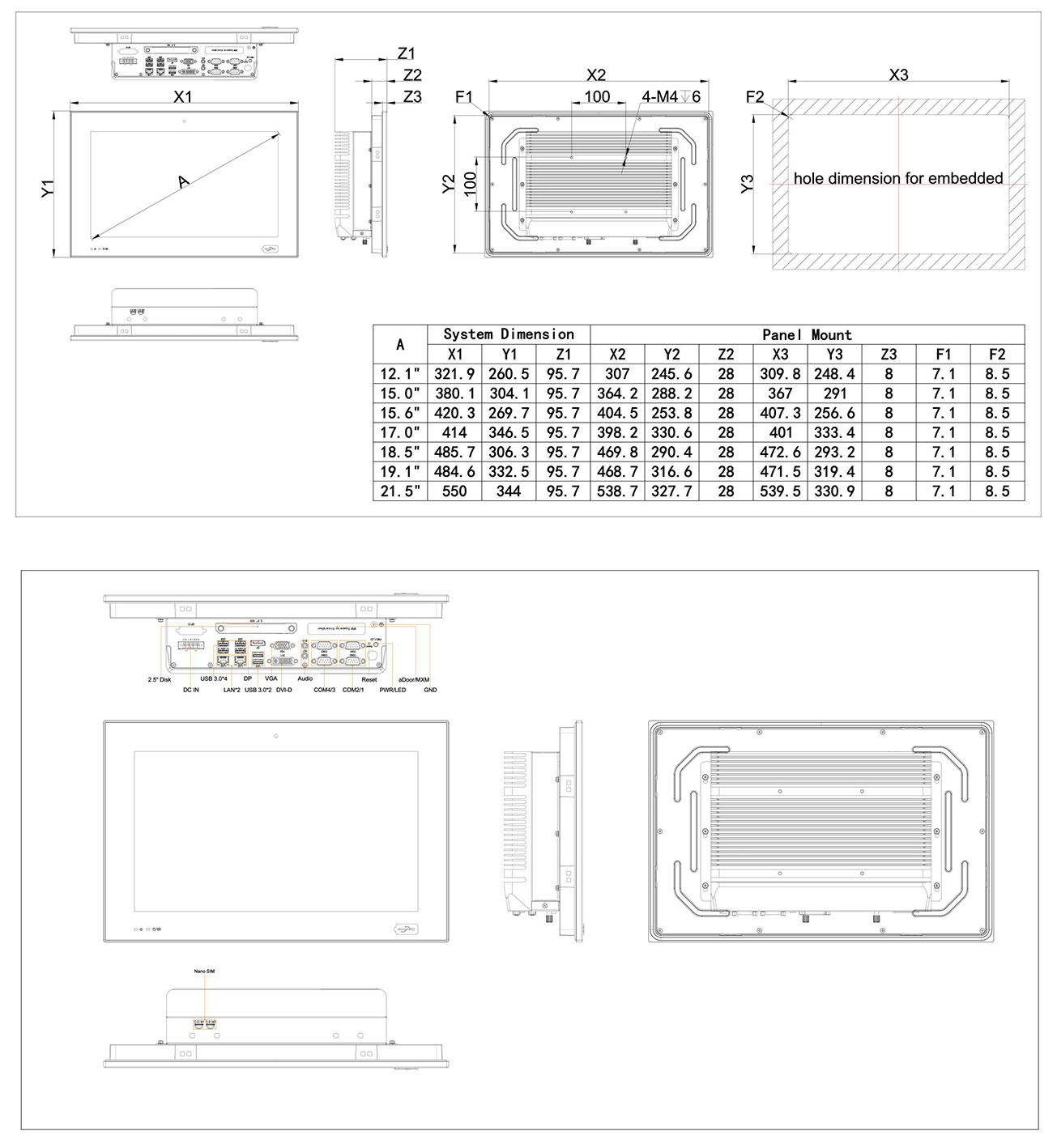

| Dimensions (L * W * H, Unit: mm) |
321.9*260.5*95.7 | 380.1*304.1*95.7 | 420.3*269.7*95.7 | 414*346.5*95.7 | 485.7*306.3*95.7 | 484.6*332.5*95.7 | 552.6*344*95.7 | 586*358.4*95.7 | 663.2*401.8*95.7 | |
| Weight | Net: 6.6 kg Total: 8.1 kg |
Net: 8.0 kg Total: 9.5 kg |
Net: 7.9 kg Total: 9.6 kg |
Net: 8.8 kg Total: 10.3 kg |
Net: 8.7 kg Total: 10.2 kg |
Net: 10.0 kg Total: 11.5 kg |
Net: 9.6 kg Total: 11.1 kg |
Net: 11 kg Total: 12.5 kg |
Net: 12.1 kg Total: 13.6 kg |
|
|
Environment |
Heat Dissipation System | Fanless Passive Cooling | ||||||||
| Operating Temperature | -20~60℃ | -20~60℃ | -20~60℃ | 0~50℃ | 0~50℃ | 0~50℃ | 0~50℃ | 0~50℃ | 0~50℃ | |
| Storage Temperature | -30~80℃ | -20~70℃ | -30~70℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |||||||||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | |||||||||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | |||||||||
| Certification | CE/FCC, RoHS | |||||||||
-
