PLE5M系列 工业一体机/工业平板电脑 电阻触摸屏

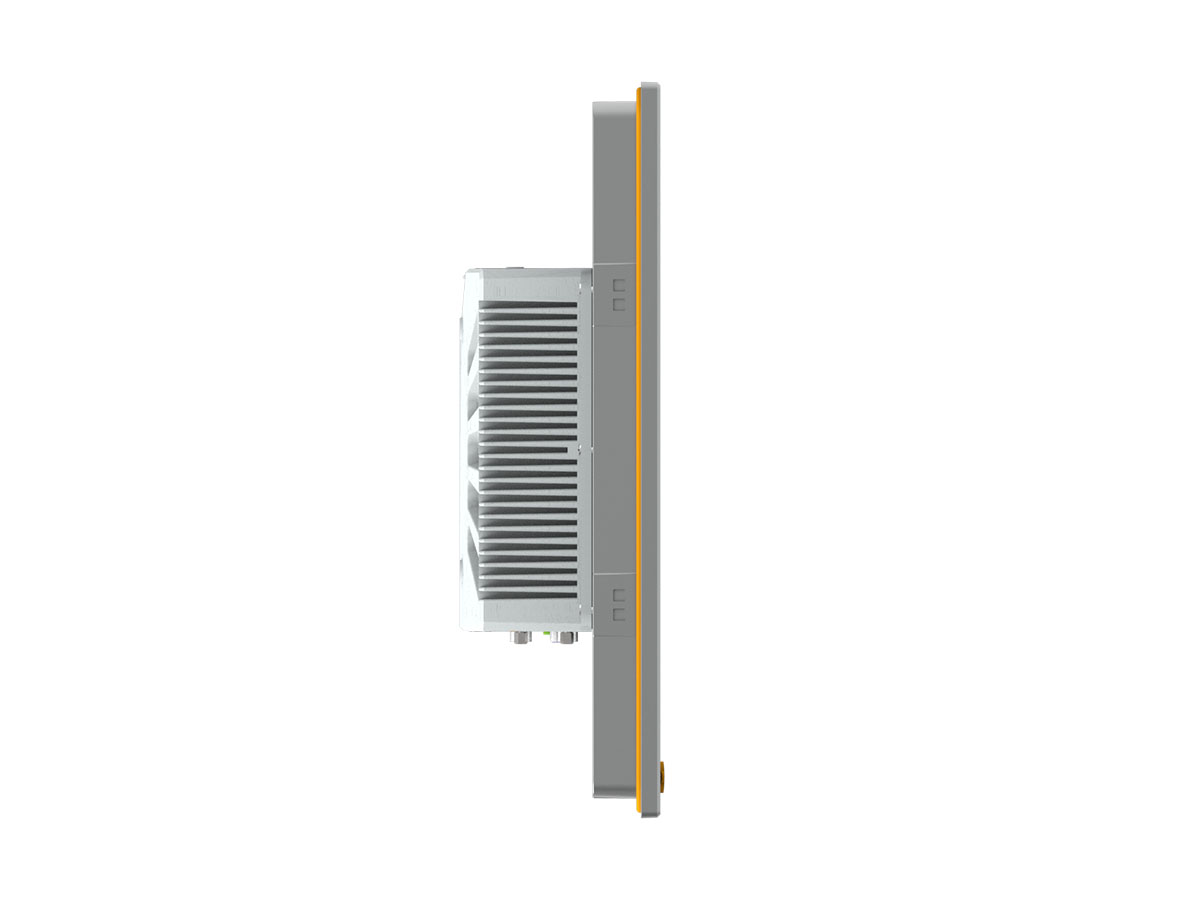

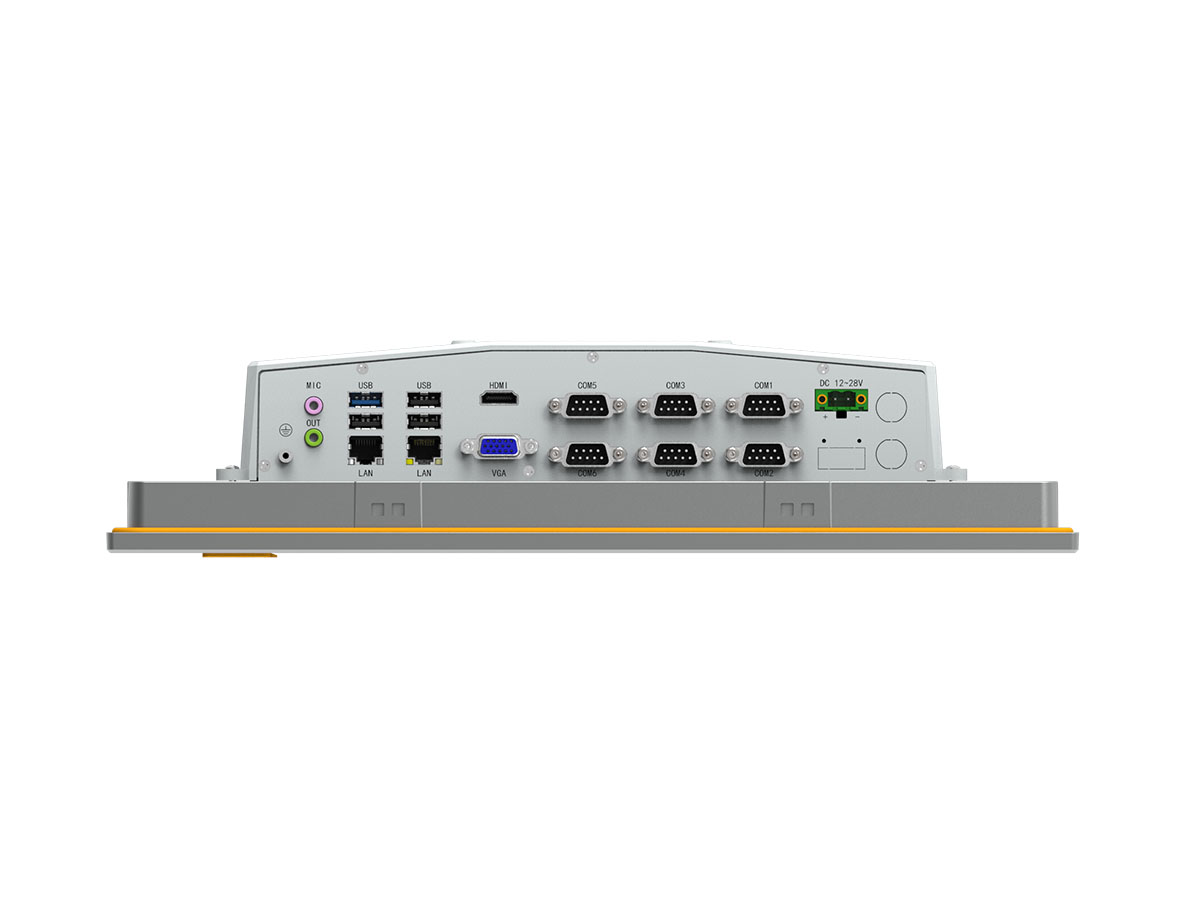

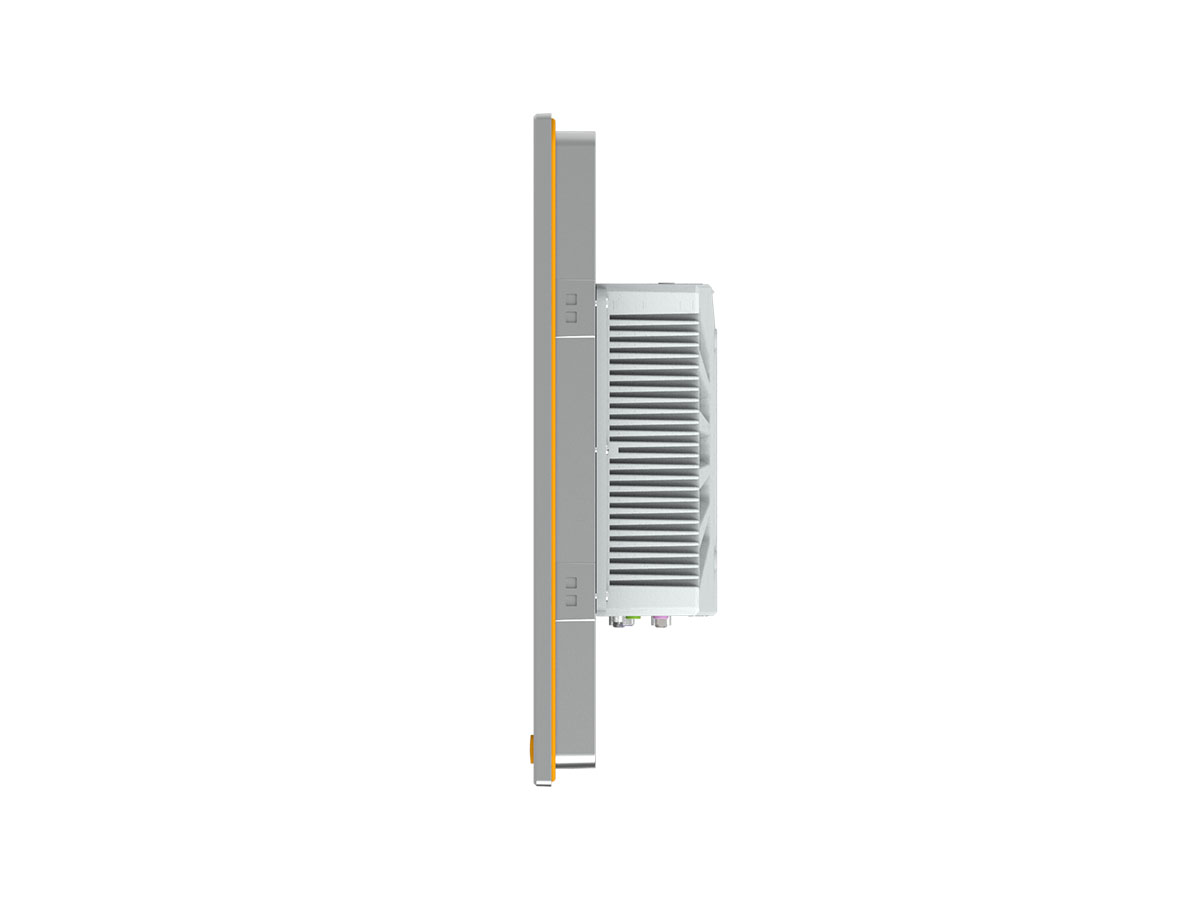

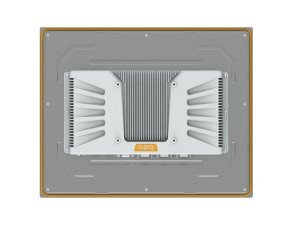

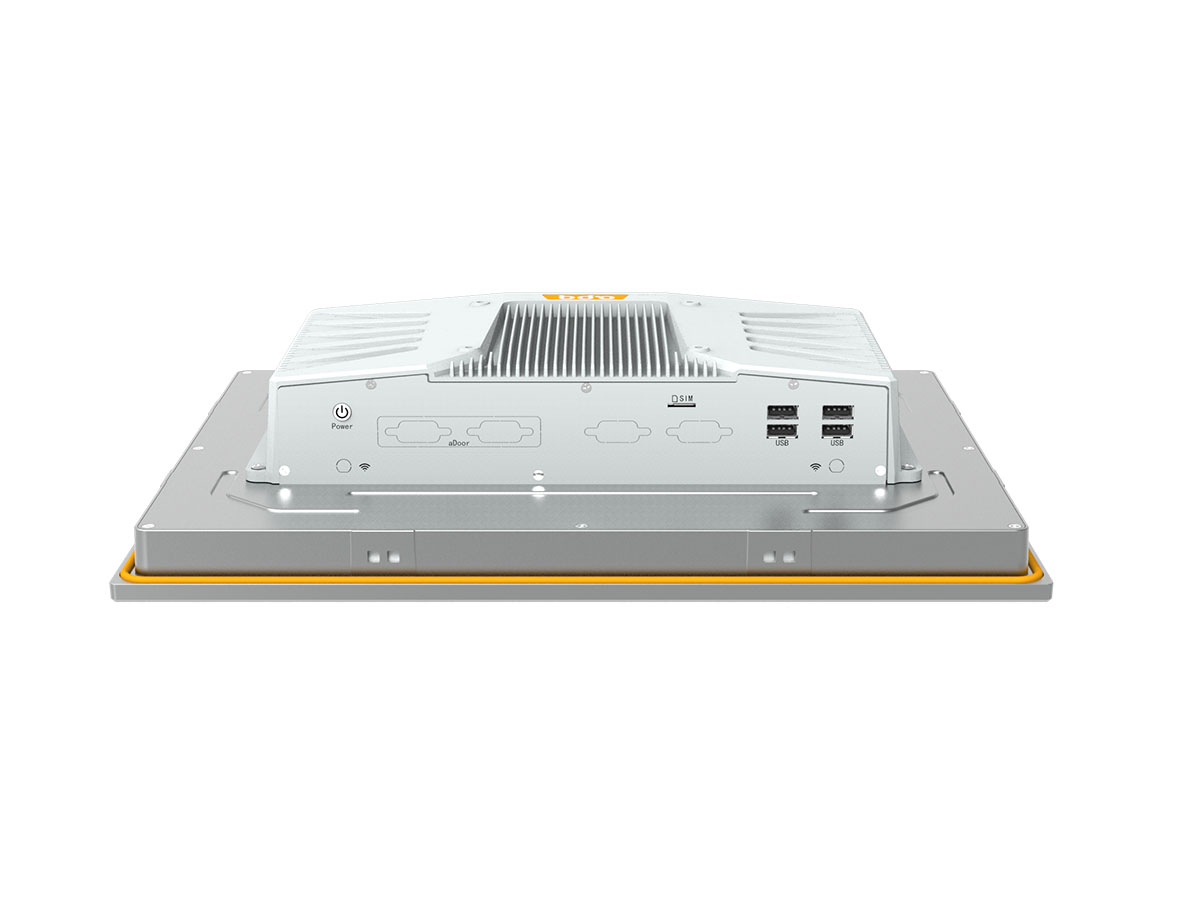

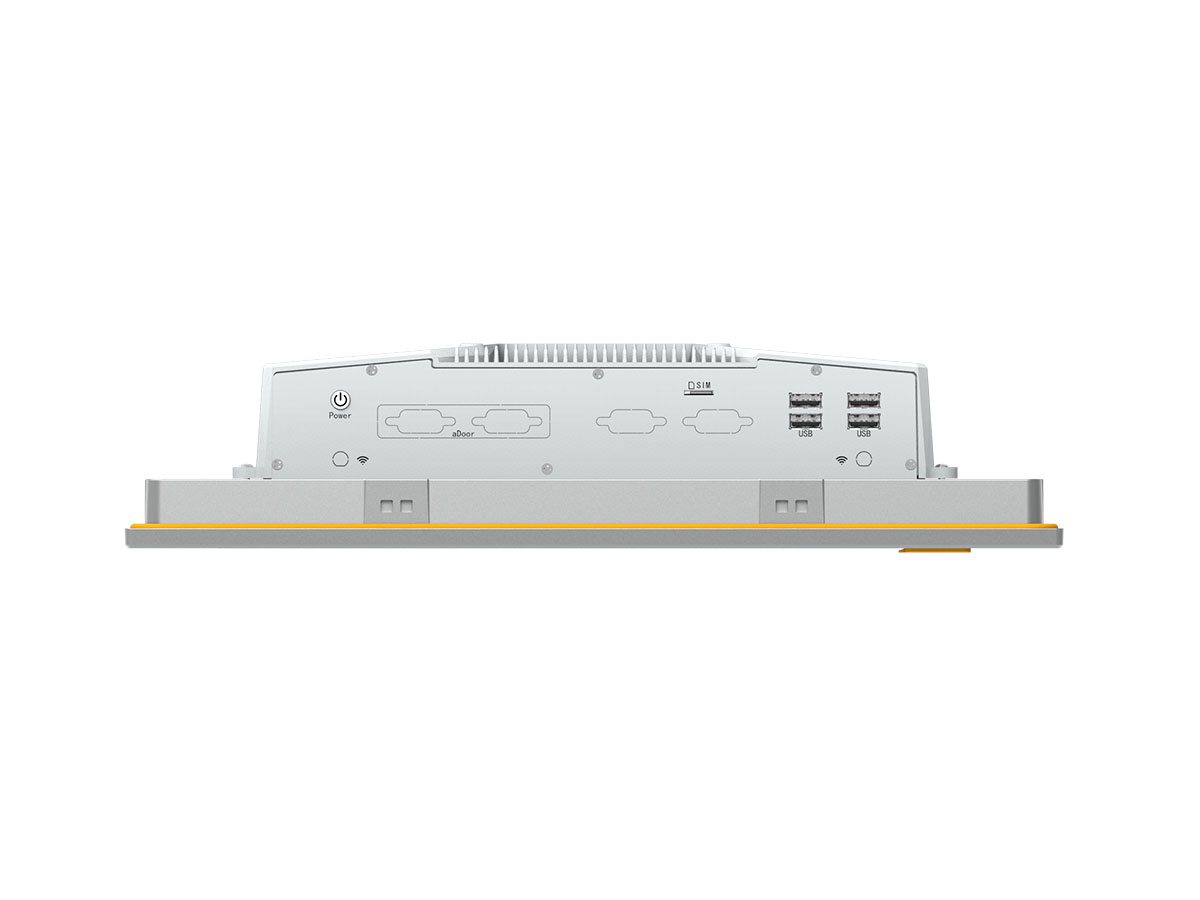

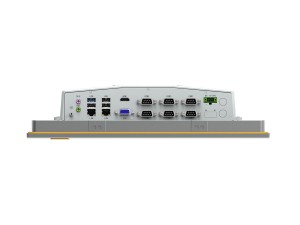

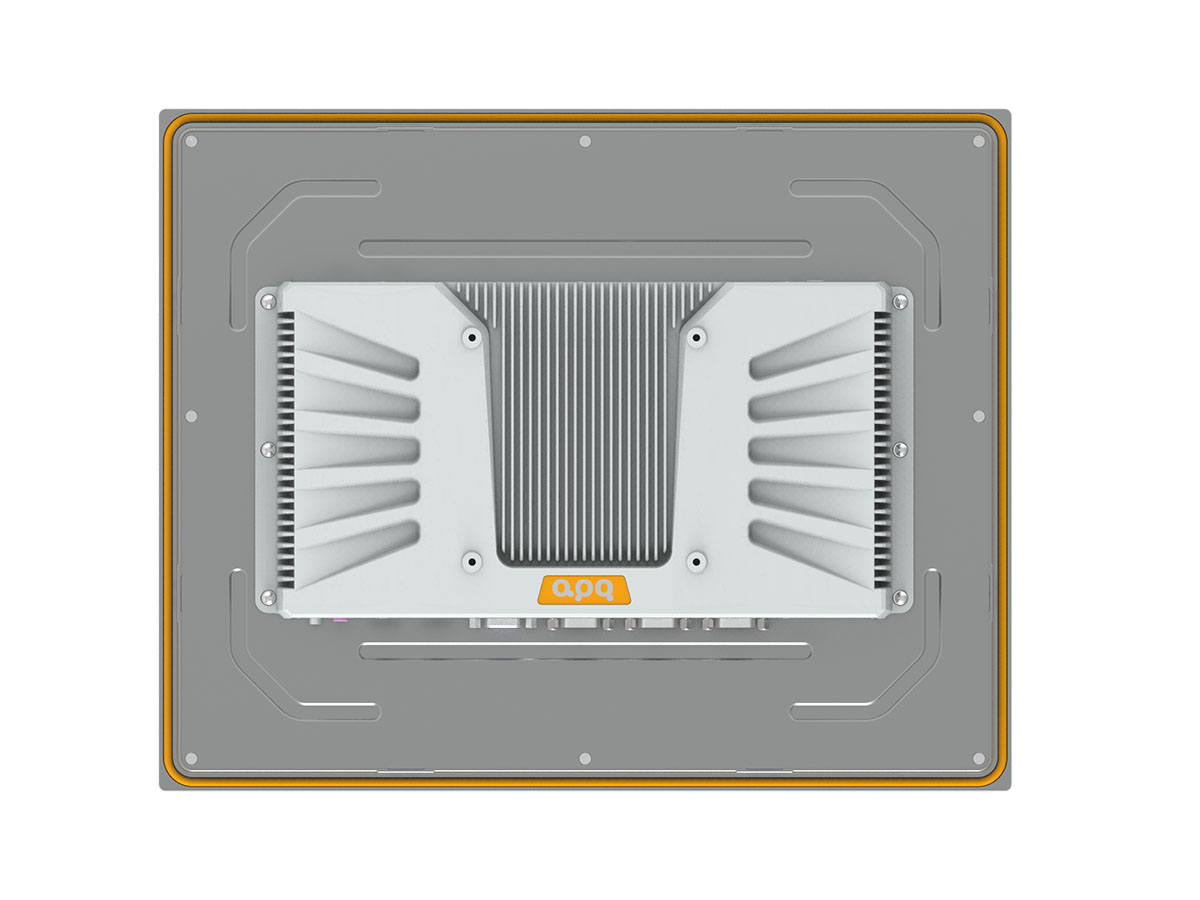

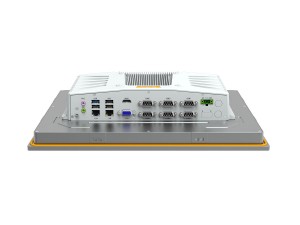

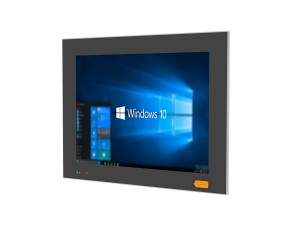

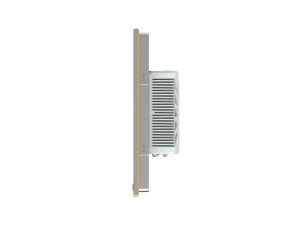

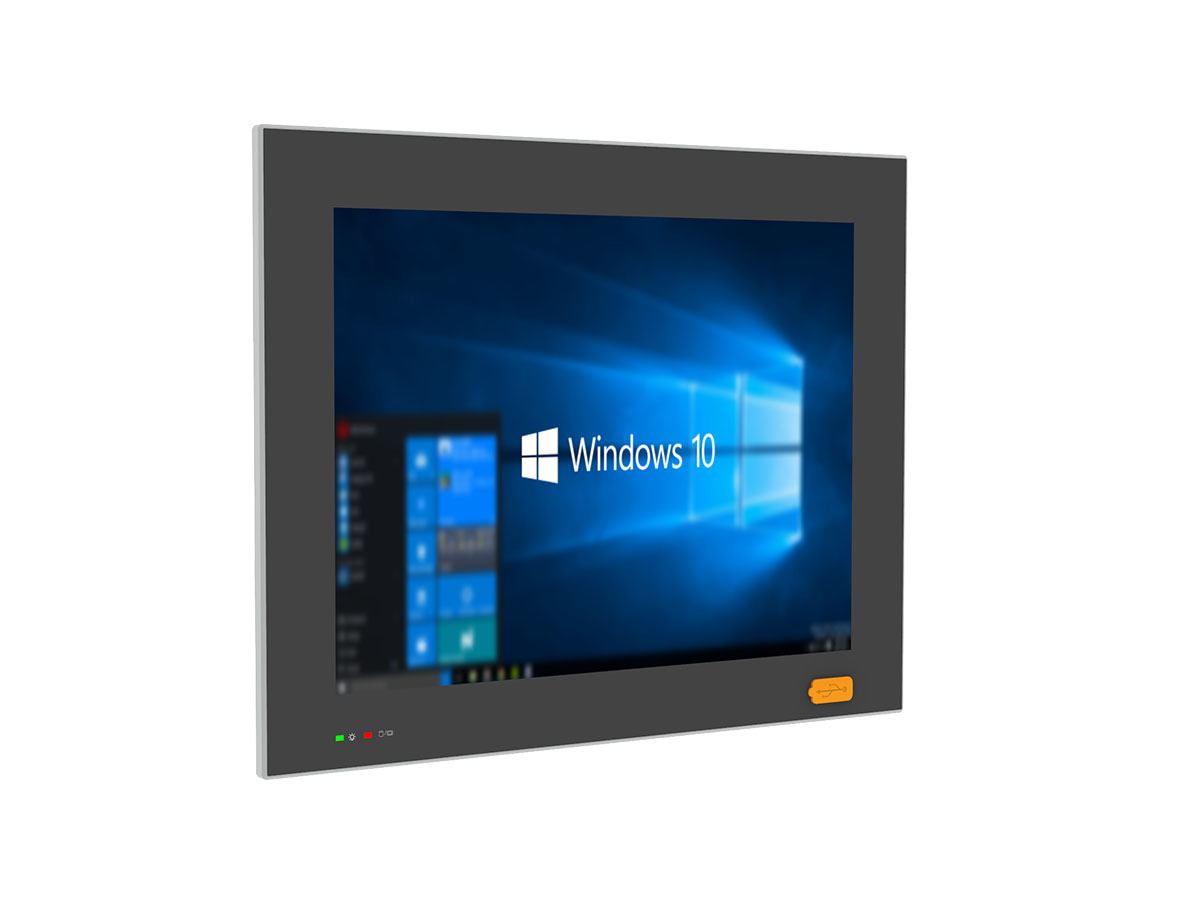

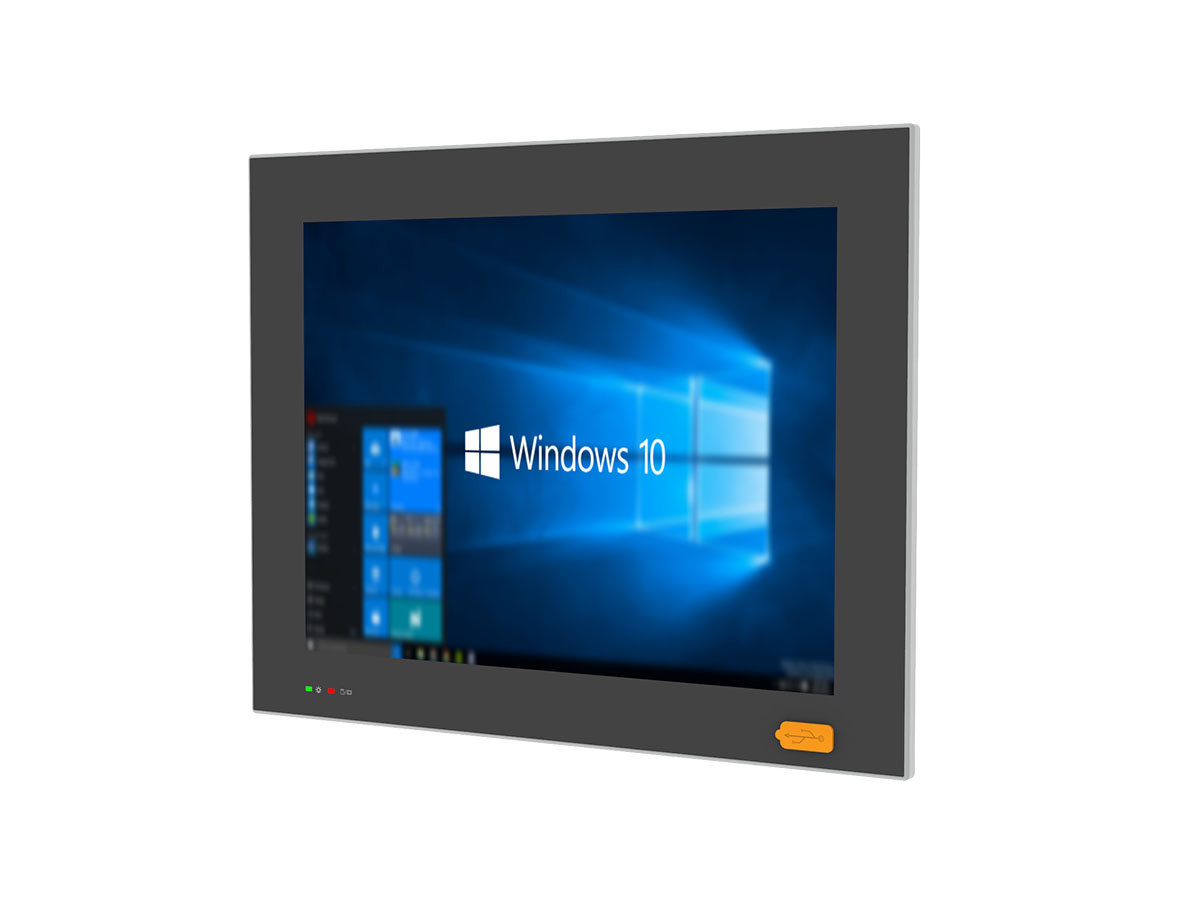

Note: The product image shown above is the PL150CQ-E5M model

PLE5M系列 工业一体机/工业平板电脑 电阻触摸屏

特点:

  • 全屏电阻触摸屏设计
  • 模块化设计12.1~21.5″可选,支持方屏/宽屏
  • 前面板满足IP65要求
  • 前面板集成USB Type-A和信号指示灯
  • 采用Intel® Celeron® J1900超低功耗CPU
  • 板载6个COM,支持两路隔离RS485
  • 集成双Intel®千兆网卡
  • 双硬盘存储支持
  • 支持APQ MXM COM/GPIO模块扩展
  • 支持WiFi/4G无线扩展
  • 嵌入式/VESA安装
  • 12~28V直流供电

  • 远程管理

    远程管理

  • 状态监控

    状态监控

  • 远程运维

    远程运维

  • 安全控制

    安全控制

扫码即可添加微信,售前客服为您提供咨询服务

产品描述

阿普奇全屏电阻触摸屏工业一体机PLxxxRQ-E5M系列是一款专为工业应用而设计的强大一体机。它采用全屏电阻触摸屏技术,满足各种工业环境下的操作需求。采用模块化设计,支持12.1~21.5″的屏幕尺寸,适应不同行业标准和用户需求。前面板满足IP65要求,具备出色的防尘防水性能,能够应对各种恶劣的工业环境。Intel® Celeron® J1900超低功耗CPU,保证高效性能的同时降低能耗。它还集成了双Intel®千兆网卡,提供高速稳定的网络连接和数据传输能力。此外,该一体机支持双硬盘存储,为用户提供更大的存储容量。此款工业一体机还具备丰富的扩展功能,支持APQ MXM COM/GPIO模块扩展,可根据具体应用需求进行定制配置。支持WiFi/4G无线扩展,方便远程管理和数据传输。采用嵌入式和VESA安装方式,方便集成到各种工业环境中,采用12~28V直流供电,适应广泛的电源环境。

总之,阿普奇全屏电阻触摸屏工业一体机PLxxxRQ-E5M系列具有出色的性能和多样化的功能,是工业自动化和边缘计算领域的理想选择。

产品介绍

工程图纸

下载产品资料

扫码添加微信,获取最新产品资料文件

Model PL121RQ-E5M PL150RQ-E5M PL156RQ-E5M PL170RQ-E5M PL185RQ-E5M PL191RQ-E5M PL215RQ-E5M
LCD Display Size 12.1" 15.0" 15.6" 17.0" 18.5" 19.0" 21.5"
Display Type XGA TFT-LCD XGA TFT-LCD FHD TFT-LCD SXGA TFT-LCD WXGA TFT-LCD WXGA TFT-LCD FHD TFT-LCD
Max.Resolution 1024 x 768 1024 x 768 1920 x 1080 1280 x 1024 1366 x 768 1440 x 900 1920 x 1080
Luminance 350 cd/m2 300 cd/m2 350 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2 250 cd/m2
Aspect Ratio 4:3 4:3 16:9 5:4 16:9 16:10 16:9
Viewing Angle 80/80/80/80° 88/88/88/88° 89/89/89/89° 85/85/80/80° 89/89/89/89° 85/85/80/80° 89/89/89/89°
Max. Color 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M 16.7M
Backlight Lifetime 30,000 hr 70,000 hr 50,000 hr 30,000 hr 30,000 hr 30,000 hr 50,000 hr
Contrast Ratio 800:1 2000:1 800:1 1000:1 1000:1 1000:1 1000:1
Touchscreen Touch Type 5-Wire Resistive Touch
Controller USB signal
Input Finger/Touch pen
Light Transmission ≥78%
Hardness ≥3H
Click lifetime 100gf, 10 million times
Stroke lifetime 100gf, 1 million times
Response time ≤15ms
 Processor System CPU Intel® Celeron® J1900
Base Frequency 2.00 GHz
Max Turbo Frequency 2.42 GHz
Cache 2MB
Total Cores/Threads 4/4
TDP 10W
Chipset SOC
BIOS AMI UEFI BIOS
Memory Socket 1 * DDR3L-1333MHz SO-DIMM Slot
Max Capacity 8GB
Graphics Controller Intel® HD Graphics
Ethernet Controller 2 * Intel® i210-AT (10/100/1000 Mbps, RJ45)
Storage SATA 1 * SATA2.0 Connector (2.5-inch hard disk with 15+7pin)
M.2 1 * M.2 Key-M Slot (support SATA SSD, 2280)
Expansion Slots MXM/aDoor 1 * MXM slot (LPC+GPIO, support COM/GPIO MXM card)
Mini PCIe 1 * Mini PCIe Slot (PCIe2.0+USB2.0)
Front I/O USB 1 * USB3.0 (Type-A)
3 * USB2.0 (Type-A)
Ethernet 2 * RJ45
Display 1 * VGA: max resolution up to 1920*1280@60Hz
1 * HDMI: max resolution up to 1920*1280@60Hz
Audio 1 * 3.5mm Line-out Jack
1 * 3.5mm MIC Jack
Serial 2 * RS232/485 (COM1/2, DB9/M)
4 * RS232 (COM3/4/5/6, DB9/M)
Power 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm)
Rear I/O USB 4 * USB2.0 (Type-A)
SIM 1 * Nano SIM Card slot (Mini PCIe module provides functional support)
Button 1 * Power Button with LED
Internal I/O Front Panel 1 * TFront Panel (3*USB2.0+Front Panel, 10x2Pin, PHD2.0)
1 * Front Panel (3x2Pin, PHD2.0)
FAN 1 * SYS FAN (4x1Pin, MX1.25)
LPC 1 * LPC (8x2Pin, PHD2.0)
PS/2 1 * PS/2 (PS/2 keyboard + mouse, 6x1Pin, PH2.0)
USB 2 * USB2.0 (5x2Pin, PH2.0)
Power 1 * DCIN (power input, 4x1Pin, XH2.54)
Display 1 * LVDS/eDP (Default LVDS, 20x2Pin, PHD2.0)
GPIO 1 * 16bits DIO (8xDI and 8xDO, 10x2Pin, PHD2.0)
Audio 1 * Front Audio (header, Line-Out + MIC, 5x2Pin 2.54mm)
1 * Speaker (2-W (per channel)/8-Ω Loads, 4x1Pin, PH2.0)
Power Supply Type DC
Power Input Voltage 12~28VDC
Connector 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm)
RTC Battery CR2032 Coin Cell
OS Support Windows Windows 7/8.1/10
Linux Linux
Watchdog Output System Reset
Interval Programmable 1 ~ 255 sec
Mechanical Enclosure Material Radiator/Panel: Aluminum, Box/Cover: SGCC
Mounting VESA, embedded
Dimensions
(L*W*H, Unit: mm)
321.9* 260.5*82.5 380.1* 304.1*82.5 420.3* 269.7*82.5 414* 346.5*82.5 485.7* 306.3*82.5 484.6* 332.5*82.5 550* 344*82.5
Weight Net: 3.9Kg,

Total: 6.2Kg

Net: 5.3Kg,

Total: 7.7Kg

Net: 5.2Kg,

Total: 7.6Kg

Net: 6Kg,

Total: 8.5Kg

Net: 5.9Kg,

Total: 8.5Kg

Net: 6.6Kg,

Total: 9.3Kg

Net: 6.8Kg,

Total: 9.6Kg

Environment Heat Dissipation System  Passive heat dissipation
Operating Temperature -20~60℃ -20~60℃ -20~60℃ 0~50℃ 0~50℃ 0~50℃ 0~60℃
Storage Temperature -30~80℃ -30~70℃ -30~70℃ -20~60℃ -20~60℃ -20~60℃ -20~60℃
Relative Humidity 10 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)

PLxxxRQ-E5M-20231231_00
