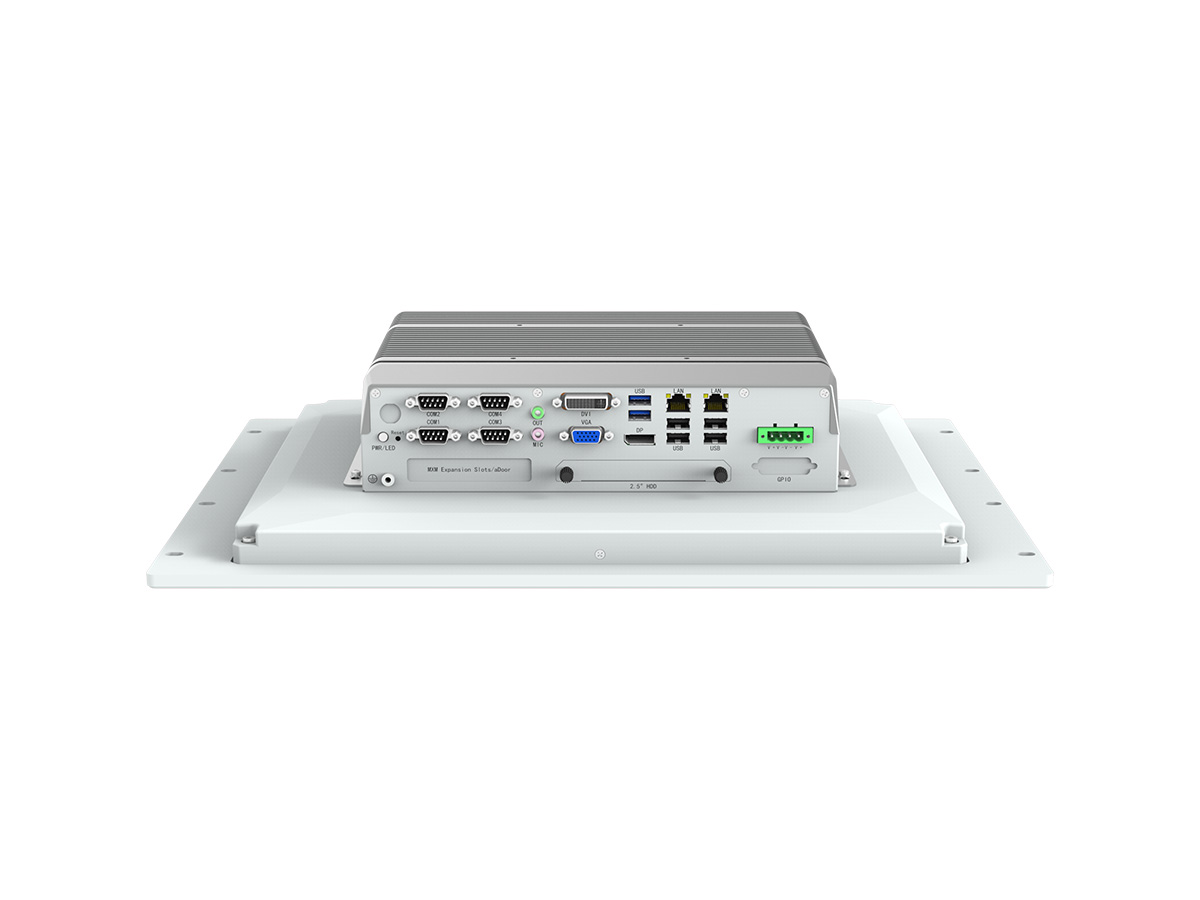

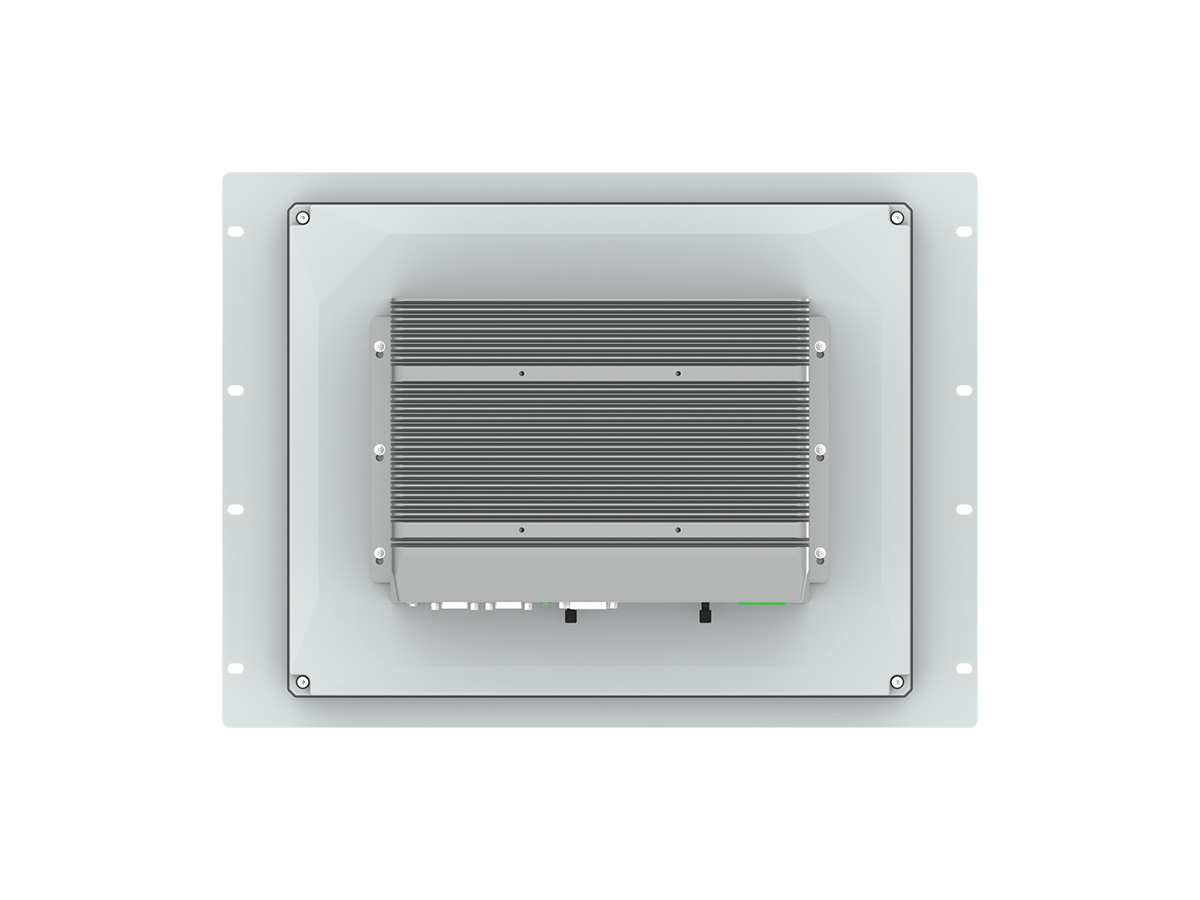

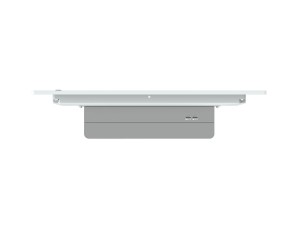

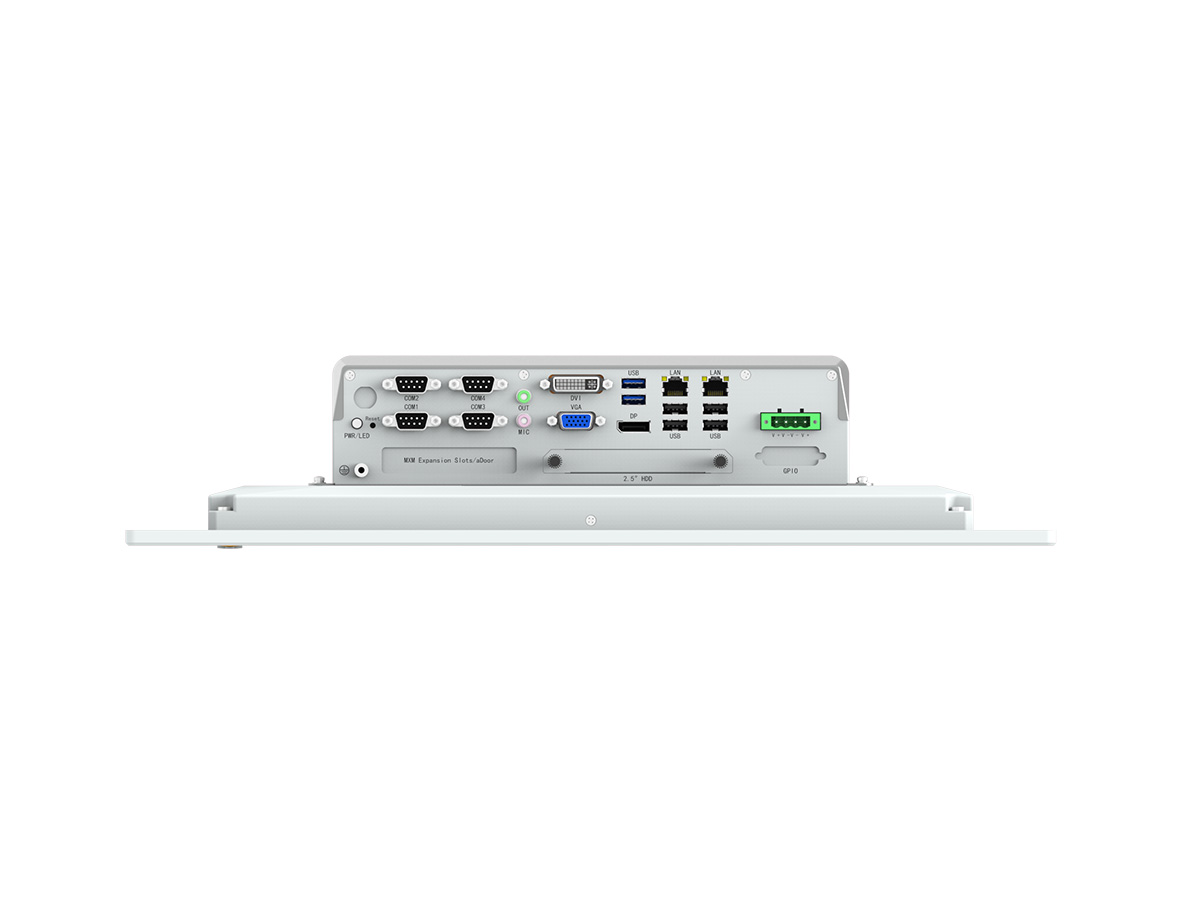

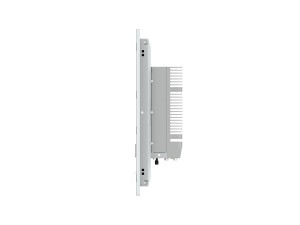

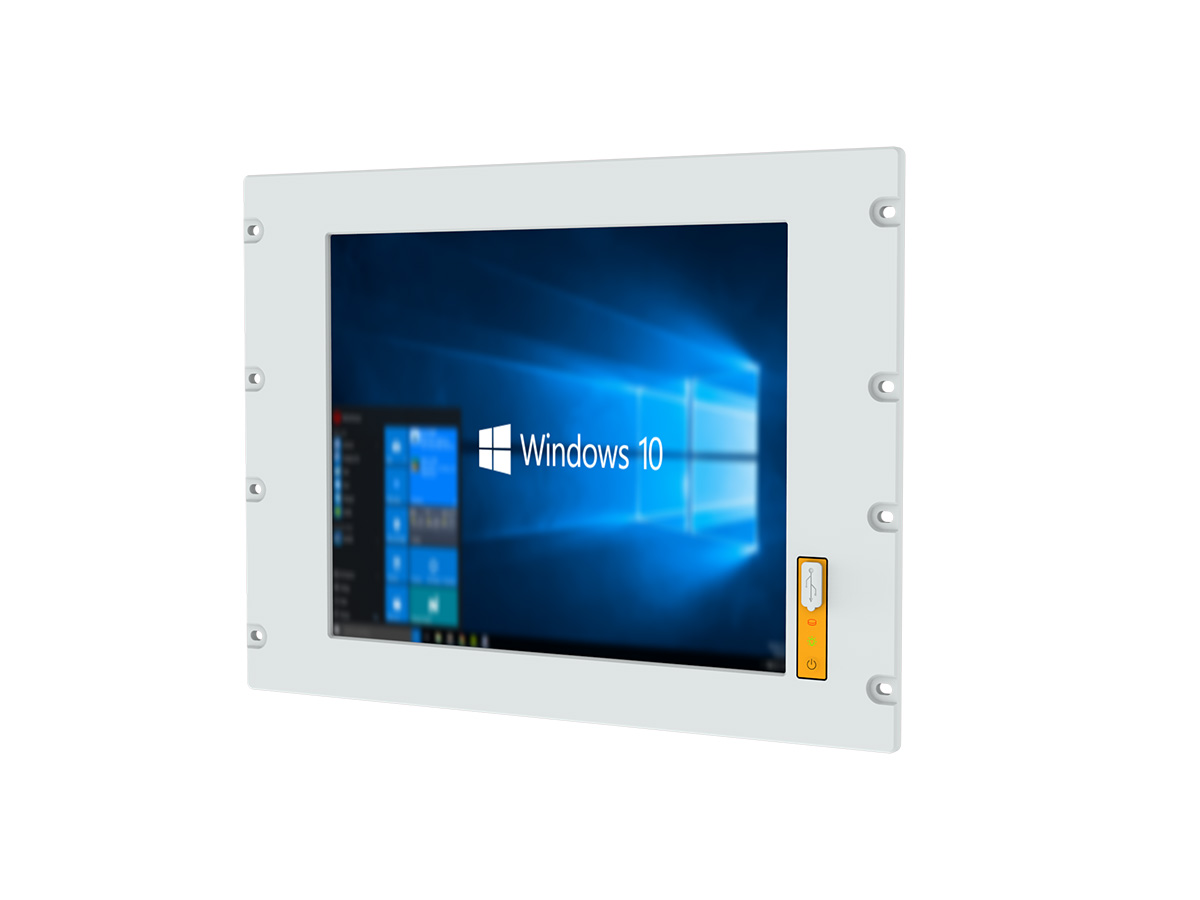

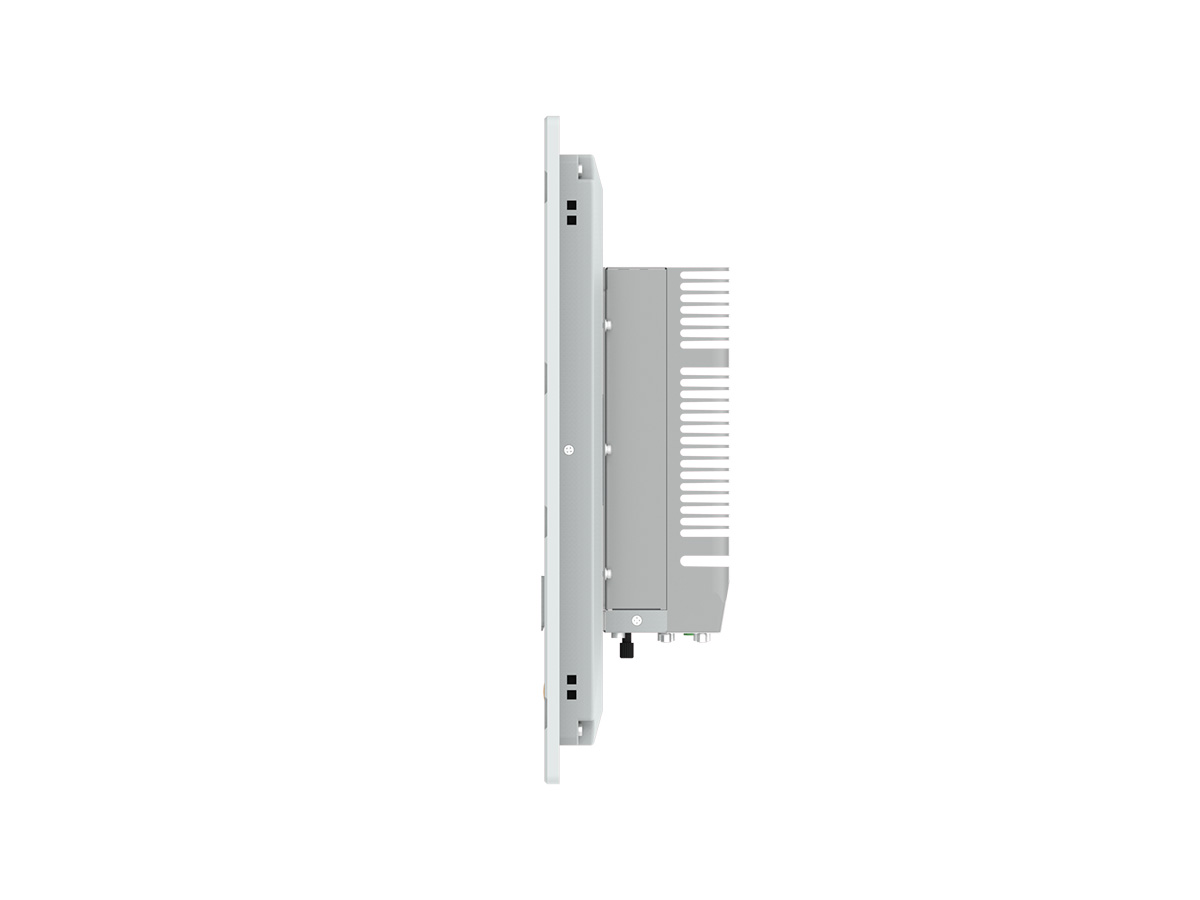

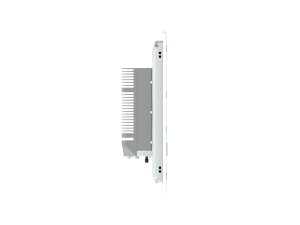

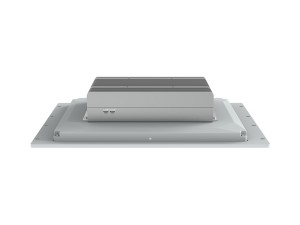

Note: The product image displayed above is PG170RF-E7L-Q170 model
PGE7L系列Q170平台 工业一体机/工业平板电脑 电阻触摸屏
远程管理
状态监控
远程运维
安全控制
联系我们
扫码即可添加微信，售前客服为您提供咨询服务
产品描述
电阻触摸屏工业一体机PGxxxRF-E7L系列Q170平台采用电阻式触摸屏设计，为用户提供了更加灵活和精准的触摸操作体验，同时模块化设计和17/19英寸的可选尺寸，可以满足不同客户对于尺寸和功能需求的个性化定制。前面板符合IP65防护等级要求，具有良好的防尘防水性能，适用于工业环境中的各种复杂情况。此外，前面板集成了USB Type-A和信号指示灯，提供了更加便捷的连接和操作方式。搭载Intel® Q170芯片组，支持Intel® 6~9th Gen Core/Pentium/Celeron台式CPU，性能强劲，运行稳定。同时具有2个英特尔千兆网络接口和4个DB9串行端口，满足了工业设备对于高速网络和大容量数据传输的需求。存储方面，支持M.2和2.5英寸双硬盘存储，提供了更加灵活的存储解决方案。此外，PGxxxRF-E7L系列一体机还具有4通道显示输出VGA、DVI-D、DP++和内部LVDS，支持高达4K @ 60Hz的分辨率，可满足对于高清晰度显示的需求。
同时，可选择9～36V DC电源供应（12V可选）、机架安装/VESA挂装等多种安装方式，方便用户根据实际使用场景进行灵活选择。无论是在工业自动化设备、智能终端设备还是工业控制系统中，PGxxxRF-E7L系列一体机都能够提供出色的稳定性和可靠性。
| Model | PG170RF-E7L | PG190RF-E7L | |
| LCD | Display Size | 17.0" | 19.0" |
| Display Type | SXGA TFT-LCD | SXGA TFT-LCD | |
| Max. Resolution | 1280 x 1024 | 1280 x 1024 | |
| Luminance | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 5:4 | 5:4 | |
| Viewing Angle | 85/85/80/80° | 89/89/89/89° | |
| Max. Color | 16.7M | 16.7M | |
| Backlight Lifetime | 30,000 hr | 30,000 hr | |
| Contrast Ratio | 1000:1 | 1000:1 | |
| Touchscreen | Touch Type | 5-Wire Resistive Touch | |
| Controller | USB signal | ||
| Input | Finger/Touch pen | ||
| Light Transmission | ≥78% | ||
| Hardness | ≥3H | ||
| Click lifetime | 100gf, 10 million times | ||
| Stroke lifetime | 100gf, 1 million times | ||
| Response time | ≤15ms | ||
| Processor System | CPU | Intel® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU | |
| TDP | 35W | ||
| Socket | LGA1151 | ||
| Chipset | Q170 | ||
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) | ||
| Memory | Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 2133MHz | |
| Max Capacity | 64GB, Single Max. 32GB | ||
| Graphics | Controller | Intel® HD Graphics | |
| Ethernet | Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps) |
|
| Storage | SATA | 1 * SATA3.0, quick release 2.5-inch hard drive bay (T ≤ 7mm) 1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional) Support RAID 0, 1 |
|
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | ||
| Expansion Slots | MXM/aDoor | 1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) 1 * aDoor Expansion Slot |
|
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with 1 * SIM Card) | ||
| Front I/O | Ethernet | 2 * RJ45 | |
| USB | 6 * USB3.0 (Type-A, 5Gbps) | ||
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz 1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz 1 * DP: max resolution up to 4096*2160 @ 60Hz |
||
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | ||
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M) |
||
| Button | 1 * Power Button + Power LED 1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS) |
||
| Rear I/O | Antenna | 4 * Antenna hole | |
| SIM | 2 * Nano SIM card slots | ||
| Internal I/O | USB | 2 * USB2.0 (wafer) | |
| LCD | 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz | ||
| TFront Panel | 1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer) | ||
| Front Panel | 1 * Front Panel (PWR + RST + LED, wafer) | ||
| Speaker | 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) | ||
| Serial | 2 * RS232 (COM5/6, wafer) | ||
| GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer) | ||
| LPC | 1 * LPC (wafer) | ||
| SATA | 2 * SATA 7P Connector | ||
| SATA Power | 2 * SATA Power (SATA_PWR1/2, wafer) | ||
| FAN | 1 * CPU FAN (wafer) 2 * SYS FAN (wafer) |
||
| Power Supply | Type | DC, AT/ATX | |
| Power Input Voltage | 9 ~ 36VDC, P≤240W | ||
| Connector | 1 * 4Pin Connector, P=5.00/5.08 | ||
| RTC Battery | CR2032 Coin Cell | ||
| OS Support | Windows | 6/7th Core™: Windows 7/10/11 8/9th Core™: Windows 10/11 |
|
| Linux | Linux | ||
| Watchdog | Output | System Reset | |
| Interval | Programmable via Software from 1 to 255 sec | ||
| Mechanical | Enclosure Material | Radiator/Panel: Aluminum, Box/Cover: SGCC | |
| Mounting | Rack-mount, VESA | ||

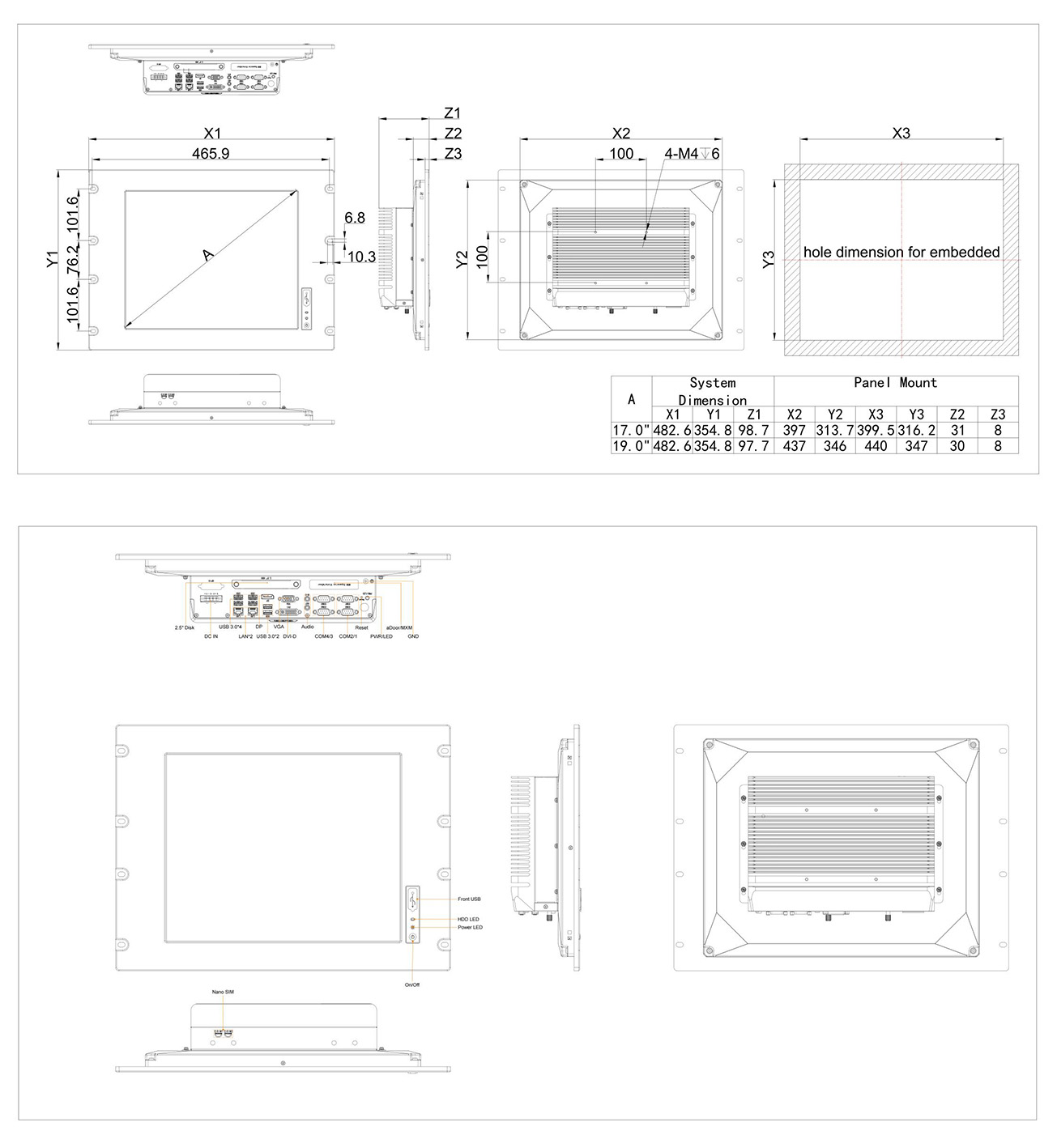

| Dimensions | 482.6mm(L) * 354.8mm(W) * 98.7mm(H) | 482.6mm(L) * 354.8mm(W) * 97.7mm(H) | |
| Weight | Net: 8.7kg, Total:11.7kg | Net: 9.kg, Total: 13.1kg | |
| Environment | Heat Dissipation System | Passive heat dissipation | |
| Operating Temperature | 0~50℃ | 0~50℃ | |
| Storage Temperature | -20~60℃ | -20~60℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||
-
