产品描述

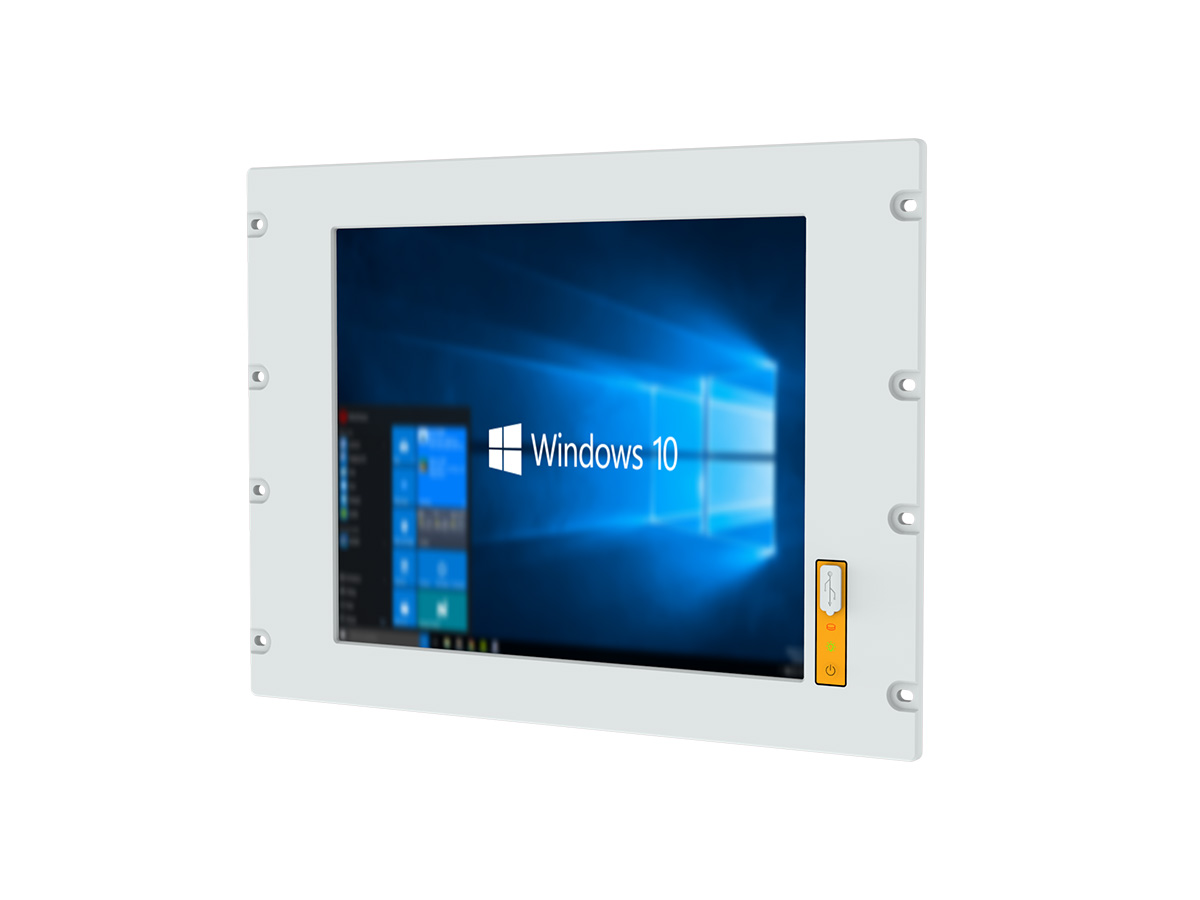

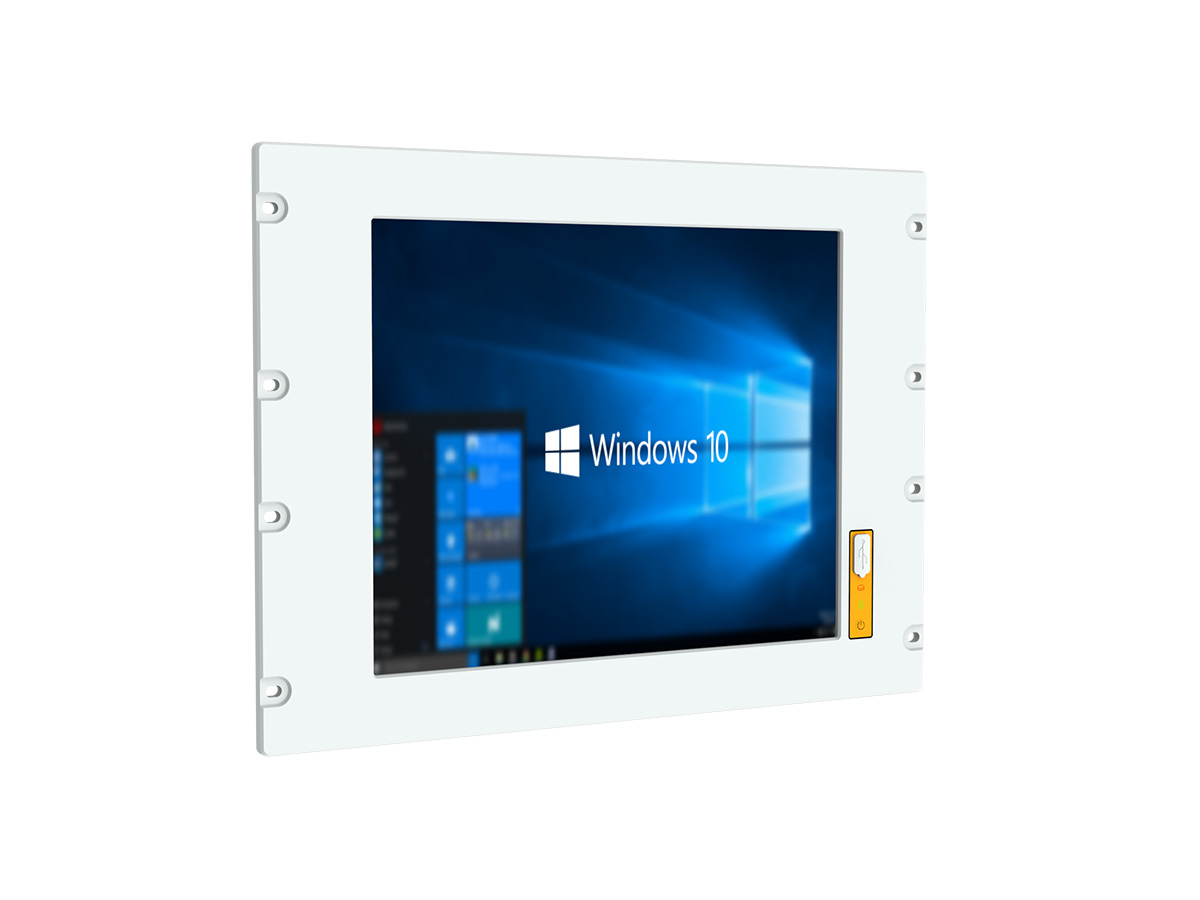

阿普奇电阻触摸屏工业一体机PGxxxRF-E5系列采用电阻触摸屏技术，为用户提供稳定、精准的触控体验，满足工业环境下的操作需求。采用模块化设计，支持17/19″的屏幕尺寸，适应不同行业标准和用户需求。前面板满足IP65要求，具备出色的防尘防水性能，能够应对各种恶劣的工业环境。采用Intel® Celeron® J1900超低功耗CPU，确保高效性能的同时降低能耗。它还集成了双Intel千兆网卡，提供高速稳定的网络连接和数据传输能力。支持双硬盘存储，满足大量数据存储需求。同时，它还支持APQ aDoor模块扩展和WiFi/4G无线扩展，具备出色的扩展性能。无风扇设计使得该一体机在运行时更加安静，且12~28V直流供电使其适应各种电源环境。
阿普奇电阻触摸屏工业一体机PGxxxRF-E5系列还支持上架式和VESA安装方式，方便集成到各种工业环境中，是工业自动化和边缘计算领域的理想选择。
| Model | PG170RF-E5 | PG190RF-E5 | |
| LCD | Display Size | 17.0" | 19.0" |
| Display Type | SXGA TFT-LCD | SXGA TFT-LCD | |
| Max.Resolution | 1280 x 1024 | 1280 x 1024 | |
| Luminance | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 5:4 | 5:4 | |
| Viewing Angle | 85/85/80/80° | 89/89/89/89° | |
| Max. Color | 16.7M | 16.7M | |
| Backlight Lifetime | 30,000 hr | 30,000 hr | |
| Contrast Ratio | 1000:1 | 1000:1 | |
| Touchscreen | Touch Type | 5-Wire Resistive Touch | |
| Controller | USB signal | ||
| Input | Finger/Touch pen | ||
| Light Transmission | ≥78% | ||
| Hardness | ≥3H | ||
| Click lifetime | 100gf, 10 million times | ||
| Stroke lifetime | 100gf, 1 million times | ||
| Response time | ≤15ms | ||
| Processor System | CPU | Intel® Celeron® J1900 | |
| Base Frequency | 2.00 GHz | ||
| Max Turbo Frequency | 2.42 GHz | ||
| Cache | 2MB | ||
| Total Cores/Threads | 4/4 | ||
| TDP | 10W | ||
| Chipset | SOC | ||
| BIOS | AMI UEFI BIOS | ||
| Memory | Socket | DDR3L-1333 MHz (Onboard) | |
| Max Capacity | 4GB | ||
| Graphics | Controller | Intel® HD Graphics | |
| Ethernet | Controller | 2 * Intel® i210-AT (10/100/1000 Mbps, RJ45) | |
| Storage | SATA | 1 * SATA2.0 Connector (2.5-inch hard disk with 15+7pin) | |
| mSATA | 1 * mSATA Slot | ||
| Expansion Slots | aDoor | 1 * aDoor Expansion Module | |
| Mini PCIe | 1 * Mini PCIe Slot (PCIe 2.0x1 + USB2.0) | ||

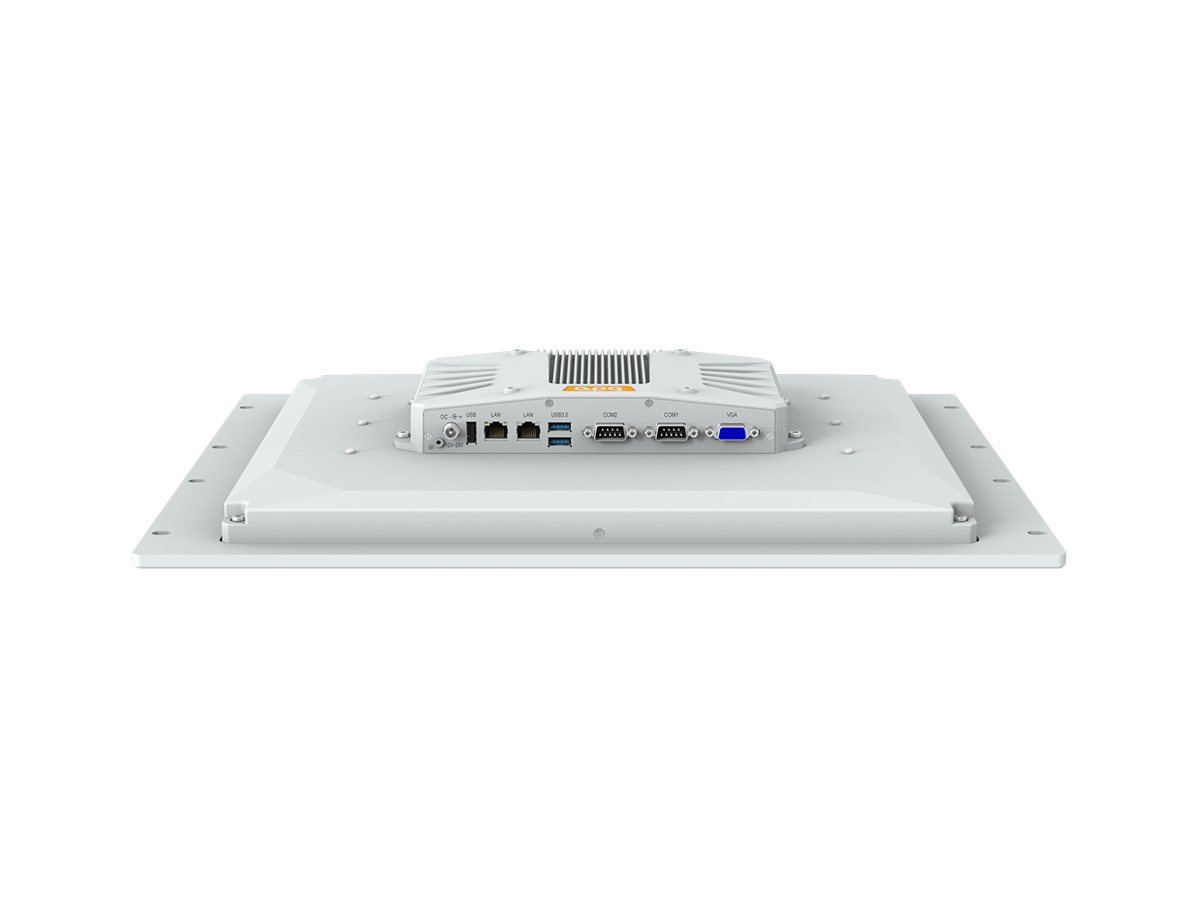

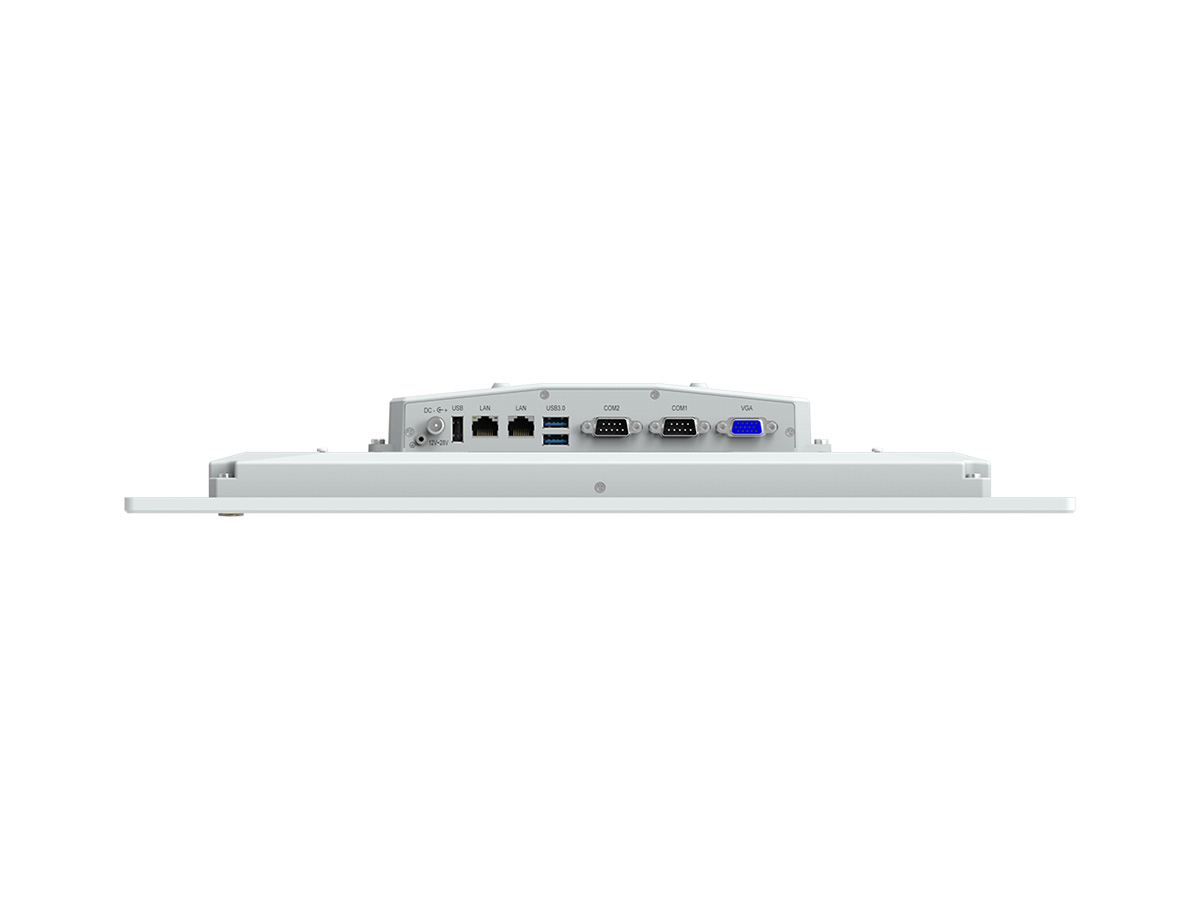

| Front I/O | USB | 2 * USB3.0 (Type-A) 1 * USB2.0 (Type-A) |
|
| Ethernet | 2 * RJ45 | ||
| Display | 1 * VGA: max resolution up to 1920*1200@60Hz | ||
| Serial | 2 * RS232/485 (COM1/2, DB9/M) | ||
| Power | 1 * Power Input Connector (12~28V) | ||

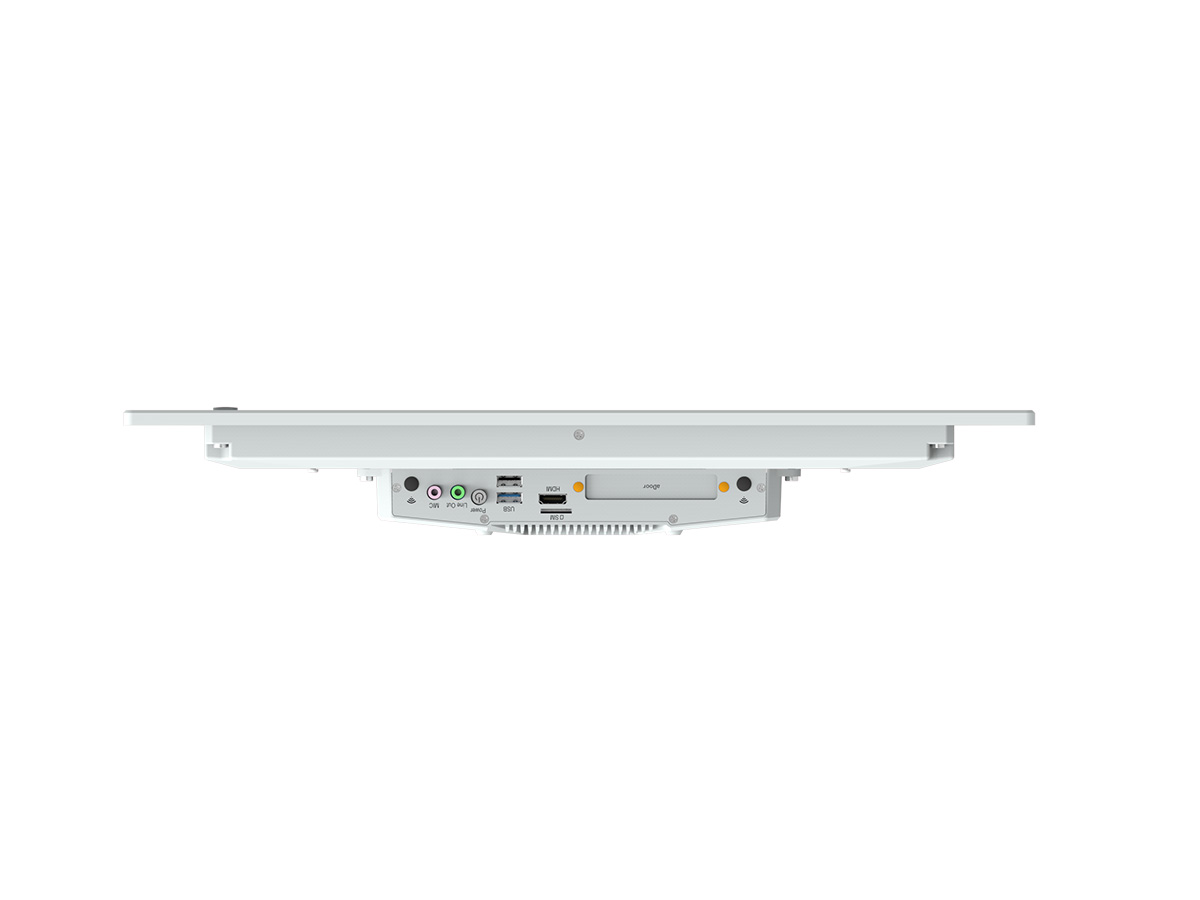

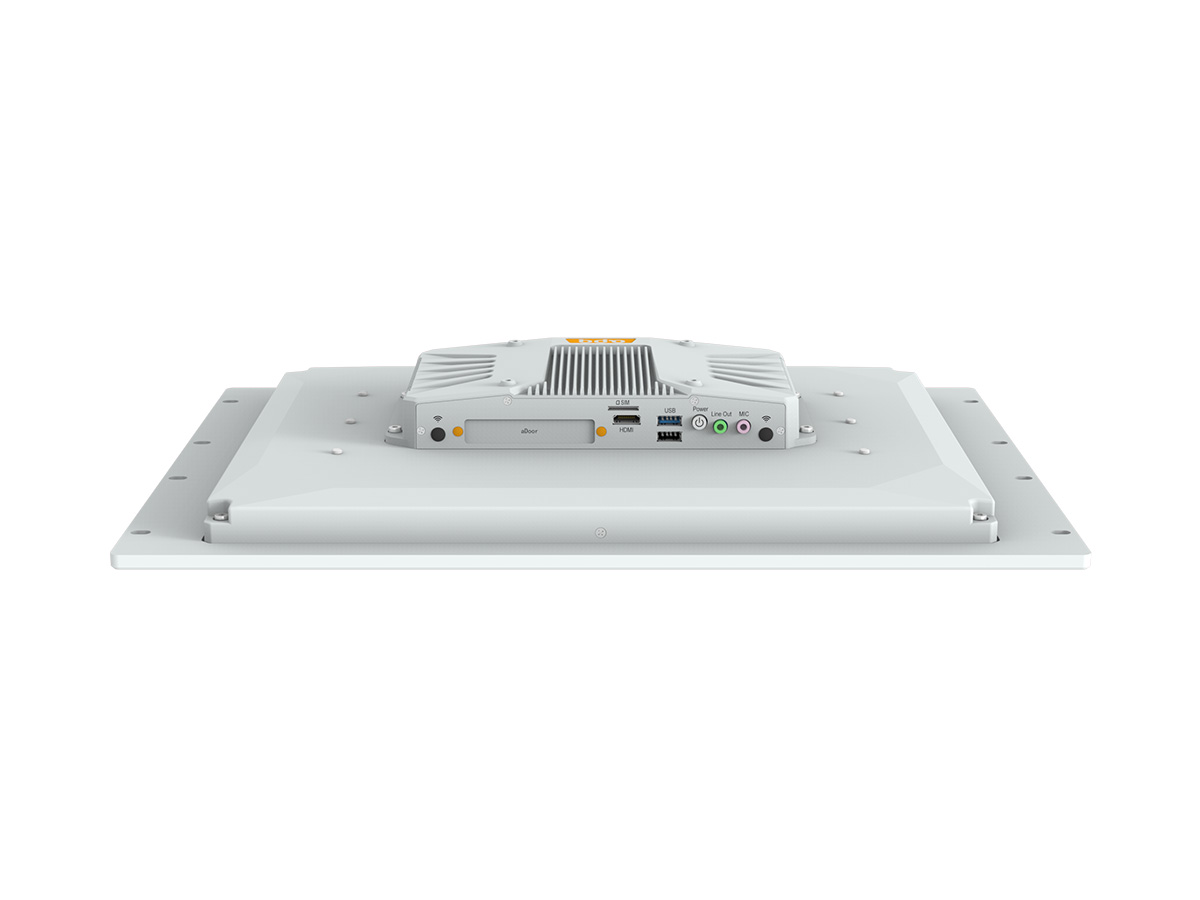

| Rear I/O | USB | 1 * USB3.0 (Type-A) 1 * USB2.0 (Type-A) |
|
| SIM | 1 * SIM Card slot (Mini PCIe module provides functional support) | ||
| Button | 1 * Power Button+Power LED | ||
| Audio | 1 * 3.5mm Line-out Jack 1 * 3.5mm MIC Jack |
||
| Display | 1 * HDMI: max resolution up to 1920*1200 @ 60Hz | ||
| Internal I/O | Front Panel | 1 * TFront Panel (3*USB2.0+Front Panel, 10x2Pin, PHD2.0) 1 * Front Panel (3x2Pin, PHD2.0) |
|
| FAN | 1 * SYS FAN (4x1Pin, MX1.25) | ||
| Serial | 2 * COM (JCOM3/4, 5x2Pin, PHD2.0) | ||
| USB | 2 * USB2.0 (5x2Pin, PHD2.0) 1 * USB2.0 (4x1Pin, PH2.0) |
||
| Display | 1 * LVDS (20x2Pin, PHD2.0) | ||
| Audio | 1 * Front Audio (header, Line-Out + MIC, 5x2Pin 2.00mm) 1 * Speaker (wafer, 2-W (per channel)/8-Ω Loads, 4x1Pin 2.0mm) |
||
| GPIO | 1 * 8bits DIO (4xDI and 4xDO, 10x1Pin MX1.25) | ||
| Power Supply | Type | DC | |
| Power Input Voltage | 12~28VDC | ||
| Connector | 1 * DC5525 with lock | ||
| RTC Battery | CR2032 Coin Cell | ||
| OS Support | Windows | Windows 7/8.1/10 | |
| Linux | Linux | ||
| Watchdog | Output | System Reset | |
| Interval | Programmable 1 ~ 255 sec | ||
| Mechanical | Enclosure Material | Radiator/Panel: Aluminum, Box/Cover: SGCC | |
| Mounting | Rack-mount, VESA, embedded | ||

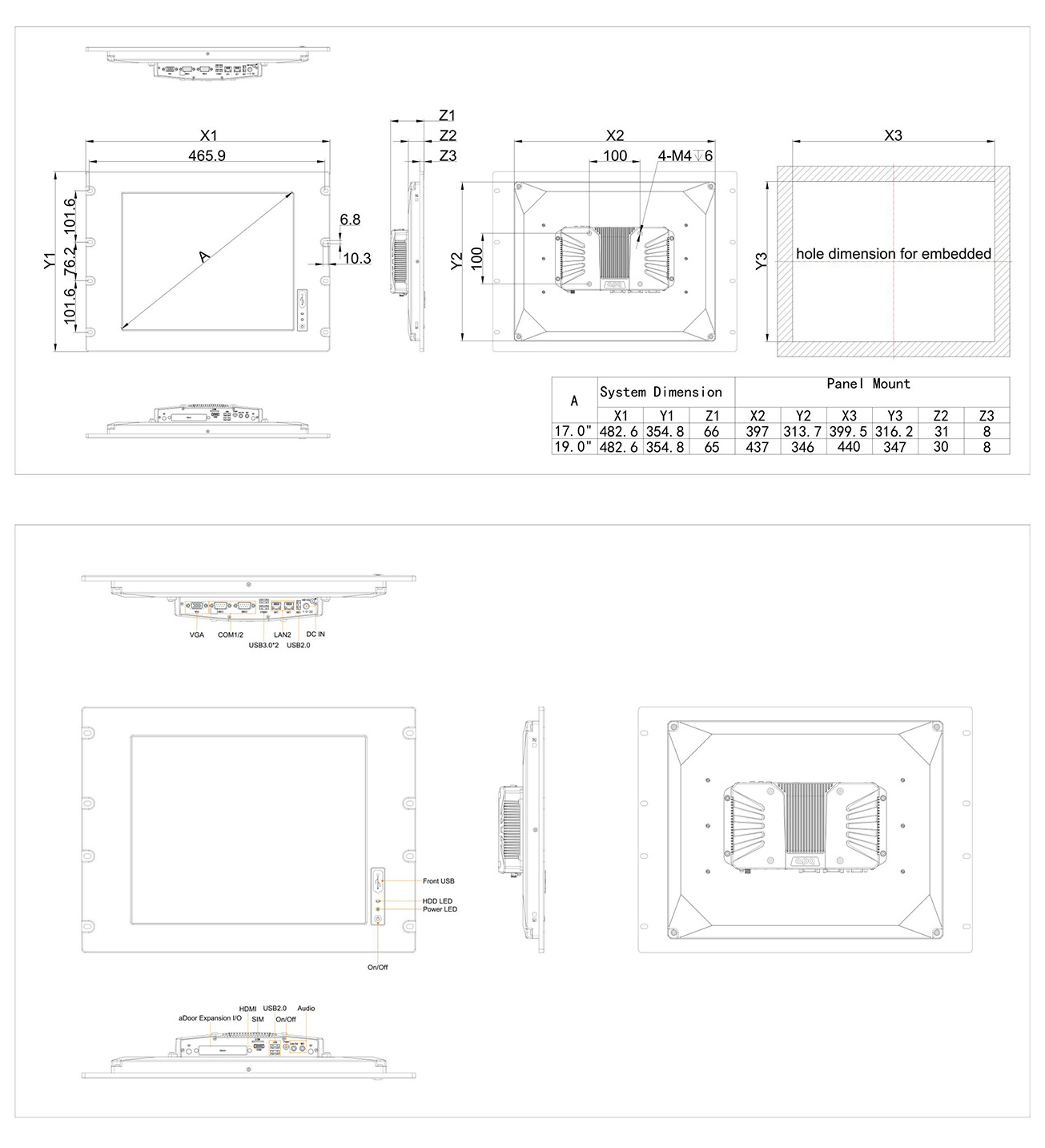

| Dimensions | 482.6mm(L) * 354.8mm(W) * 66mm(H) | 482.6mm(L) * 354.8mm(W) * 65mm(H) | |
| Weight | Net: 5.5kg, Total:8.5kg | Net: 6.9kg, Total: 10.1kg | |
| Environment | Heat Dissipation System | Passive heat dissipation | |
| Operating Temperature | 0~50℃ | 0~50℃ | |
| Storage Temperature | -20~60℃ | -20~60℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||
-
