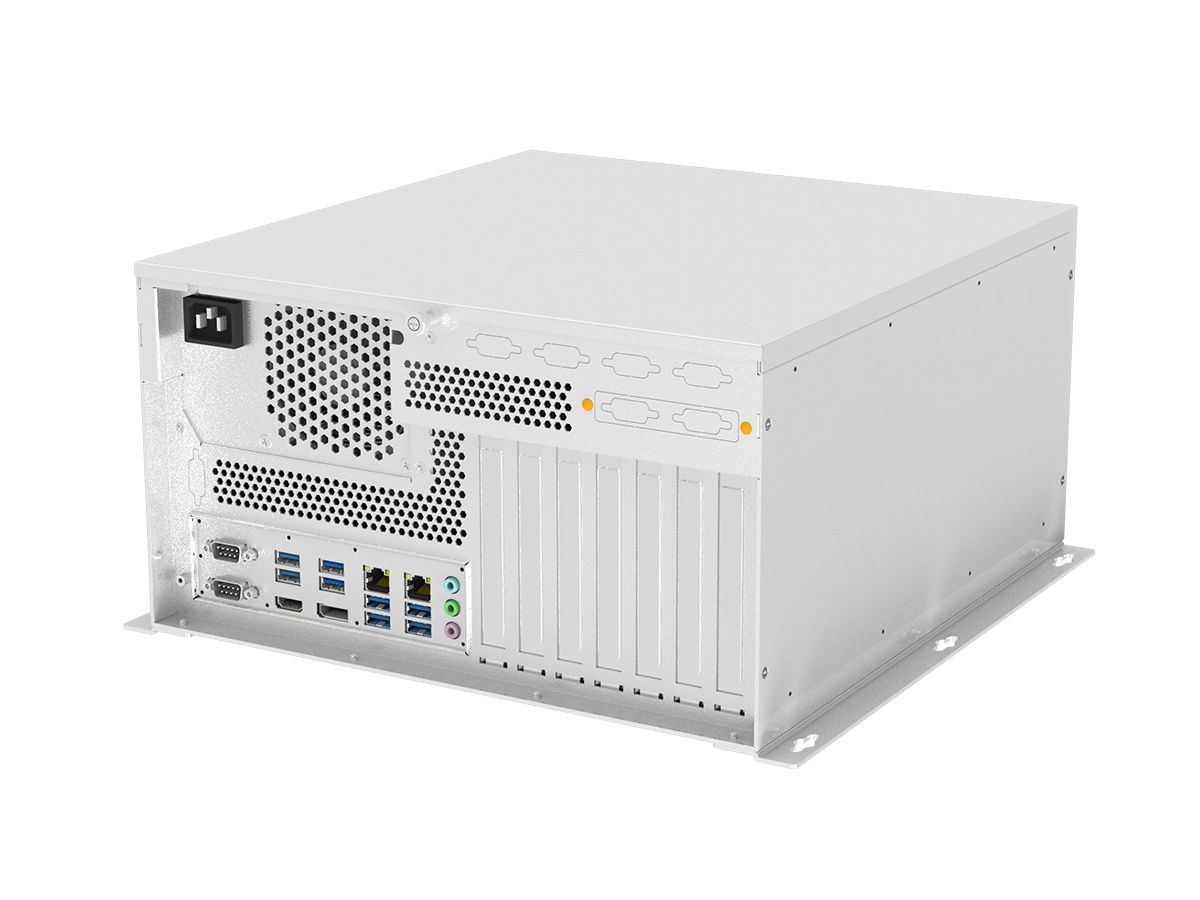

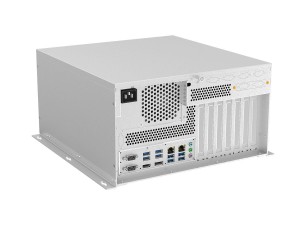

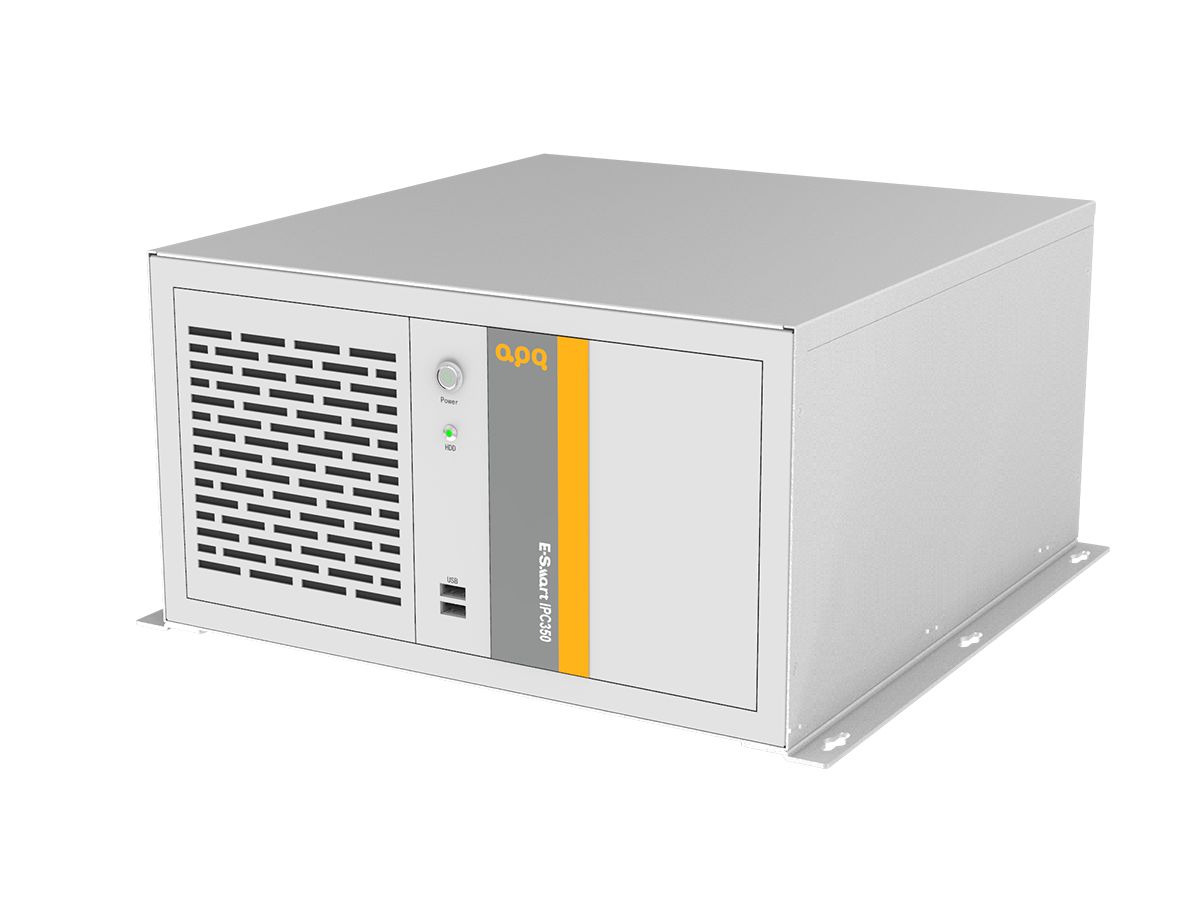

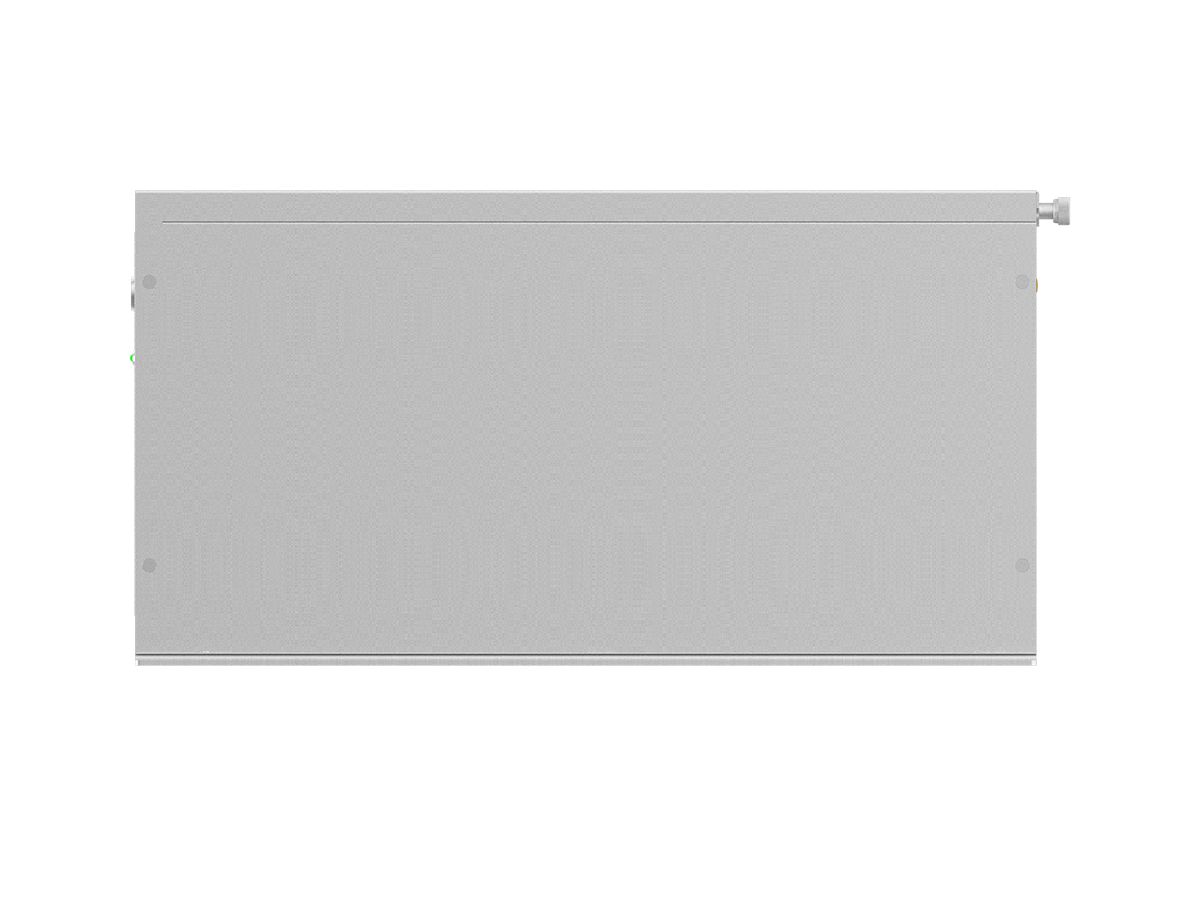

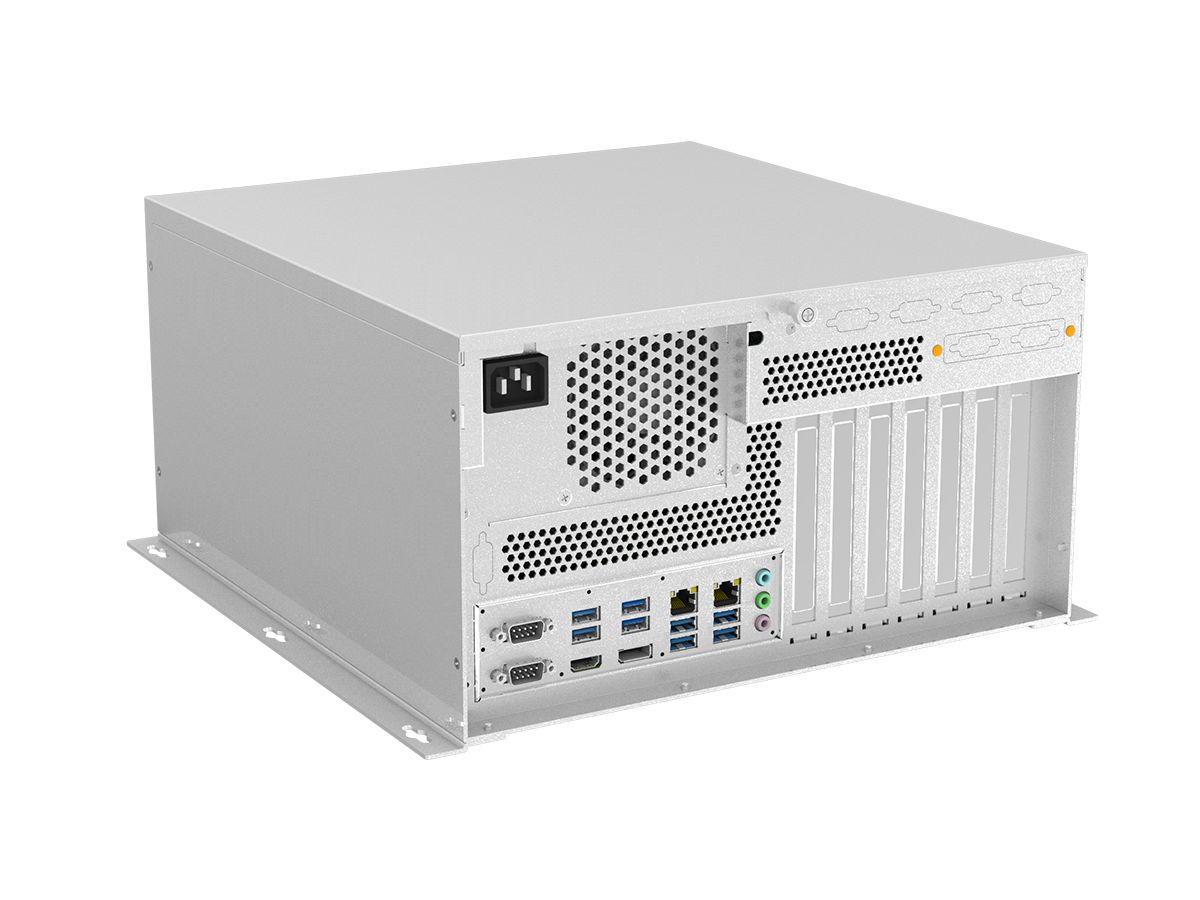

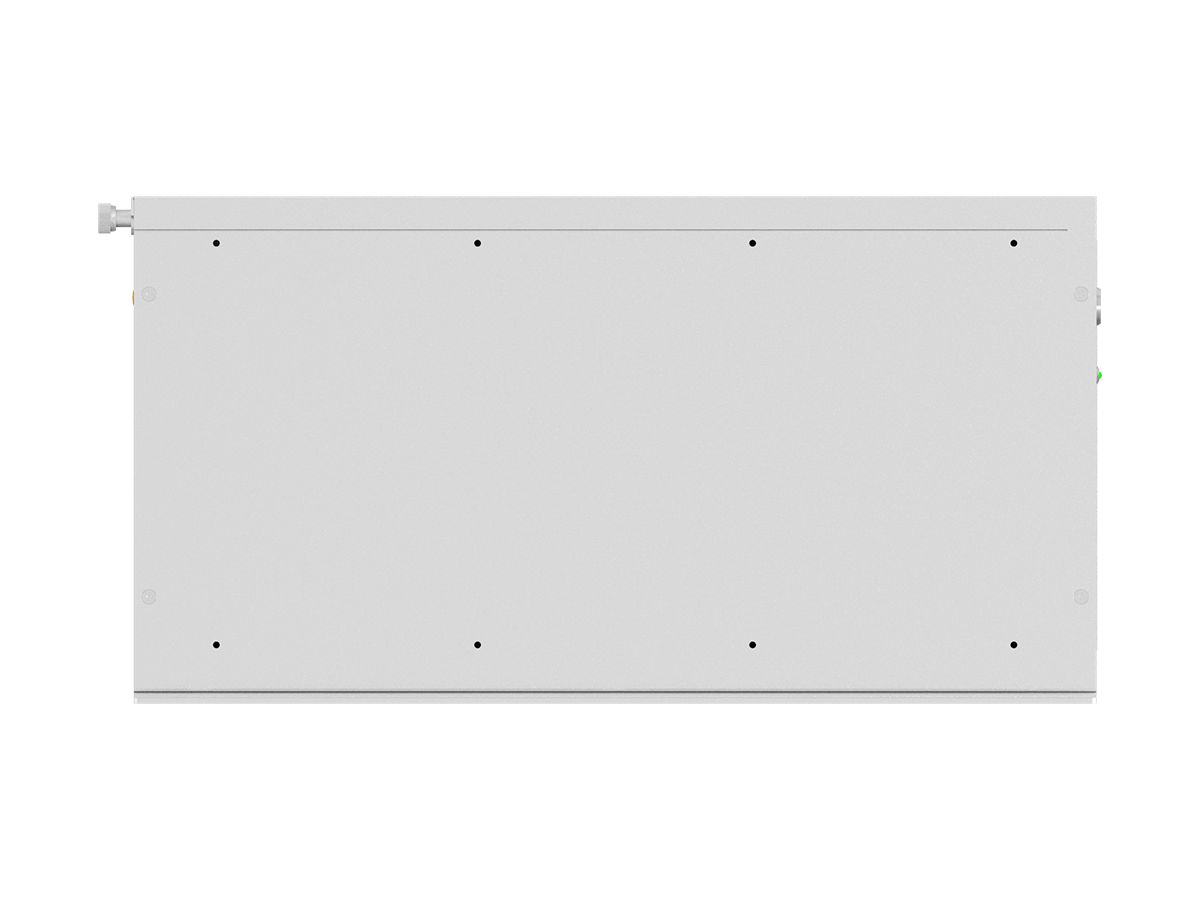

阿普奇壁挂式工控机IPC350-Q470是专为工业应用打造的紧凑型小4U机箱,集成了卓越的性能和多样化的功能特点。它支持最新的Intel® 10/11th Generation Core/Pentium/Celeron Desktop CPU,具备强大的数据处理能力。这款工控机安装标准ATX主板,并支持标准4U电源,确保系统稳定运行。此外,IPC350-Q470最多支持7槽位全高卡扩展,满足多行业应用需求。其人性化的设计包括机箱前置系统风扇免工具维护和精心设计的免工具PCIe扩展卡固定架,具有更高的抗震性。同时,它最多可选2个3.5英寸抗震抗冲击硬盘位,提供便捷的系统维护。总之,阿普奇壁挂式工控机IPC350-Q470适用于各种工业环境下的边缘计算应用,具有紧凑型小4U机箱、强大的计算能力、出色的扩展性、人性化的维护设计和卓越的安全性能等特点。无论是在数据处理、图像识别还是自动化控制方面,这款工控机都能满足各种边缘计算应用的需求,为企业创造更多价值。
Model |
IPC350-Q470 |
|
Processor System |
CPU | Support Intel® 10/11th Generation Core / Pentium/ Celeron Desktop CPU |
TDP | 125W | |
Socket | LGA1200 | |
Chipset | Q470 | |
BIOS | AMI 256 Mbit SPI | |
Memory |
Socket | 4 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2933MHz |
Capacity | 128GB, Single Max. 32GB | |
Graphics |
Controller | Intel® UHD Graphics |
Ethernet |
Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45)
1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45) |
Storage |
SATA | 4 * SATA3.0 7P Connector, Support RAID 0, 1, 5, 10 |
M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
Expansion Slots |
PCIe | 2 * PCIe x16 slot (Gen 3, x16 /NA signal or Gen 3, x8 /x8 signal)
3 * PCIe x4 slot (Gen 3, x4 signal) |
PCI | 2 * PCI slot | |
Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card) | |

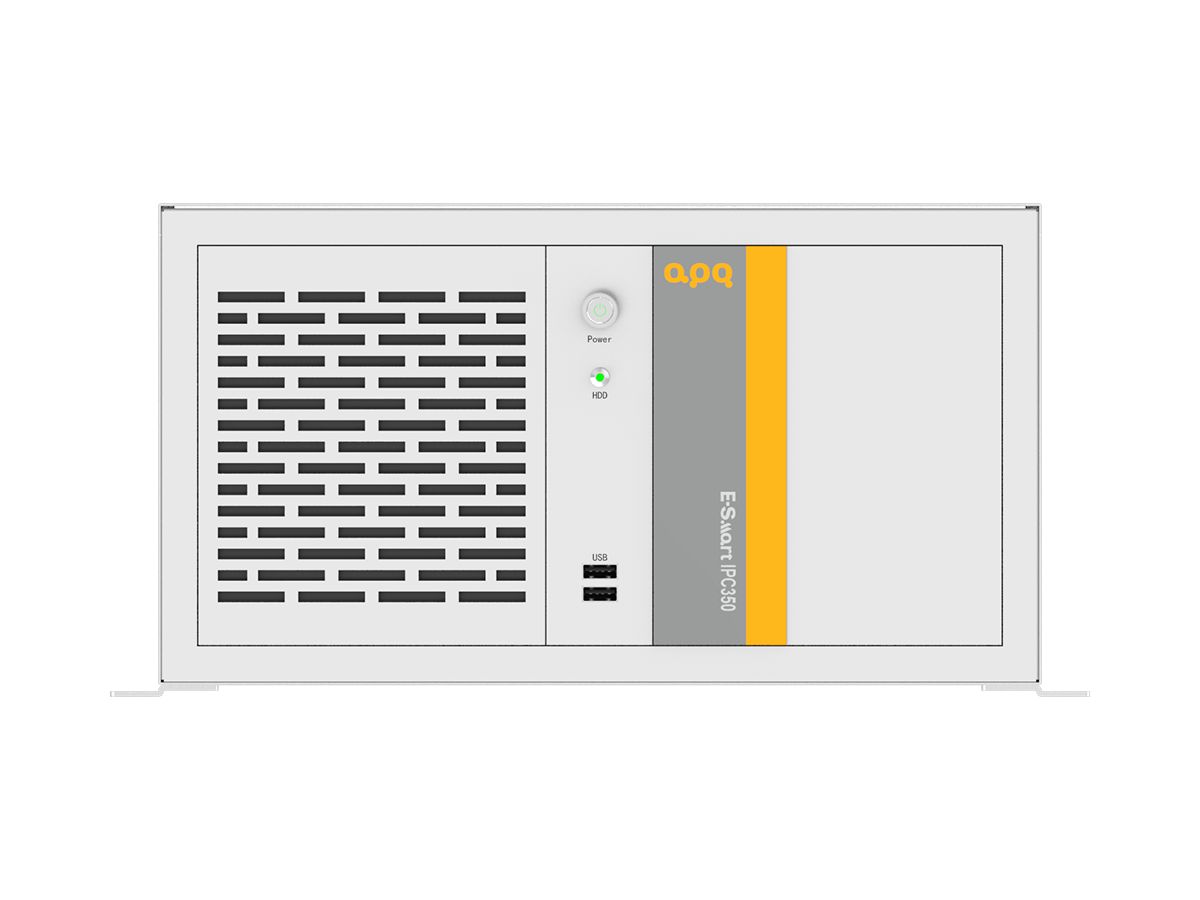

Front I/O |
Ethernet | 2 * RJ45 |
USB | 2 * USB3.2 Gen 2x1 (Type-A)
4 * USB3.2 Gen 1x1 (Type-A) 2 * USB2.0 (Type-A) |
|
Display | 1 * DP1.4: max resolution up to 3840*2160 @ 60Hz 1 * HDMI1.4: max resolution up to 3840*2160 @ 30Hz |
|
Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |

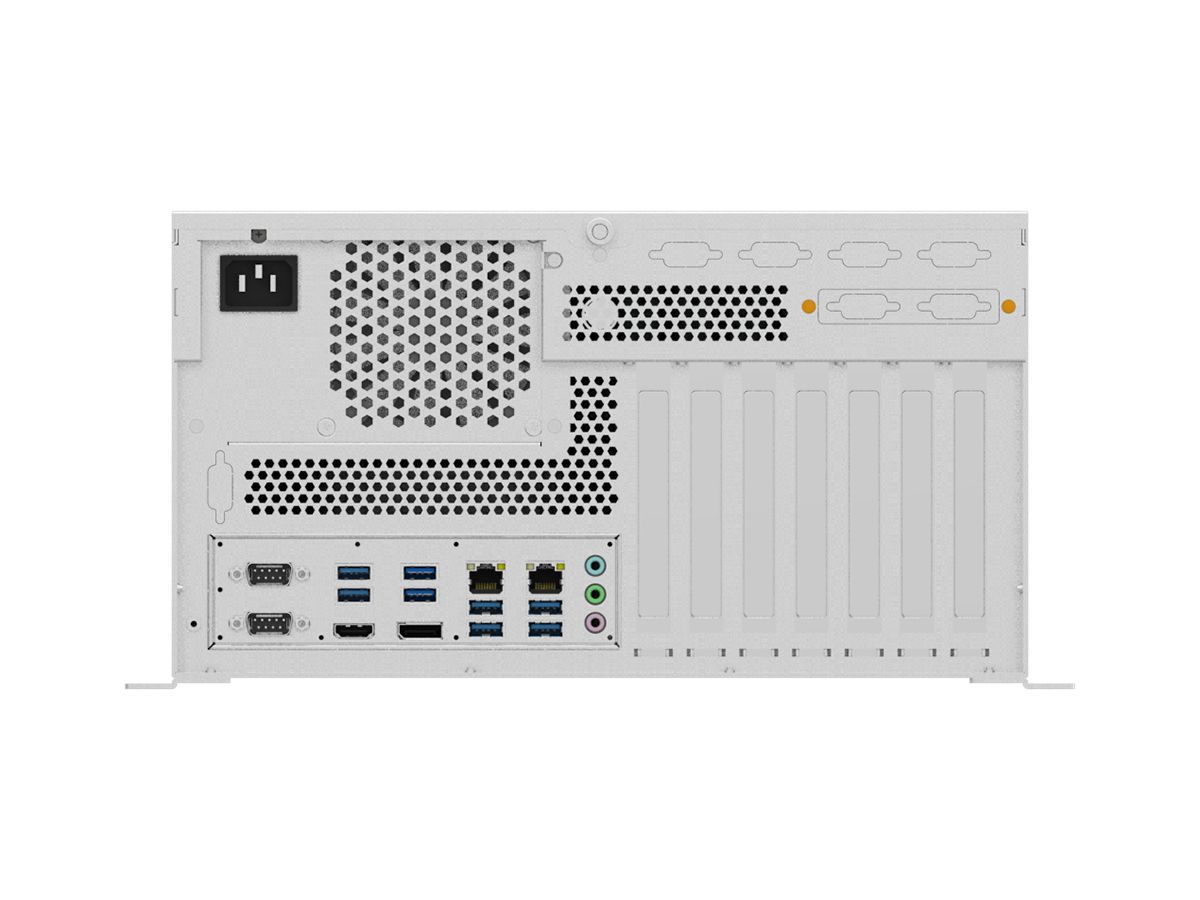

Rear I/O |
USB | 2 * USB2.0 (Type-A) |
Button | 1 * Power Button | |
LED | 1 * Power status LED
1 * Hard drive status LED |
|
Internal I/O |
USB | 1 * USB2.0 (Vertical TYEP-A)
2 * USB2.0 (Header) |
COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer)
1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) |
|
Audio | 1 * Front Audio (Line-Out + MIC, Header)
1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) |
|
GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) | |
SATA | 4 * SATA 7P Connector | |
LPT | 1 * LPT (Header) | |
PS/2 | 1 * PS/2 (wafer) | |
SMBus | 1 * SMBus (wafer) | |
FAN | 2 * SYS FAN (Header)
1 * CPU FAN (Header) |
|
Power Supply |
Type | ATX |
Power Input Voltage | AC power supply, voltage and frequency shall be based on the ATX power supply provided | |
RTC Battery | CR2032 Coin Cell | |
OS Support |
Windows | Windows 10/11 |
Linux | Linux | |
Watchdog |
Output | System Reset |
Interval | Programmable 1 ~ 255 sec | |
Mechanical |
Enclosure Material | SGCC |
Dimensions | 330mm(L) * 350mm(W) * 180mm(H) | |

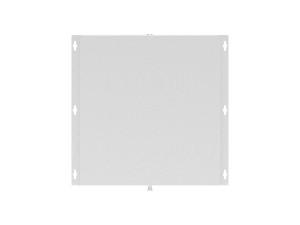

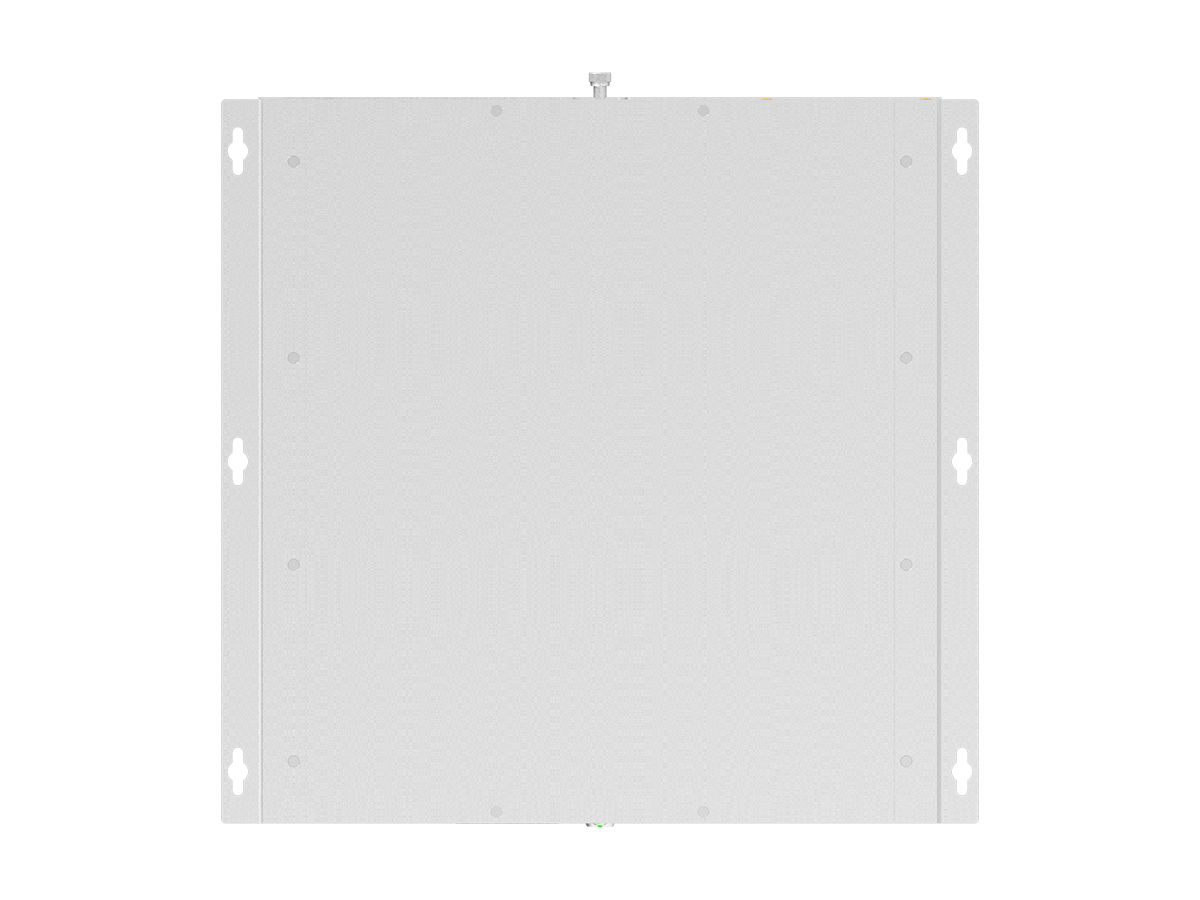

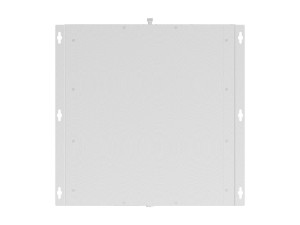

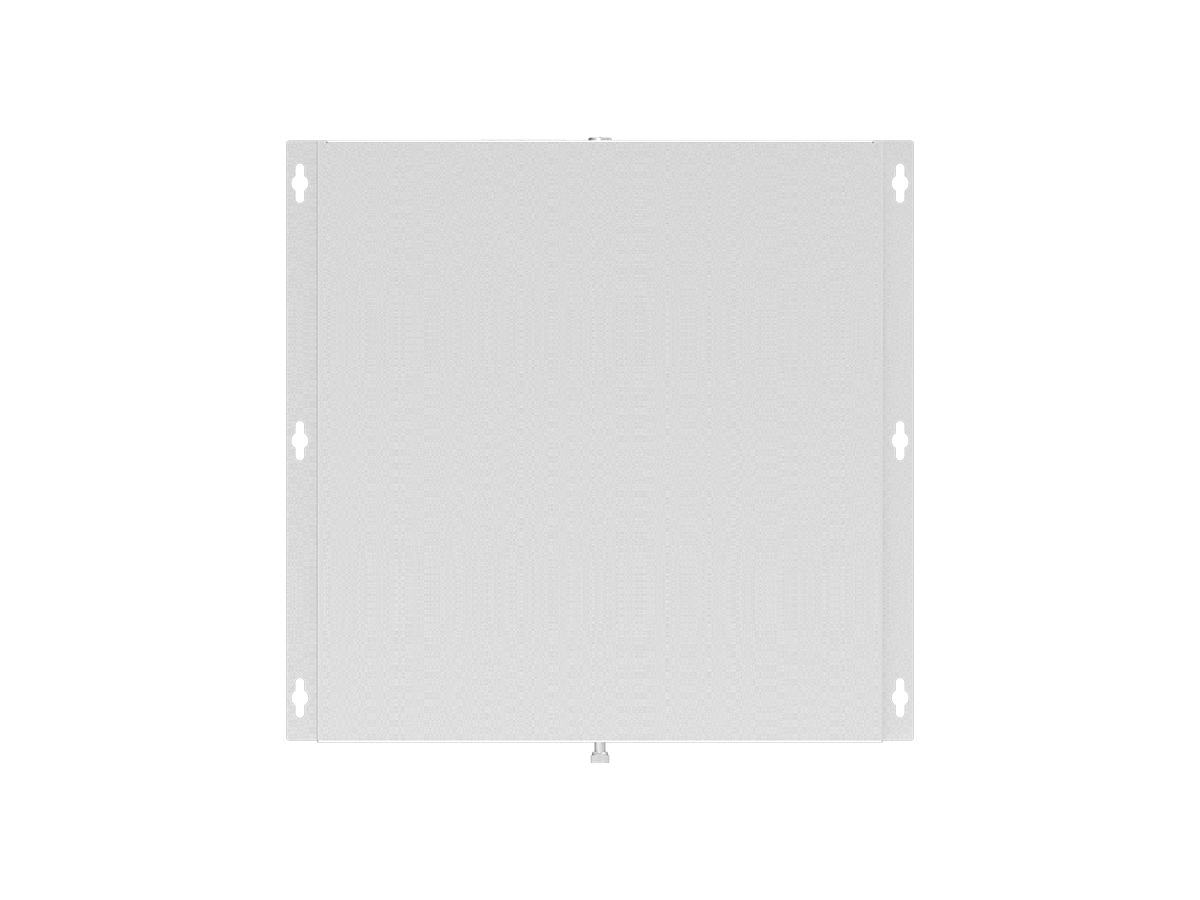

Mounting | Wall mounted, Desktop | |
Environment |
Heat Dissipation System | PWM fan cooling |
Operating Temperature | 0 ~ 50℃ | |
Storage Temperature | -20 ~ 70℃ | |
Relative Humidity | 10 to 90% RH (non-condensing) |
