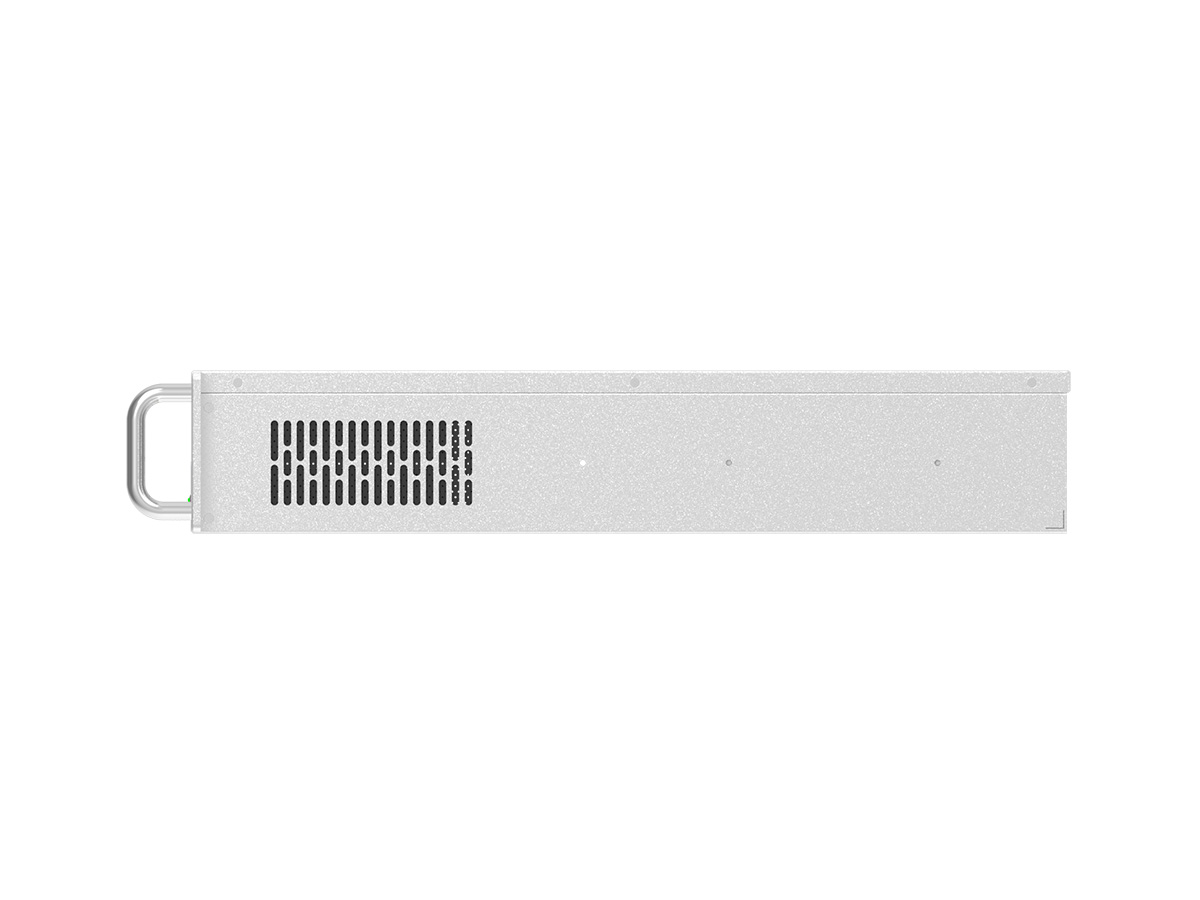

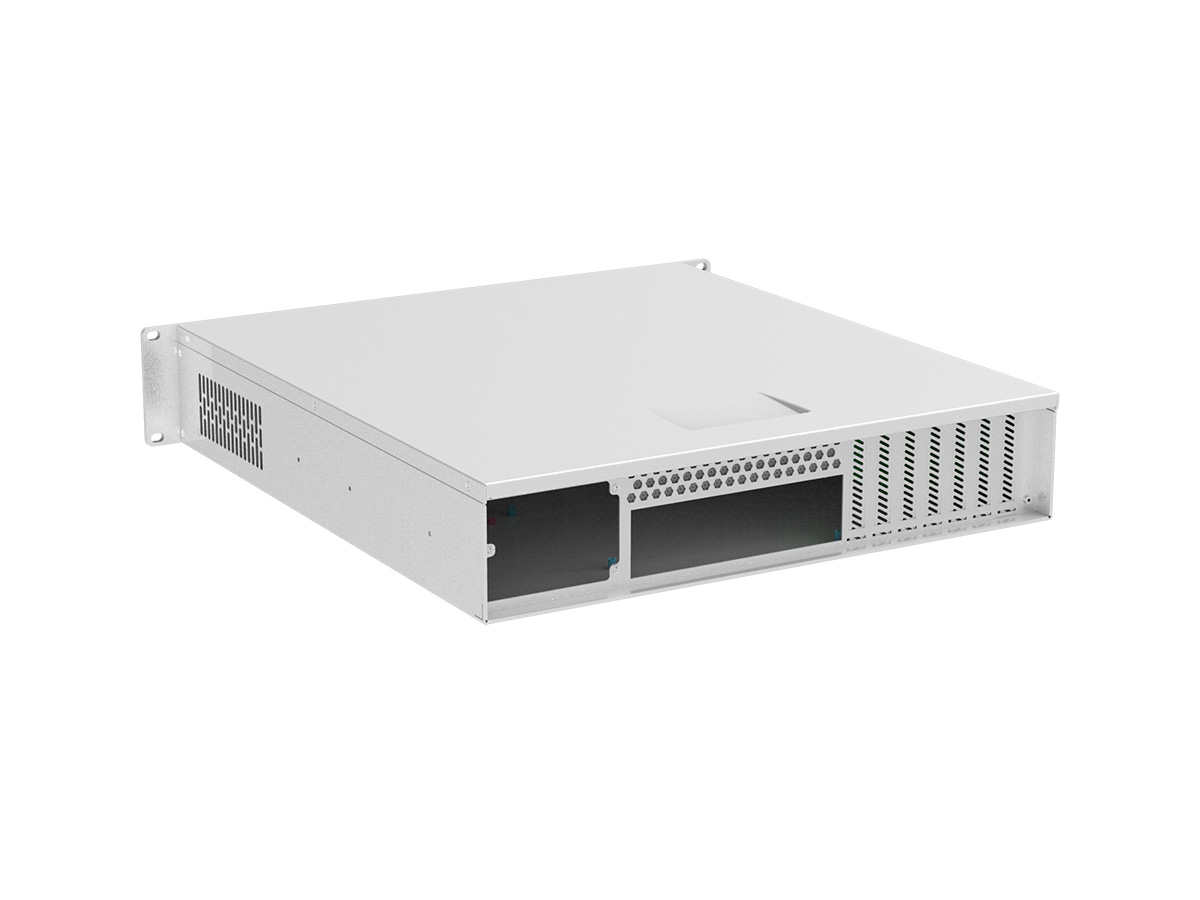

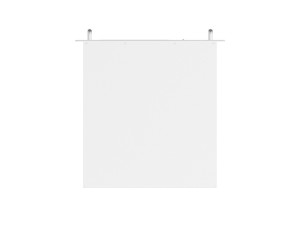

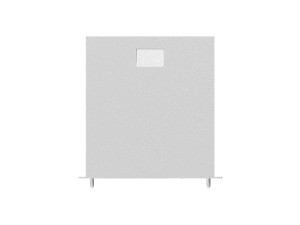

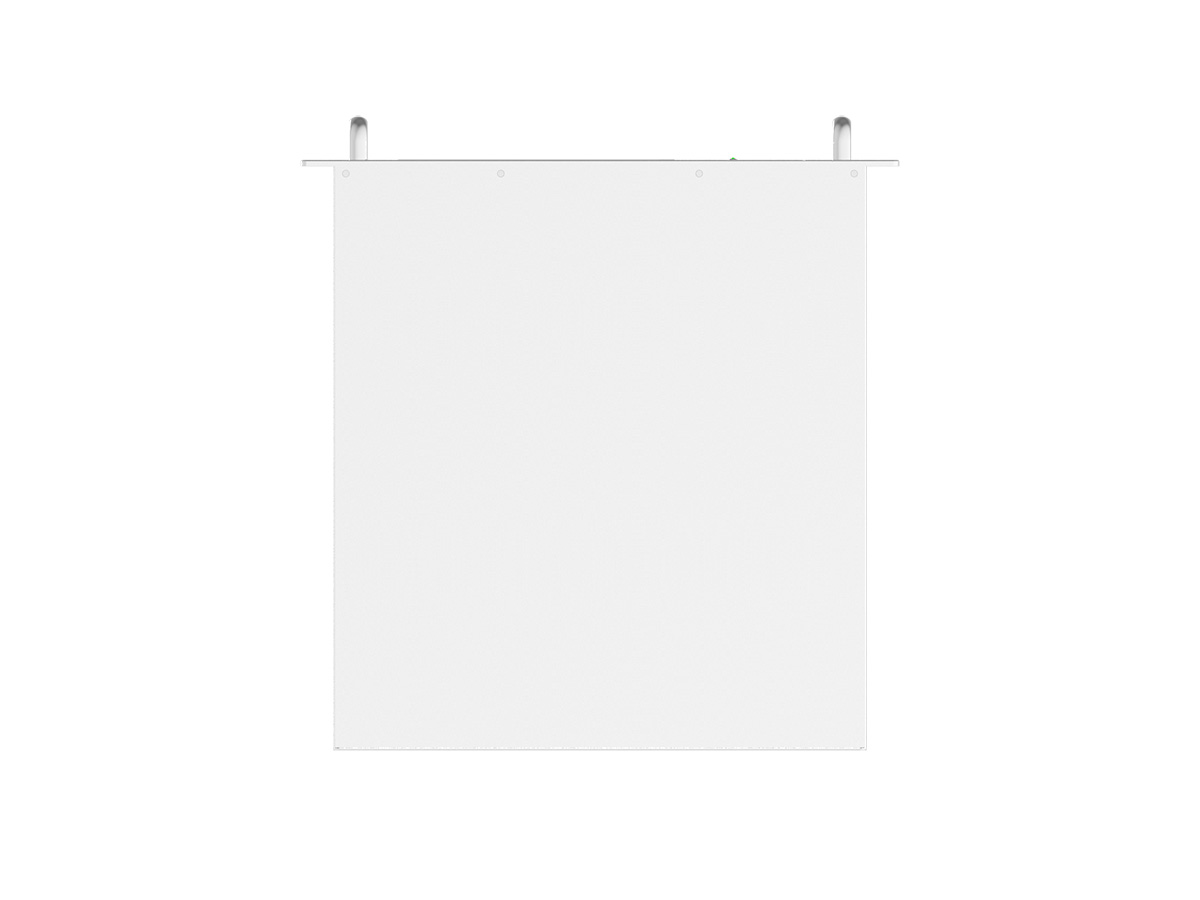

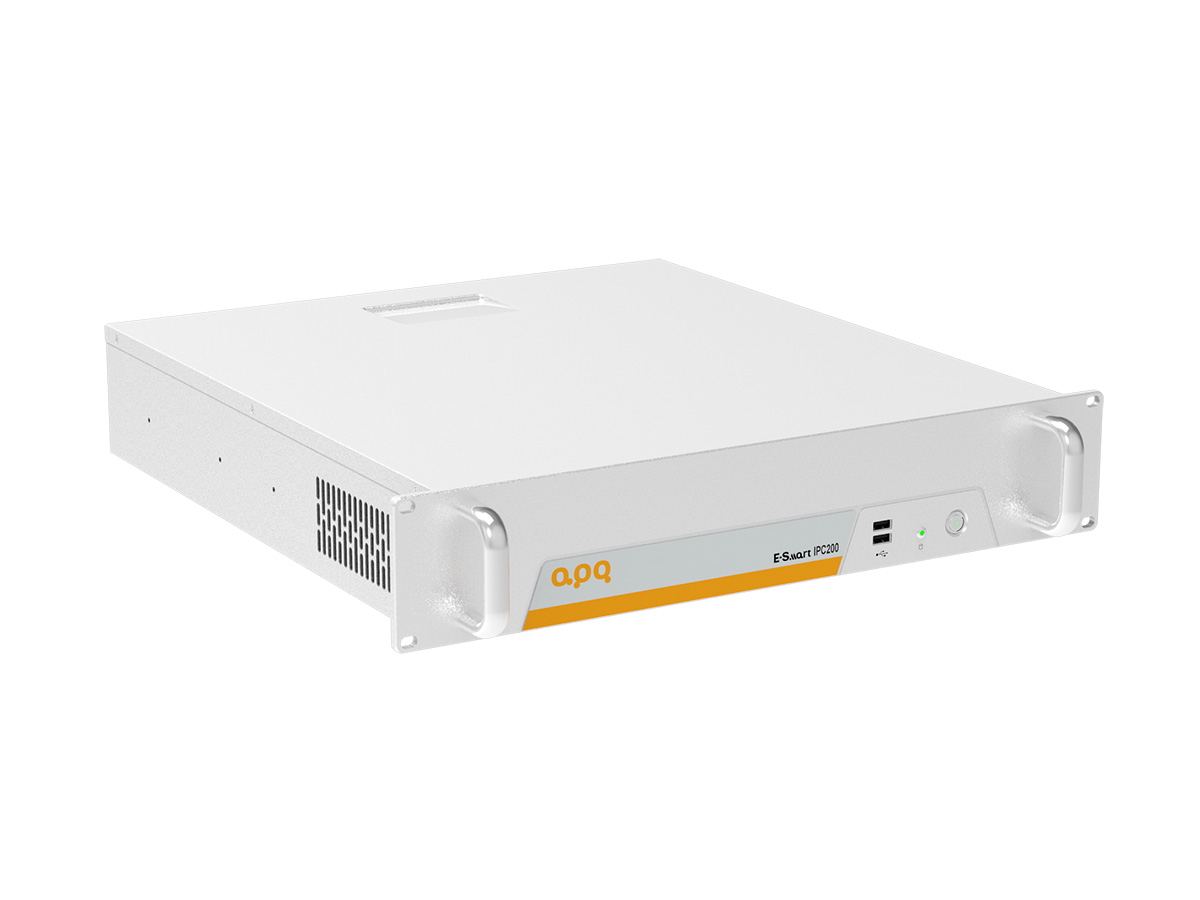

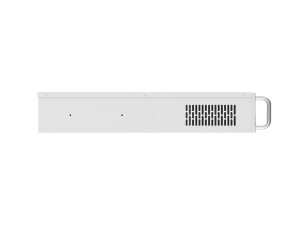

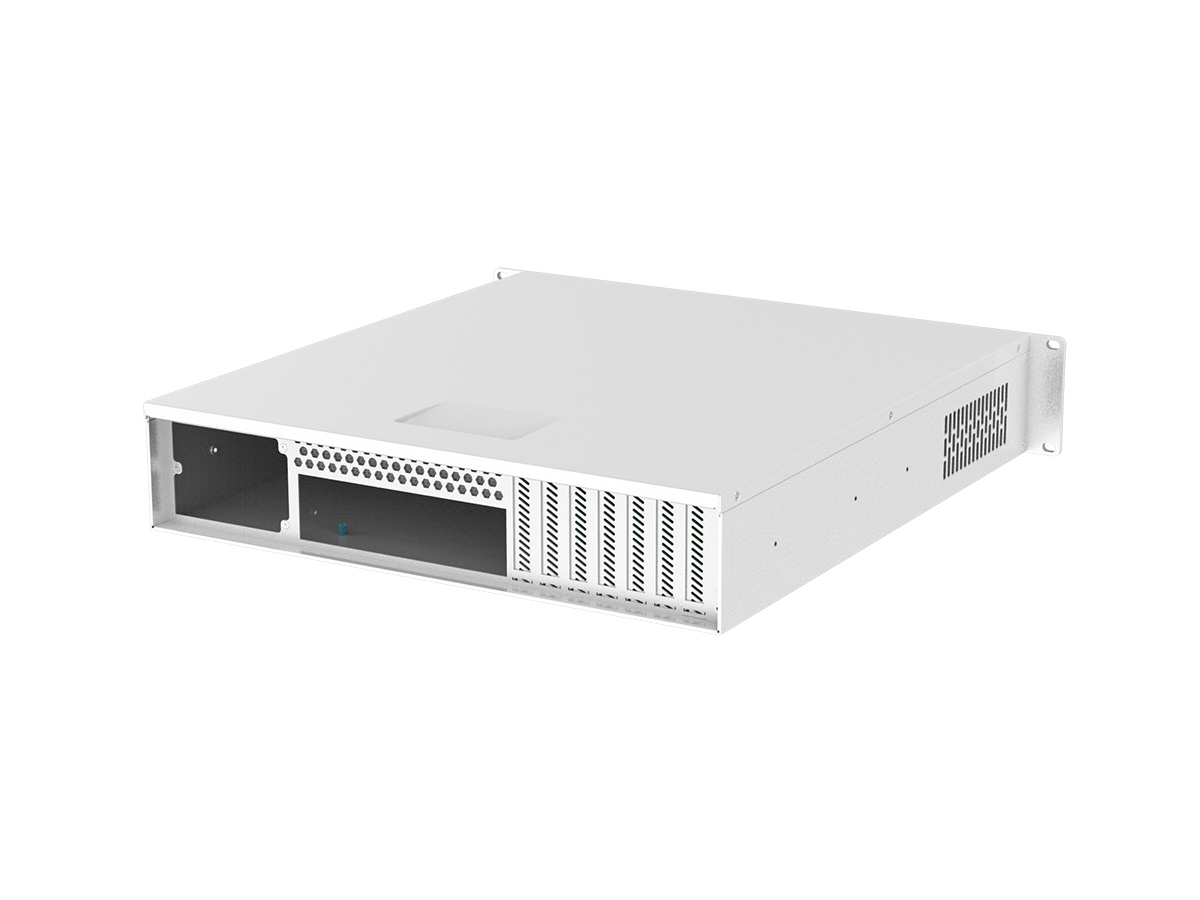

IPC200 工控机箱 2U上架式机箱

IPC200 工控机箱 2U上架式机箱

特点:

  • 支持Intel® 12~14th Generation Core/Pentium/Celeron Desktop CPU
  • 全套模具成型,标准19英⼨2U上架式机箱
  • 安装标准ATX主板,支持标准2U电源
  • 最多支持7槽位半高卡扩展,满足多行业应用需求
  • 人性化设计,机箱前置系统风扇免工具维护
  • 最多可选4个3.5英寸抗震抗冲击硬盘位

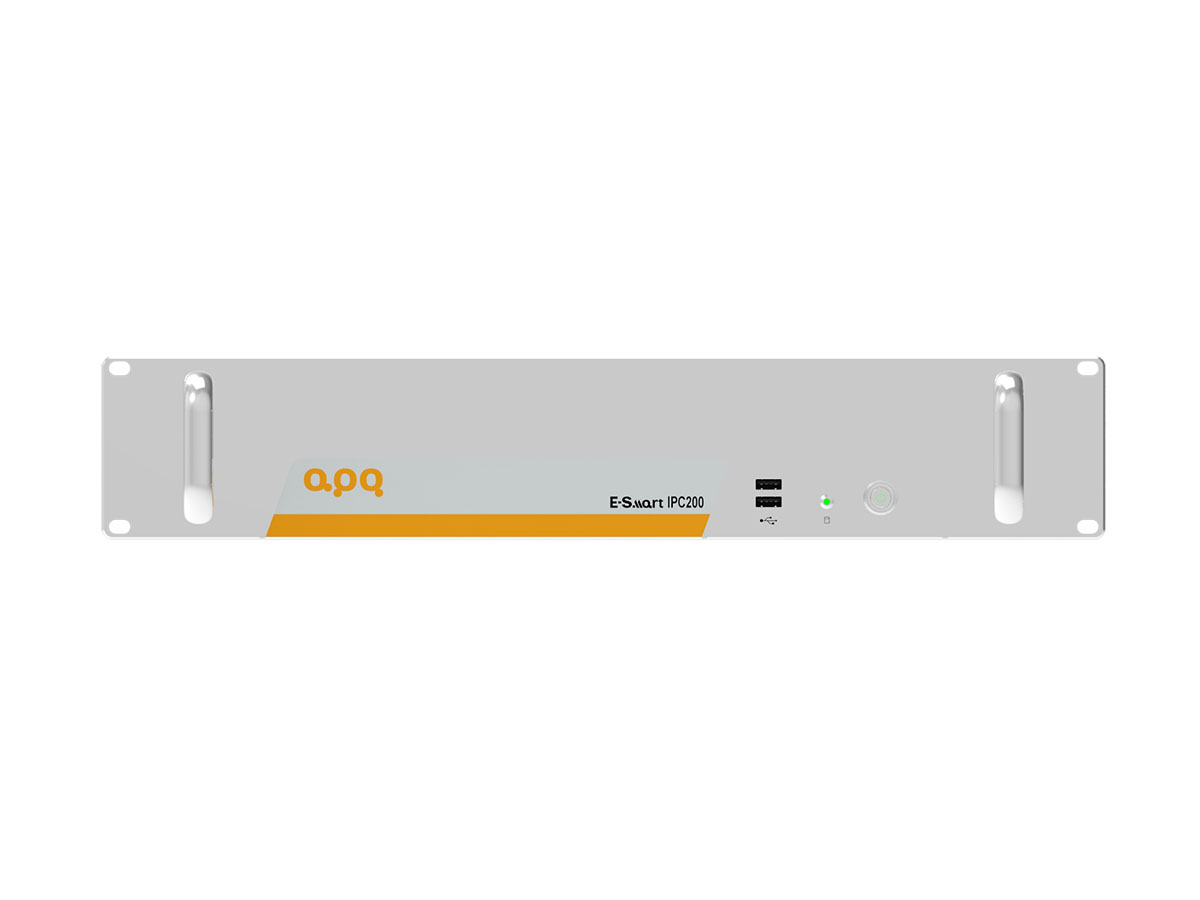

  • 前⾯板USB、开关机设计,电源及存储状态显⽰,更易于系统维护

  • 远程管理

    远程管理

  • 状态监控

    状态监控

  • 远程运维

    远程运维

  • 安全控制

    安全控制

扫码即可添加微信,售前客服为您提供咨询服务

产品描述

阿普奇2U上架式机箱IPC200,以其卓越的性能和紧凑的尺寸,成为工业级计算的新标杆。面板采用铝合金模具成型,标准19英寸2U上架式设计,既坚固又美观。可安装标准ATX主板,支持标准2U电源,确保了强大的计算能力和稳定的电力供应。IPC200的扩展能力同样出色,具备7个半高卡扩展槽位,通过灵活的扩展,IPC200能够适应各种不同的工作负载和系统配置。IPC200最多可选4个3.5英寸抗震抗冲击硬盘位,这种设计确保了存储设备在各种恶劣环境下都能正常工作,为数据的安全与稳定提供了坚实屏障。为了方便系统维护,IPC200工控机箱的前面板设计了USB接口和开关机按钮。同时,电源及存储状态显示功能使得用户可以直观地了解系统的工作状态,进一步简化了维护过程。

阿普奇2U上架式机箱IPC200,凭借其坚固耐用、扩展性强、易于维护等特点,无疑是工业自动化和边缘计算的理想选择。

产品介绍

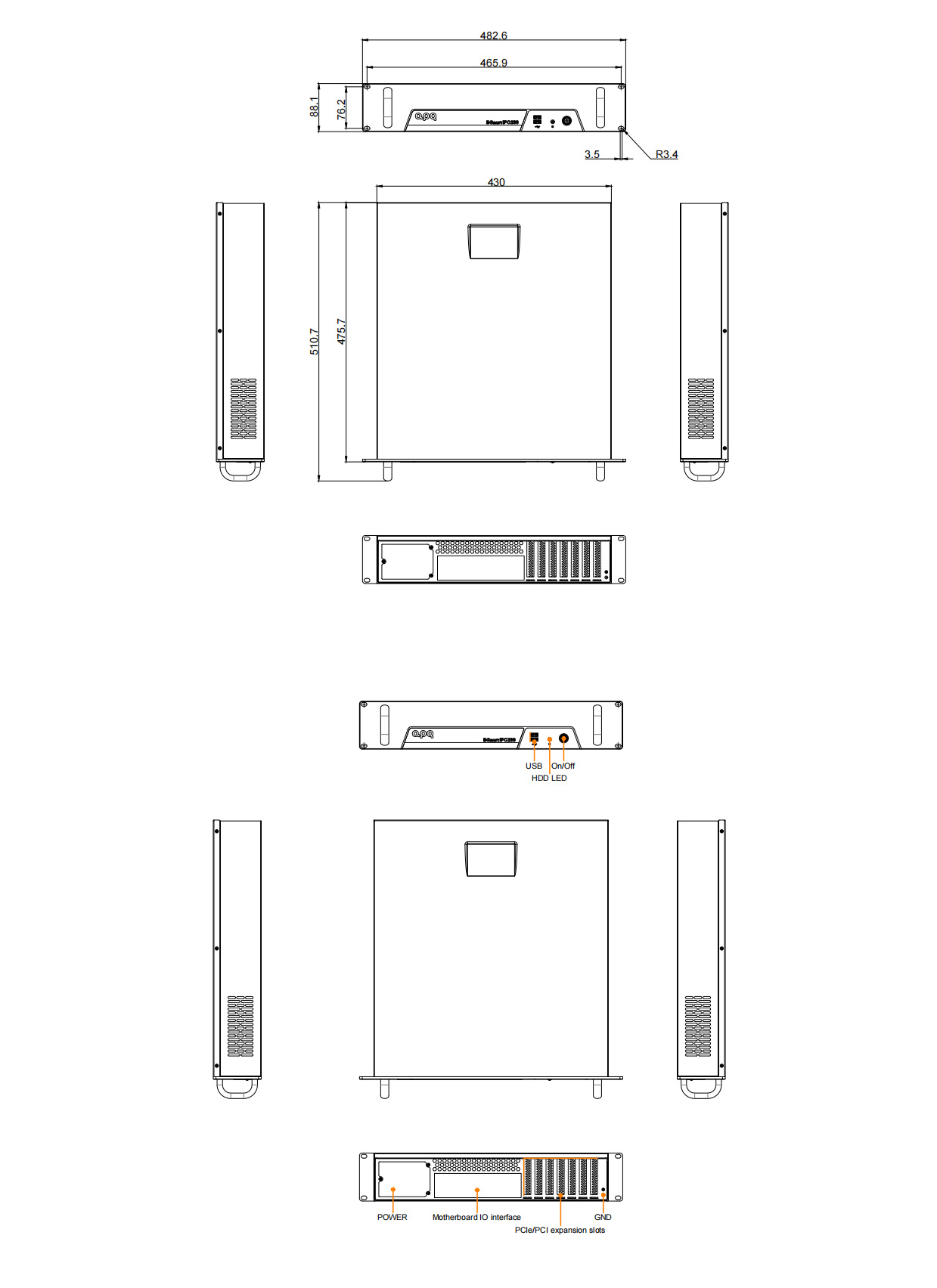

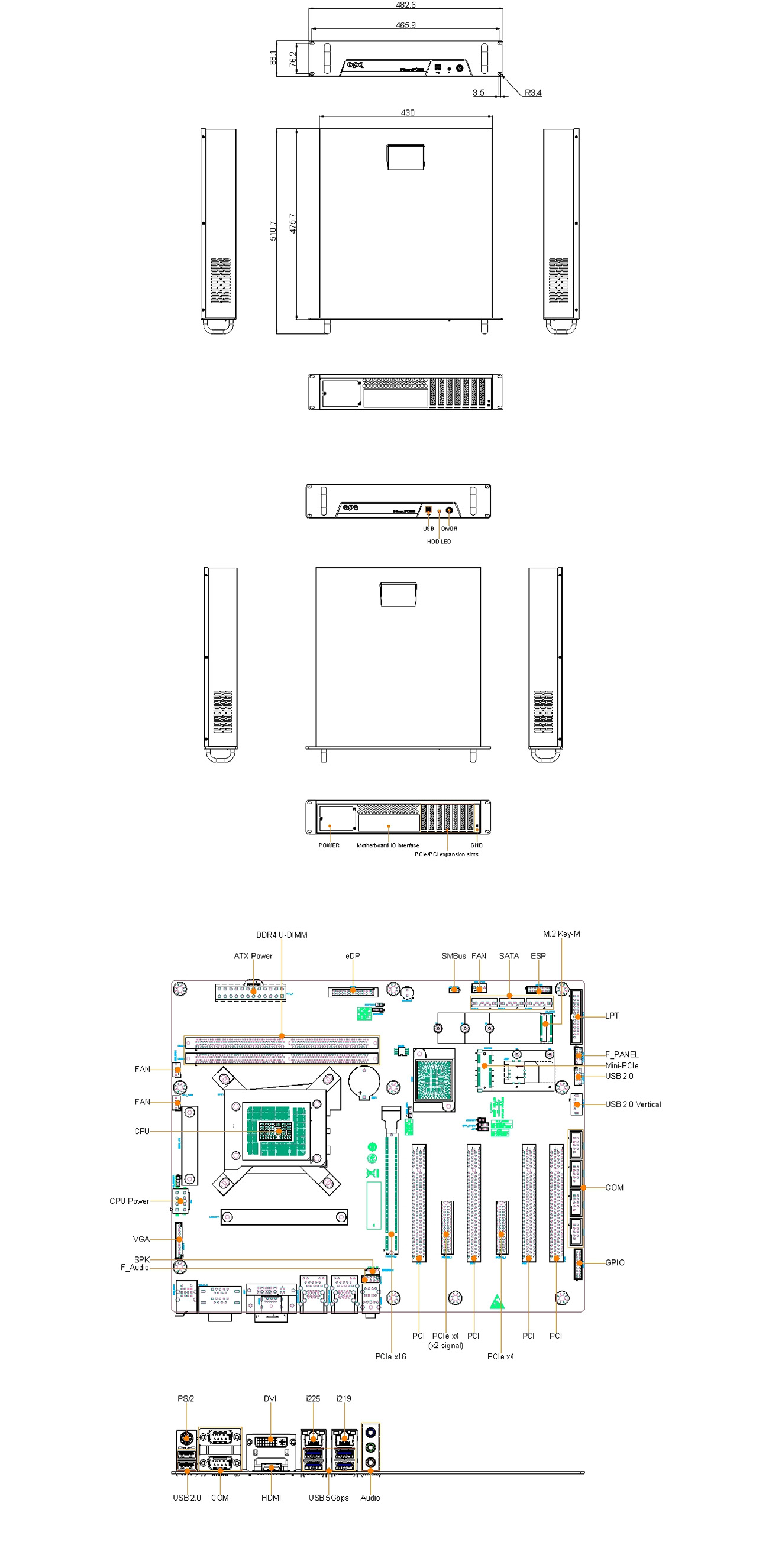

工程图纸

下载产品资料

扫码添加微信,获取最新产品资料文件

Model

IPC200-H610

Processor System

CPU Support Intel® 12~14th Generation Core / Pentium/ Celeron Desktop CPU
TDP 125W
Socket LGA1700
Chipset H610
BIOS AMI 256 Mbit SPI

Memory

Socket 2 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 3200MHz
Capacity 64GB, Single Max. 32GB

Graphics

Controller Intel® UHD Graphics

Ethernet

Controller 1 * Intel i225/226-V/LM LAN Chip (10/100/1000/2500 Mbps, RJ45)1 * Intel i219-V/LM GBE LAN Chip (10/100/1000 Mbps, RJ45)

Storage

SATA 3 * SATA3.0 7P Connector
M.2 1 * M.2 Key-M Slot (SATA 3.0, SATA SSD Auto Detect, 2242/2260/2280)

Expansion Slots

PCIe 1 * PCIe x16 slot (Gen 4, x16 signal)
1 * PCIe x4 slot (Gen 3, x4 signal)
1 * PCIe x4 slot (Gen 3, x2 signal, Default, co-lay Mini PCIe)
PCI 4 * PCI slot
Mini PCIe 1 * Mini PCIe (PCIe x1 Gen 3 (Opt. co-lay PCIe x4 slot) + USB 2.0, with 1 * SIM Card slot)

Front I/O

Ethernet 2 * RJ45
USB 4 * USB 5Gbps (Type-A, 5Gbps, 2 ports for a total of 3A)
2 * USB2.0 (Type-A, 2 ports for a total of 2A)
PS/2 1 * PS/2 (Keyboard & Mouse)
Display 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz
1 * HDMI: max resolution up to 3840*2160 @ 30Hz
Audio 3 * 3.5mm Jack (Line-out + Line-in + MIC)
Serial 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)

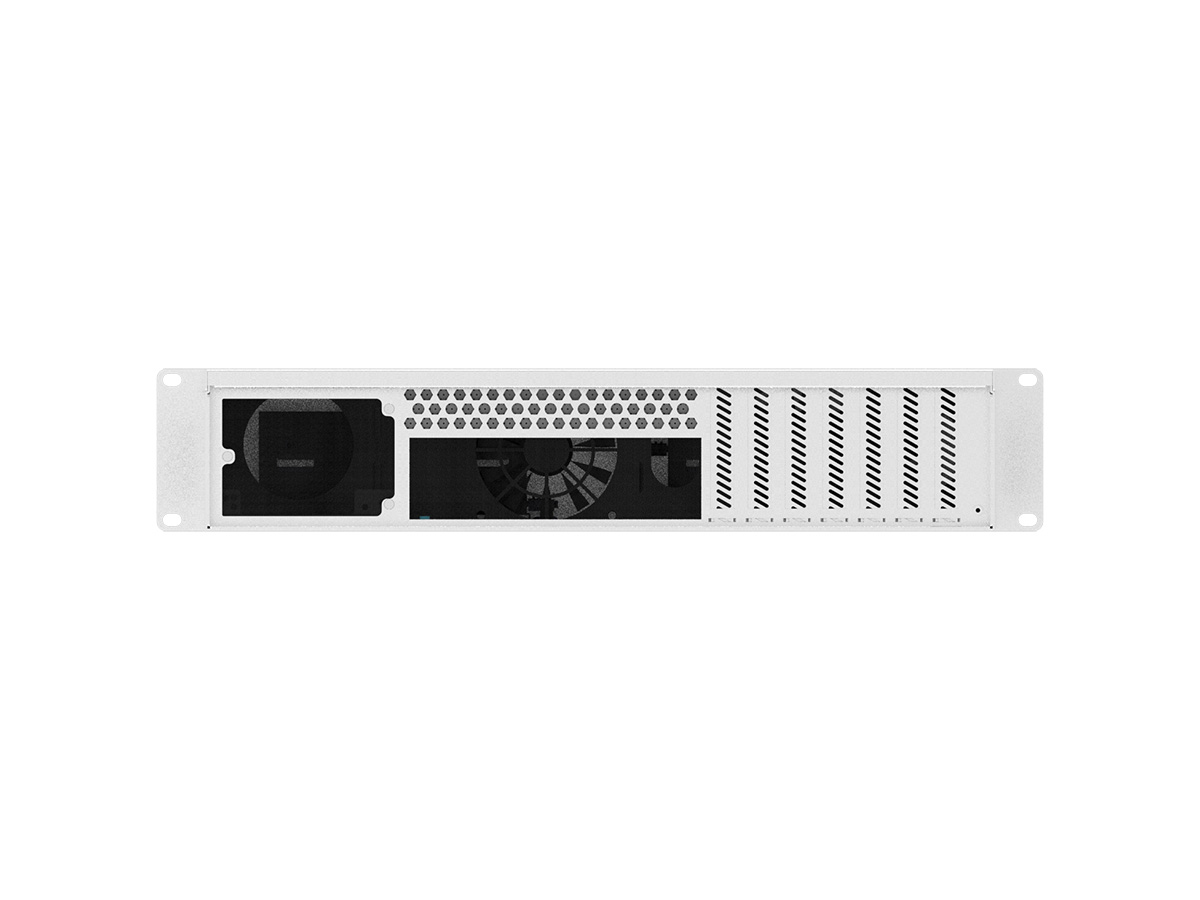

Rear I/O

USB 2 * USB2.0 (Type-A)
Button 1 * Power Button
LED 1 * Power status LED
1 * Hard drive status LED

Internal I/O

USB 1 * USB 2.0 (Vertical Type-A)
COM 4 * RS232 (COM3/4/5/6, Header, Full Lanes)
Display 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer)
1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header)
Audio 1 * Front Audio (Line-Out + MIC, Header)
1 * Speaker (3W (per channel) into a 4Ω Loads, wafer)
GPIO 1 * 16 bits DIO (8DI and 8DO, wafer)
SATA 3 * SATA 7P Connector
LPT 1 * LPT (Header)
FAN 2 * SYS FAN (Header)
1 * CPU FAN (Header)
eSPI 1 * eSPI (Header)

Power Supply

Type 2U FLEX
Power Input Voltage AC power supply, voltage and frequency shall be based on the 2U power supply provided
RTC Battery CR2032 Coin Cell

OS Support

Windows Windows 10/11
Linux Linux Kernel 5.18 or later

Watchdog

Output System Reset
Interval Programmable 1 ~ 255 sec

Mechanical

Enclosure Material SGCC+AL6061
Dimensions 482.6mm(L) * 475.7mm(W) * 88.1mm(H)
Mounting Rack-mounted/Desktop

Environment

Operating Temperature 0 ~ 50℃
Storage Temperature -20 ~ 70℃
Relative Humidity 10 to 95% RH (non-condensing)
