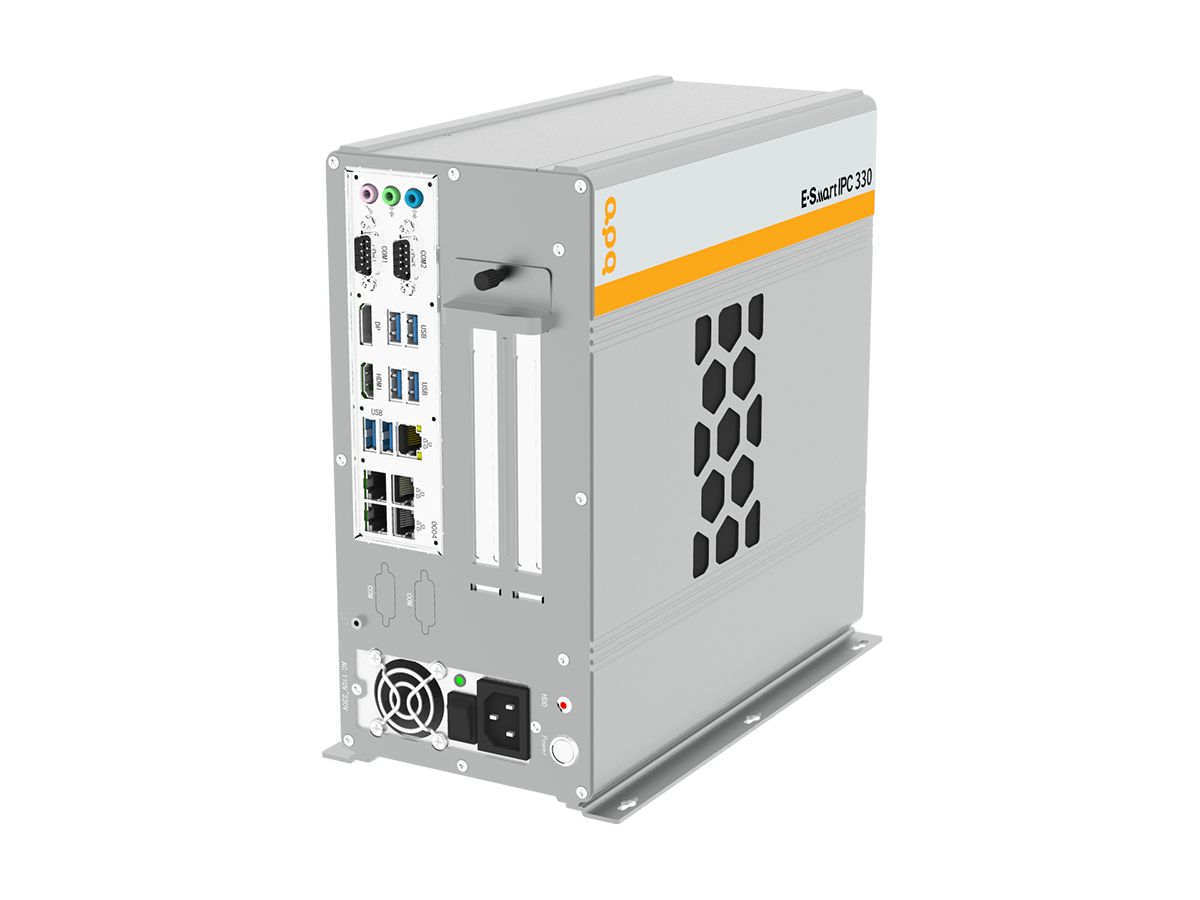

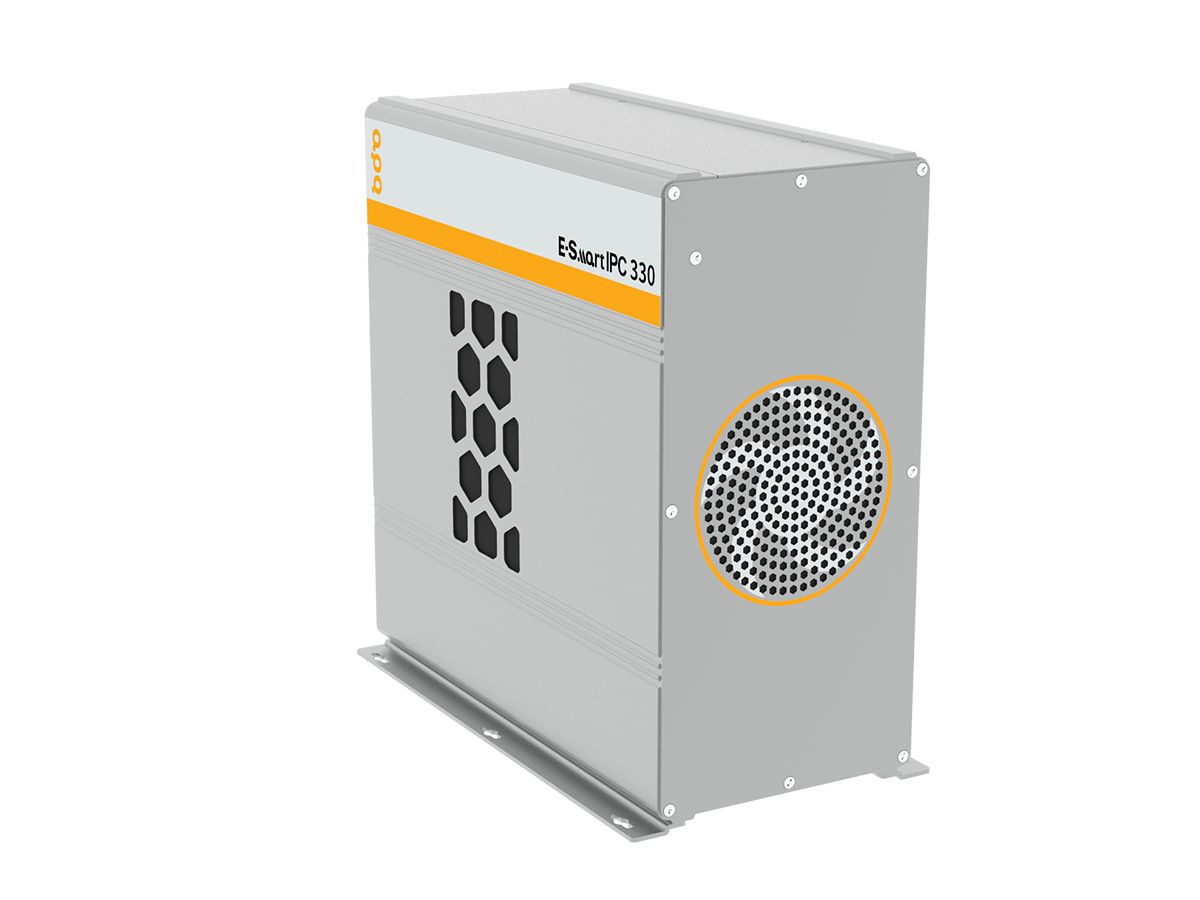

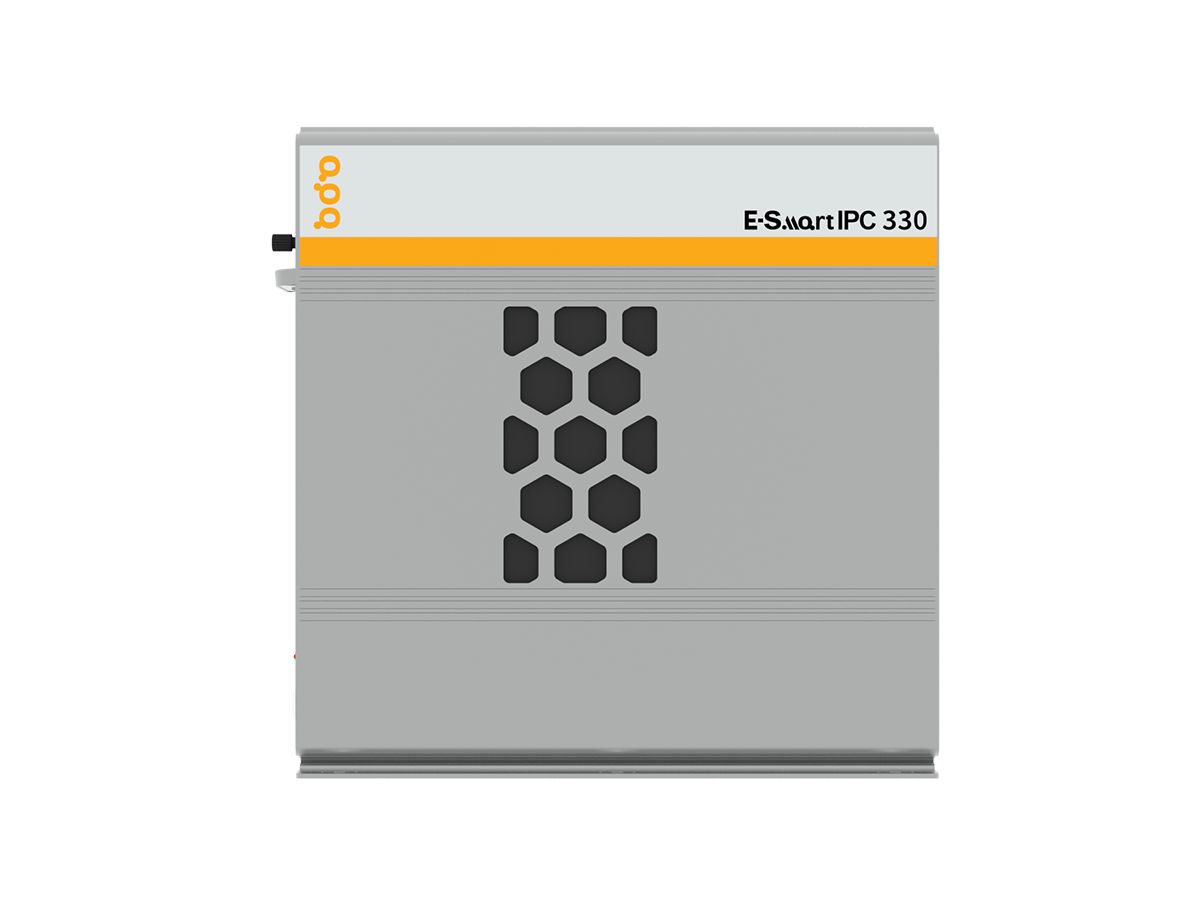

阿普奇 IPC330D-H81L5 多网口视觉检测壁挂式工控机
产品描述
IPC330D-H81L5 是一款面向多相机视觉检测的壁挂式工控机，基于 H81 平台，支持 Intel 4/5 代 Core/Pentium/Celeron 桌面级 CPU。整机提供5个RJ45，可选4路PoE，便于直接接入工业相机、读码器、光源控制器和上位机网络，减少外置交换设备。配合M.2/ SATA存储、板卡扩展和0~50℃工作温度，可用于布匹表面、3C电子表面、包装盒表面、晶圆表面缺陷检测，以及产线追溯和边缘图像采集。
|
Model |
IPC330D-H81L5 |
|
|
Processor System |
CPU | Support Intel® 4/5th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 95W | |
| Socket | LGA1150 | |
| Chipset | H81 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz |
| Capacity | 16GB, Single Max. 8GB | |
|
Graphics |
Controller | Intel® HD Graphics |
|
Ethernet |
Controller | 4 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, with PoE Power socket) 1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps) |
|
Storage |
SATA | 1 * SATA3.0 7P Connector, up to 600MB/s 1 * SATA2.0 7P Connector, up to 300MB/s |
| mSATA | 1 * mSATA (SATA3.0, Share slot with Mini PCIe, default) | |
|
Expansion Slots |
PCIe | j: 1 * PCIe 2.0 x16
k: 2 * PCI PS: j、k One out of two, Expansion card length≤ 235mm
|
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0, with 1 * SIM Card, Share slot with mSATA, Opt.) | |
|

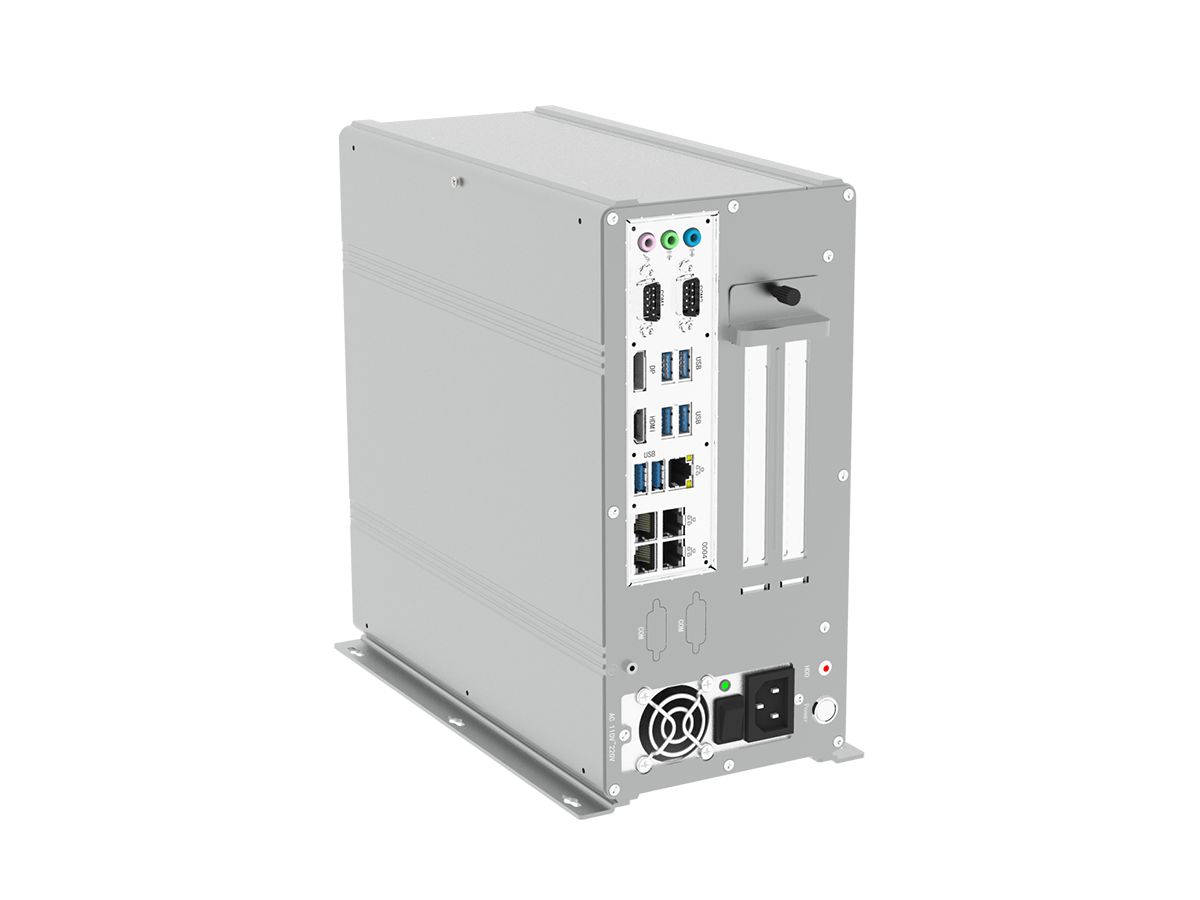

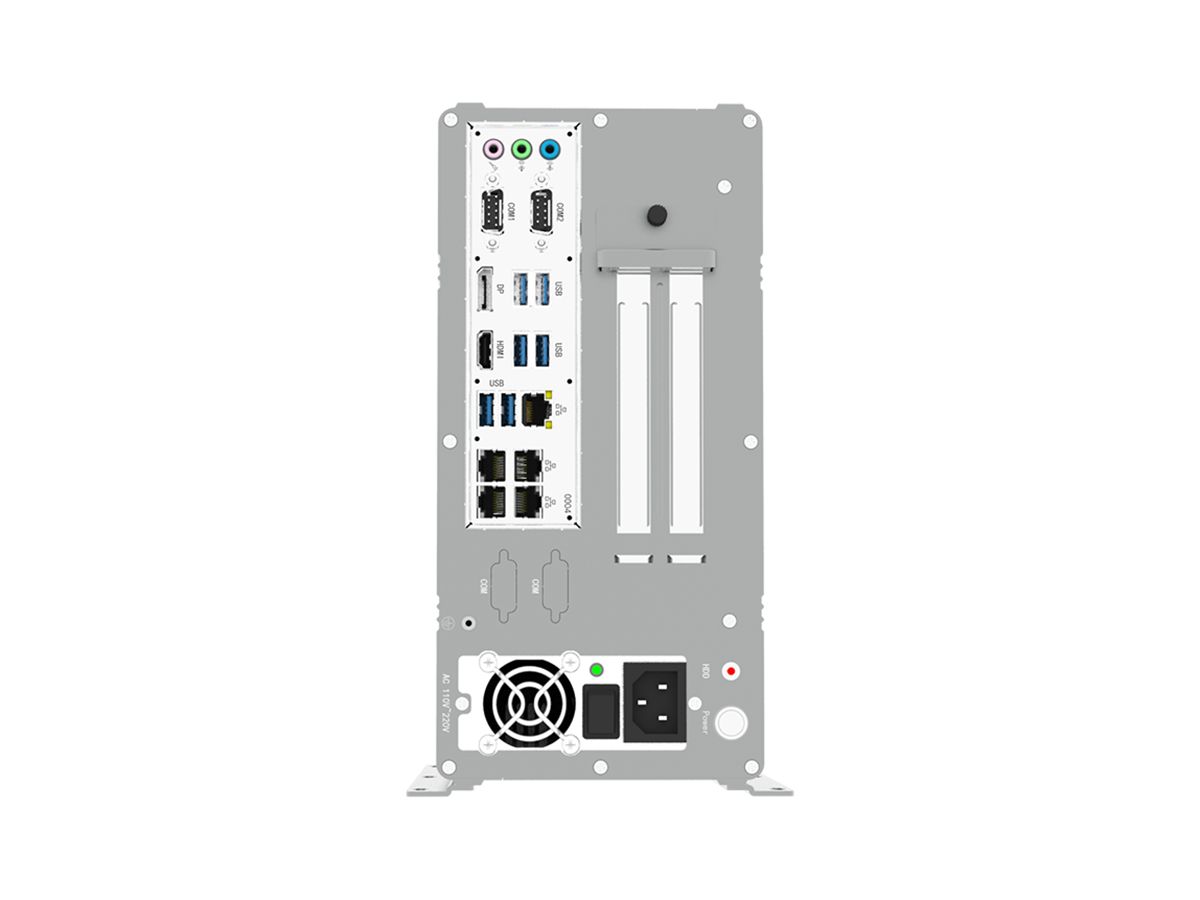

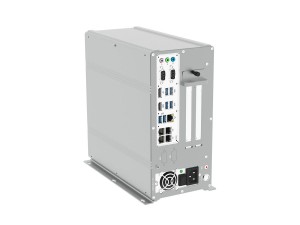

Front I/O |
Ethernet | 5 * RJ45 |
| USB | 2 * USB 5Gbps (Type-A, 5Gbps, Each group of two ports Max. 3A, one port Max. 2.5A) 4 * USB2.0 (Type-A, Each group of two ports Max. 3A, one port Max. 2.5A) |
|
| Display | 1 * DP: max resolution up to 3840*2160 @ 60Hz 1 * HDMI1.4: max resolution up to 2560*1440 @ 60Hz |
|
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED 1 * Hard drive status LED |
|
|
Internal I/O |
USB | 2 * USB2.0 (Header) |
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | |
| Serial | 4 * RS232 (COM3/4/5/6, Header) | |
| GPIO | 1 * 8 bits DIO (4xDI and 4xDO, wafer) | |
| SATA | 1 * SATA3.0 7P Connector 1 * SATA2.0 7P Connector |
|
| FAN | 1 * CPU FAN (Header) 1 * SYS FAN (Header) |
|
| Front Panel | 1 * Front Panel (Header) | |
|
Power Supply |
Type | 1U FLEX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the 1U FLEX power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 7/10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | SGCC+AI6061 |

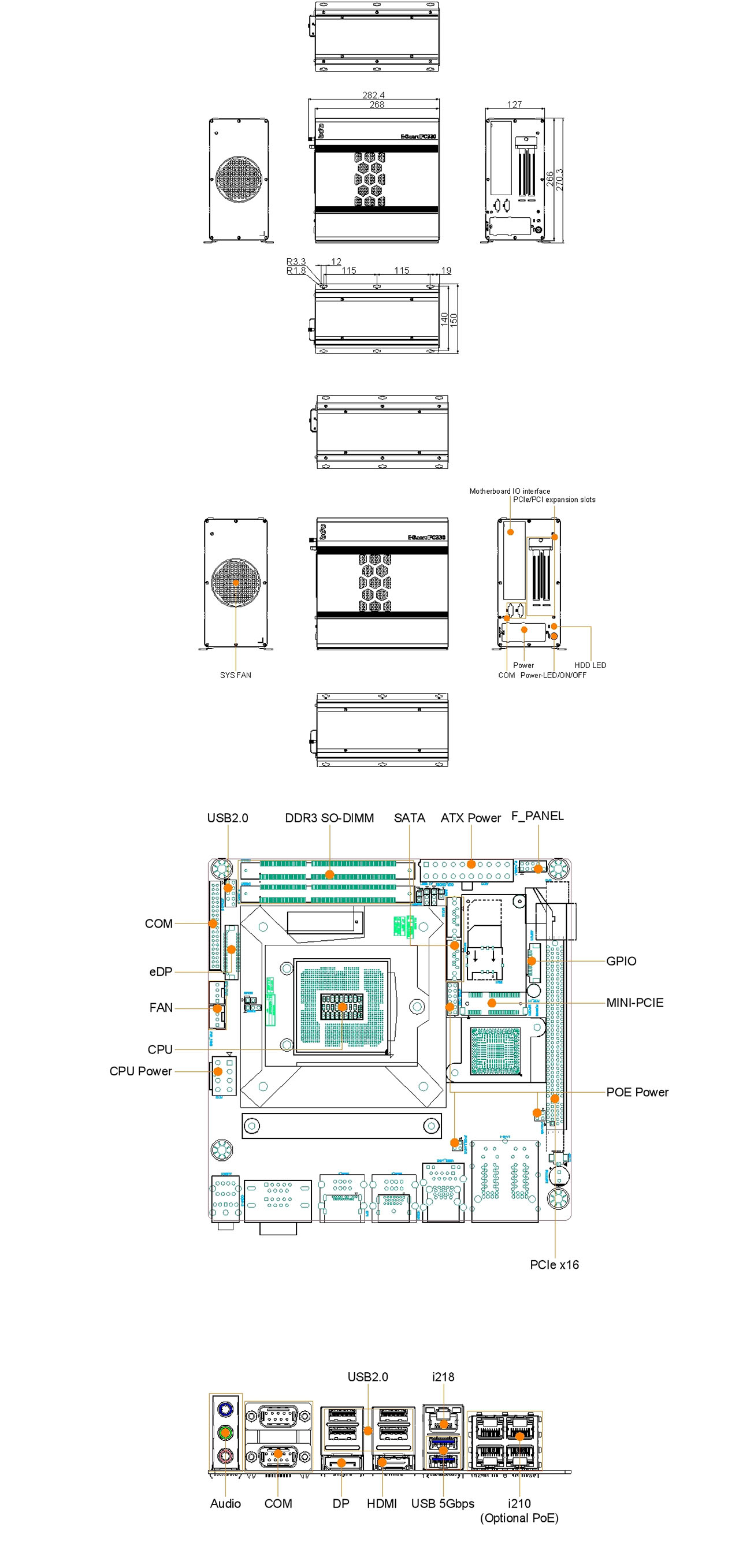

| Dimensions | 266mm * 127mm * 268mm | |

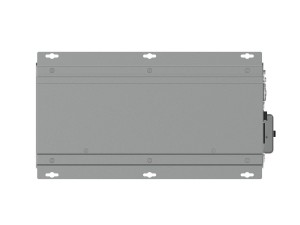

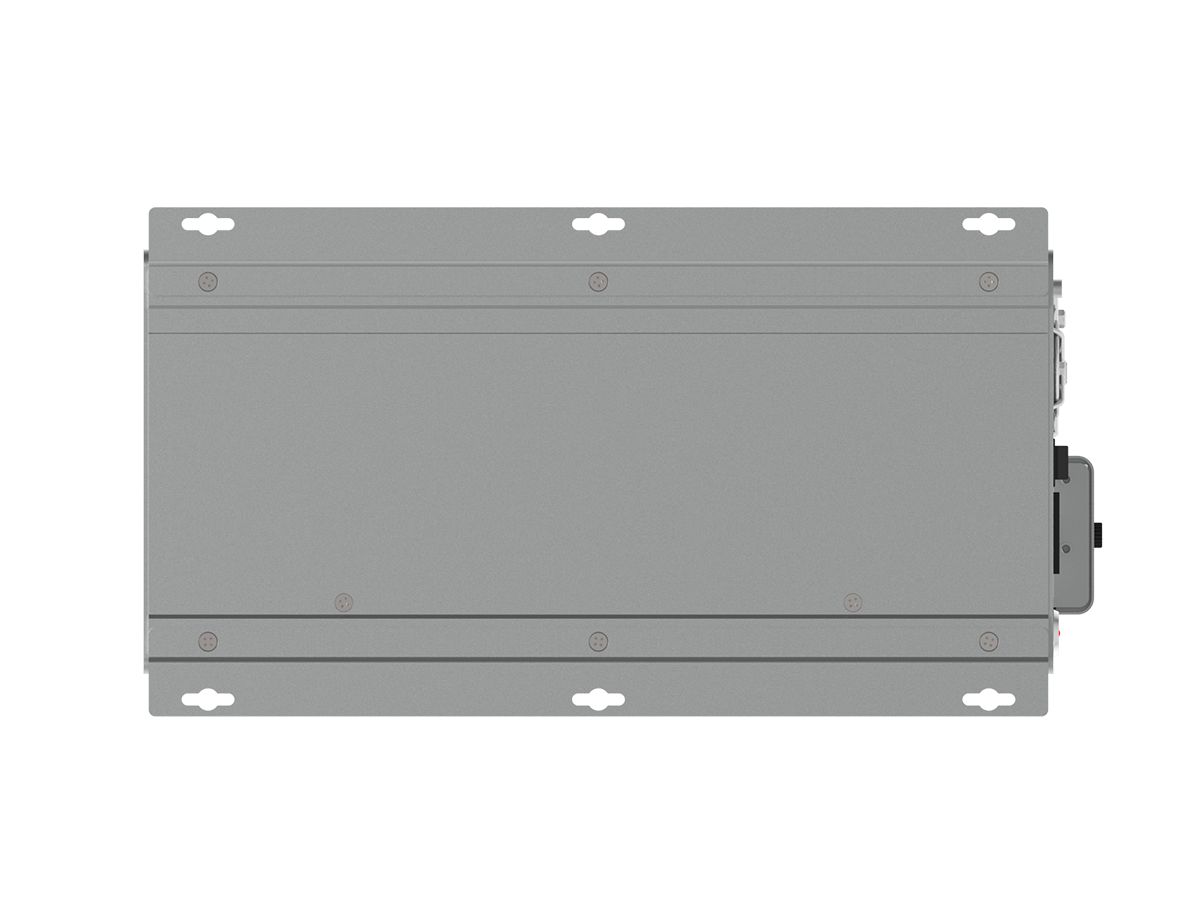

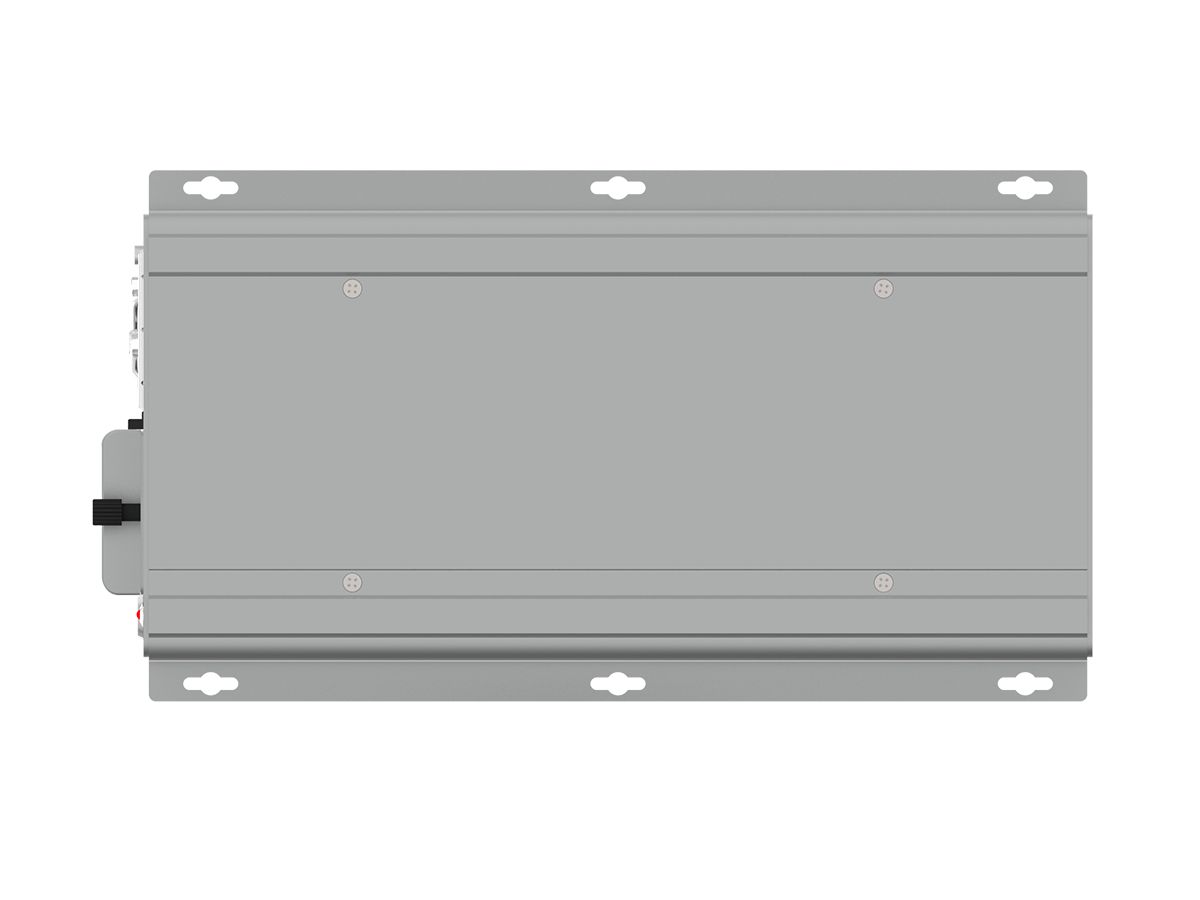

| Mounting | Wall mounted, Desktop | |
|
Environment |

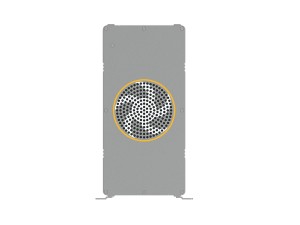

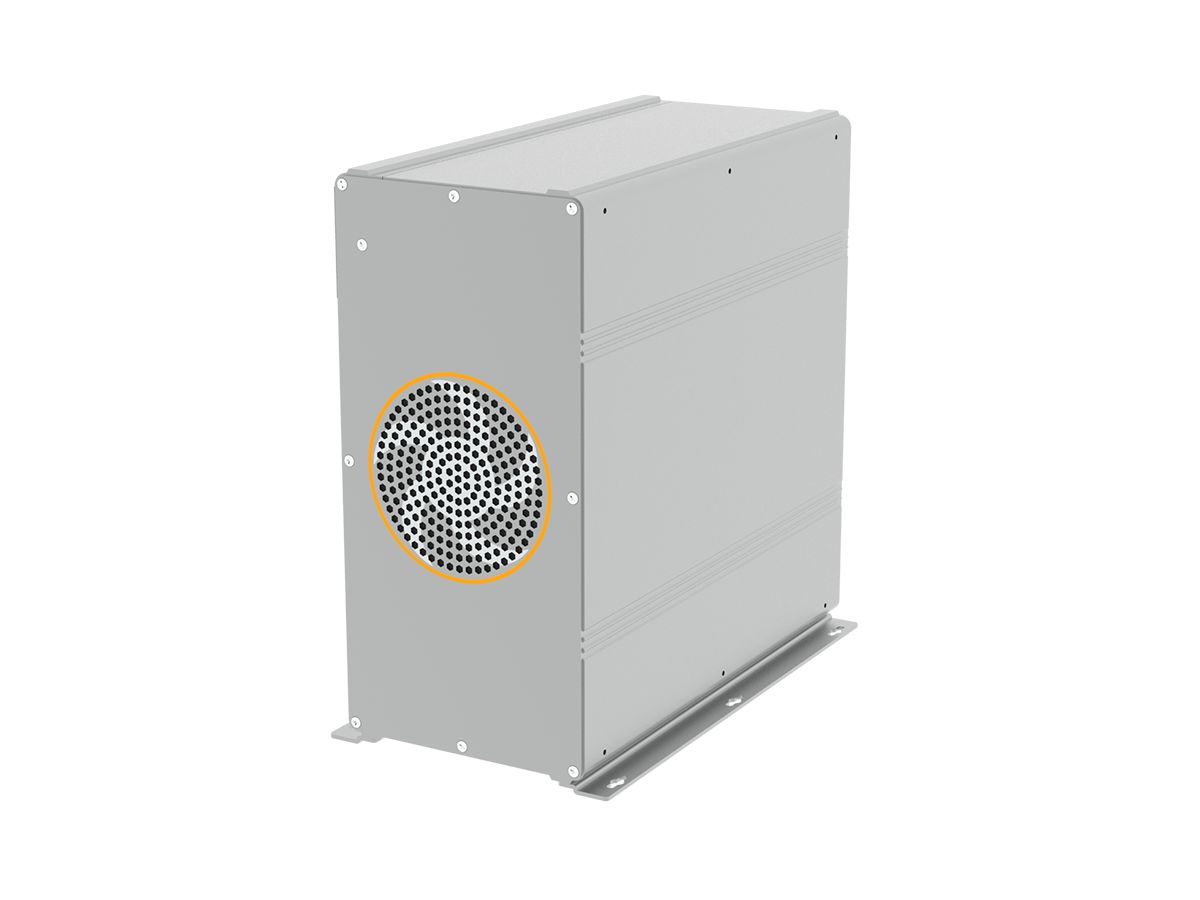

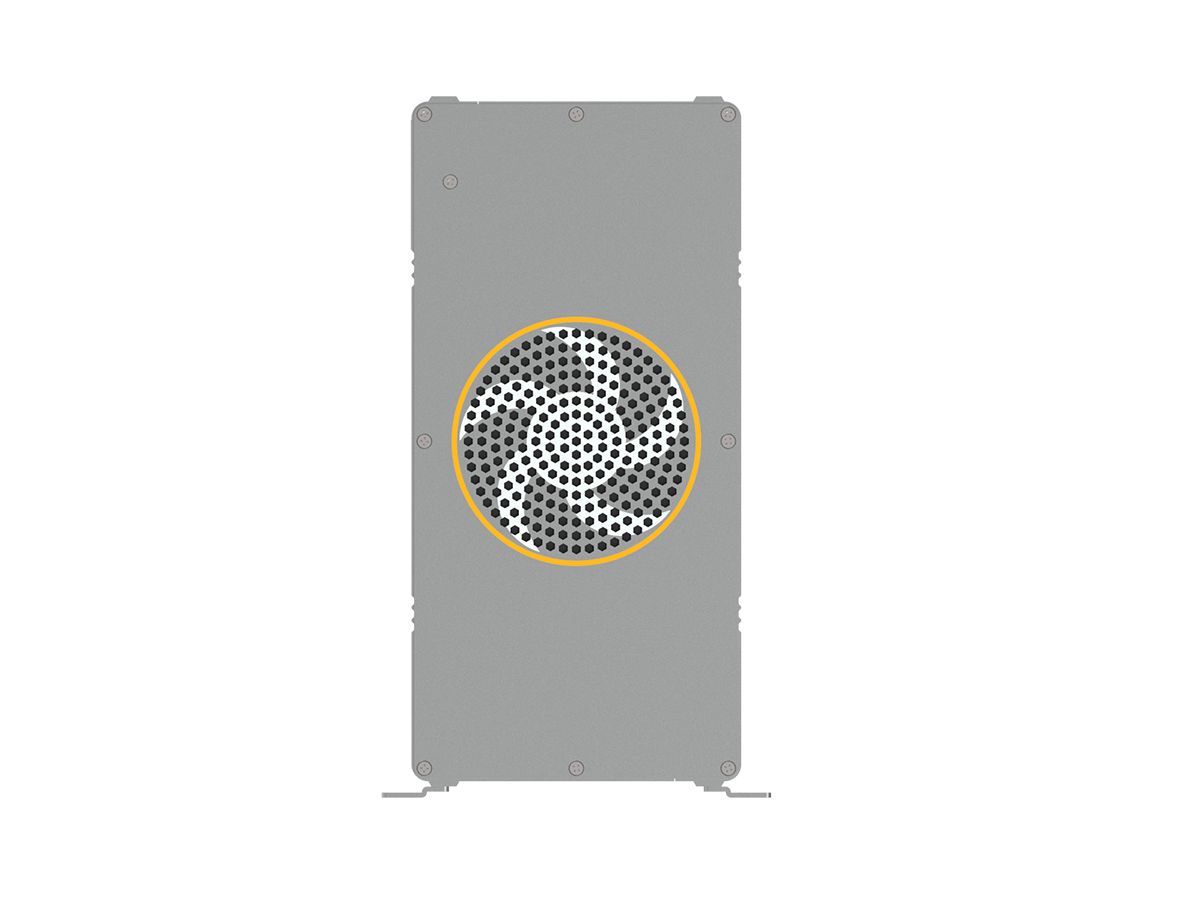

Heat Dissipation System | PWM fan cooling |
| Operating Temperature | 0 ~ 50℃ | |
| Storage Temperature | -20 ~ 75℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
