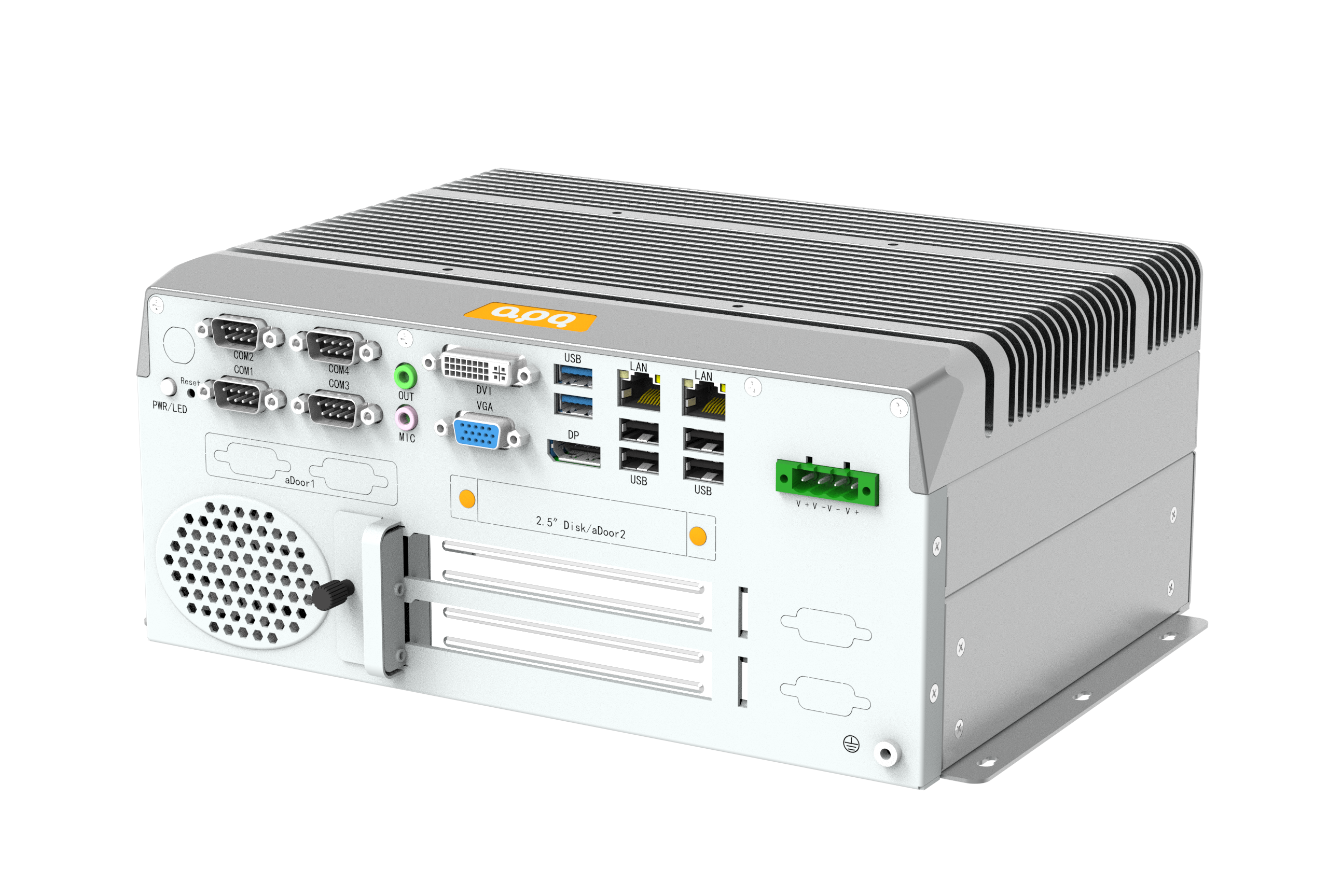

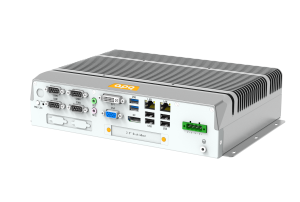

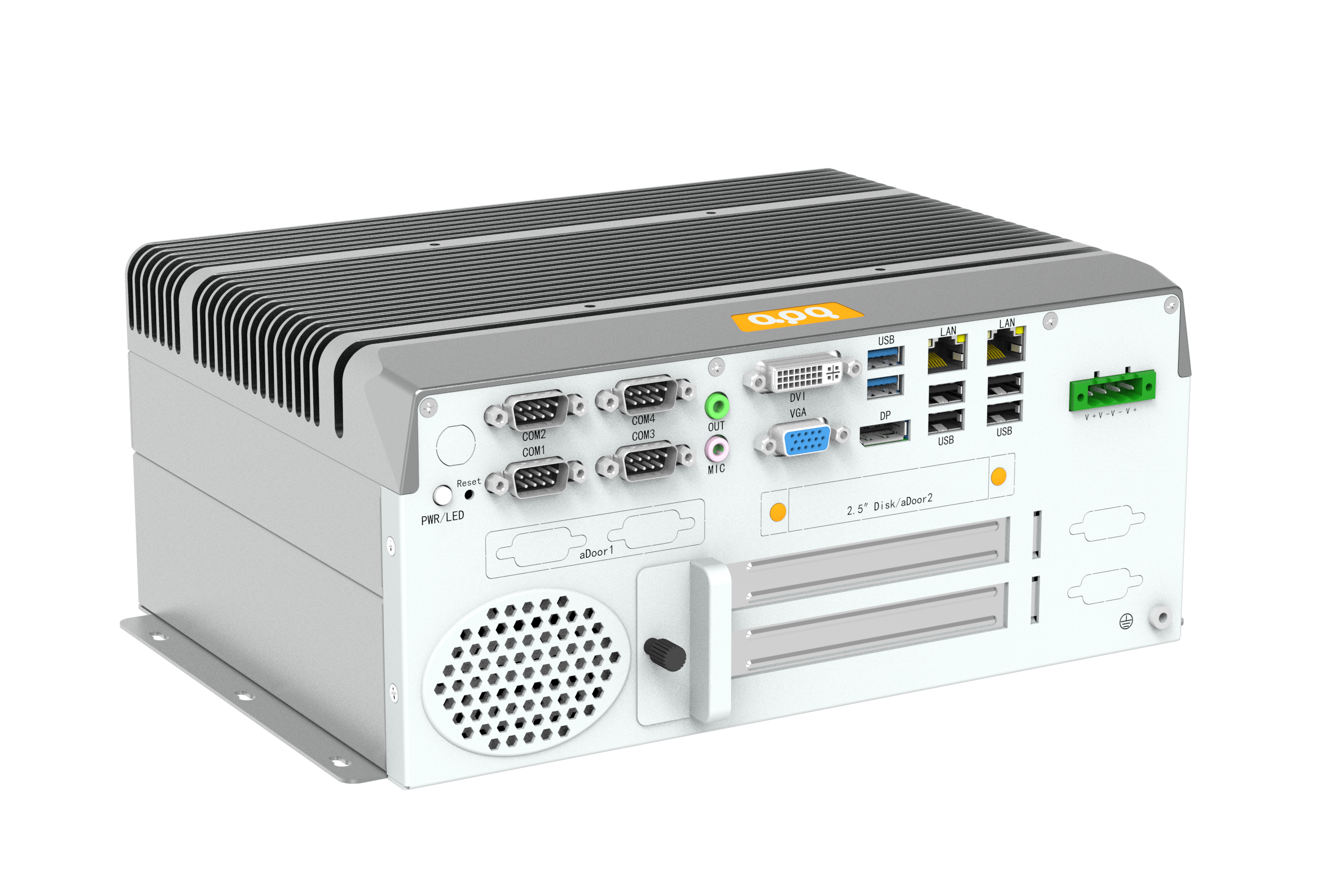

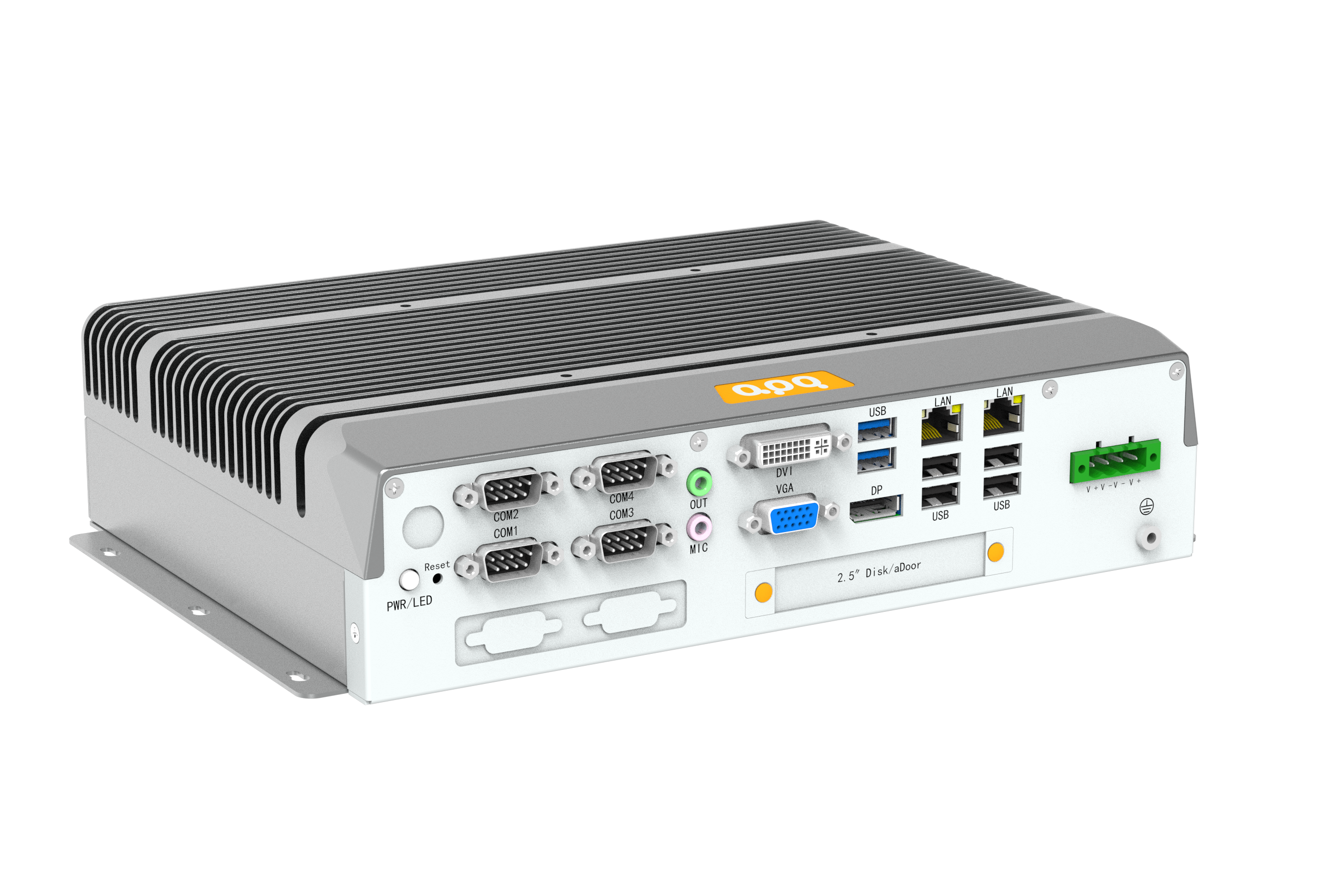

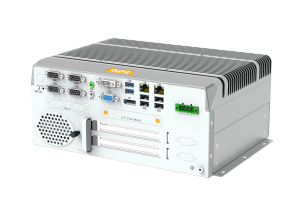

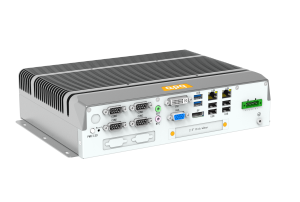

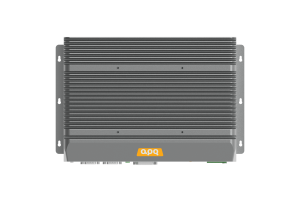

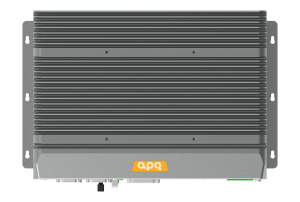

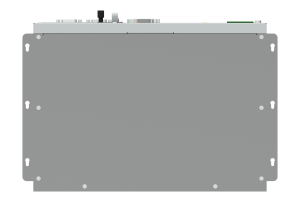

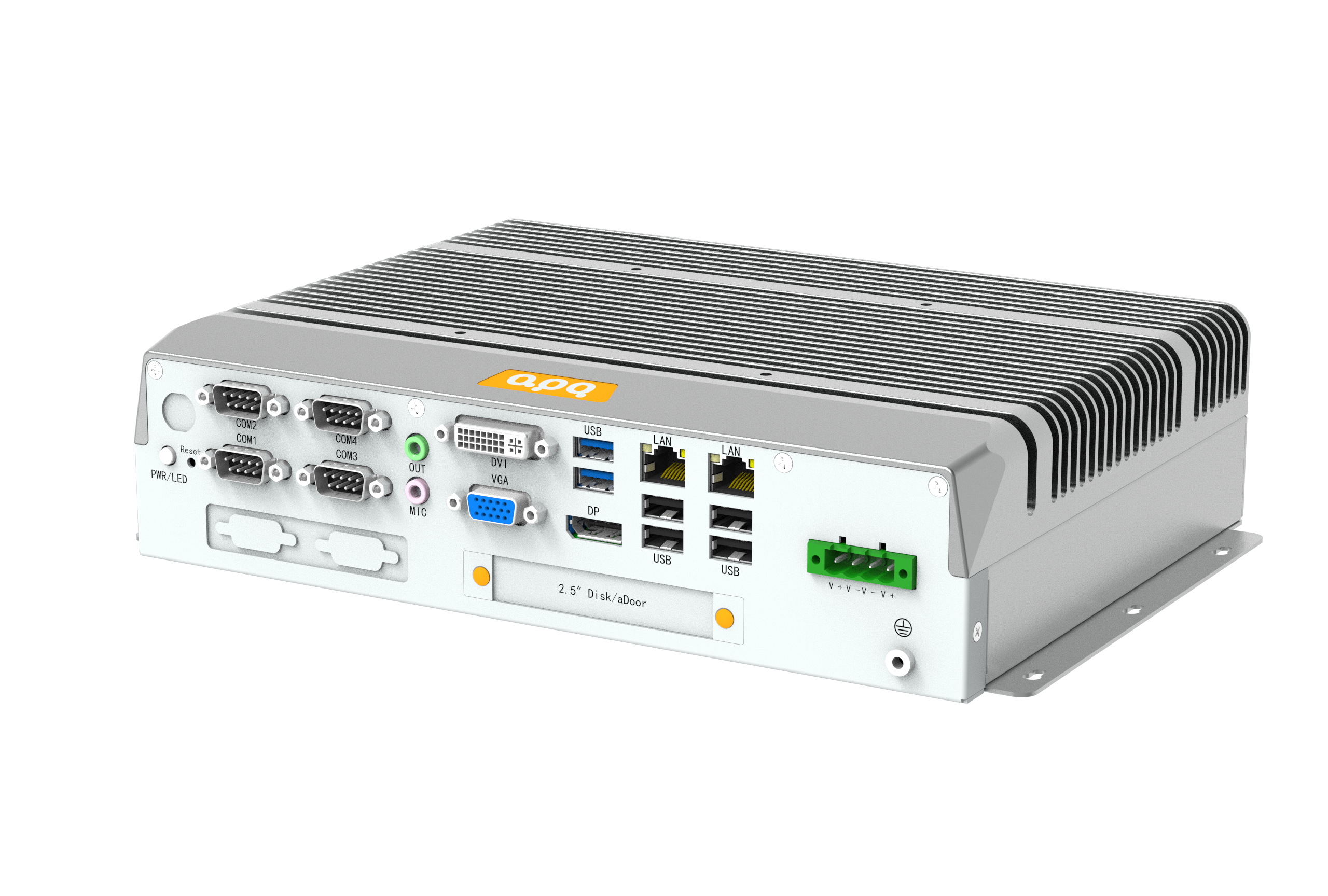

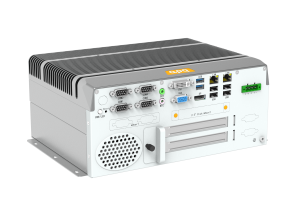

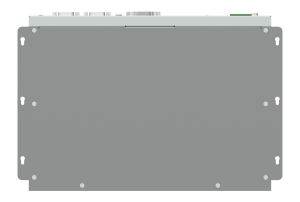

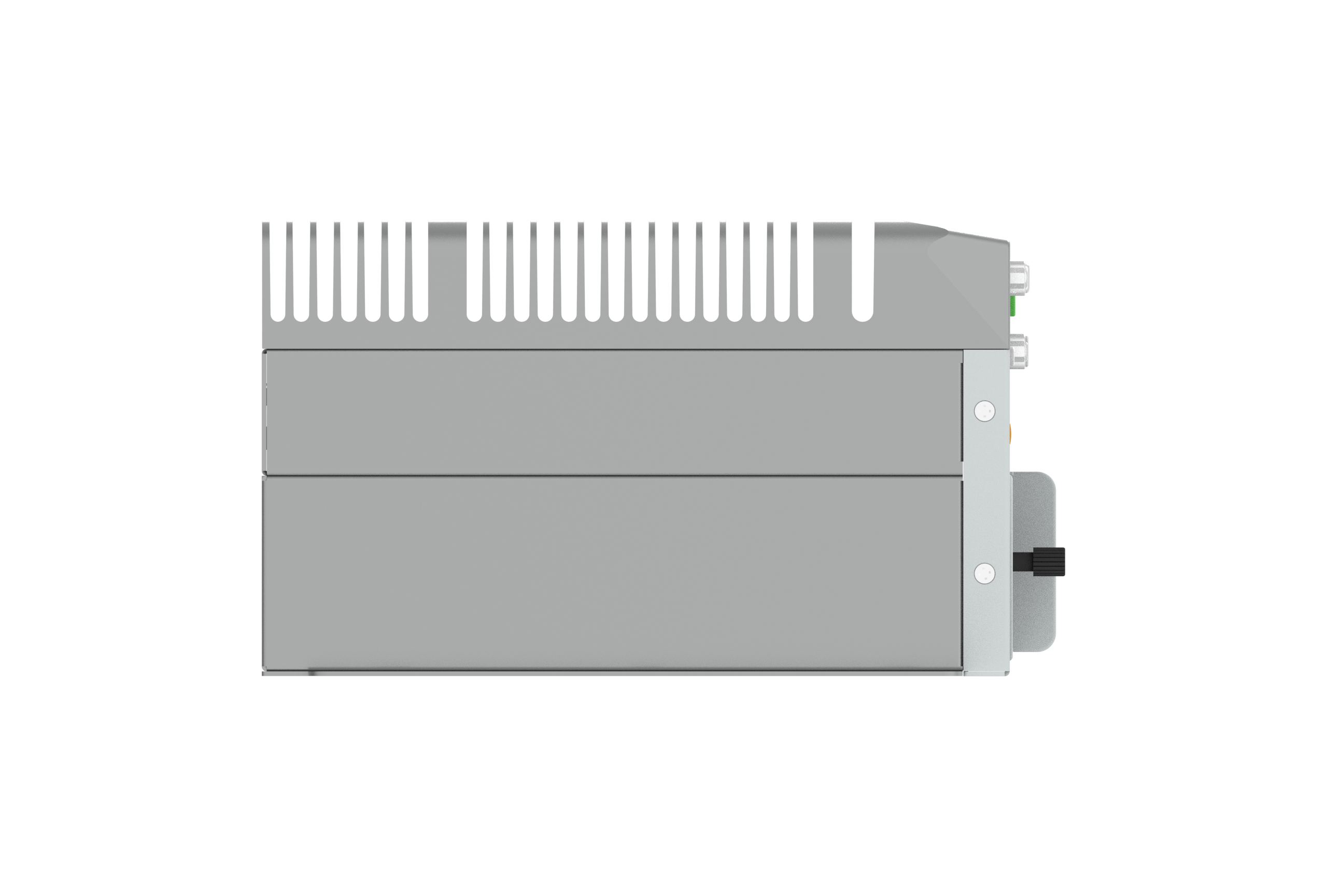

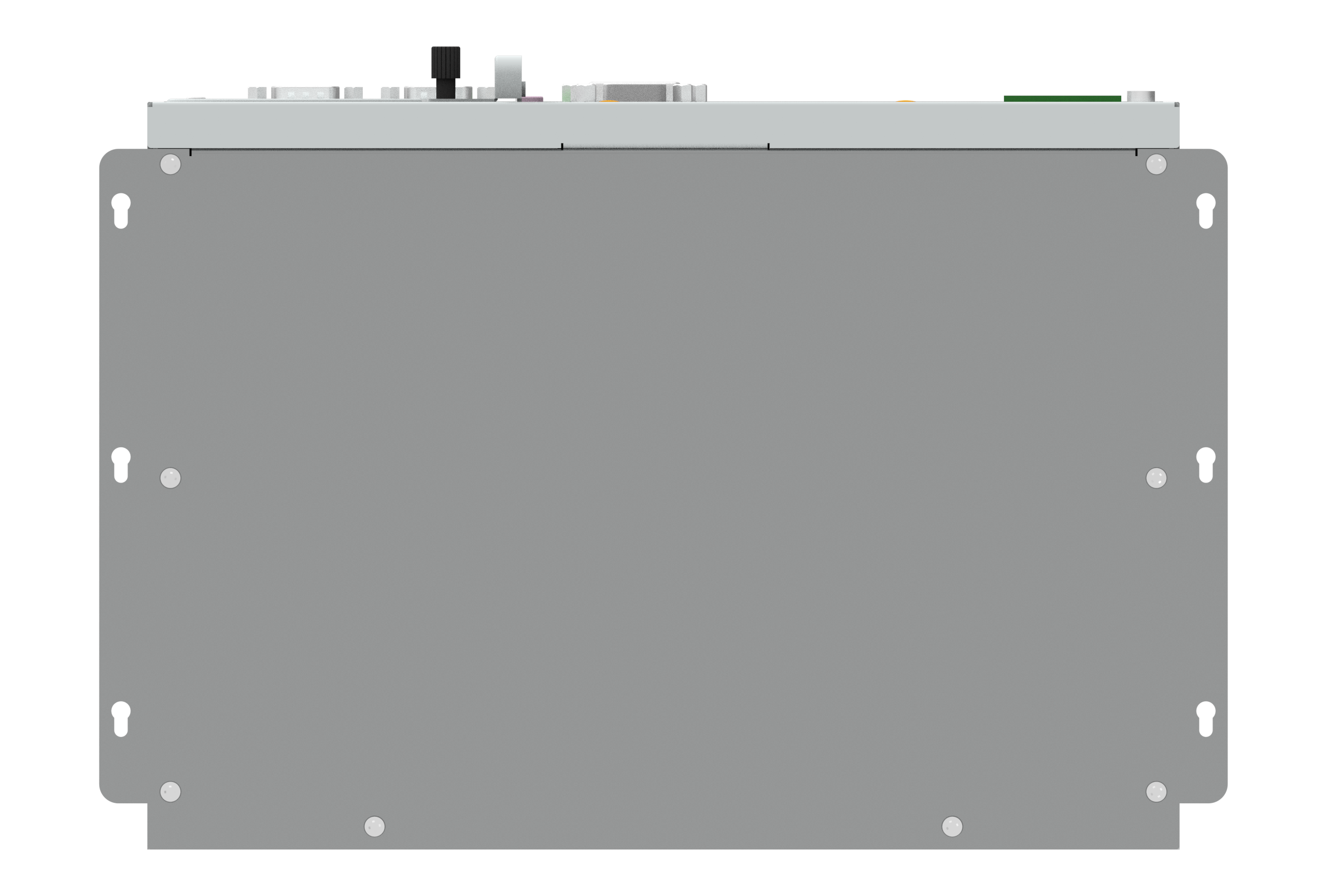

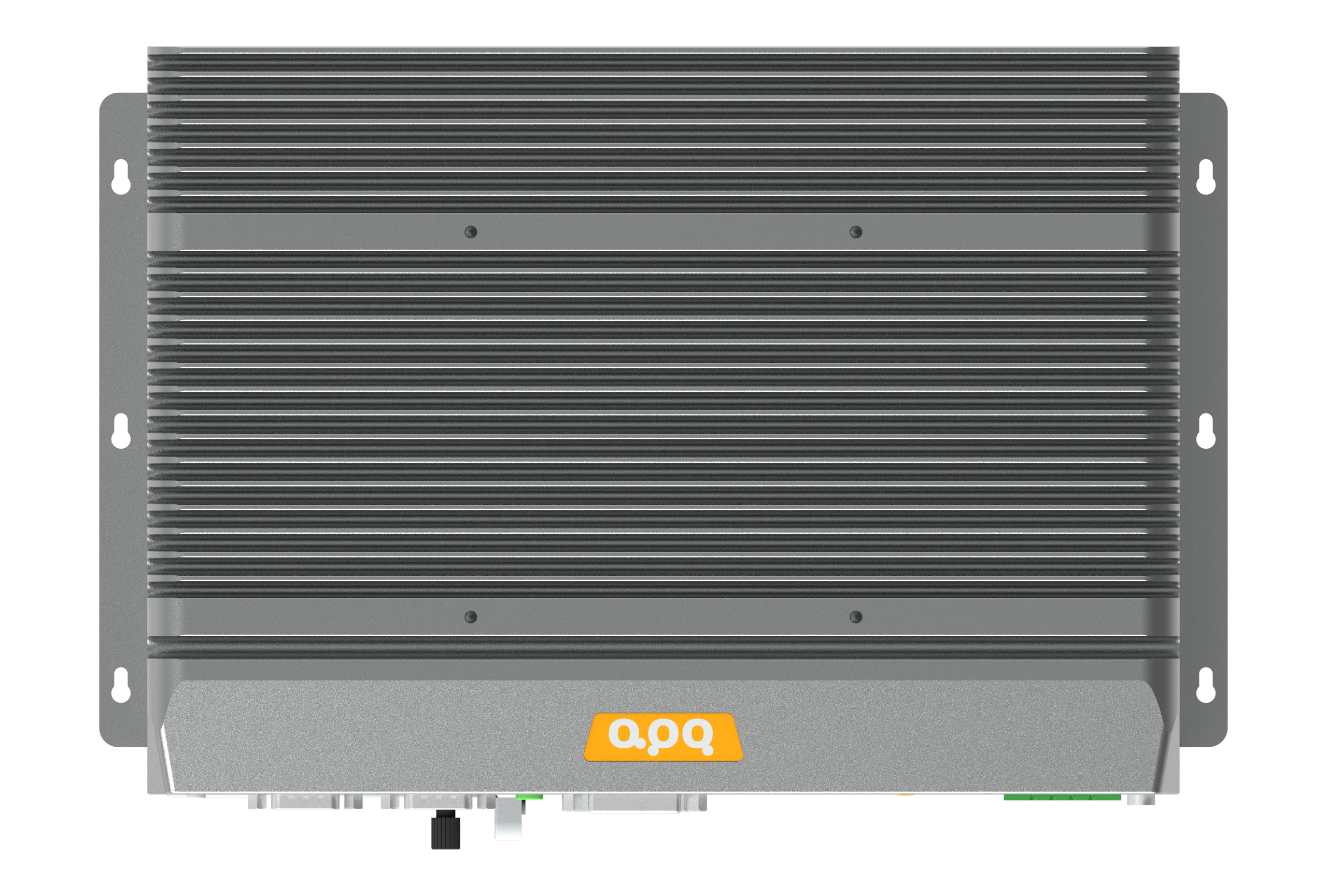

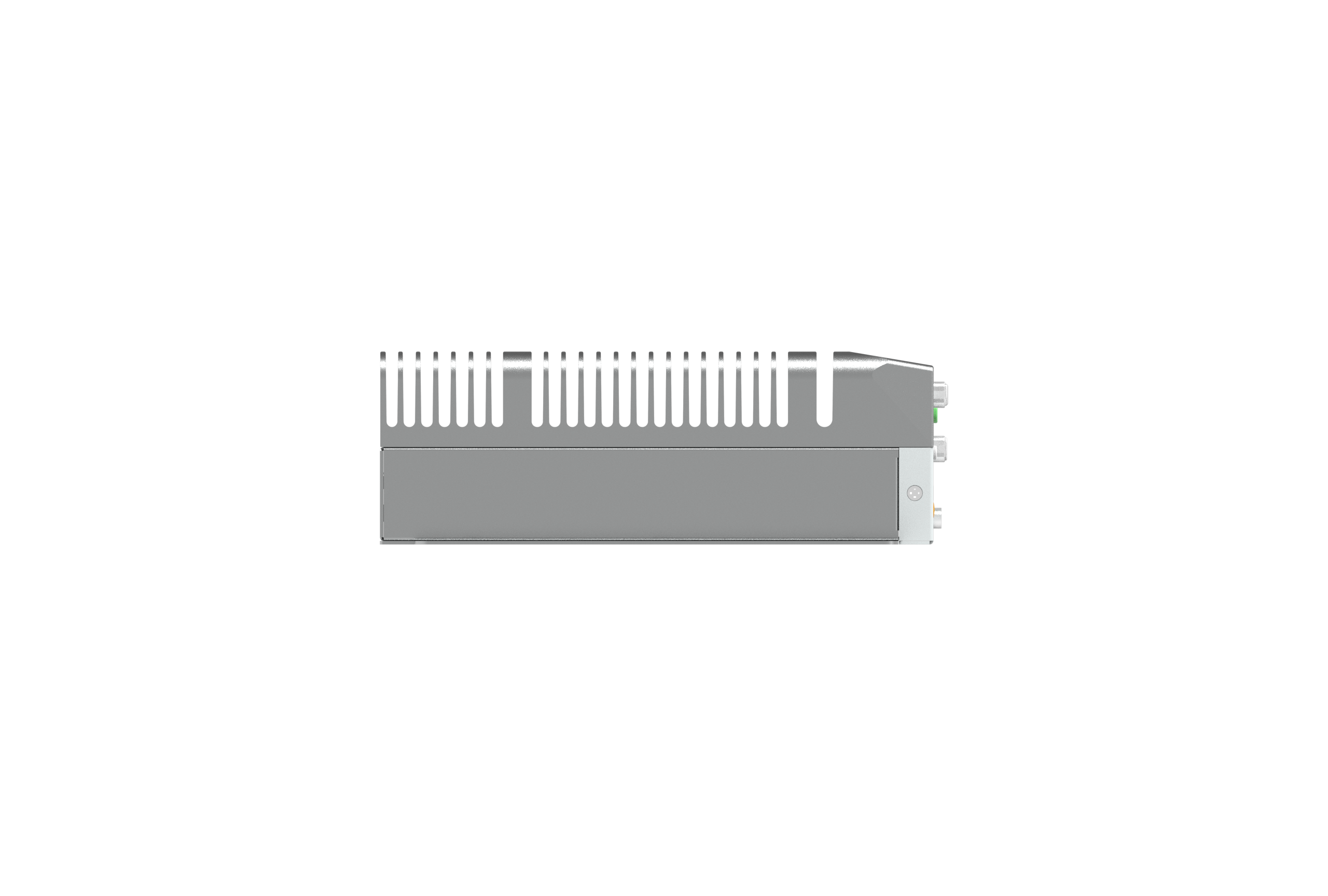

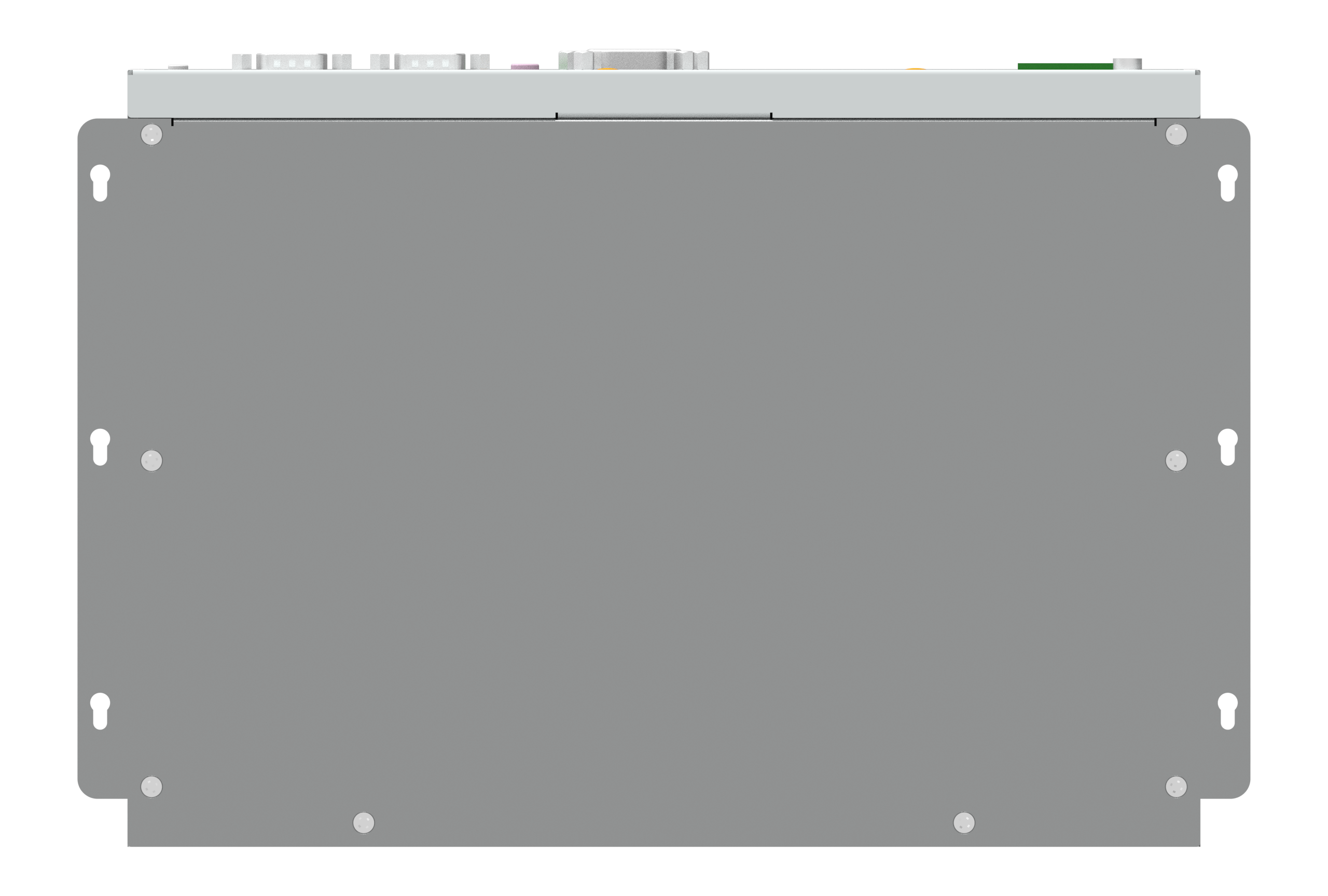

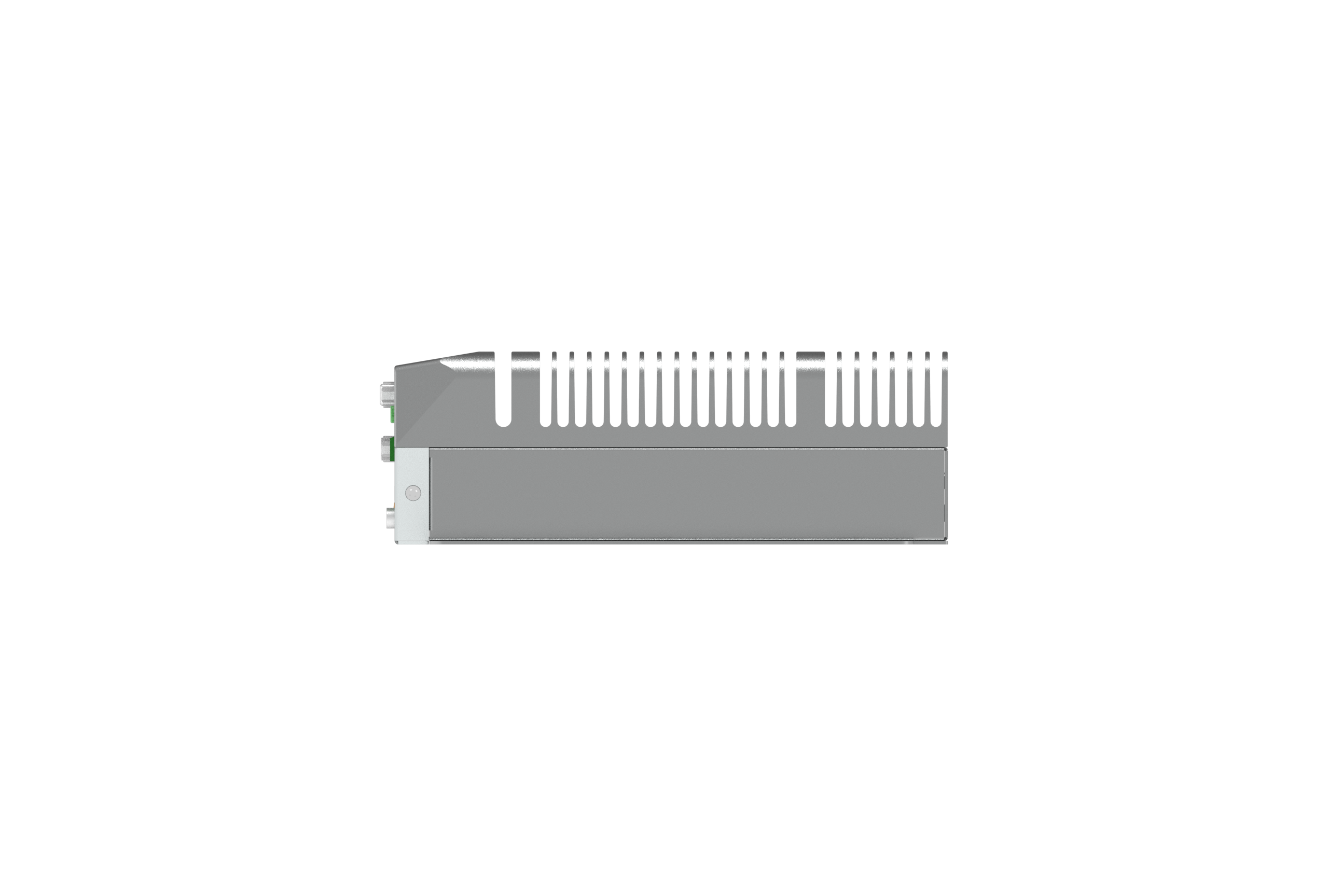

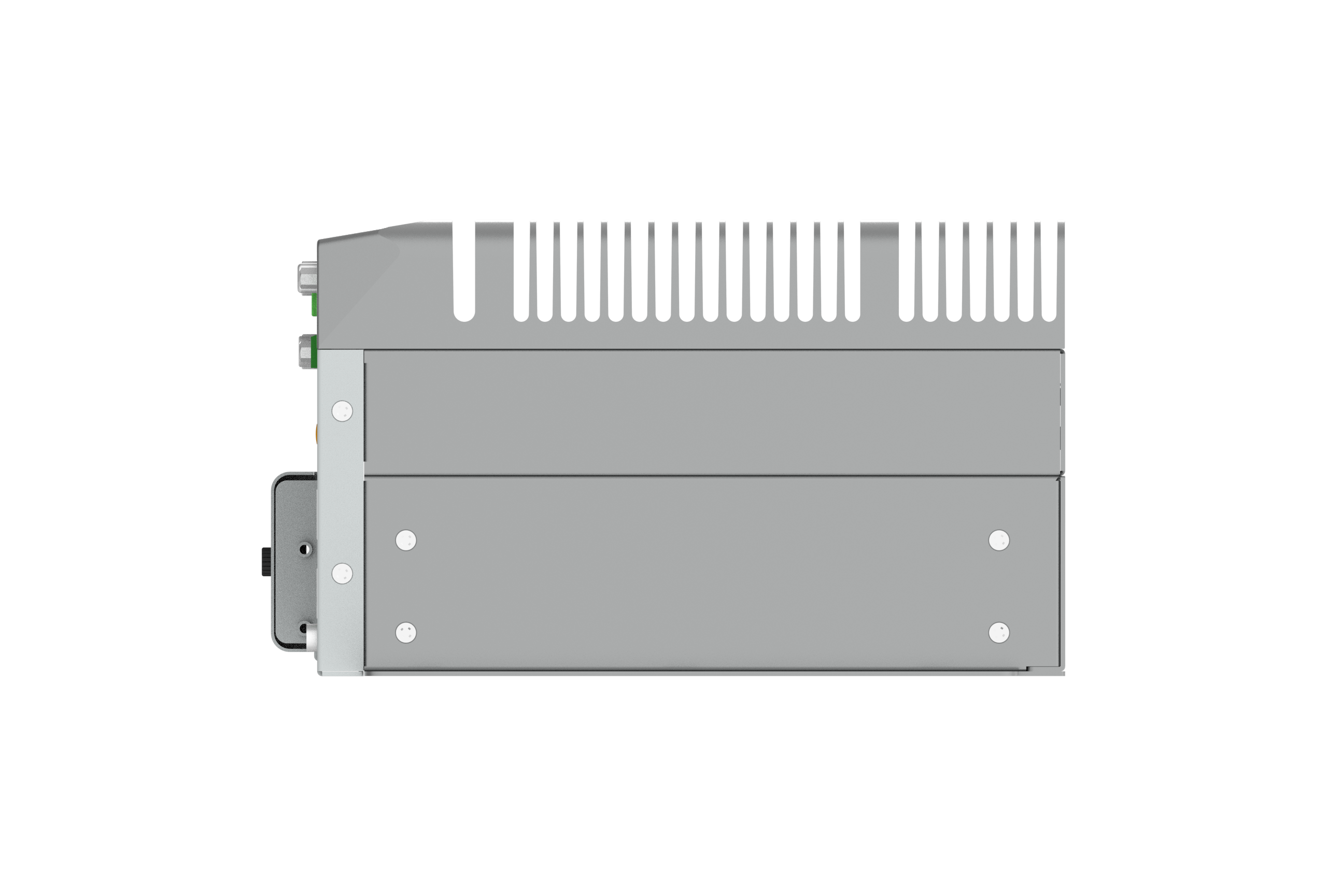

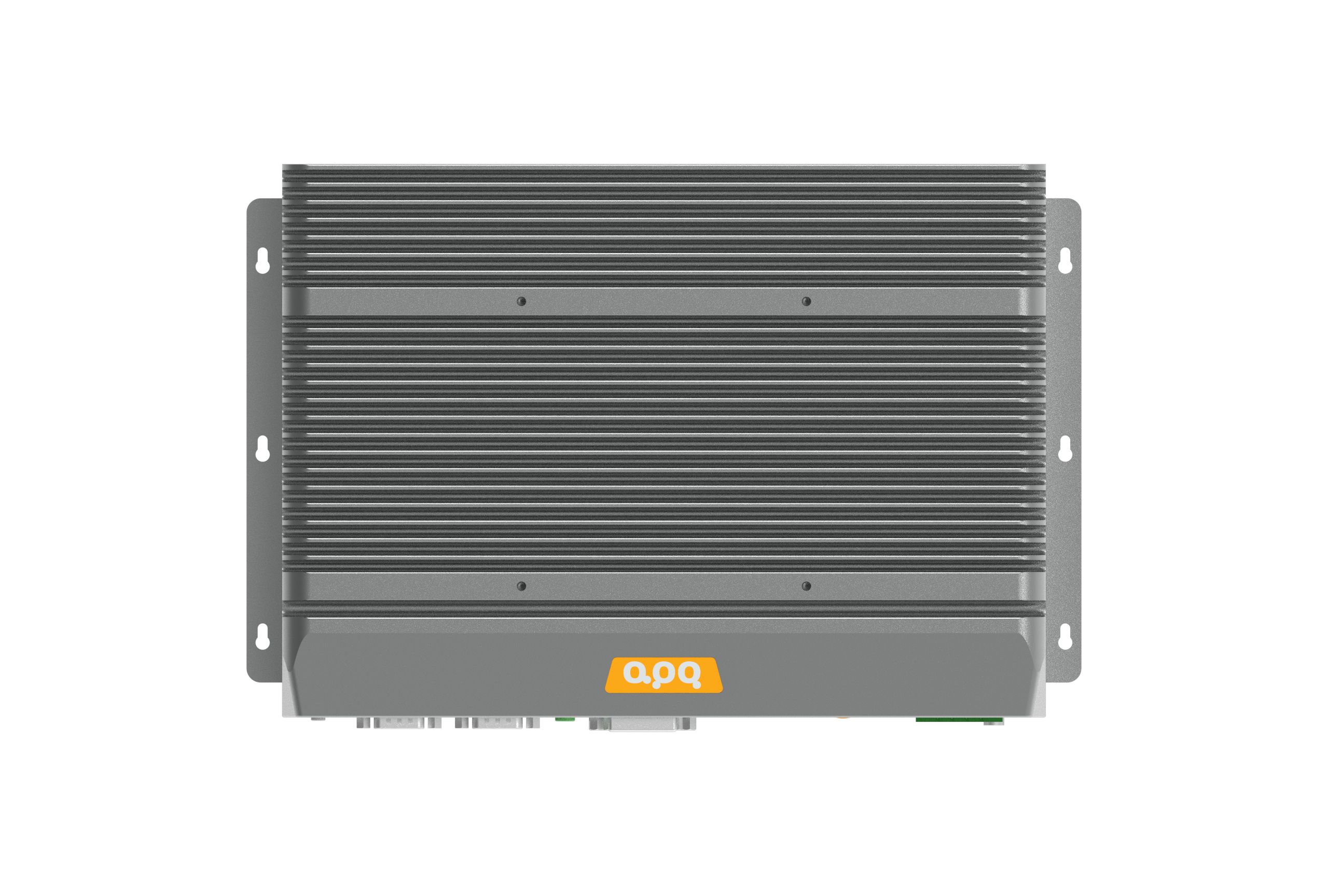

阿普奇 E7L-H81 | 嵌入式工控机/BOX

特点:

支持Intel® 4/5th Gen Core / Pentium/ Celeron Desktop CPU, TDP 35W, LGA1150
搭配Intel® H81芯片组
2个Intel千兆网络接口
4个DB9串口（COM1/2支持RS232/RS422/RS485）
M.2和2.5寸双硬盘位存储支持
4路显示输出 VGA,DVI-D,DP++和内部LVDS,最高支持4K@60Hz分辨率
MXM、aDoor模块扩展支持
9~36V直流供电（可选12V）
无风扇被动散热

远程管理
状态监控
远程运维
安全控制

联系我们

扫码即可添加微信，售前客服为您提供咨询服务

产品介绍

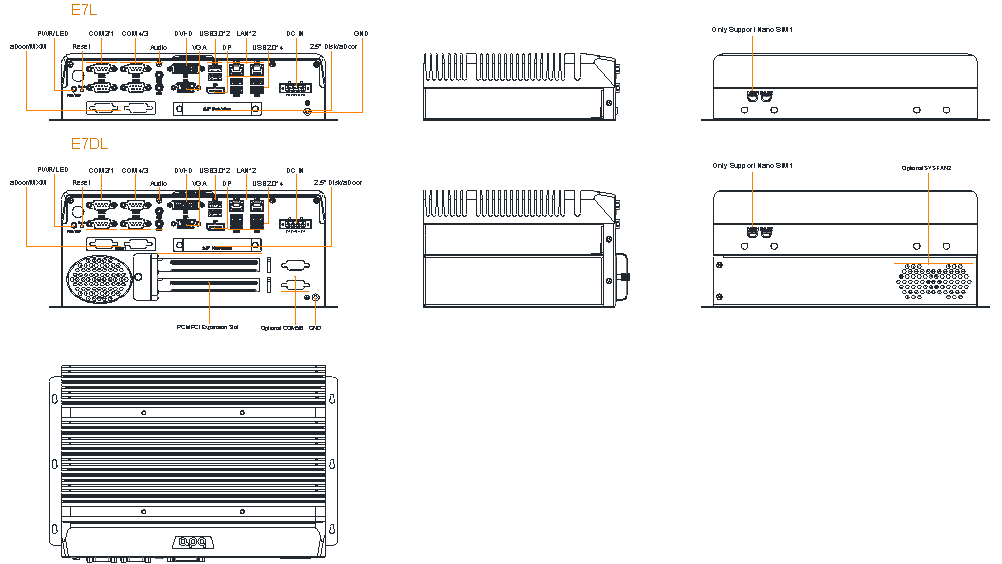

工程图纸

下载产品资料

扫码添加微信，获取最新产品资料文件

Model		E7L	E7DL
CPU	CPU	Intel^® 4/5th Generation Core / Pentium/ Celeron Desktop CPU
	TDP	35W
	Socket	LGA1150
Chipset	Chipset	Intel^® H81
BIOS	BIOS	AMI UEFI BIOS (Support Watchdog Timer)
Memory	Socket	2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz
	Max Capacity	16GB, Single Max. 8GB
Graphics	Controller	Intel^® HD Graphics
Ethernet	Controller	1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage	SATA	1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm) 1 * SATA2.0, Internal 2.5" hard disk bays (T≤9mm, Optional)
	M.2	1 * M.2 Key-M (SATA3.0, 2280)
Expansin Slots	PCIe/PCI	N/A	①: 1 * PCIe x16 (x16) ②: 2 * PCI PS: ①、②One out of two, Expansion card length ≤ 185mm, TDP ≤ 130W
	MXM/aDoor	1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) 1 * aDoor Expansion Slot
	Mini PCIe	1 * Mini PCIe (PCIe2.0 x1 (Share PCIe signal with MXM, optional) + USB 2.0, with 1*Nano SIM Card)

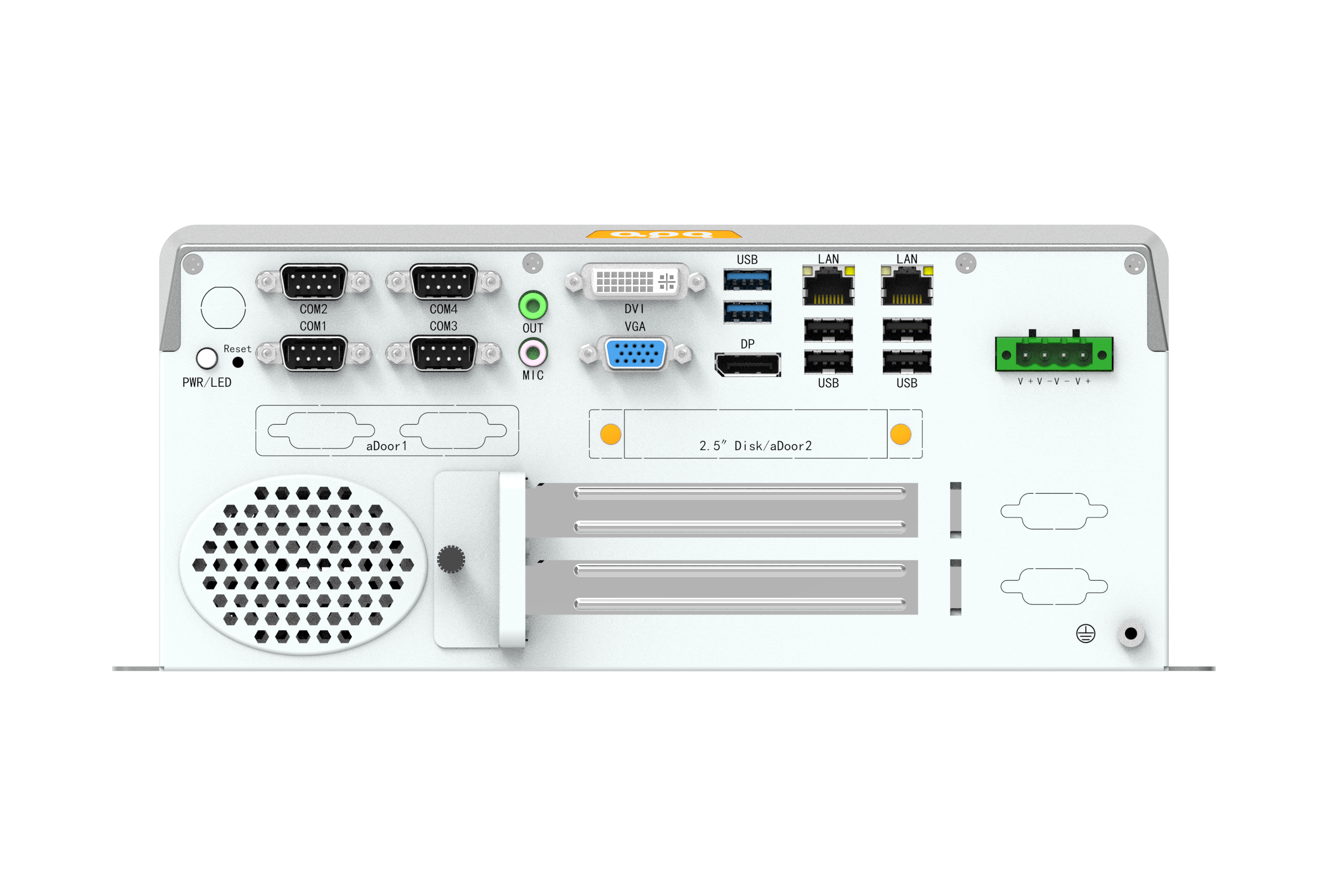

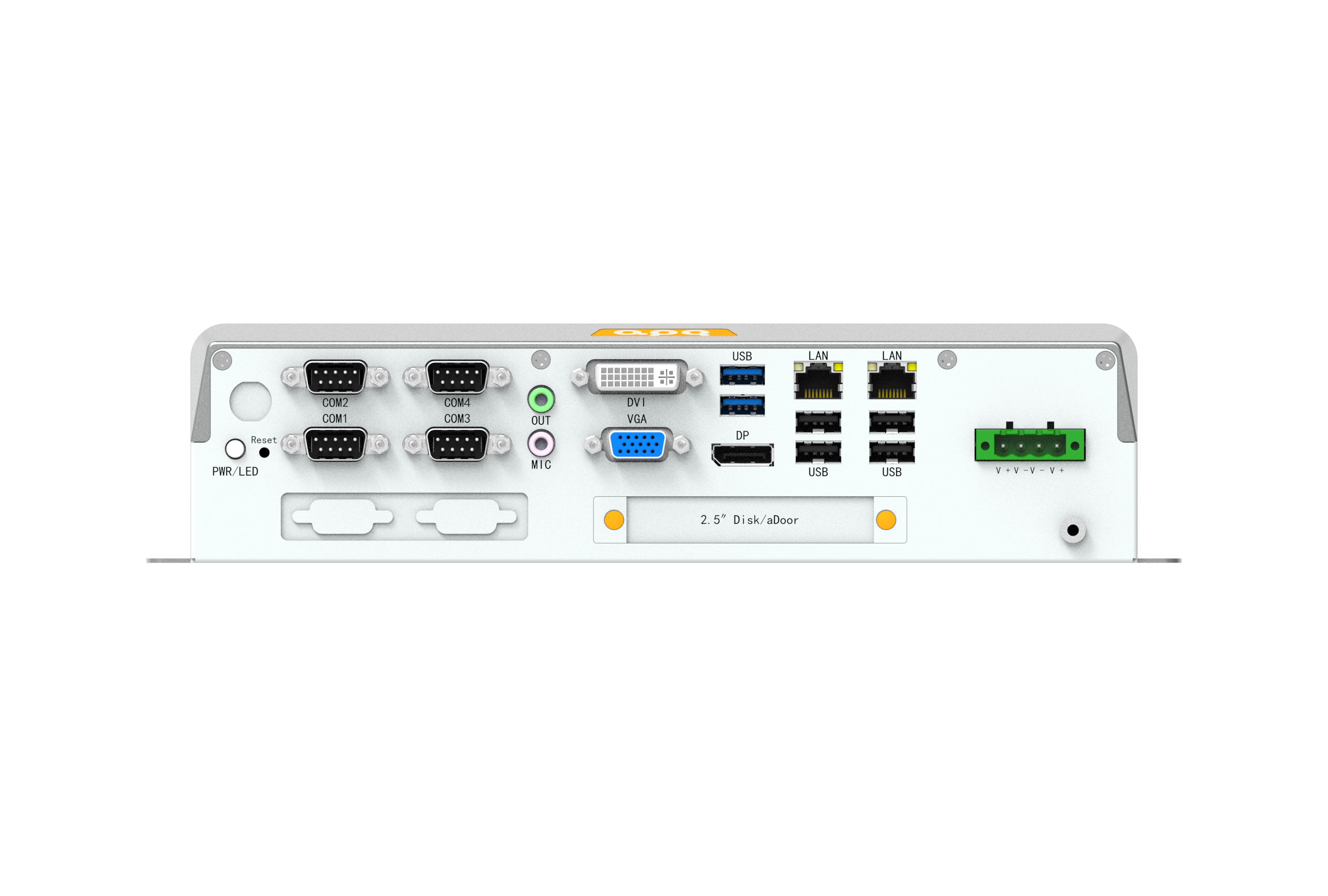

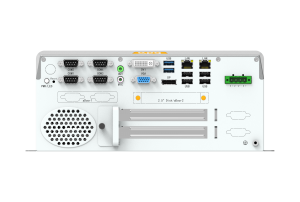

Front I/O	Ethernet	2 * RJ45
	USB	2 * USB3.0 (Type-A, 5Gbps) 4 * USB2.0 (Type-A)
	Display	1 * DVI-D: max resolution up to 19201200 @ 60Hz 1 VGA (DB15/F): max resolution up to 19201200 @ 60Hz 1 DP: max resolution up to 4096*2160 @ 60Hz
	Audio	2 * 3.5mm Jack (Line-Out + MIC)
	Serial	2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M)
	Button	1 * Power Button + Power LED 1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS)

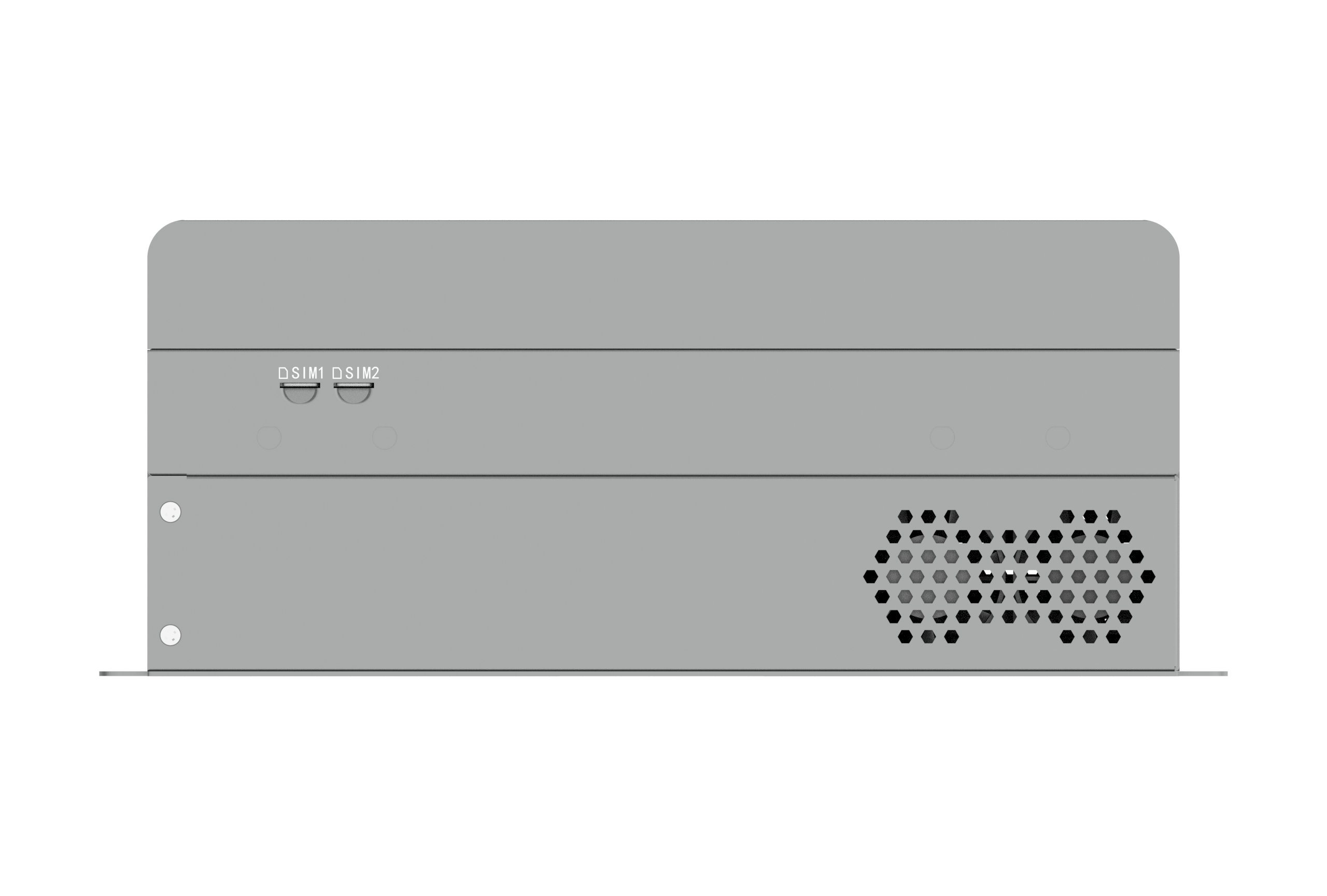

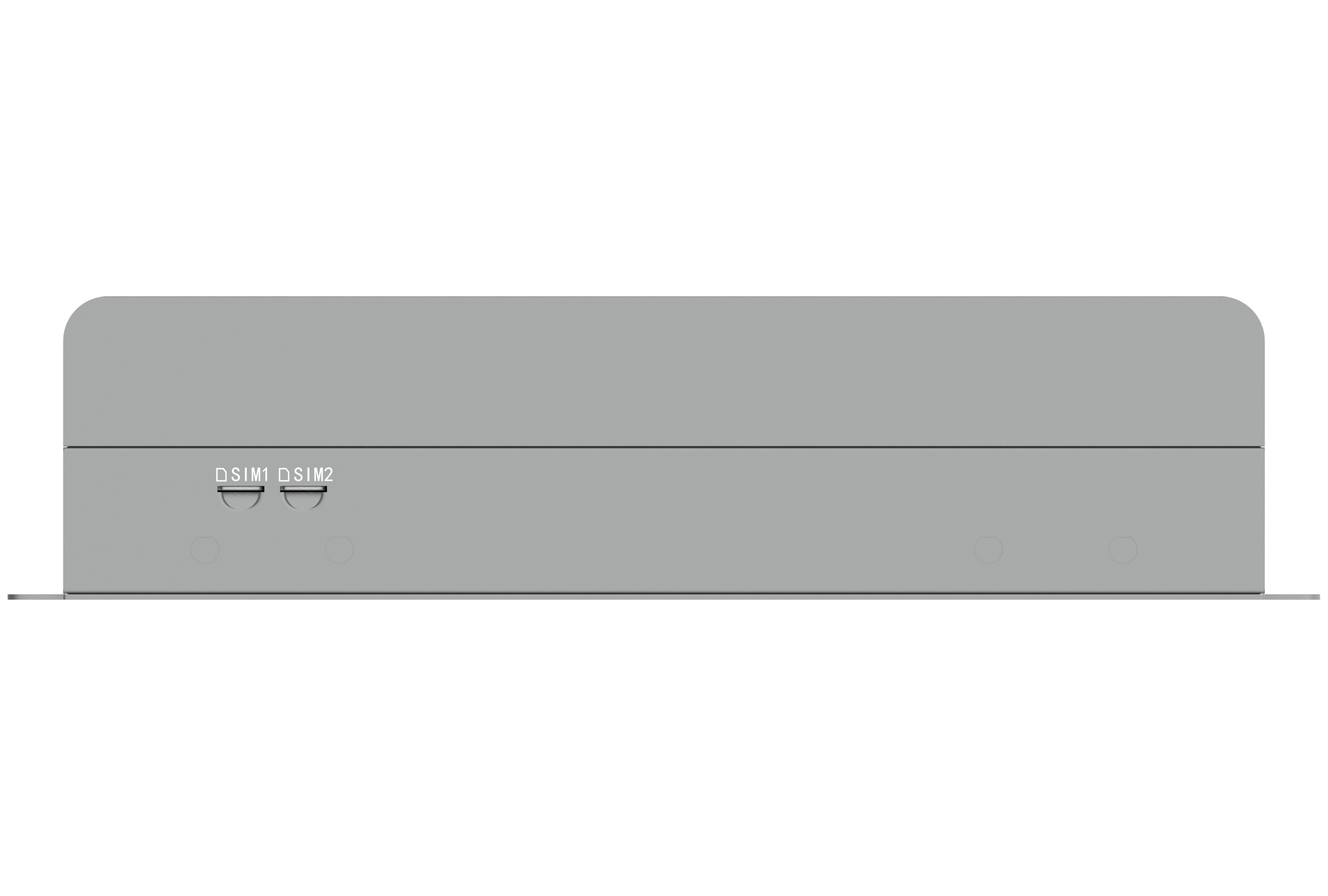

Rear I/O	Antenna	4 * Antenna hole
	SIM	1 * Nano SIM card slot (SIM1)
Internal I/O	USB	2 * USB2.0 (wafer)
	LCD	1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz
	TFront Panel	1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer)
	Front Panel	1 * Front Panel (PWR + RST + LED, wafer)
	Speaker	1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
	Serial	2 * RS232 (COM5/6, wafer)
	GPIO	1 * 16 bits DIO (8xDI and 8xDO, wafer)
	LPC	1 * LPC (wafer)
	SATA	2 * SATA 7P Connector
	SATA Power	2 * SATA Power (SATA_PWR1/2, wafer)
	FAN	1 * CPU FAN (wafer) 2 * SYS FAN (wafer)
Power Supply	Type	DC, AT/ATX
	Power Input Voltage	9 ~ 36VDC, P≤240W
	Connector	1 * 4Pin Connector, P=5.00/5.08
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 7/10/11
	Linux	Linux
Watchdog	Output	System Reset
	Interval	Programmable via Software from 1 to 255 sec
Mechanical	Enclosure Material	Radiator: Aluminum alloy, Box: SGCC
	Dimensions	268mm(L) * 194.2mm(W) * 67.7mm(H)	268mm(L) * 194.2mm(W) * 118.5mm(H)
	Weight	Net: 4.5 kg Total: 6 kg (Include packaging)	Net: 4.7kg Total: 6.2 kg (Include packaging)
	Mounting	VESA, Wall mounted, Desktop
Environment	Heat Dissipation System	Fanless Passive Cooling
	Operating Temperature	-20~60℃ (Industrial SSD)
	Storage Temperature	-40~80℃ (Industrial SSD)
	Relative Humidity	10 to 90% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (30G, half sine, 11ms)
	Certification	CCC, CE/FCC, RoHS
