阿普奇 IPC200-H81 2U上架式工控机 4/5代经济型
产品描述

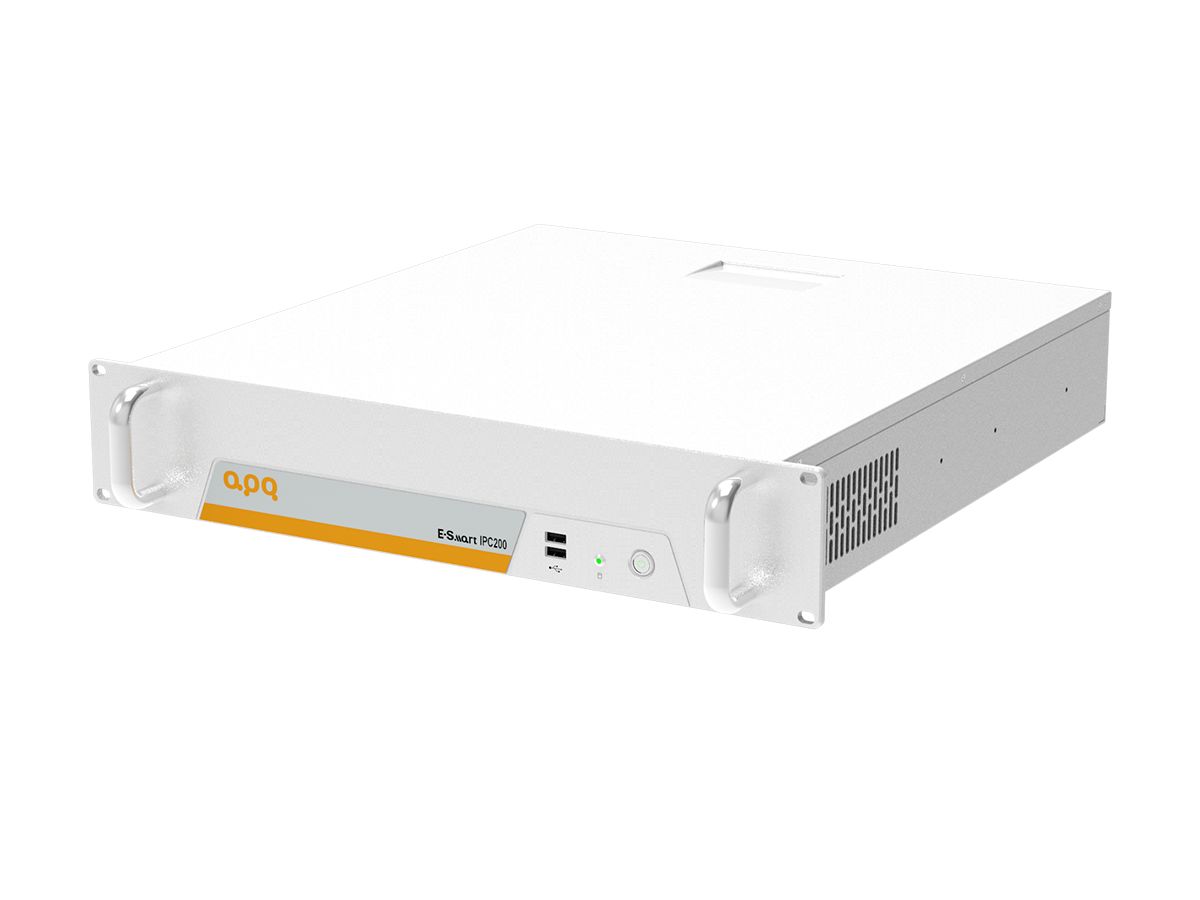

阿普奇 IPC200-H81 是一款面向存量工业系统和传统产线升级的经济型 2U 上架式工控机，支持 Intel 4/5 代 Core、Pentium、Celeron 桌面级处理器，采用标准 19 英寸 2U 机箱和 ATX 主板结构。产品提供双千兆网口、USB、RS232/422/485 串口及 HDMI、DP、VGA 显示输出，可兼容采集卡、运动控制卡、PLC、扫码器等现场设备。整机最多支持 7 槽位半高卡扩展，其中包含 4 个 PCI 插槽，适合保留旧式 PCI 板卡的自动化、检测和设备控制项目。前置 USB、开关机、状态指示灯及免工具维护风扇设计，让现场安装和运维更高效。
|
Model |
IPC200-H81 |
|
|
Processor System |
CPU | Support Intel® 4/5th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 95W | |
| Socket | LGA1150 | |
| Chipset | H81 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 2 * Non-ECC U-DIMM Slot, Dual Channel DDR3 up to 1600MHz |
| Capacity | 16GB, Single Max. 8GB | |
|
Graphics |
Controller | Intel® UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, RJ45) |
| 1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45) | ||
|
Storage |
SATA | 1 * SATA3.0 7P Connector |
| 2 * SATA2.0 7P Connector | ||
| M.2 | 1 * M.2 Key-M (SATA SSD, SATA 3.0, 2242/2260/2280) | |
|
Expansion Slots |
PCIe | 1 * PCIe x16 slot (Gen 3, x16 signal) |
| 1 * PCIe x4 slot (Gen 2, x2 signal, Default, co-lay with Mini PCIe) | ||
| 1 * PCIe x1 slot (Gen 2, x1 signal) | ||
| PCI | 4 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0 (Opt., co-lay with PCIe x4 slot), with 1 * SIM Card) | |
|

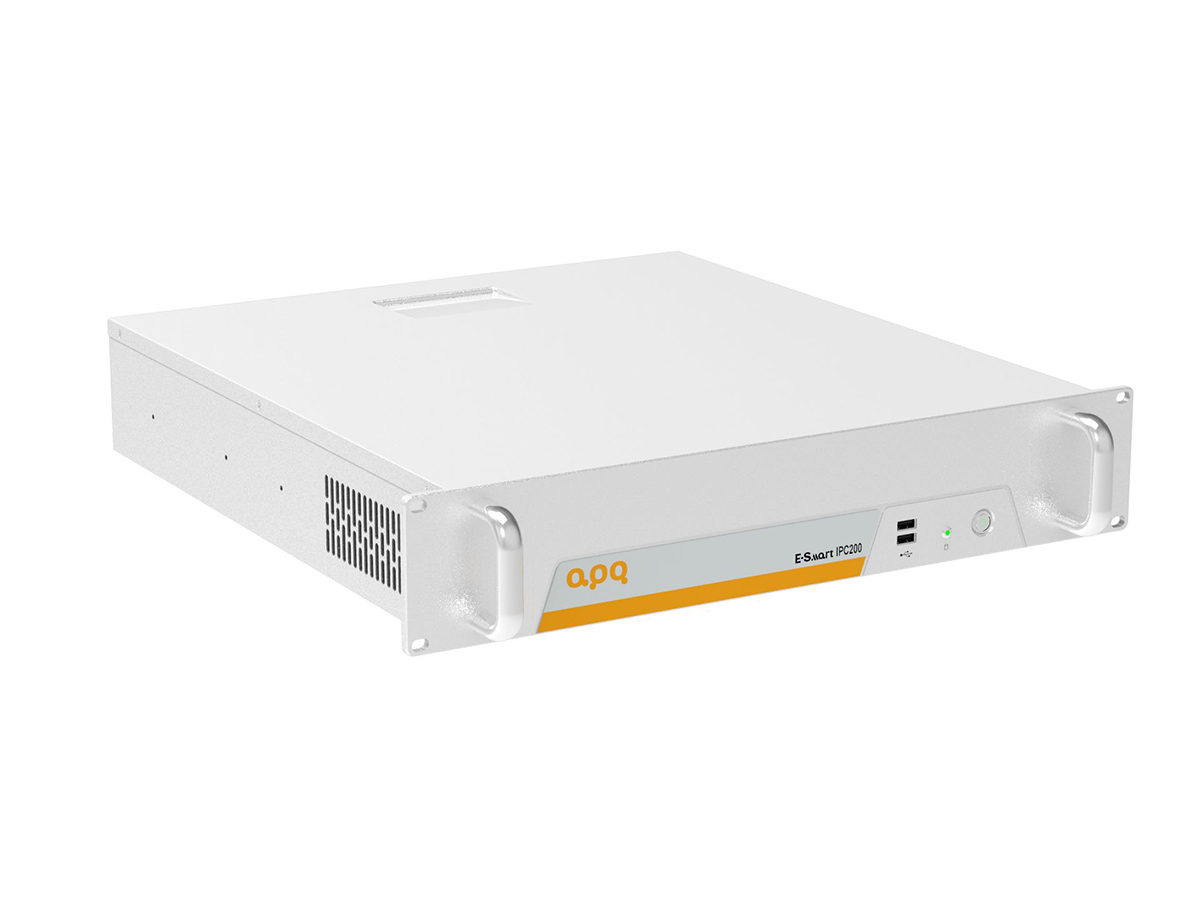

Front I/O |
Ethernet | 2 * RJ45 |
| USB | 2 * USB 5Gbps (Type-A) | |
| 4 * USB2.0 (Type-A) | ||
| PS/2 | 1 * PS/2 (Keyboard & Mouse) | |
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz | |
| 1 * HDMI1.4: max resolution up to 4096*2160 @ 24Hz | ||
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
|

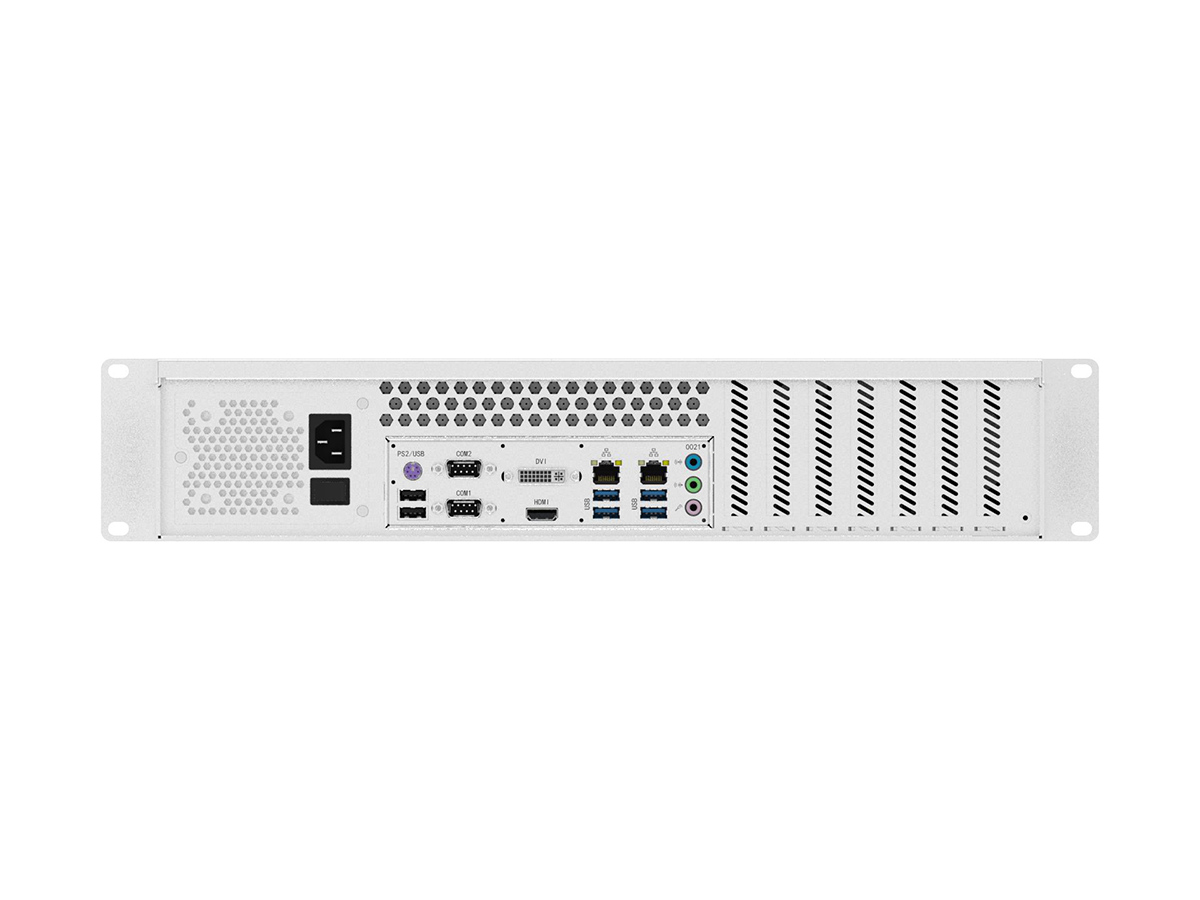

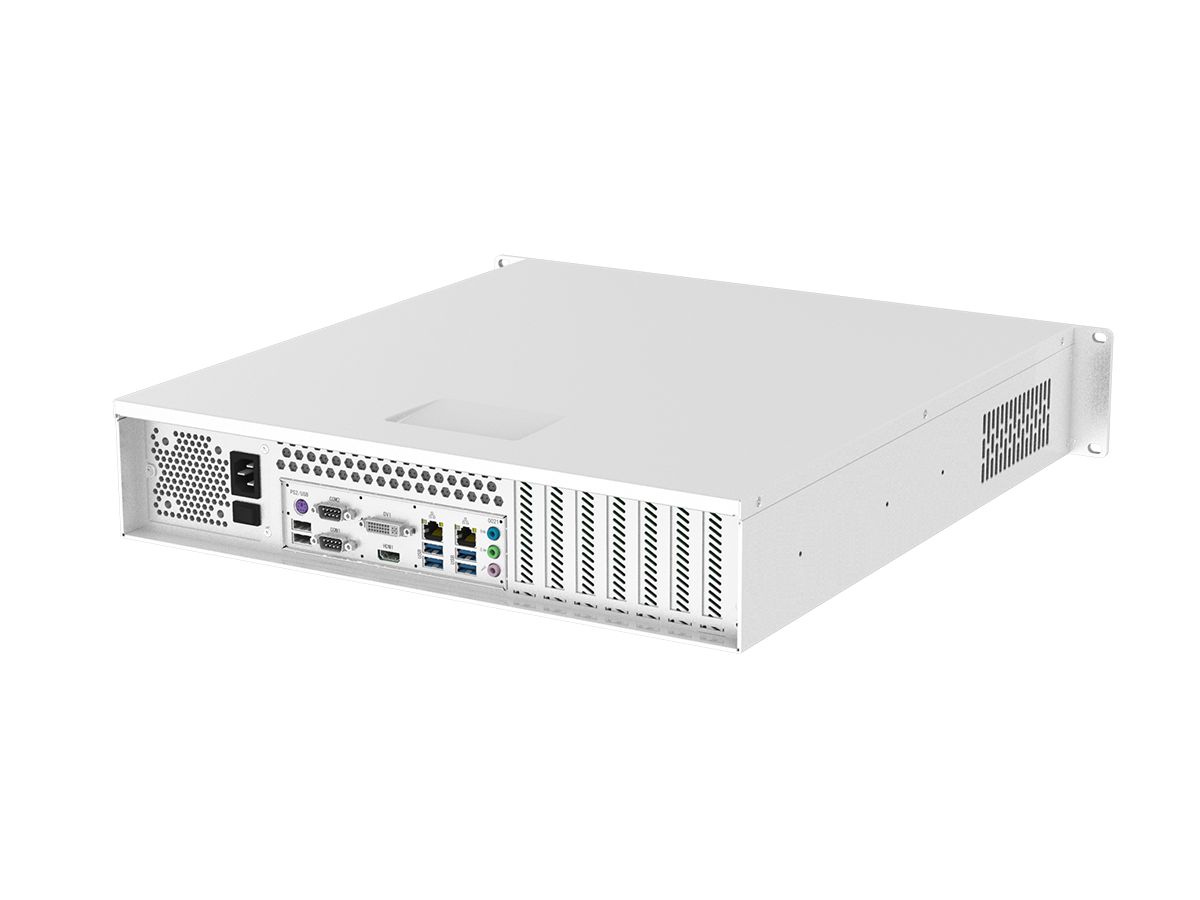

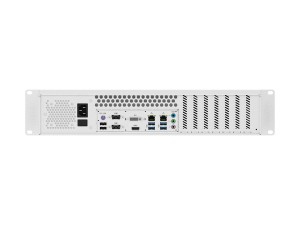

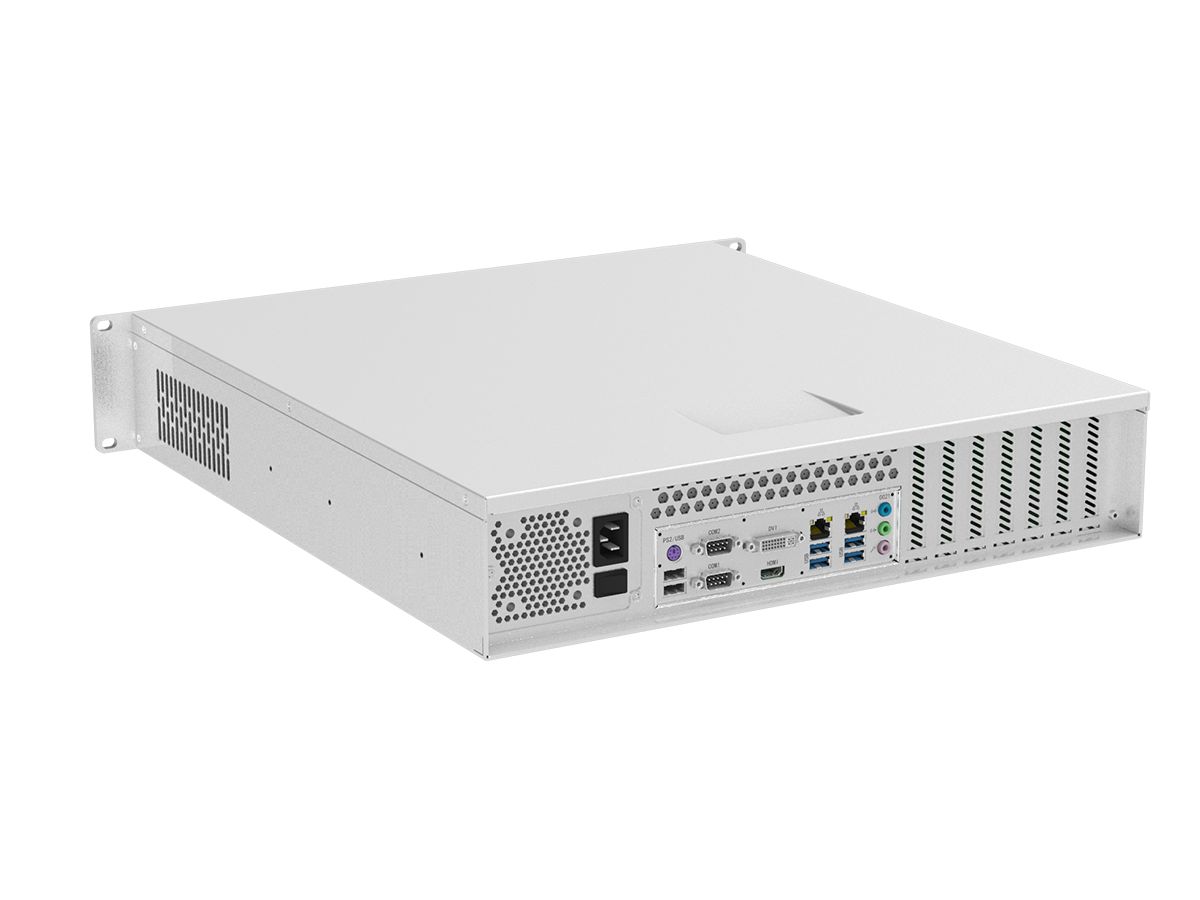

Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED | |
| 1 * Hard drive status LED | ||
|
Internal I/O |
USB | 1 * USB2.0 (Vertical TYEP-A) |
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer) | |
| 1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | ||
| Audio | 1 * Front Audio (Line-Out + MIC, Header) | |
| 1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) | ||
| GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) | |
| SATA | 3 * SATA 7P Connector | |
| LPT | 1 * LPT (Header) | |
| FAN | 2 * SYS FAN (Header) | |
| 1 * CPU FAN (Header) | ||
|
Power Supply |
Type | 2U FLEX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the 2U power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 7/10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|

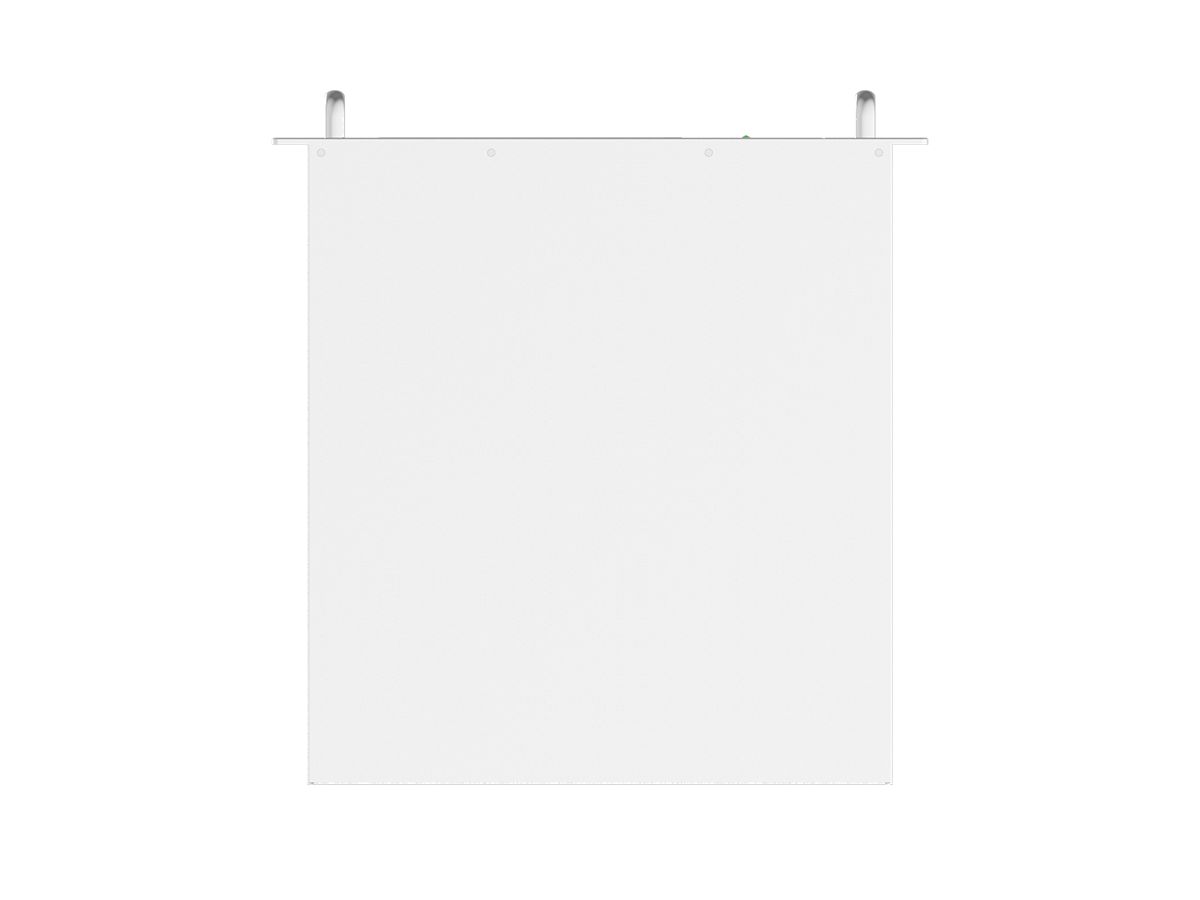

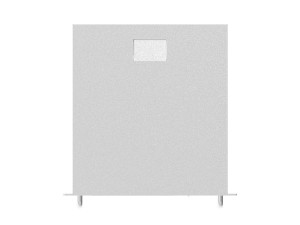

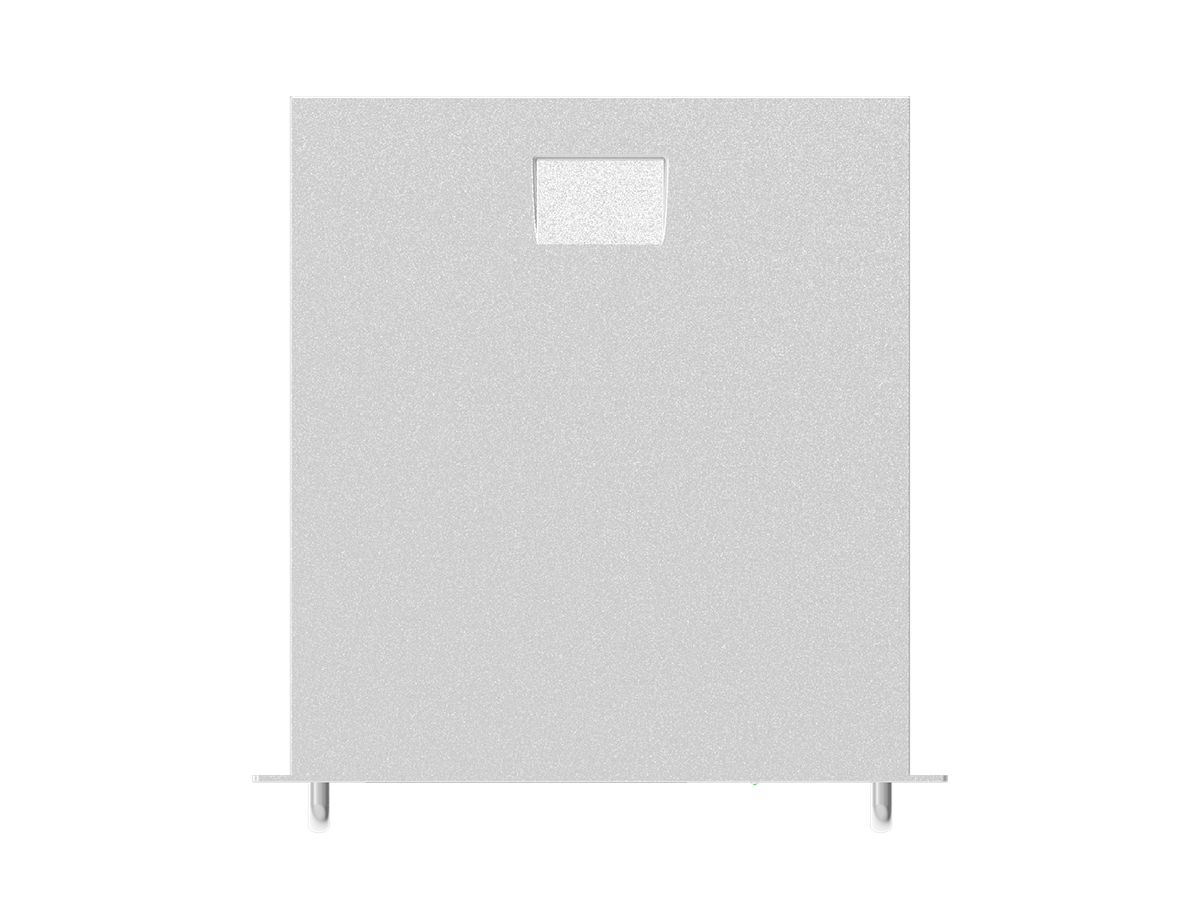

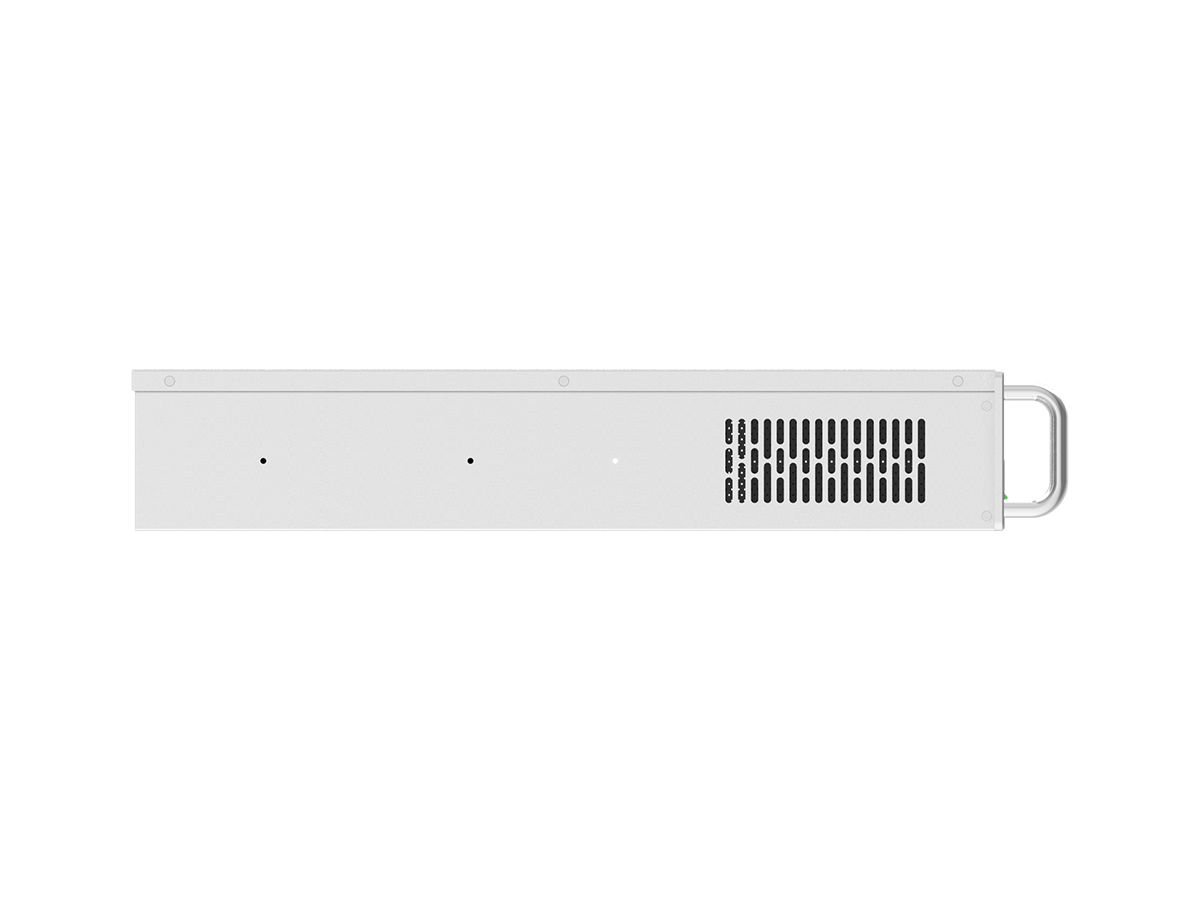

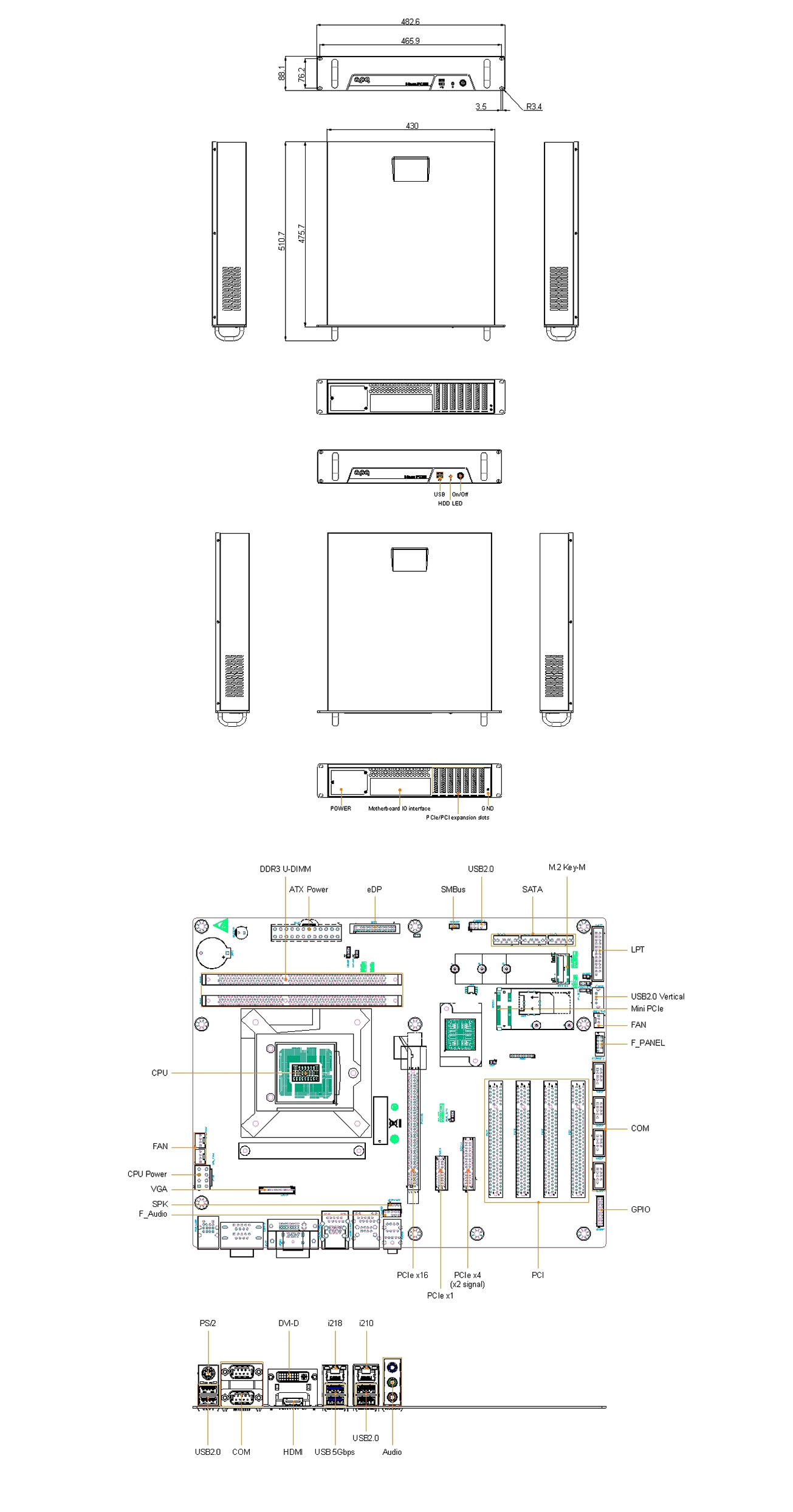

Mechanical |
Enclosure Material | SGCC+AL6061 |
| Dimensions | 482.6mm(L) * 475.7mm(W) * 88.1mm(H) | |
| Mounting | Rack-mounted/Desktop | |
|
Environment |
Operating Temperature | 0 ~ 50℃ |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
