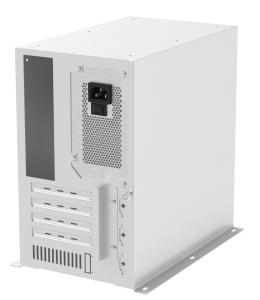

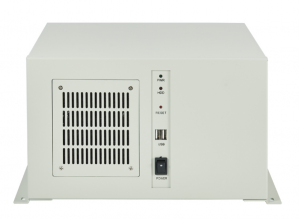

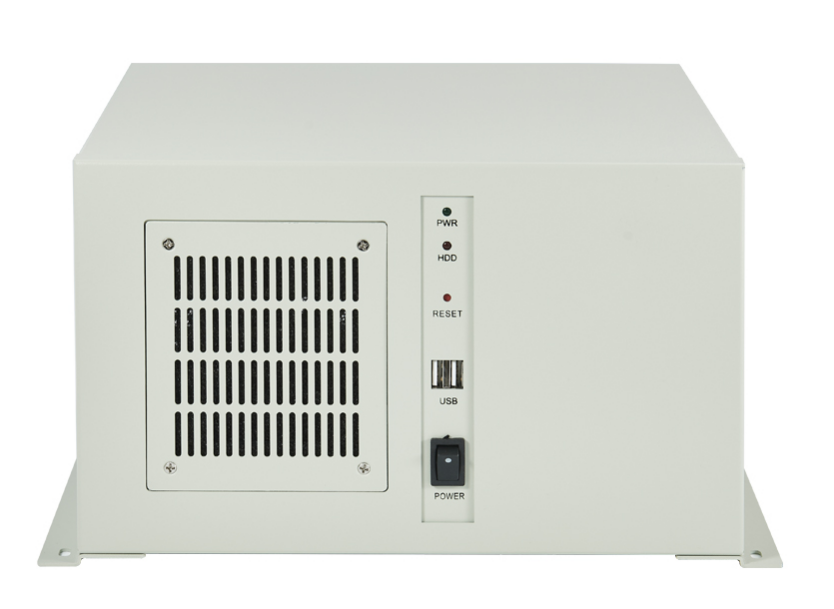

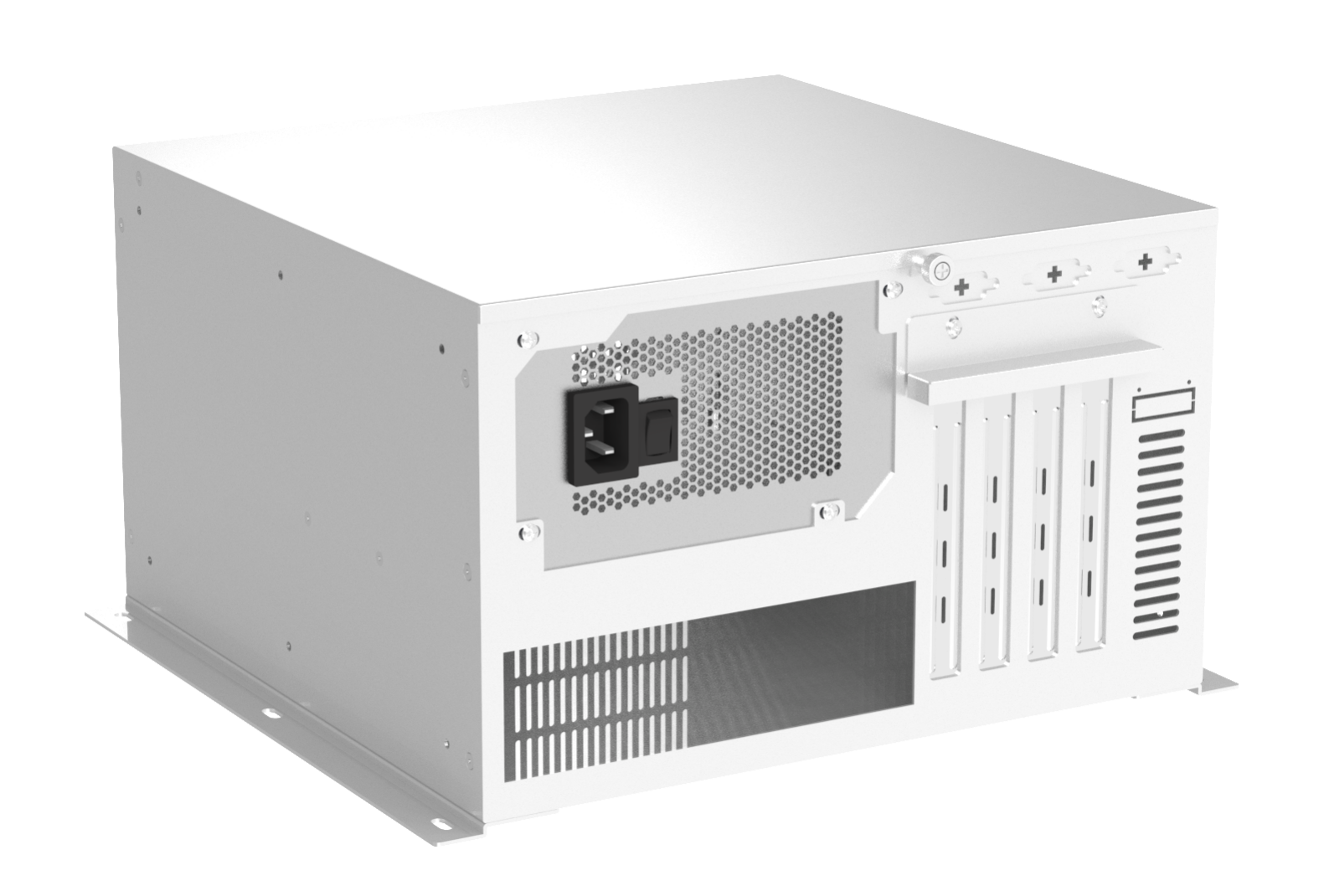

IPC340-H610 工控机 壁挂式工控机
远程管理
状态监控
远程运维
安全控制
联系我们
扫码即可添加微信，售前客服为您提供咨询服务
|

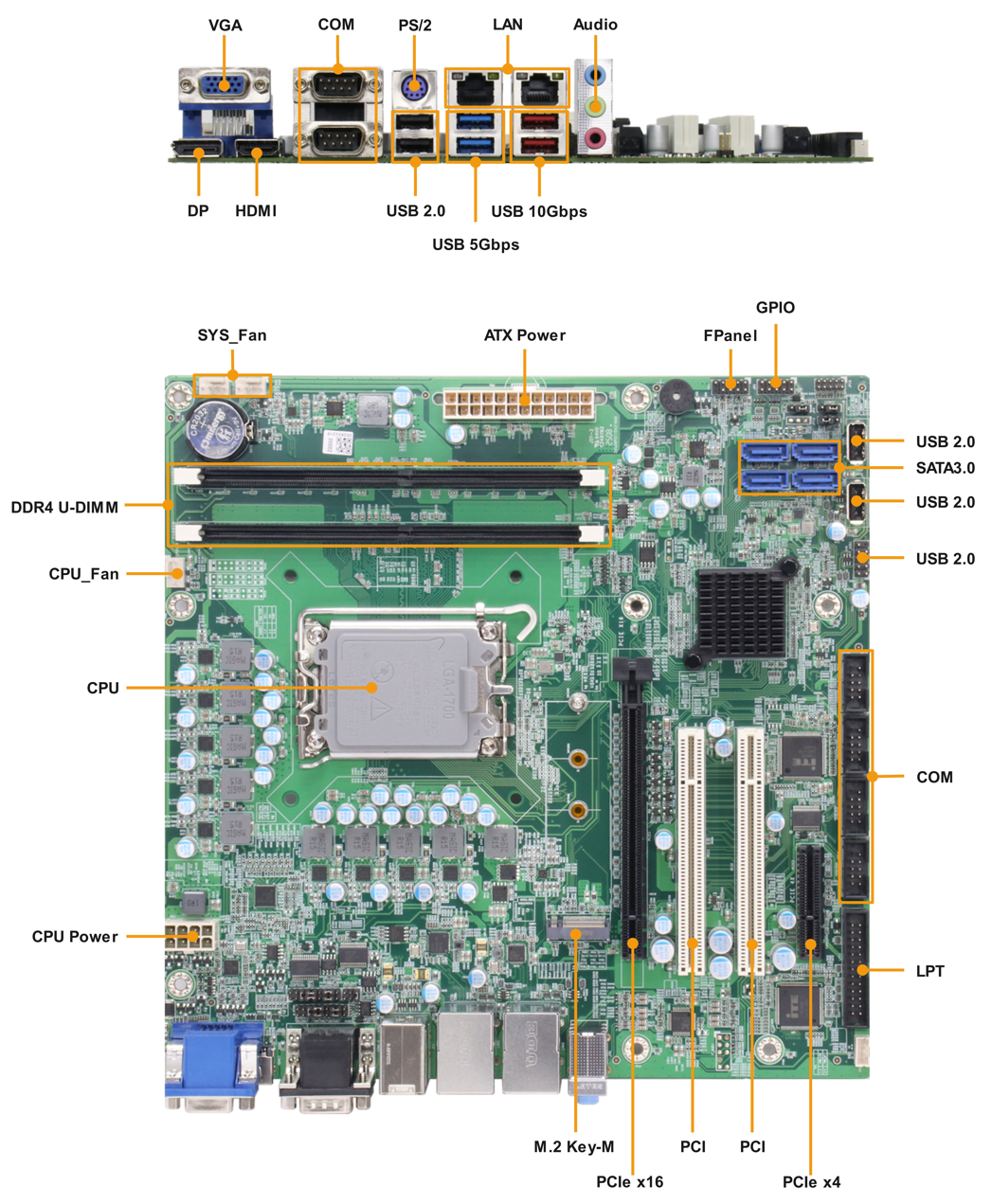

Model |
IPC340-H610 |
|
|
Processor System |
CPU | Support Intel® 12~14th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 125W | |
| Socket | LGA1700 | |
| Chipset | H610 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 2 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 3200MHz |
| Capacity | 64GB, Single Max. 32GB | |
|
Graphics |
Controller | Intel® UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i226-V 2.5GBE LAN Chip (10/100/1000/2500 Mbps, RJ45)
1 * Intel i219-V GBE LAN Chip (10/100/1000 Mbps, RJ45) |
|
Storage |
SATA | 4 * SATA3.0 7P Connector |
| M.2 | 1 * M.2 Key-M Slot (PCIe3.0 x2, NVMe SSD, 2242/2260/2280) | |
|
Expansion Slots |
PCIe | 1 * PCIe x16 Slot (Gen4, x16 signal) 1 * PCIe x4 Slot (Gen3, x4 signal) |
| PCI | 2 * PCI Slot | |
|
Front I/O |
Ethernet | 2 * RJ45 |
| USB | 2 * USB 10Gbps (Type-A)
2 * USB 5Gbps (Type-A) |
|
| Display | 1 * VGA: max resolution up to 1920*1080@60Hz 1 * HDMI: max resolution up to 4096*2304@30Hz 1 * DP: max resolution up to 4096*2304@30Hz |
|
| Audio | 3 * 3.5mm Jack (Line-In + Line-Out + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, Select by jumper setting, DB9/M) | |
| PS/2 | 1 * PS/2 (Keyboard & Mouse) | |
|
Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| Button | 1 * Power Button
1 * Reset Button |
|
| LED | 1 * Power status LED
1 * Hard drive status LED |
|
|
Internal I/O |
USB | 2 * USB2.0 (Type-A, Vertical) |
| Serial | 4 * RS232 (COM3/4/5/6, Header) | |
| LPT | 1 * LPT (Header) | |
| GPIO | 8bits GPIO (4in + 4out, Header) | |
| SATA | 4 * SATA3.0 7P Connector | |
| FAN | 1 * CPU FAN (Header) 2 * SYS FAN (Header) |
|
|
Power Supply |
Type | ATX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the ATX power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 10/11 |
|
|
Linux | Linux |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | SGCC |
| Dimensions | 290mm(L) * 290mm(W) * 174mm(H) | |
| Mounting | Wall mounted, Desktop | |
|
Environment |
Heat Dissipation System | PWM fan cooling |
| Operating Temperature | 0 ~ 50℃ | |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 90% RH (non-condensing) | |
-
