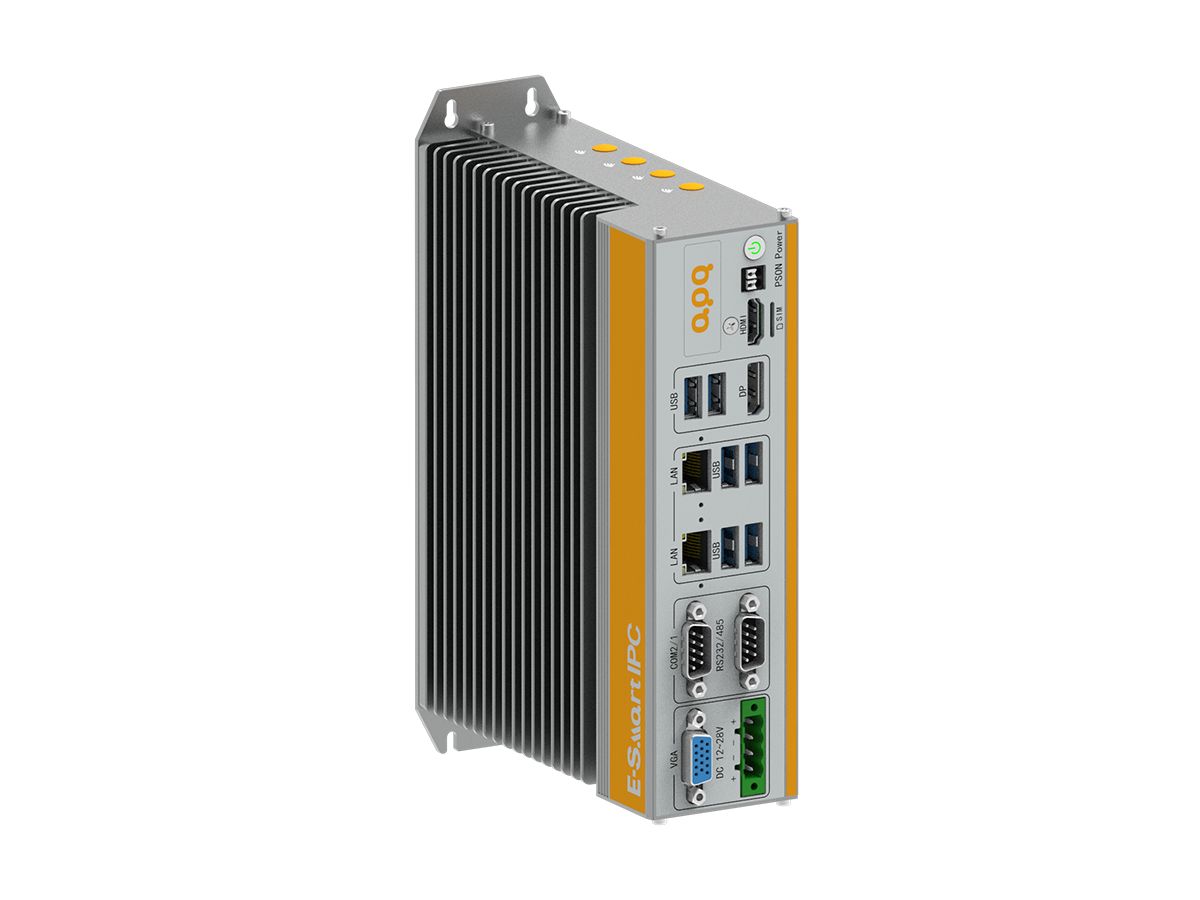

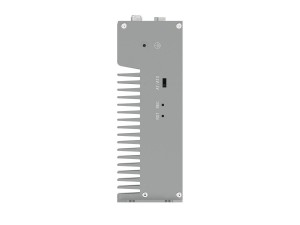

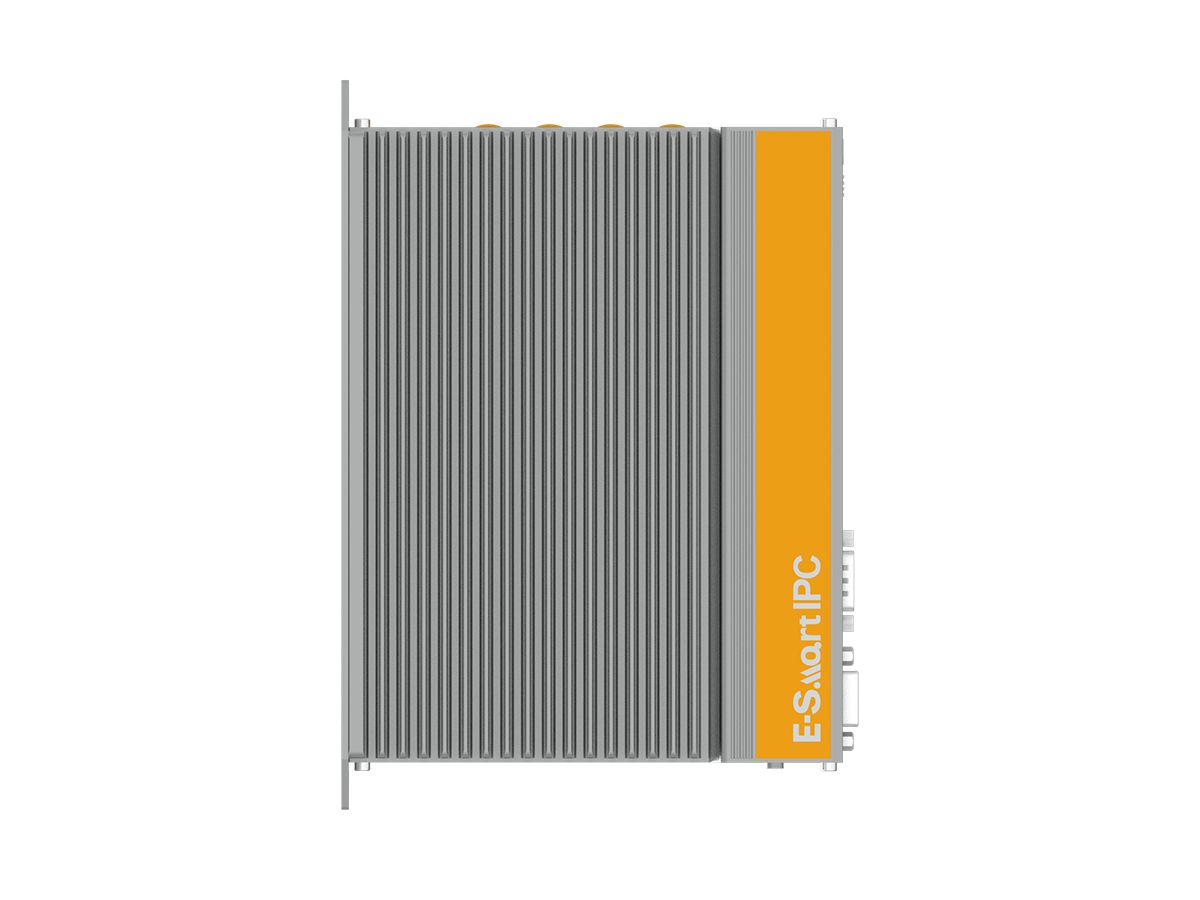

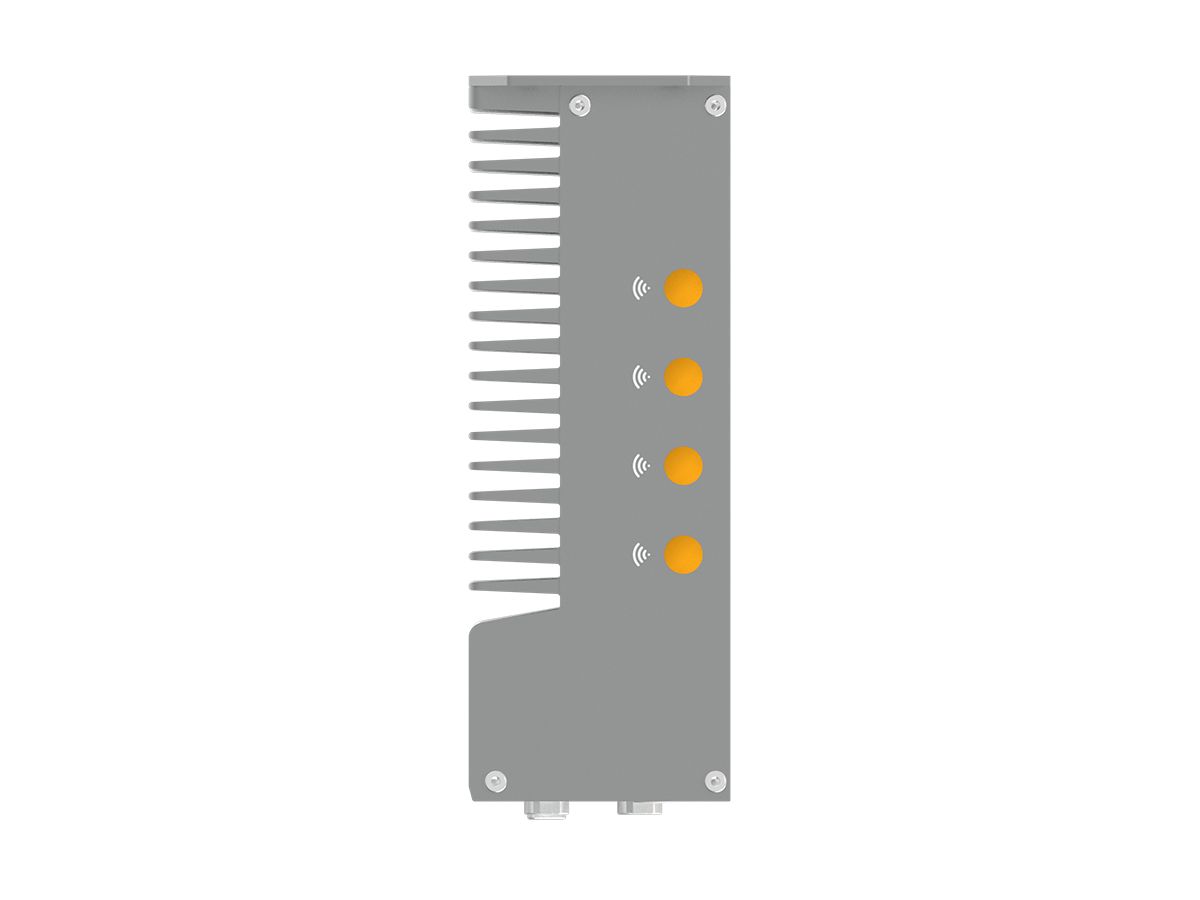

AK5系列Alder Lake-N平台机器人控制器/嵌入式工控机/边缘计算控制器

特点:

支持Intel® Alder Lake-N系列移动CPU
1个DDR4 SO-DIMM插槽，最大支持 16GB
HDMI、DP、VGA三路显示输出
可选2/4个带POE功能的Intel® i350千兆网络接口扩展
可选4路光源扩展
可选8路光电隔离数字输入, 8路光电隔离数字输出扩展
可选PCIe x4/ PCI扩展
支持WiFi/4G无线扩展
内置USB 2.0 Type-A便于安装加密狗
支持桌面式、壁挂式、DIN导轨
无风扇被动式散热
12~28V直流供电

远程管理
状态监控
远程运维
安全控制

联系我们

扫码即可添加微信，售前客服为您提供咨询服务

产品介绍

工程图纸

下载产品资料

扫码添加微信，获取最新产品资料文件

Model		AK5xxx	AK5xxx-1A/1B	AK5xxx-2A	AK5xxx-3A
CPU	CPU	Intel^® Alder Lake-N Series Processor
	TDP	12/15W
	Chipset	SOC
BIOS	BIOS	AMI UEFI BIOS
Memory	Socket	1 * DDR4 SO-DIMM Slot, up to 3200MHz
	Max Capacity	16GB
Graphics	Controller	Intel^® UHD Graphics
Ethernet	Controller	2 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps)	2 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel^® i350 GbE LAN Chip (10/100/1000 Mbps)	2 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps)	2 * Intel^® i210-AT GbE LAN Chip (10/100/1000 Mbps)
Storage	M.2	1 * M.2 Key-M (SATA3.0, 2280)
Expansion Slots	Mini PCIe	1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot)
	PCIe/PCI	N/A	N/A	1 * PCIe x4	1 * PCI

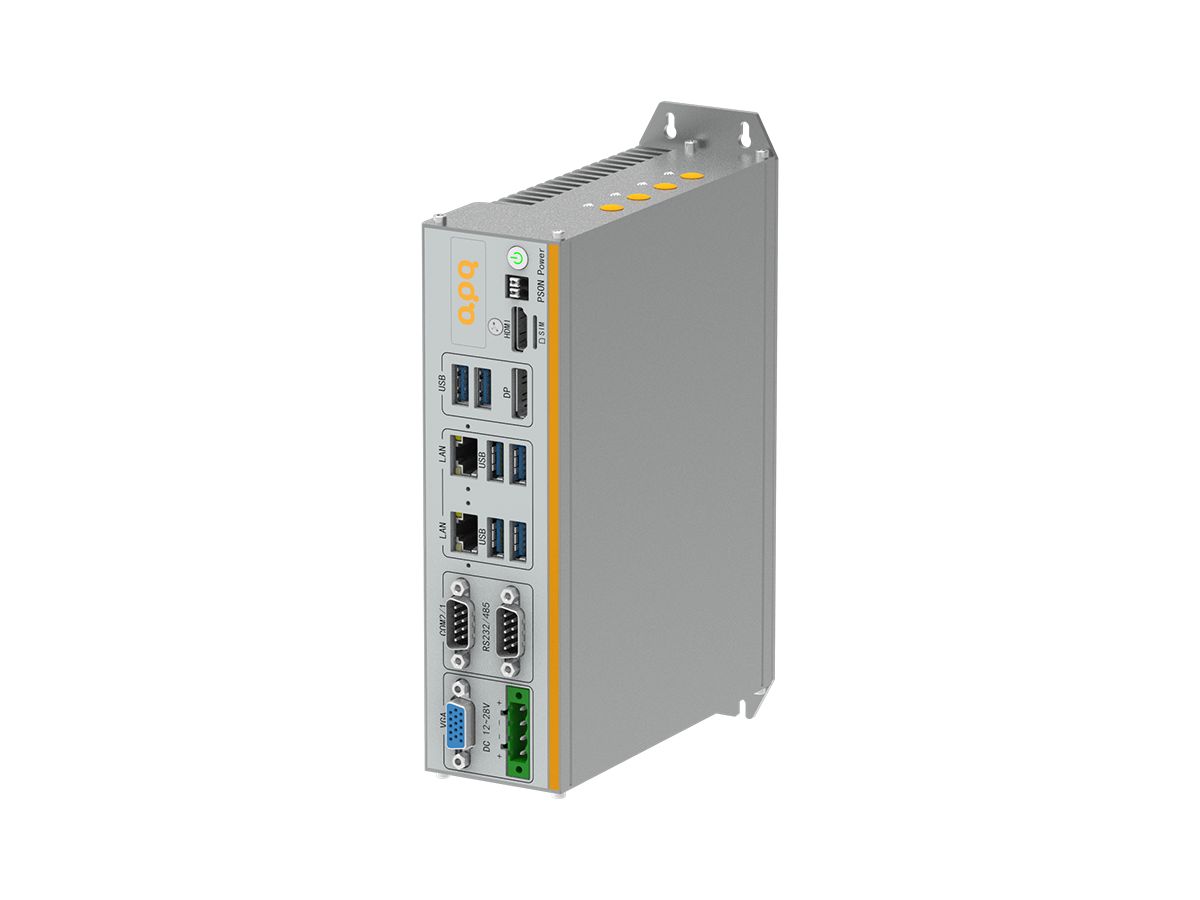

Front I/O	USB	4 * USB3.0 (Type-A) 2 * USB2.0 (Type-A)
	Serial	2 * RS232/485 (COM1/2, DB9/M, Full lanes, BIOS switch)
	Display	1 * HDMI: max resolution up to 40962304 @ 24Hz 1 DP: max resolution up to 40962160 @ 60Hz 1 VGA: max resolution up to 1920*1200 @ 60Hz
	LAN/POE	2 * RJ45	2 * RJ45 AK5xxx-1A: 2 * RJ45, Intel^® i350-AM2, optional POE module, 802.3at/af, total 60W AK5xxx-1B: 4 * RJ45, Intel^® i350-AM4, optional POE module, 802.3at/af, total 60W	2 * RJ45	2 * RJ45

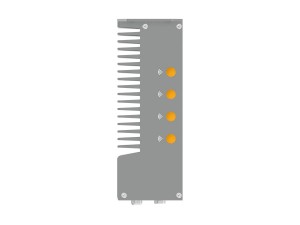

	Light Source	N/A	4 * Light Source Output (24V, Max. 1A per channel, PWM control)	N/A	N/A
	GPIO	N/A	1 * 16bits DIO (8xDI, optical isolation; 8xDO, optical isolation)	N/A	N/A
	Power	1 * DC Power Input	1 * DC Power Input	1 * DC Power Input	1 * DC Power Input
	SIM	1 * Nano SIM Card slot (Mini PCIe module provide functional support)
	Button	1 * Power Button + Power LED 1 * PS_ON Connector
Bottom I/O	Switch	1 * AT/ATX Mode Switch (Enable/Disable automatically power on)
	Button	1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS) 1 * OS Rec (system recovery)
	PCIe/PCI	N/A	N/A	1 * PCIe x4	1 * PCI
Power Supply	Type	DC
	Power Input Voltage	12 ~ 28VDC Note：When using the light source, 24V input must be used.
	Connector	1 * 4Pin Power Input Connector (P= 5.08mm)
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 10/11
	Linux	Linux
Watchdog	Output	System Reset
	Interval	Programmable via Software from 1 to 255 sec
Mechanical	Enclosure Material	Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC
	Dimensions	53mm(L) * 145mm(W) * 186.4mm(H)	72.9mm(L) * 145mm(W) * 186.4mm(H)	72.9mm(L) * 145mm(W) * 186.4mm(H)	72.9mm(L) * 145mm(W) * 186.4mm(H)

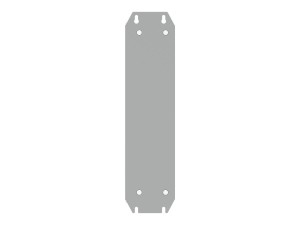

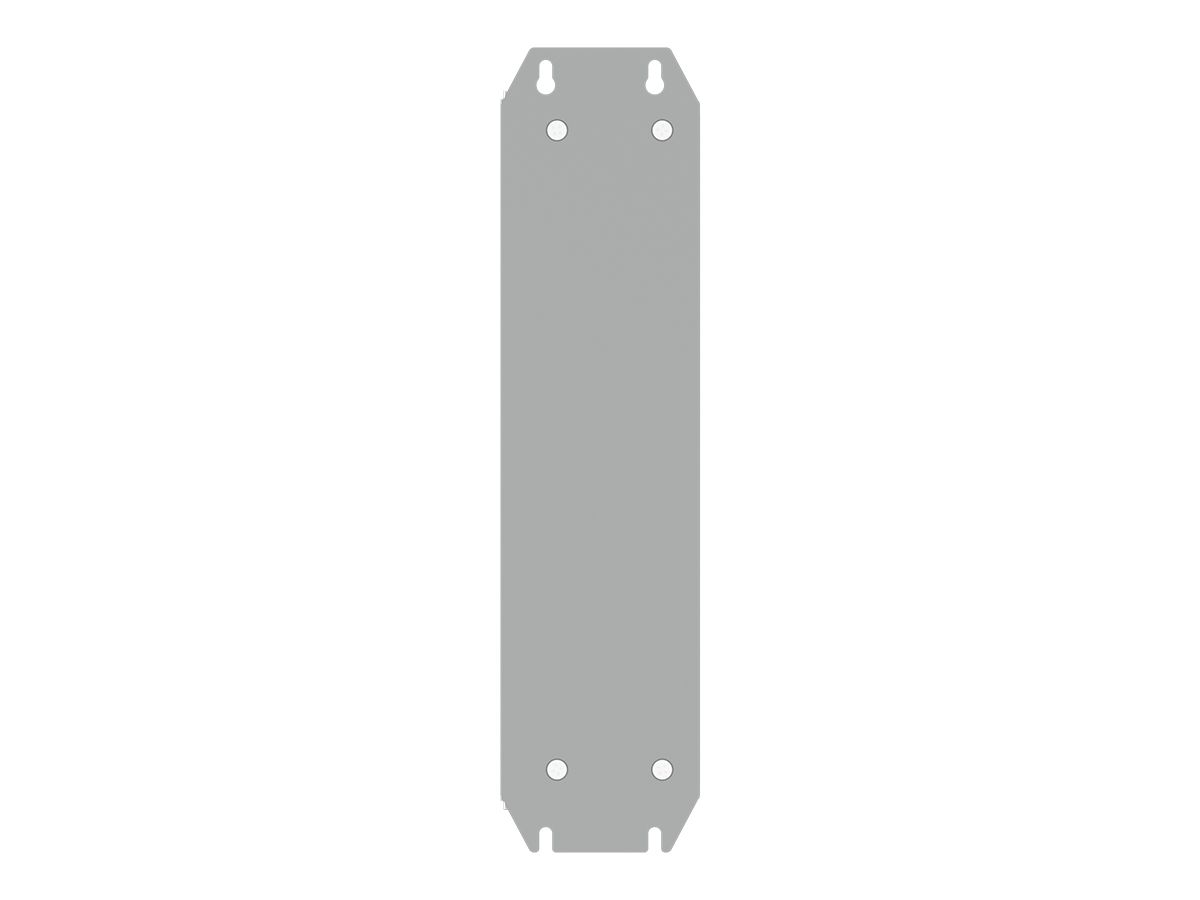

	Mounting	Wall mounted, DIN, Desktop
Environment	Heat Dissipation System	Passive Heat Dissipation
	Operating Temperature	-20~60℃ (Industrial SSD)
	Storage Temperature	-40~80℃ (Industrial SSD)
	Relative Humidity	5 to 90% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (30G, half sine, 11ms)
