AK6系列12th-P平台 嵌入式工控机/机器人控制器/边缘计算控制器

AK6系列12th-P平台 嵌入式工控机/机器人控制器/边缘计算控制器

特点:

  • 支持Intel® 12th Gen CoreTM i3/i5/i7 -P系列移动CPU
  • 2个DDR5 SO-DIMM插槽,最大支持 64GB
  • HDMI、DP、VGA三路显示输出
  • 可选2/4个带POE功能的Intel® i350千兆网络接口扩展
  • 可选4路光源扩展
  • 可选8路光电隔离数字输入, 8路光电隔离数字输出扩展
  • 可选PCIe x4/ PCI扩展
  • 支持WiFi/4G无线扩展
  • 内置USB 2.0 Type-A便于安装加密狗
  • 支持桌面式、壁挂式、DIN导轨
  • 无风扇被动散热
  • 12~28V直流供电

  • 远程管理

    远程管理

  • 状态监控

    状态监控

  • 远程运维

    远程运维

  • 安全控制

    安全控制

扫码即可添加微信,售前客服为您提供咨询服务

产品介绍

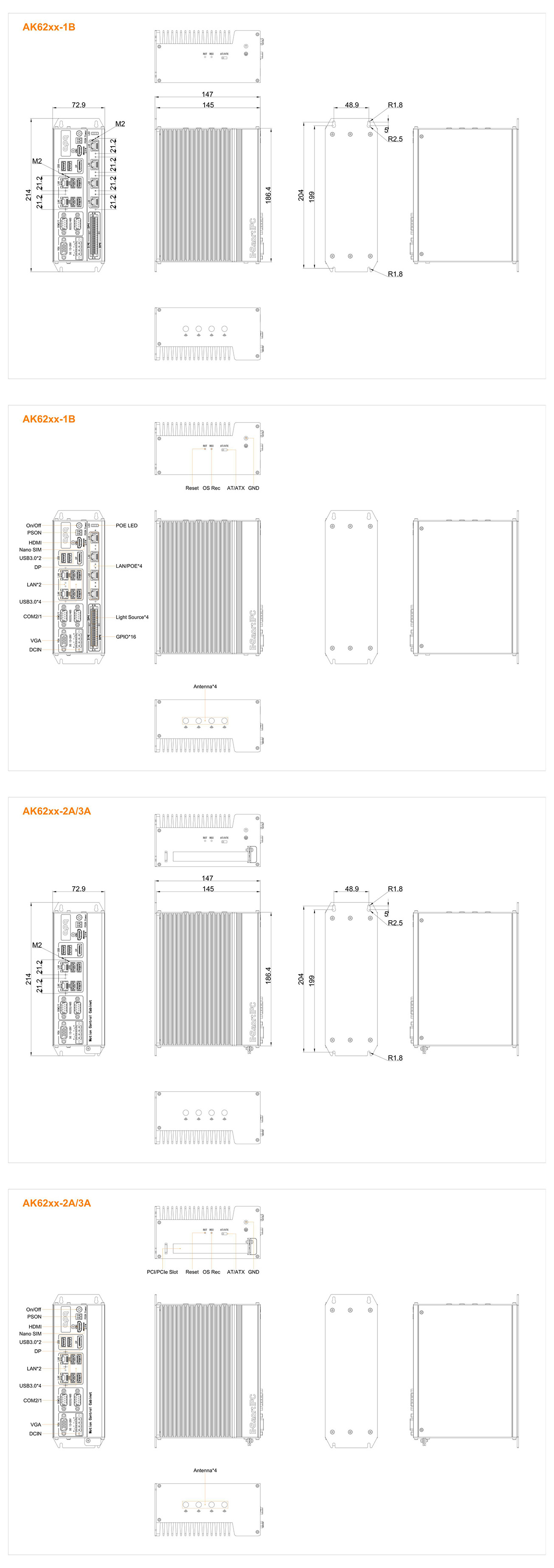

工程图纸

下载产品资料

扫码添加微信,获取最新产品资料文件

Model AK62xx AK62xx-1A/1B AK62xx-2A AK62xx-3A
CPU CPU Intel® 12th Generation CoreTM i3/i5/i7 Mobile -P CPU
TDP 28W
Chipset SOC
BIOS BIOS AMI UEFI BIOS
Memory Socket 2 * DDR5 SO-DIMM Slot, Dual Channel up to 5200MHz
Max Capacity 64GB, Single Max. 32GB
Graphics Controller Intel® Iris® Xe Graphics
Ethernet Controller 1 * Intel® i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel® i219-LM/V GbE LAN Chip (10/100/1000 Mbps)
1 * Intel® i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel® i219-LM/V GbE LAN Chip (10/100/1000 Mbps)
1 * Intel® i350 GbE LAN Chip (10/100/1000 Mbps)
1 * Intel® i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel® i219-LM/V GbE LAN Chip (10/100/1000 Mbps)
1 * Intel® i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel® i219-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage M.2 1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280) 1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280)
1 * M.2 Key-M (SATA3.0, 2280)
1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280) 1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280)
Expansion Slots Mini PCIe 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0)
1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot)
PCIe/PCI N/A N/A 1 * PCIe x4 1 * PCI
Front I/O USB 6 * USB3.0 (Type-A)
Serial 2 * RS232/485 (COM1/2, DB9/M, Full lanes, BIOS switch)
Display 1 * HDMI: max resolution up to 4096*2304 @ 24Hz
1 * DP: max resolution up to 4096*2160 @ 60Hz
1 * VGA: max resolution up to 1920*1200 @ 60Hz
LAN/POE 2 * RJ45 2 * RJ45
AK62xx-1A: 2 * RJ45, Intel® i350-AM2, optional POE module, 802.3at/af, total 60W
AK62xx-1B: 4 * RJ45, Intel® i350-AM4, optional POE module, 802.3at/af, total 60W
2 * RJ45 2 * RJ45
Light Source N/A 4 * Light Source Output (24V, Max. 1A per channel, PWM control) N/A N/A
GPIO N/A 1 * 16bits DIO (8xDI, optical isolation; 8xDO, optical isolation) N/A N/A
Power 1 * DC Power Input 1 * DC Power Input 1 * DC Power Input 1 * DC Power Input
SIM 1 * Nano SIM Card slot (Mini PCIe module provide functional support)
Button 1 * Power Button + Power LED
1 * PS_ON Connector
Bottom I/O Switch 1 * AT/ATX Mode Switch (Enable/Disable automatically power on)
Button 1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS)
1 * OS Rec (system recovery)
PCIe/PCI N/A N/A 1 * PCIe x4 1 * PCI
Power Supply Type DC
Power Input Voltage 12 ~ 28VDC
Note:When using the light source, 24V input must be used.
Connector 1 * 4Pin Power Input Connector (P= 5.08mm)
RTC Battery CR2032 Coin Cell
OS Support Windows Windows 10/11
Linux Linux
Watchdog Output System Reset
Interval Programmable via Software from 1 to 255 sec
Mechanical Enclosure Material Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC
Dimensions 53mm(L) * 145mm(W) * 186.4mm(H) 72.9mm(L) * 145mm(W) * 186.4mm(H) 72.9mm(L) * 145mm(W) * 186.4mm(H) 72.9mm(L) * 145mm(W) * 186.4mm(H)
Mounting Wall mounted, DIN, Desktop
Environment Heat Dissipation System Passive Heat Dissipation
Operating Temperature -20~60℃ (Industrial SSD)
Storage Temperature -40~80℃ (Industrial SSD)
Relative Humidity 5 to 90% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (30G, half sine, 11ms)

AK62xx-20240109_00AK62xx-20240109_01
