TPP-080CQEA Intel x86平台/工业一体机/工业平板/工业手持平板/电容触摸平板

特点:

支持Intel® Celeron® Jasper Lake N5100 CPU
8英寸高分高亮液晶屏
防刮花高硬度多点电容触摸屏
前后高清摄像头、重力传感器、GPS支持
可选配二维码、NFC模块
支持Wi-Fi、BT、4G/5G等无线、移动网络
无风扇被动式散热，整机IP65设计

远程管理
状态监控
远程运维
安全控制

扫码即可添加微信，售前客服为您提供咨询服务

产品描述

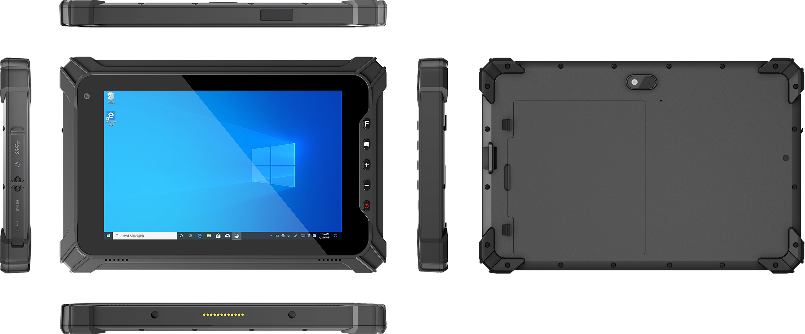

阿普奇TPP-080CQEA是一款工业级手持平板电脑，配备8英寸TFT-LCD显示屏，分辨率1920×1200，亮度550 cd/m²，支持5点投射电容触摸，覆盖钢化玻璃，硬度≥7H。搭载Intel® Celeron® N5100处理器，8GB DDR4内存，128GB eMMC存储，支持TF卡扩展。接口包括USB Type-A、Type-C（支持充电）、HDMI Mini、SIM卡槽等。具备前置5MP摄像头、双防水扬声器、G-sensor、Wi-Fi 5双频、蓝牙5.0、4G LTE、GPS/Glonass，可选NFC和QR码扫描。采用可拆卸5000mAh电池，运行Windows 10系统，尺寸236.7×155.7×20mm，重量910g，IP65防护，工作温度-20~60°C，抗振动与跌落，适用于手持及车载场景。

产品介绍

工程图纸

下载产品资料

扫码添加微信，获取最新产品资料文件

Model		TPP-080CQEA
LCD	Display Size	8"
	Display Type	TFT-LCD
	Max.Resolution	1920 x 1200
	Luminance	550 cd/m2
	Aspect Ratio	16:10
Touchscreen	Touch Type	5-point PCAP with tempered-glass cover
	Material	G+G
	Input	Finger/Capacitive Touch Pen
	Hardness	≥7H
Processor System	CPU	Intel® Celeron® Jasper Lake N5100
	TDP	6W
	Chipset	SOC
Memory	Capacity	8G, DDR4
Storage	Capacity	128GB, eMMC
	TF Card	1 * TF Card slot, Max. 512GB
I/O	USB	1 * USB 5Gbps (Type-A) 1 * USB 5Gbps (Type-C, Charging supported)
	Display	1 * HDMI (Mini): max resolution up to 4096x2304@60Hz
	Audio	1 * 3.5mm Jack (MIC+Line-out)
	SIM Card	1 * SIM Card slot
	POGO PIN	1 * 12Pin Pogo Pin
	Power	1 * Type-C Power Input Connector
Function	Camera	1 * Front 5.0 MP 1 * Rear 8.0 MP (Flash LED)
	Speaker	2 * Waterproof loudspeaker (8Ω/1W )
	G-sensor	Support
	Wi-Fi	2.4GHz + 5.8GHz dual-band Wi-Fi 5
	Bluetooth	BT5.0 (BLE)
	Mobile Network	4G LTE
	GPS	GPS + Glonass
	NFC	NXP NFC 13.56MHz (Opt.)
	QR Code	Honeywell N3680 (Opt.)
Power Supply	Connector	1 * Type-C
	Battery	7.6V/5000mAh (Detachable)
OS Support	Windows	Windows 10
Mechanical	Usage Mode	Handheld, Vehicle mount (Opt.)
	Dimensions	236.7(L) * 155.7(W) * 20(D)mm
	Weight	910g (Net.)
Environment	Heat Dissipation System	Passive heat dissipation
	Operating Temperature	-20~60℃
	Storage Temperature	-30~70℃
	Vibration During	1.08Grms@5~500Hz, random, 1hr/axis
	Functional Drop	1.22 m free-fall onto 20 mm plywood over concrete, 26 impacts
	IP Rating	IP65
