产品描述

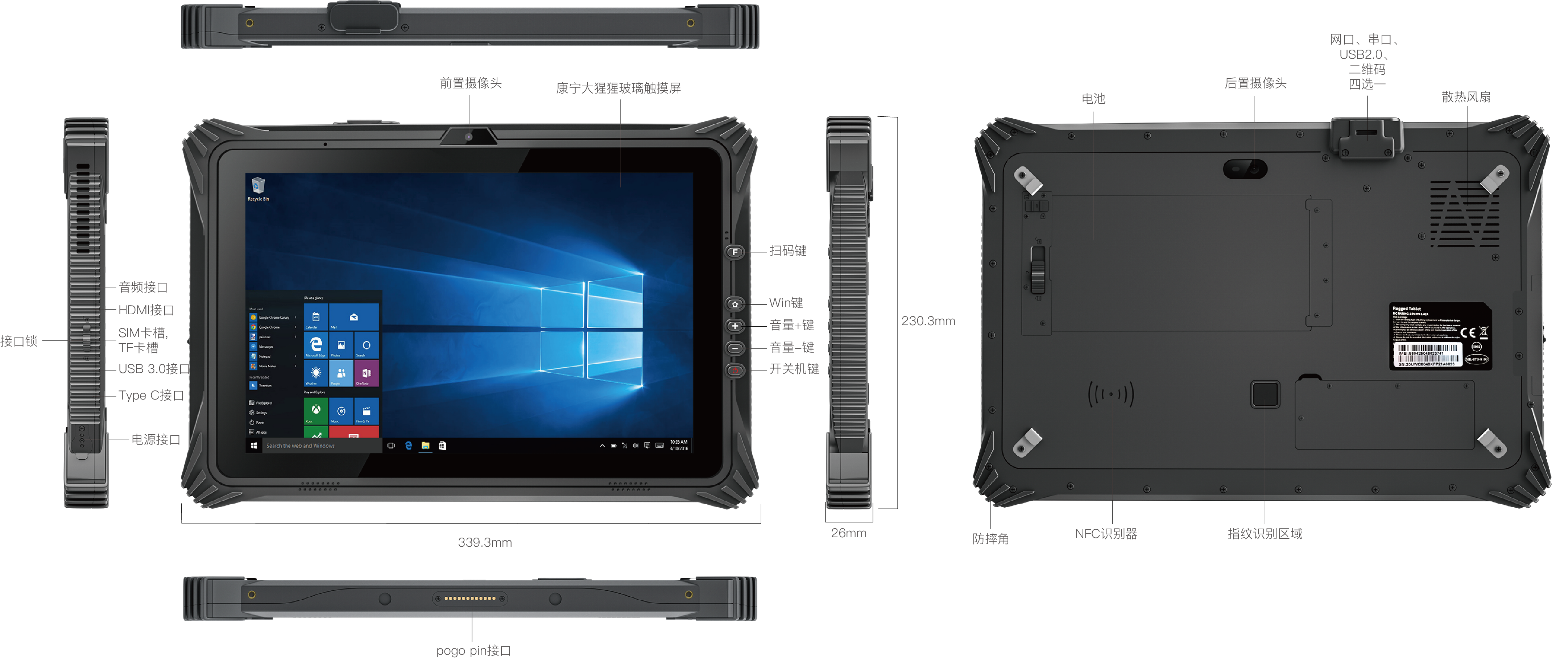

阿普奇TPP-122CQEA是一款12.2英寸工业手持平板电脑，配备TFT-LCD显示屏，分辨率1920×1200，亮度650 cd/m²，支持10点投射电容触摸，覆盖钢化玻璃，硬度≥7H。搭载Intel® Core® i5/i7移动处理器，配备16GB DDR4L内存与128GB SSD存储。接口包括USB Type-A、Type-C、千兆以太网、RS232、HDMI Mini及SIM卡槽等。具备前置2MP摄像头、防水扬声器、G-sensor、Wi-Fi 6、蓝牙5.1、4G LTE（可选5G），支持可选NFC、二维码扫描及指纹开机登录。采用热插拔电池（700mAh+6300mAh），运行Windows 10/11系统，尺寸339.3×230.3×26mm，重量1500g，IP65防护，工作温度-20~60°C，抗振动与跌落，适用于手持及车载场景。
|
Model |
TPP-122CQEA |
|
|
LCD |
Display Size | 12.2" |
|
|
Display Type | TFT-LCD |
|
|
Max.Resolution | 1920 x 1200 |
|
|
Luminance | 650 cd/m2 |
|
|
Aspect Ratio | 16:10 |
|
Touchscreen |
Touch Type | 10-point PCAP with tempered-glass cover |
|
|
Material | G+G |
|
|
Input | Finger/Capacitive Touch Pen |
|
|
Hardness | ≥7H |
|
Processor System |
CPU | Intel® Core® Alder Lake i5/i7 -U mobile CPU |
|
|
TDP | 15W |
|
|
Chipset | SOC |
|
Memory |
Capacity | 16GB, DDR4L |
|
Storage |
Capacity | 128GB, SSD |
|
|
TF Card | 1 * TF Card slot, Max. 128GB |
|
I/O |
USB | 1 * USB 5Gbps (Type-A) 1 * USB 5Gbps (Type-C) 1 * USB 2.0 (Type-A, Co-lay with QR-code/LAN/COM, Opt.) |
|
|
Ethernet | 1 * GbE (RJ45, Co-lay with QR-code/USB 2.0/COM, Def.) |
|
|
COM | 1 * RS232 (DB9/M, Co-lay with QR-code/USB 2.0/LAN, Opt.) |
|
|
Display | 1 * HDMI (Mini): max resolution up to 4096x2304@60Hz |
|
|
Audio | 1 * 3.5mm Jack (MIC+Line-out) |
|
|
SIM Card | 1 * SIM Card slot |
|
|
POGO PIN | 1 * 12Pin Pogo Pin |
|
|
Power | 1 * φ5.5mm Power Input Connector (19VDC) |
|
Function |
Camera | 1 * Front 2.0 MP 1 * Rear 8.0 MP |
|
|
Speaker | 1 * Waterproof loudspeaker (8Ω/1W) |
|
|
G-sensor | Support |
|
|
Wi-Fi | 2.4GHz + 5.8GHz dual-band Wi-Fi 6 |
|
|
Bluetooth | BT5.1 (BLE) |
|
|
Mobile Network | 4G LTE (Opt. 5G NR) |
|
|
GPS | GPS + Glonass (Opt. BD) |
|
|
NFC | NXP NFC 13.56MHz (Opt.) |
|
|
QR Code | Honeywell N3680 (Co-lay LAN/USB 2.0/COM, Opt.) |
|
|
Fingerprint | Supports Windows Hello login on boot (Def.) |
|
Power Supply |
Power Input Voltage | 19V DC |
|
|
Connector | 1 * φ5.5mm Power Input Connector |
|
|
Battery | 7.4V/700mAh + 7.4V/6300mAh (Hot-swap) |
|
OS Support |
Windows | Windows 10/11 |
|
Mechanical |
Usage Mode | Handheld, Vehicle mount (Opt.) |
|
|
Dimensions | 339.3(L) * 230.3(W) * 26(D)mm |
|
|
Weight | 1500g (Net.) |
|
Environment |
Heat Dissipation System | Fanless passive cooling |
| Operating Temperature | -20~60℃ | |
| Storage Temperature | -30~70℃ | |
| Vibration During | 1.08Grms@5~500Hz, random, 1hr/axis | |
| Functional Drop | 1.22 m free-fall onto 20 mm plywood over concrete, 26 impacts | |
| IP Rating | IP65 | |
-
