产品描述

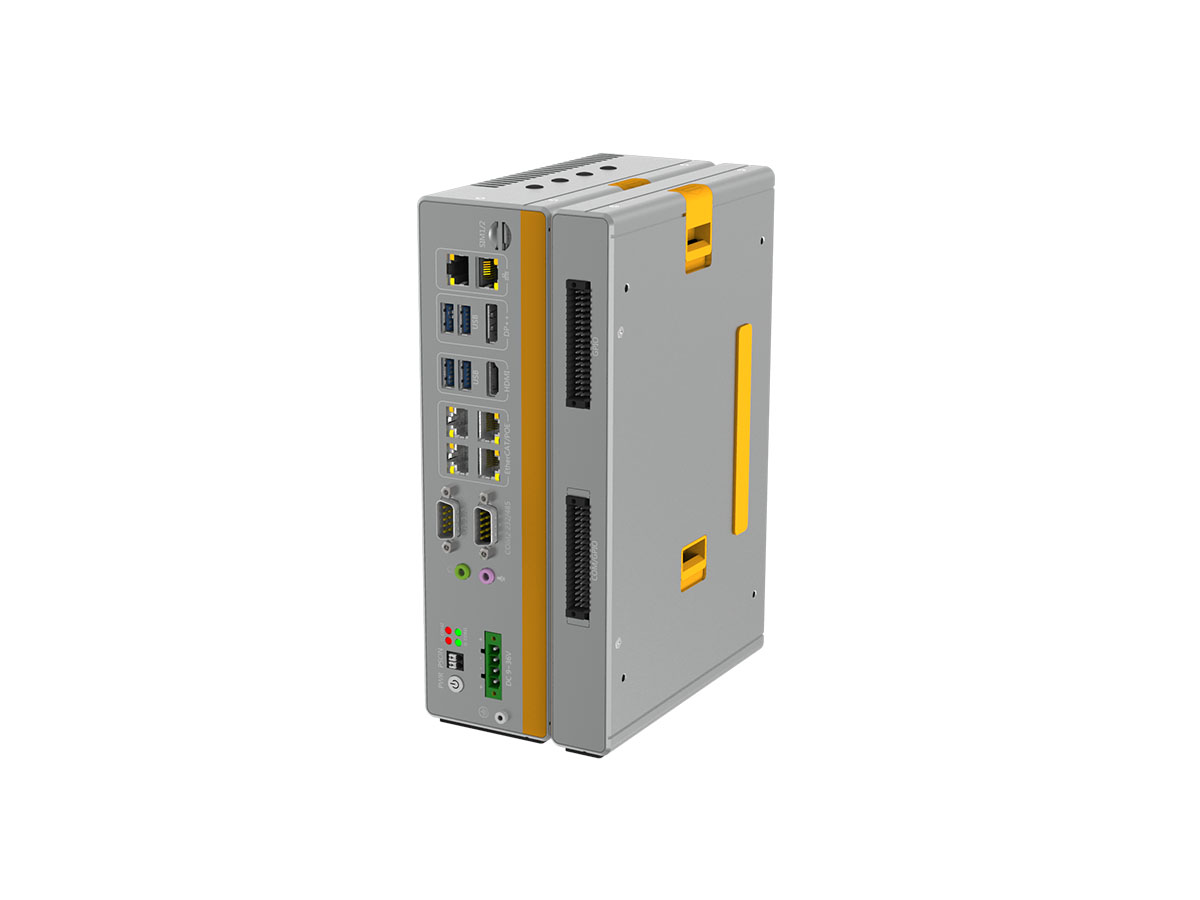

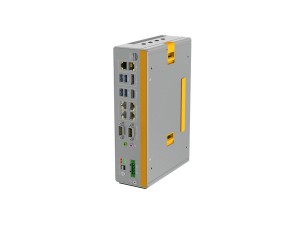

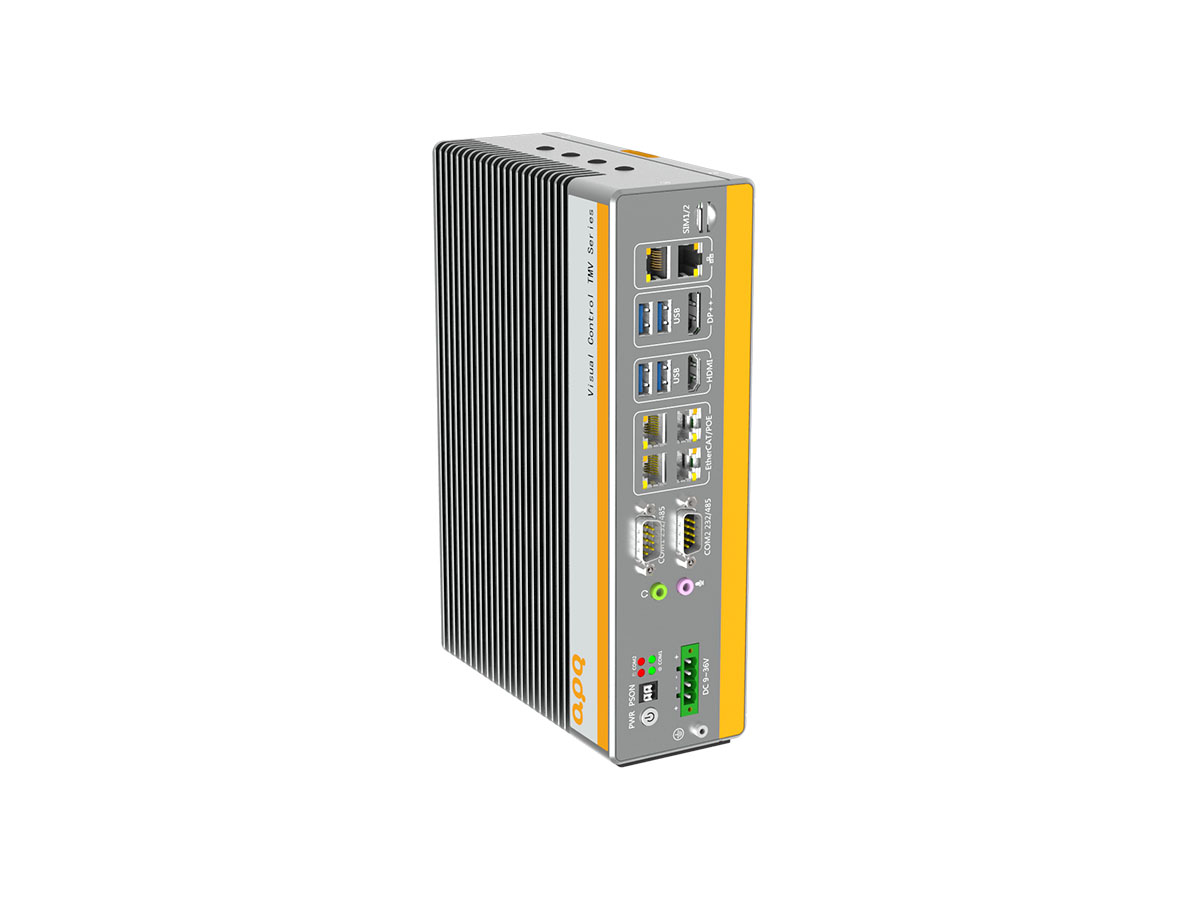

阿普奇机器视觉控制器TMV-6000是一款专为机器视觉应用而设计的高性能嵌入式工控机。采用Intel® 6~9th Core™ i7/i5/i3 Desktop CPU，具备强大的计算性能和高效能，满足机器视觉应用对高性能计算的需求。搭配Q170/C236工业级芯片组，提供稳定可靠的系统支持。配备DP+HDMI双4K显示接口，支持同步/异步双显功能，方便将机器视觉系统的实时图像和数据处理结果进行展示。4个USB 3.0接口和2个DB9串口提供了丰富的外设连接能力；具备6个千兆网络接口，其中4个可选POE功能，方便为连接的设备提供稳定的网络连接和供电。支持9V~36V宽压电源输入，适应不同的电源环境。在散热方面，TMV-6000系列提供了主/被动两种散热方式可选，确保控制器在长时间运行中保持稳定的性能。
综上所述，阿普奇机器视觉控制器TMV-6000系列可以为主流的视觉应用场景提供完美的支持，无论是在智能制造、产品质量检测还是其他领域，它都能满足各种复杂应用场景的需求。
| Model | TMV-6000 | |
| CPU | CPU | Intel® 6-8/11th Generation Core / Pentium/ Celeron mobile CPU |
| TDP | 35W | |
| Socket | SoC | |
| Chipset | Chipset | Intel® Q170/C236 |
| BIOS | BIOS | AMI UEFI BIOS (Support Watchdog Timer) |
| Memory | Socket | 1 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 2400MHz |
| Max Capacity | 16GB, Single Max. 16GB | |
| Graphics | Controller | Intel® HD Graphics |
| Ethernet | Controller | 2 * Intel i210-AT/i211-AT;I219-LM LAN Chip ( 10/100/1000 Mbps, RJ45)4 * Intel i210-AT LAN Chip ( 10/100/1000 Mbps, RJ45; support POE) |
| Storage | M.2 | 1 * M.2(Key-M，support 2242/2280 SATA or PCIe x4/x2 NVME SSD)1 * M.2(key-M，support 2242/2280 SATA SSD) |

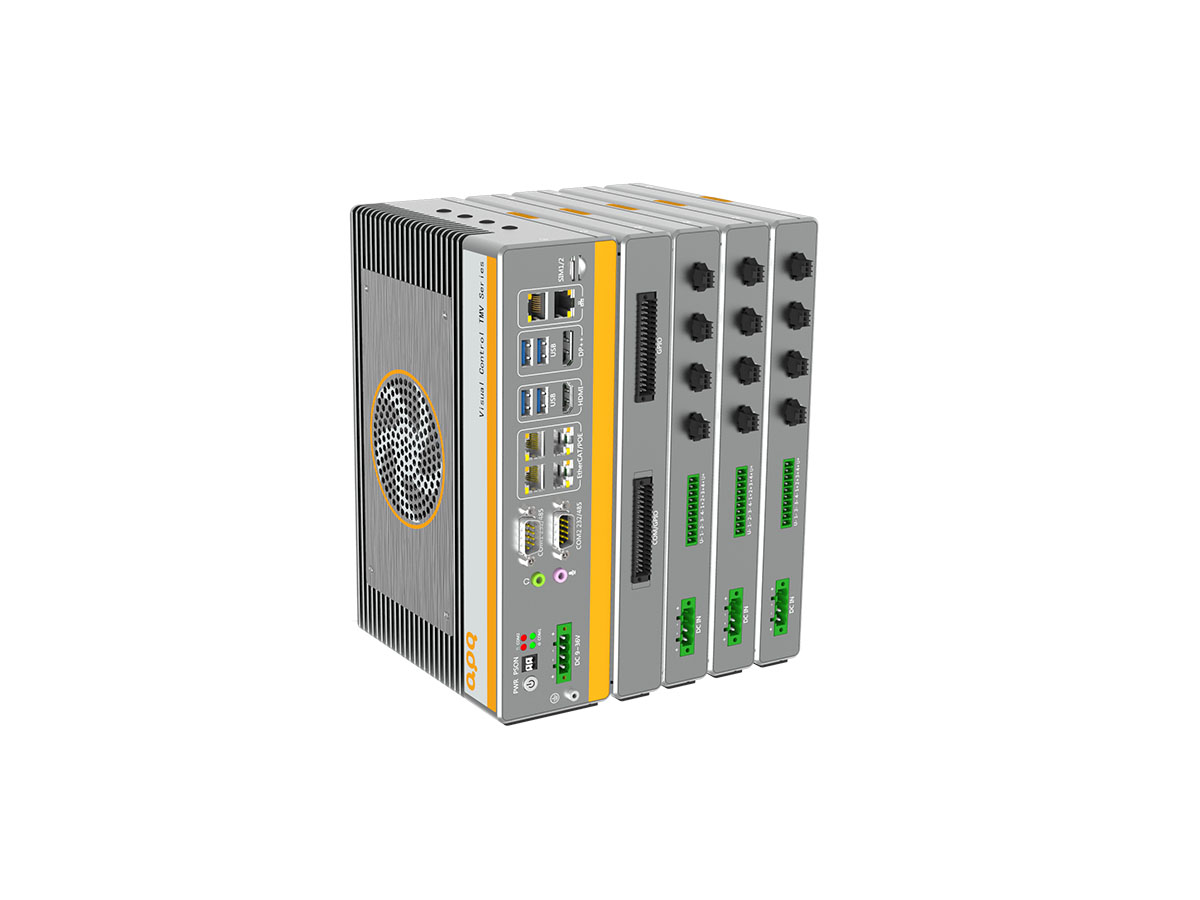

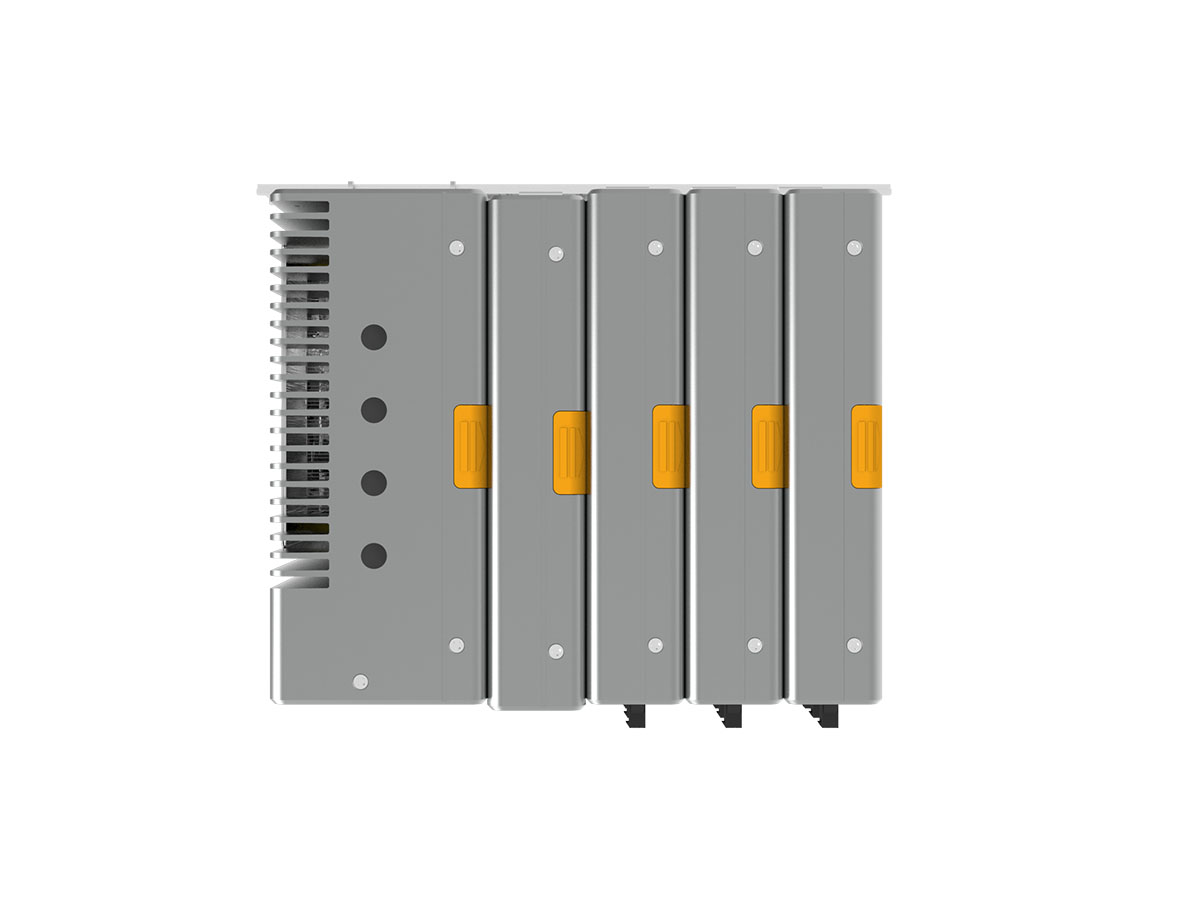

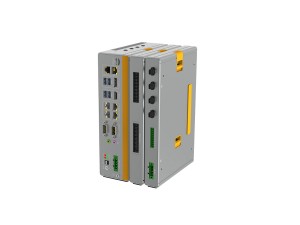

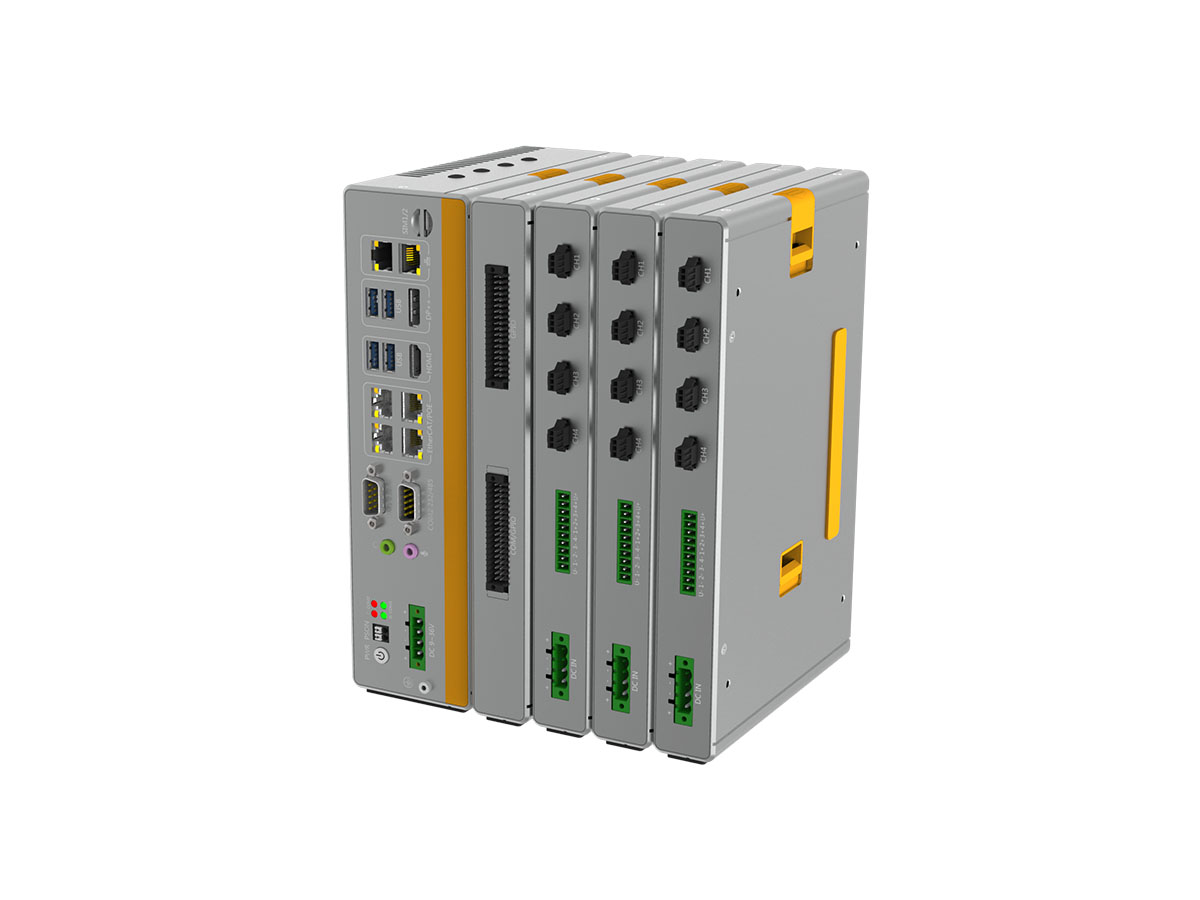

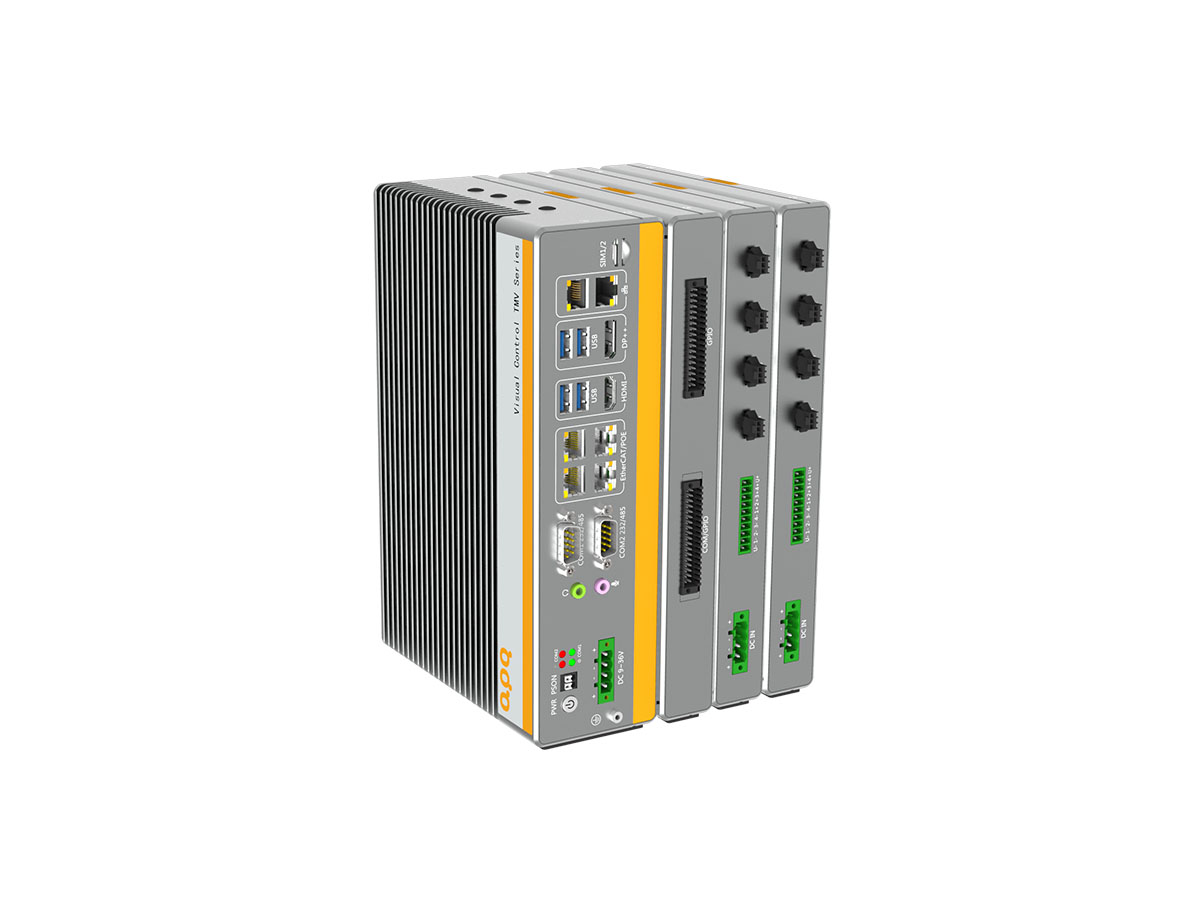

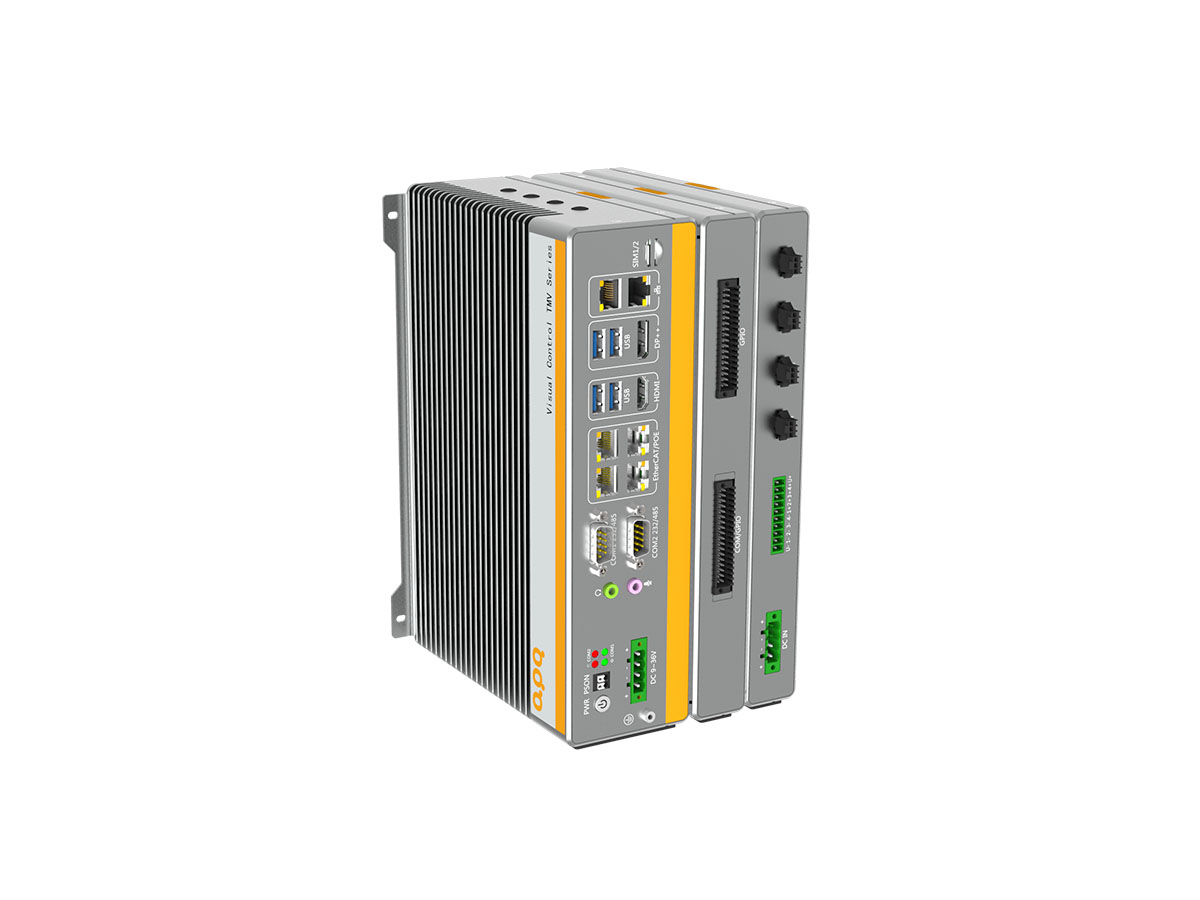

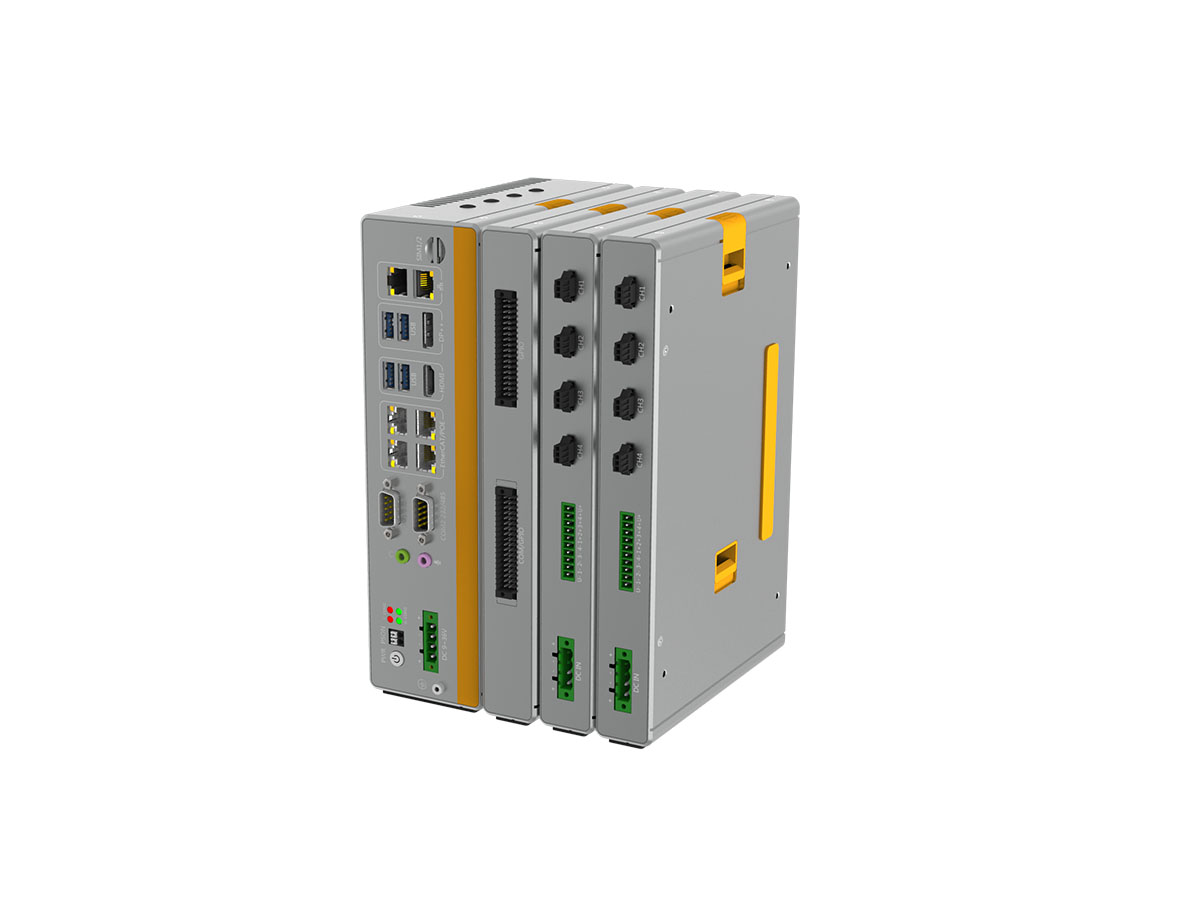

| Expansin Slots | Expansion box | ①6 * COM（30pin Spring-loaded plug-in Phoenix terminals， RS232/422/485 optional (select by BOM），RS422/485 Optoelectronic isolation function optional）+16 * GPIO（36pin Spring-loaded plug-in Phoenix terminals，support 8* Optoelectronic isolation input，8* Optoelectronic isolation output (Optional relay/opto-isolated output)） |
| ②32 * GPIO（2*36pin Spring-loaded plug-in Phoenix terminals，support 16* Optoelectronic isolation input，16* Optoelectronic isolation output (Optional relay/opto-isolated output)） | ||
| ③4 * light source channels（RS232 control，Support external triggering, total output power 120W; The single channel supports a maximum of 24V 3A (72W) output, 0-255 stepless dimming, and the external trigger delay <10us）1 * Power input（4pin 5.08 Phoenix terminals with locked） | ||

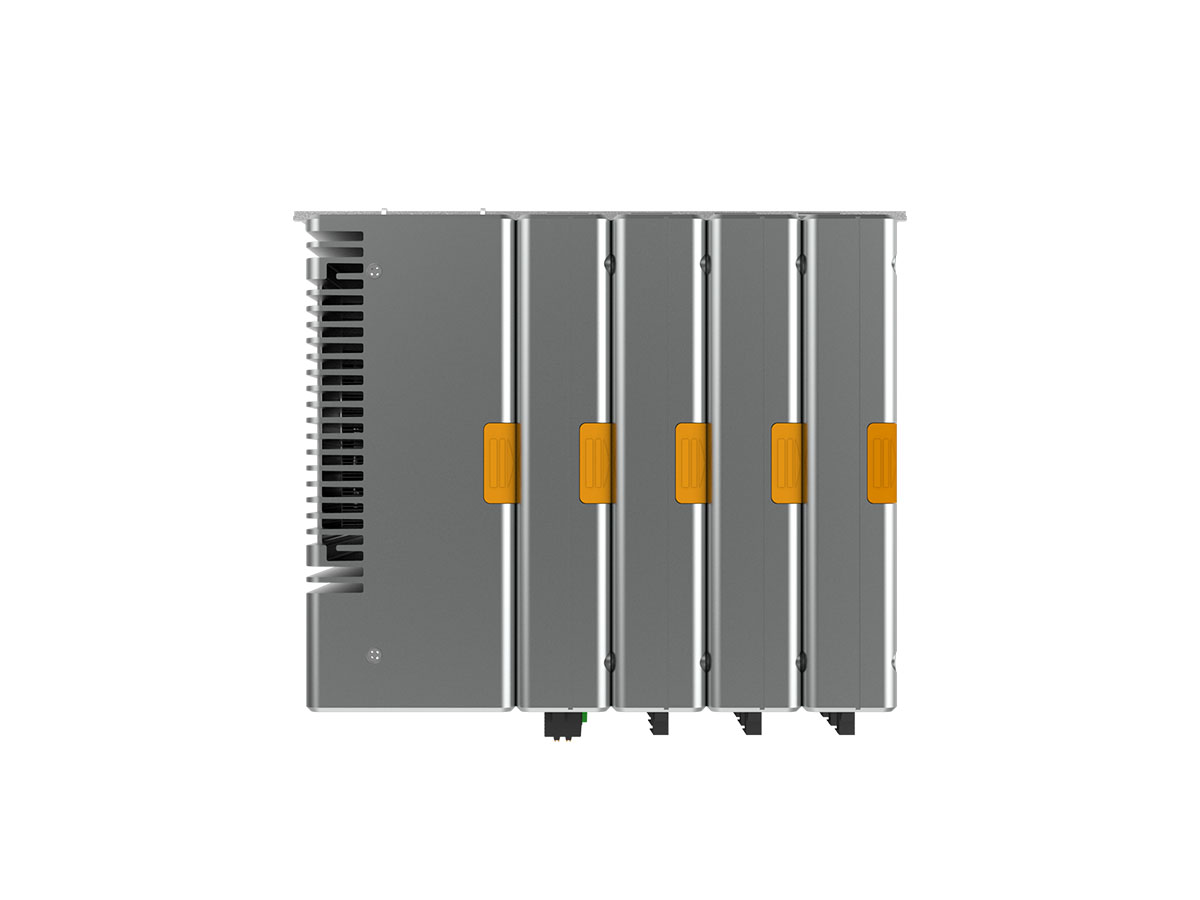

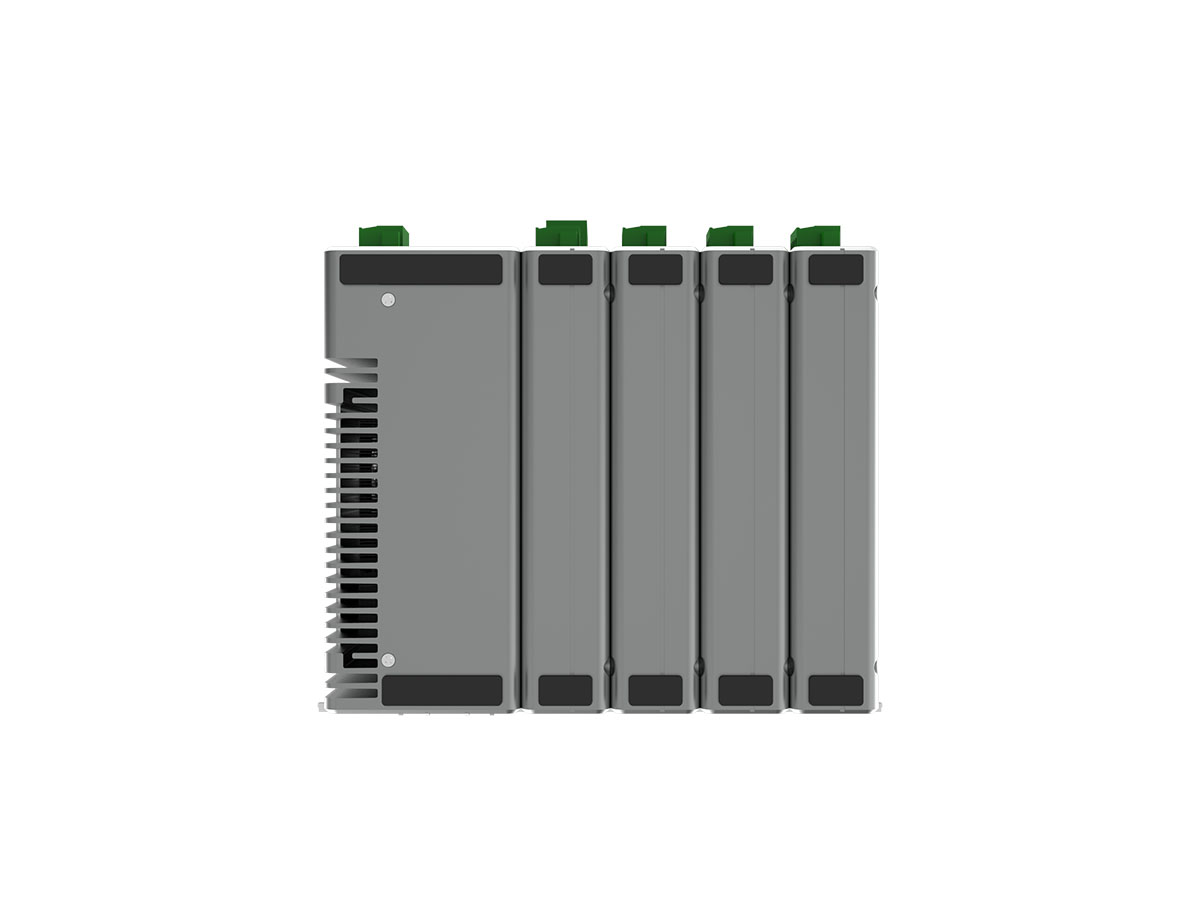

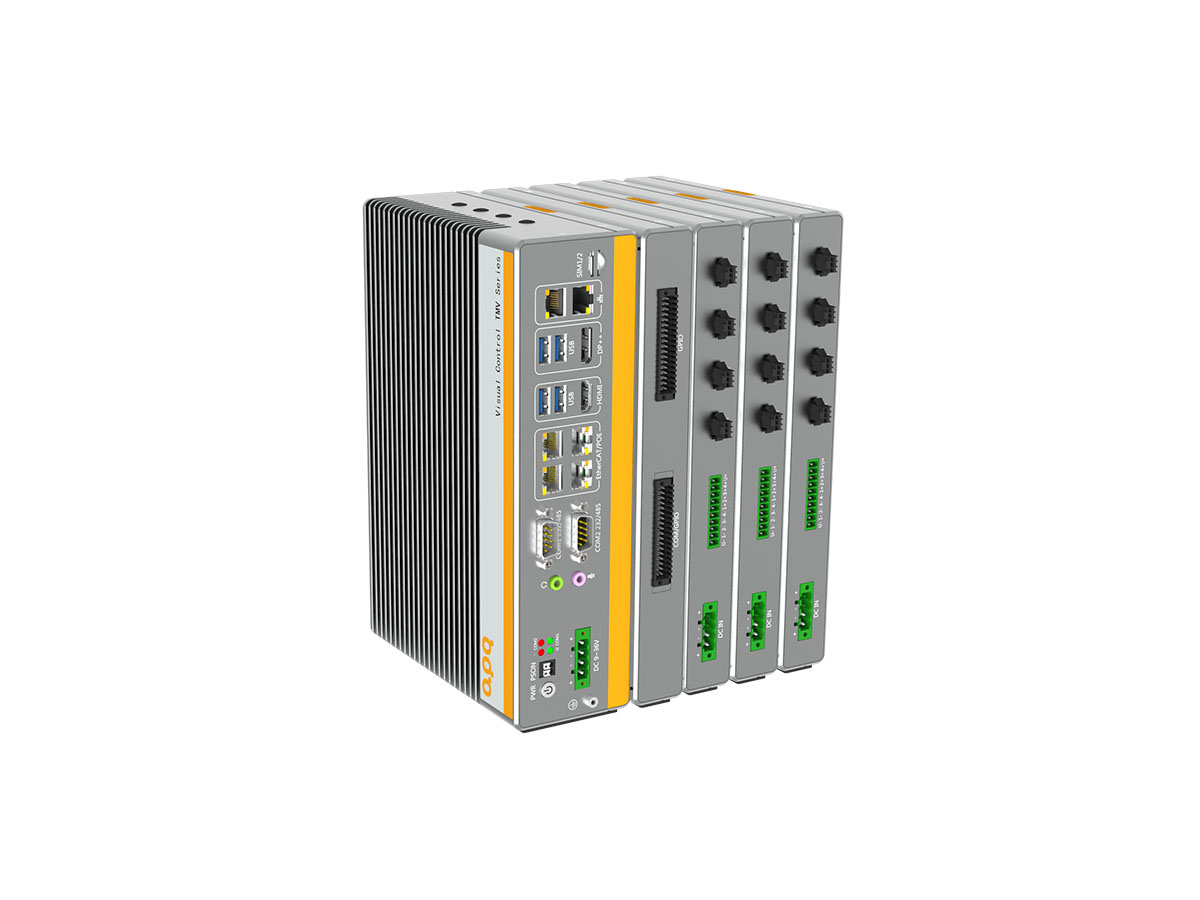

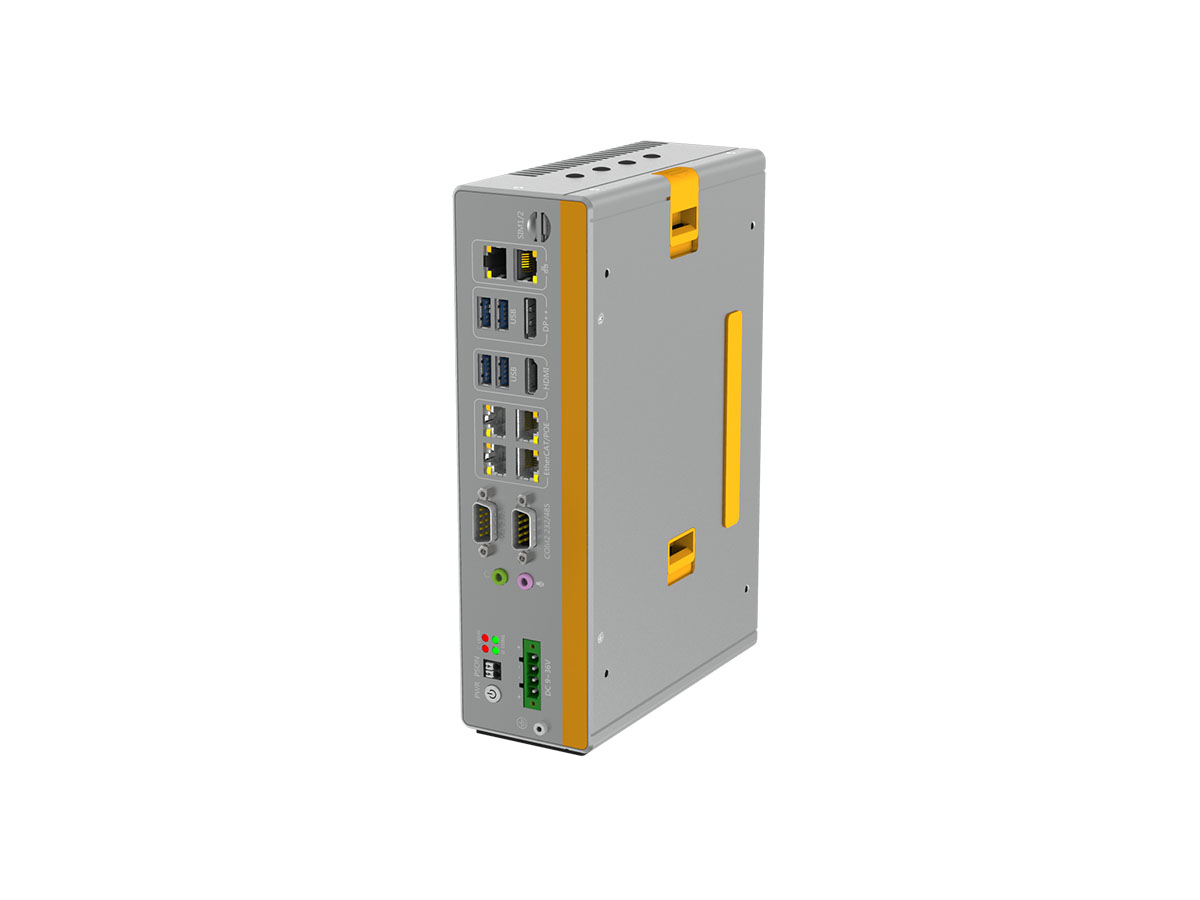

| Notes: Expansion box ①② can be expand one of the two, Expansion box③ can be expanded up to three on one TMV-7000 | ||
| M.2 | 1 * M.2(Key-B, support 3042/3052 4G/5G module) | |
| Mini PCIe | 1 * Mini PCIe (support WIFI/3G/4G) | |
| Front I/O | Ethernet | 2 * Intel® GbE(10/100/1000Mbps,RJ45)4 * Intel® GbE(10/100/1000Mbps,RJ45，support POE function optional，support IEEE 802.3af/ IEEE 802.3at，single port MAX. to 30W，total P=MAX. to 50W) |
| USB | 4 * USB3.0 (Type-A, 5Gbps) | |
| Display | 1 *HDMI: max resolution up to 3840*2160 @ 60Hz1 * DP++: max resolution up to 4096*2304 @ 60Hz | |
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | |
| Serial | 2 * RS232 (DB9/M) | |
| SIM | 2 * Nano SIM card slot (SIM1) | |
| Rear I/O | Antenna | 4 * Antenna hole |
| Power Supply | Type | DC, |
| Power Input Voltage | 9 ~ 36VDC, P≤240W | |
| Connector | 1 * 4Pin Connector, P=5.00/5.08 | |
| RTC Battery | CR2032 Coin Cell | |
| OS Support | Windows | 6/7th：Windows 7/8.1/108/9th: Windows 10/11 |
| Linux | Linux | |
| Watchdog | Output | System Reset |
| Interval | Programmable via Software from 1 to 255 sec | |
| Mechanical | Enclosure Material | Radiator: Aluminum alloy, Box: SGCC |

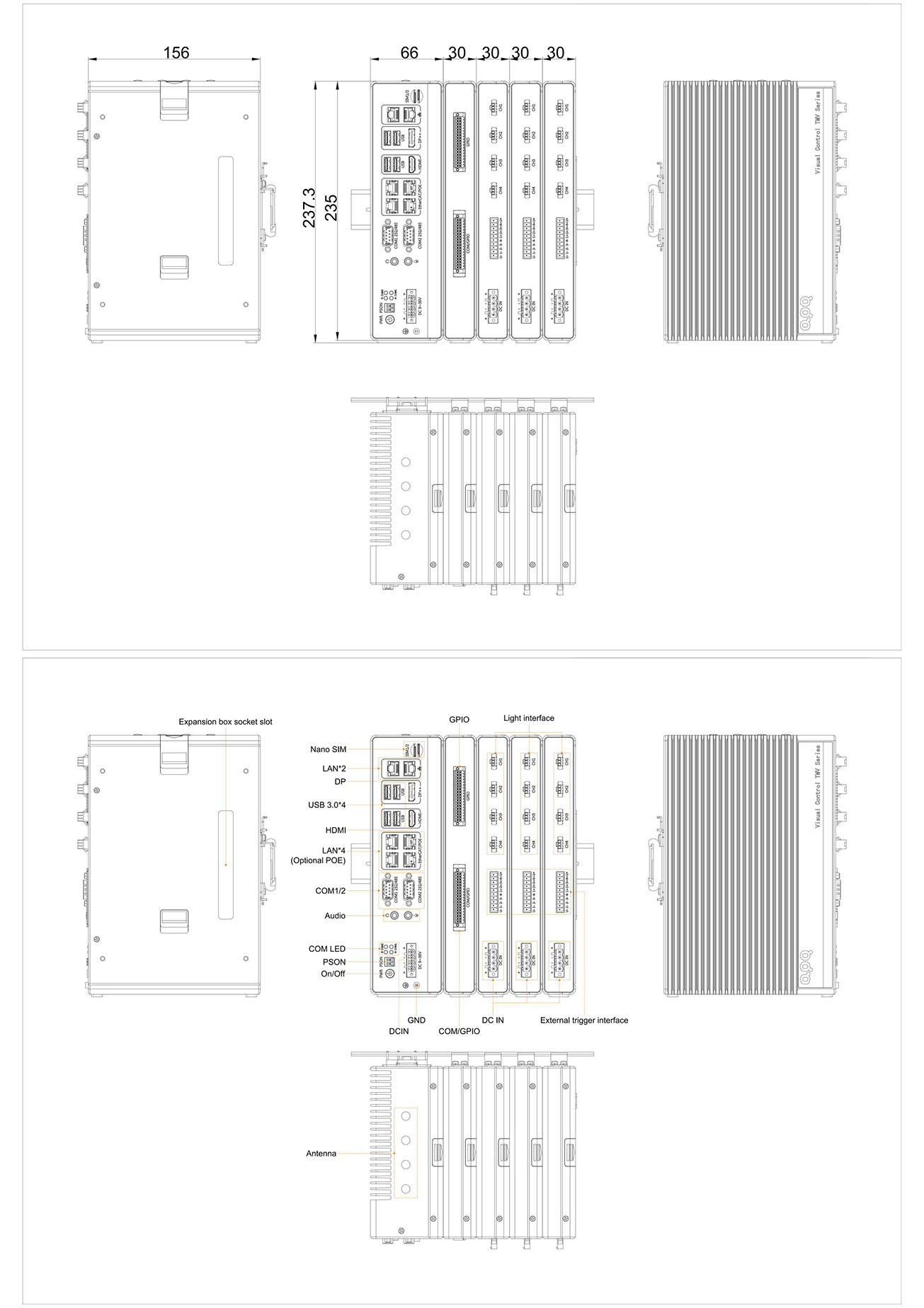

| Dimensions | 235mm(L) * 156mm(W) * 66mm(H) without expansion box | |
| Weight | Net: 2.3 kgExpansion box Net: 1kg | |

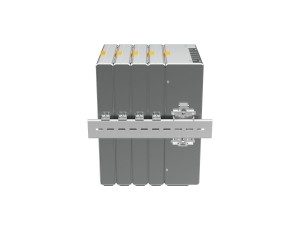

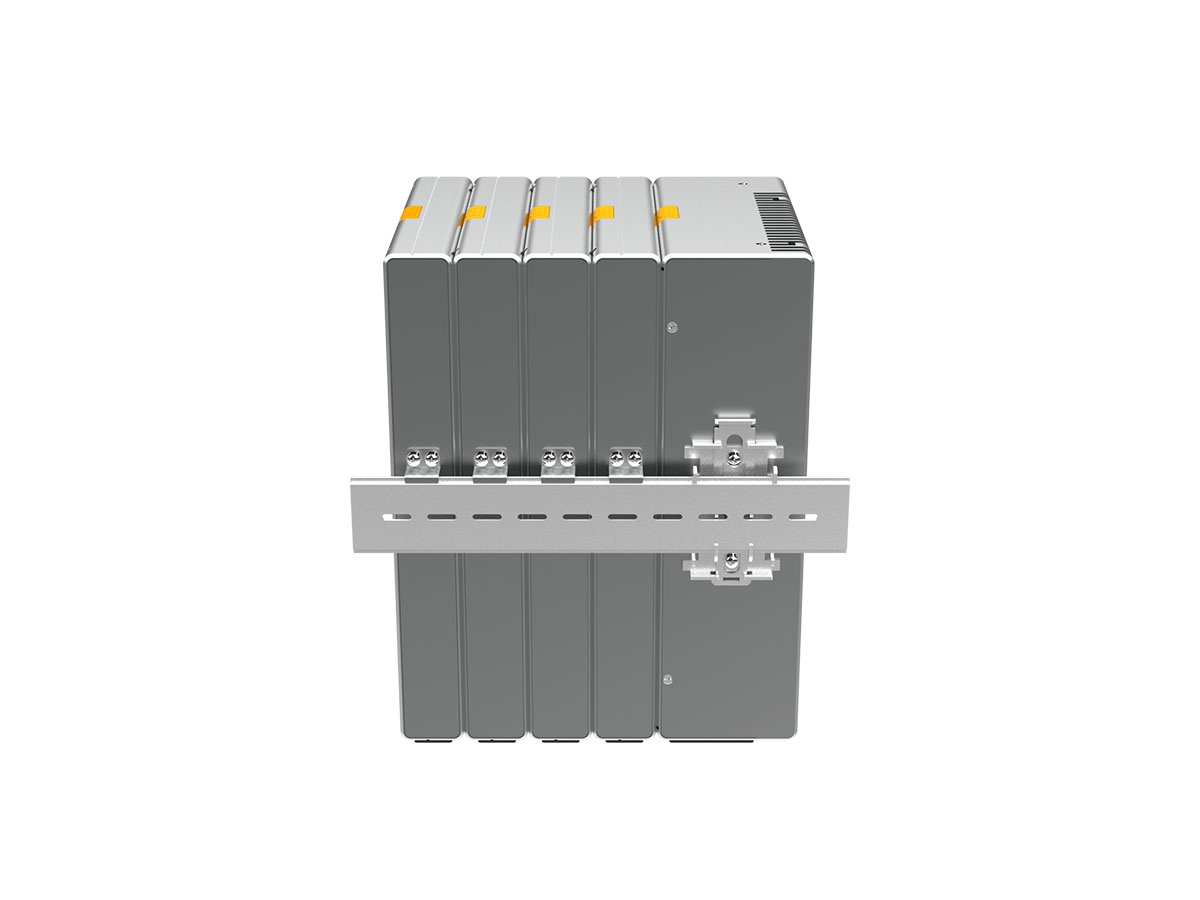

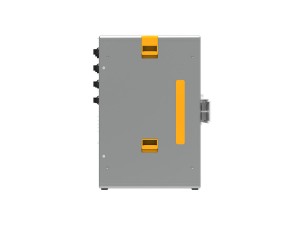

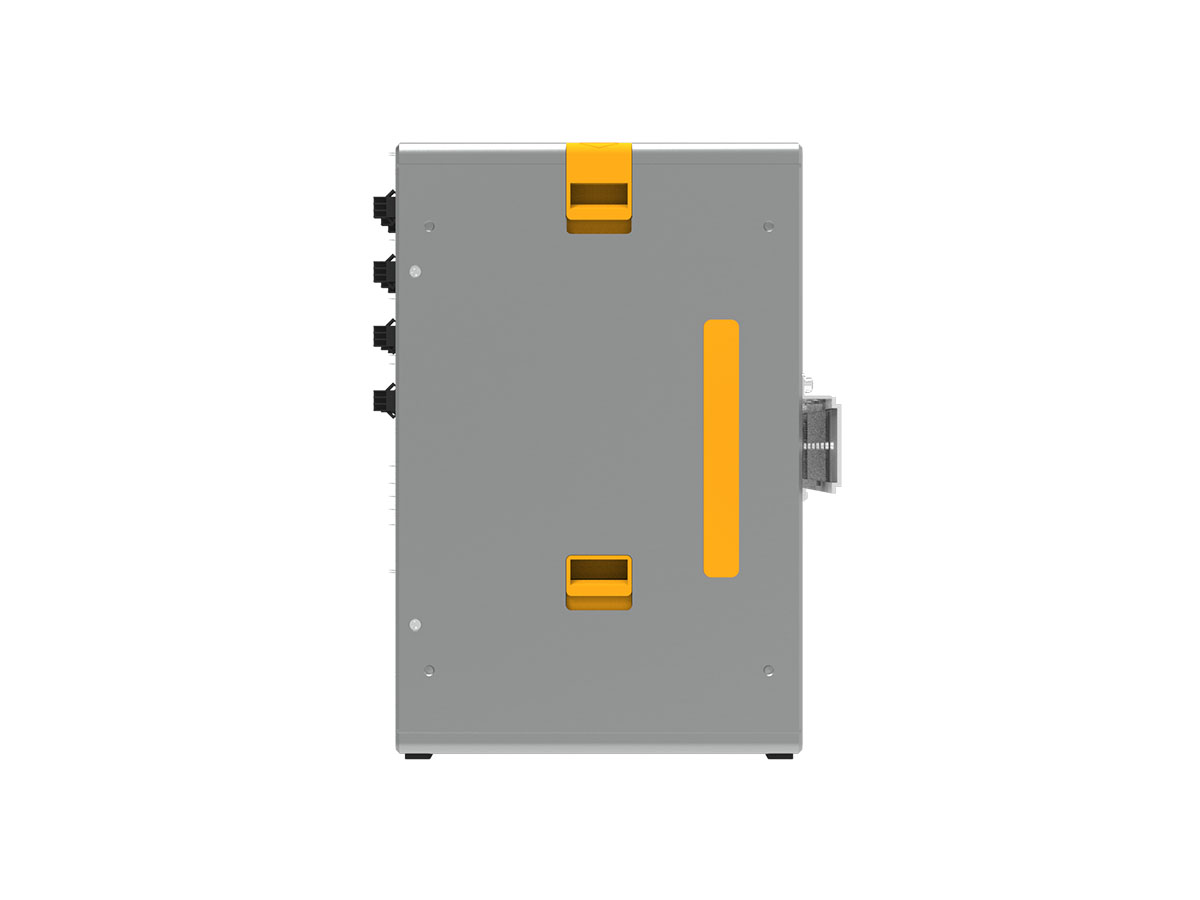

| Mounting | DIN rail /Rack mount / Desktop | |

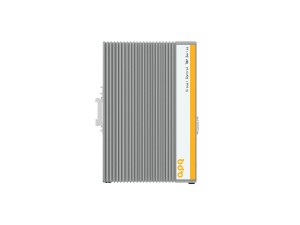

| Environment | Heat Dissipation System | Fanless Passive Cooling |
| Operating Temperature | -20~60℃ (Industrial SSD) | |
| Storage Temperature | -40~80℃ (Industrial SSD) | |
| Relative Humidity | 10 to 90% RH (non-condensing) | |
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
-
