TER30X-A5 KiWiBot系列/人形机器人控制器/具身智能机器人控制器/机器人控制器

特点:

支持Intel® 12/13th Gen Core i3/i5/i7 -U/P/H, Support max 45W
标配5个独立GbE接口
4个USB 5Gbps Type-A，内置3个USB 2.0 wafer接口
默认4个RS232/RS485，8个GPIO
支持Wi-Fi、BT、4G/5G等无线、移动网络扩展
智能风扇主动式散热
12~28V直流宽压供电

远程管理
状态监控
远程运维
安全控制

联系我们

扫码即可添加微信，售前客服为您提供咨询服务

产品介绍

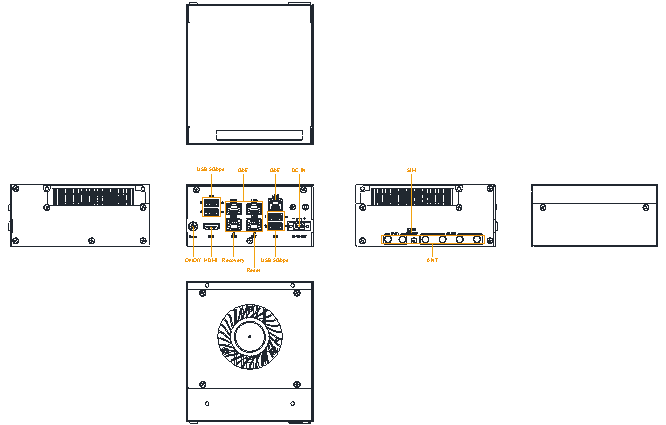

工程图纸

下载产品资料

扫码添加微信，获取最新产品资料文件

Model		TER30X-A5
Core Modules	CPU	Support Intel^® 12/13th Gen Core i3/i5/i7 -U/P/H, Support max 45W
Memory	Socket	1 * Non-ECC SO-DIMM Slot, Up to DDR5 5200 MT/s
	Max Capacity	Max. 32GB
Graphics	Controller	Intel^® Iris^® Xe Graphics
Ethernet	Wired Module	1 * Intel^® i219-V (10/100/1000 Mbps)
		1 * Intel^® i226-V (10/100/1000/2500 Mbps)
		1 * Intel^® i350-AM4 (10/100/1000 Mbps)
Storage	M.2	1 * M.2 Key-M Slot (NVMe SSD, 2280)
Expansion Slots	M.2	1 * M.2 Key-B Slot (USB 5Gbps + USB 2.0, 3052, with 1 * Nano SIM Card Slot)
		1 * M.2 Key-E Slot (PCIe x1 + USB 2.0)

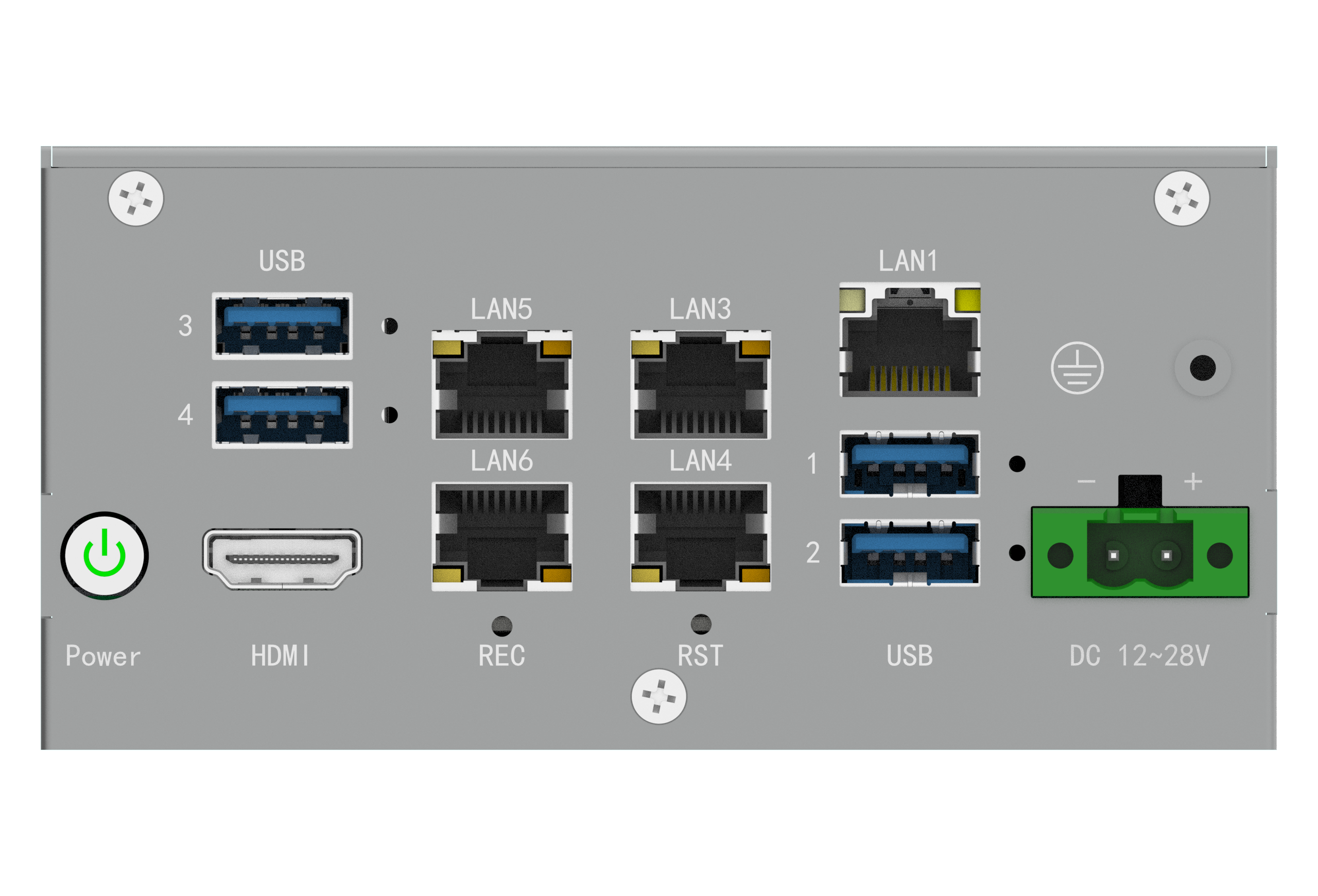

Front I/O	Ethernet	5 * GbE (RJ45)
	USB	4 * USB 5Gbps (Type-A)
	Display	1 * HDMI: Resolution up to 4096*2304@30Hz (Type-A)
	Button	1 * Power Button + Power LED
		1 * System Reset button
		1 * System Recover button
	Power Input	1 * Power Input (2P, P=5.00/5.08, Terminal Block)

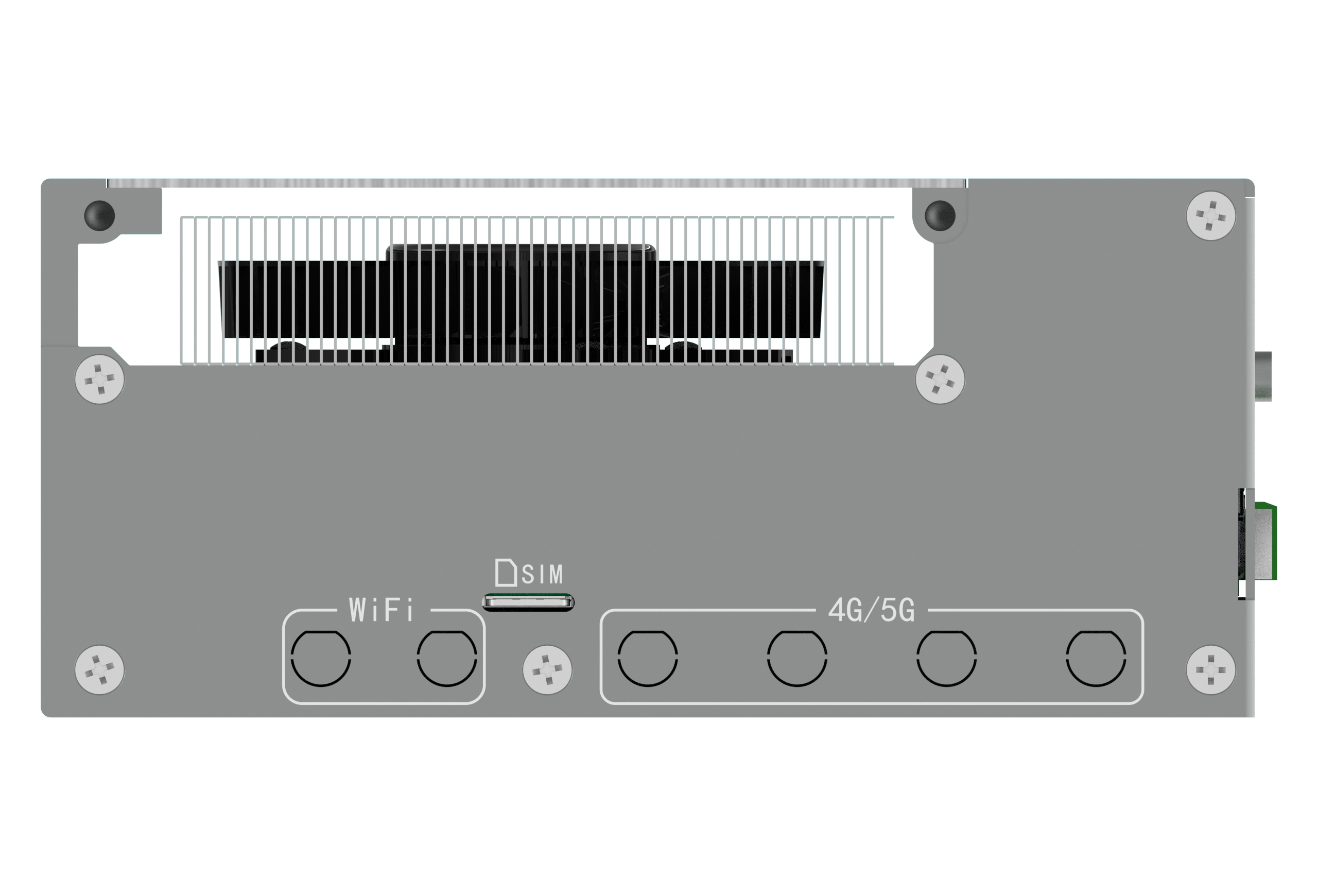

Side I/O	SIM	1 * Nano SIM Card Slots
Internal I/O	Front Panel	1 * Front Panel (Power + Reset + Recovery, wafer)
	Ethernet	1 * GbE (wafer)
	FAN	1 * System Fan (wafer)
	GPIO	8bit GPIO (OS Configurable DI/DO and H/L, wafer)
	Serial	4 * RS232/485 (Jumper Switch, wafer)
	Audio	1 * Audio (Line_Out + Mic) (wafer)
	USB	3 * USB 2.0 (wafer)
Power Supply	Type	AT/ATX
	Power Input Voltage	12 ~ 28V DC
	Connector	1 * Power Input Connector (2P, P=5.08mm, Terminal Block)
	RTC Battery	CR2032 Coin Cell
OS Support	Linux	Ubuntu 22.04
Mechanical	Enclosure Material	Aluminum alloy
	Dimensions	118.2mm(L) * 130mm(W) * 57.6mm(H)
	Mounting	Bracket Mounting

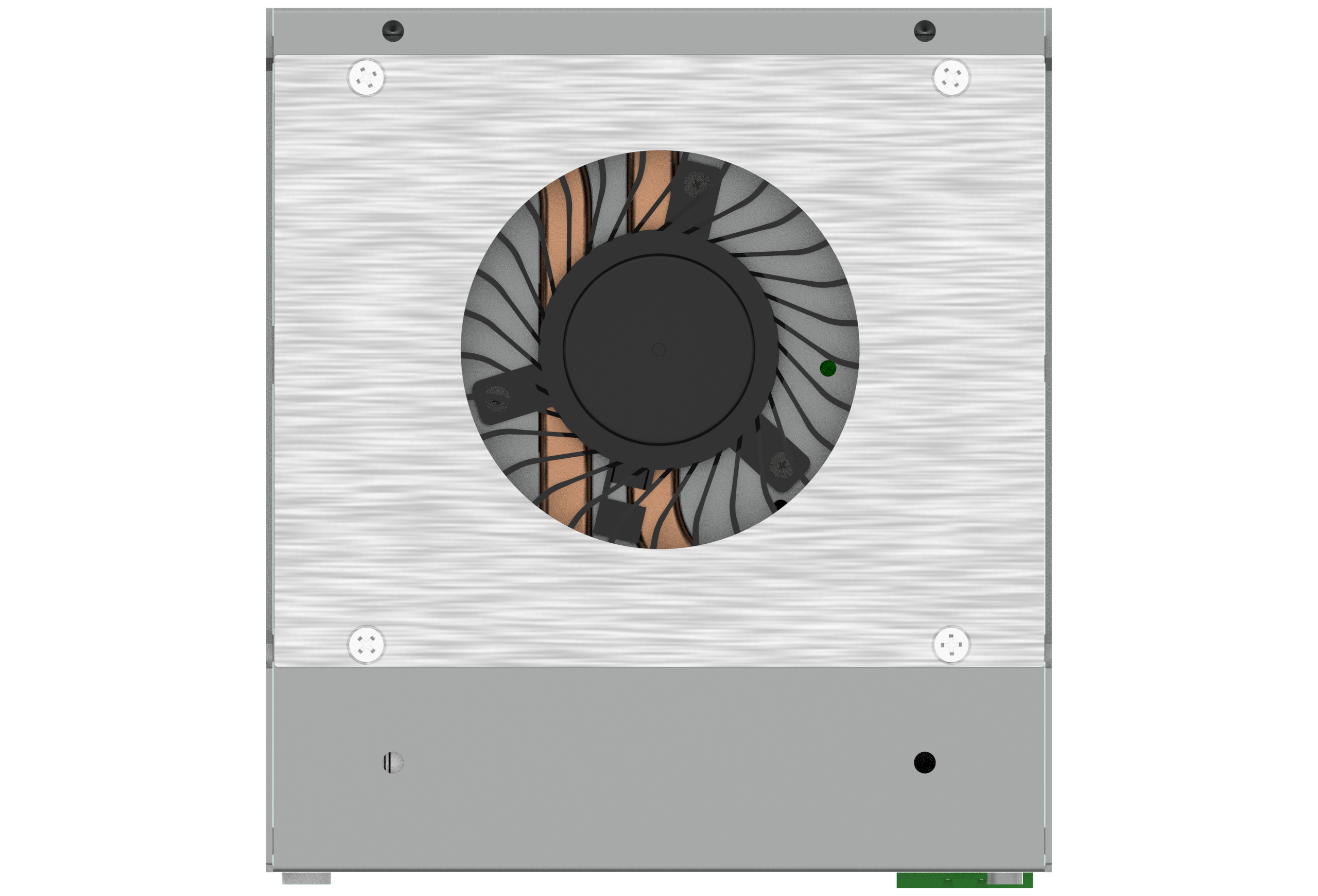

Environment	Heat Dissipation System	Active Fan Cooling
	Operating Temperature	-20~50℃ with 0.7m/s (Industrial SSD)
	Storage Temperature	-40~80℃ (Industrial SSD)
	Relative Humidity	10 to 95% RH (non-condensing)
	Vibration During Operation	3Grms@5~500Hz, random, 1hr/axis (Industrial SSD)
	Shock During Operation	15G, half sine, 11ms, ±X/Y/Z, 3 shocks/axis (Industrial SSD)
