TAC-6000 具身机器人控制器/人形机器人控制器/AI驾驶控制器
远程管理
状态监控
远程运维
安全控制
联系我们
扫码即可添加微信，售前客服为您提供咨询服务
|
Model |
TAC-6010 |
TAC-6020 |
|
|
CPU |
CPU | Intel 8/11th Generation Core™ i3/i5/i7 Mobile -U CPU, TDP=15/28W | |
| Chipset | SOC | ||
|
BIOS |
BIOS | AMI UEFI BIOS | |
|
Memory |
Socket | 1 * DDR4-2400/2666/3200 MHz SO-DIMM Slot | |
| Max Capacity | 32GB | ||
|
Graphics |
Controller | Intel® UHD Graphics/Intel® Iris® Xe Graphics Note: Graphics controller type depend on CPU model |
|
|
Ethernet |
Controller | 1 * Intel® i210-AT (10/100/1000 Mbps, RJ45) 1 * Intel® i219 (10/100/1000 Mbps, RJ45) |
|
|
Storage |
M.2 | 1 * M.2 Key-M Slot (PCIe x4 NVMe/ SATA SSD, auto detect, 2242/2280) | |
|
Expansion Slots |
M.2 | 1 * M.2 Key-B Slot (USB2.0, Support 4G, 3042, only for 12V version) 1 * Mini PCIe Slot (PCIe+USB2.0, only for 12~24V version) |
|
| Mini PCIe | 1 * Mini PCIe Slot (SATA/PCIe+USB2.0) | ||
| MXM/aDoor | N/A | 1 * MXM (support APQ MXM 4 * LAN/6 * COM/16 * GPIO expansion card) Note: 11th CPU don't support MXM expansion 1 * aDoor Expansion I/O |
|
|

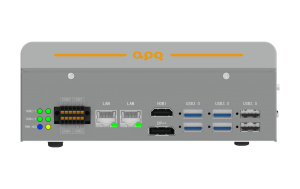

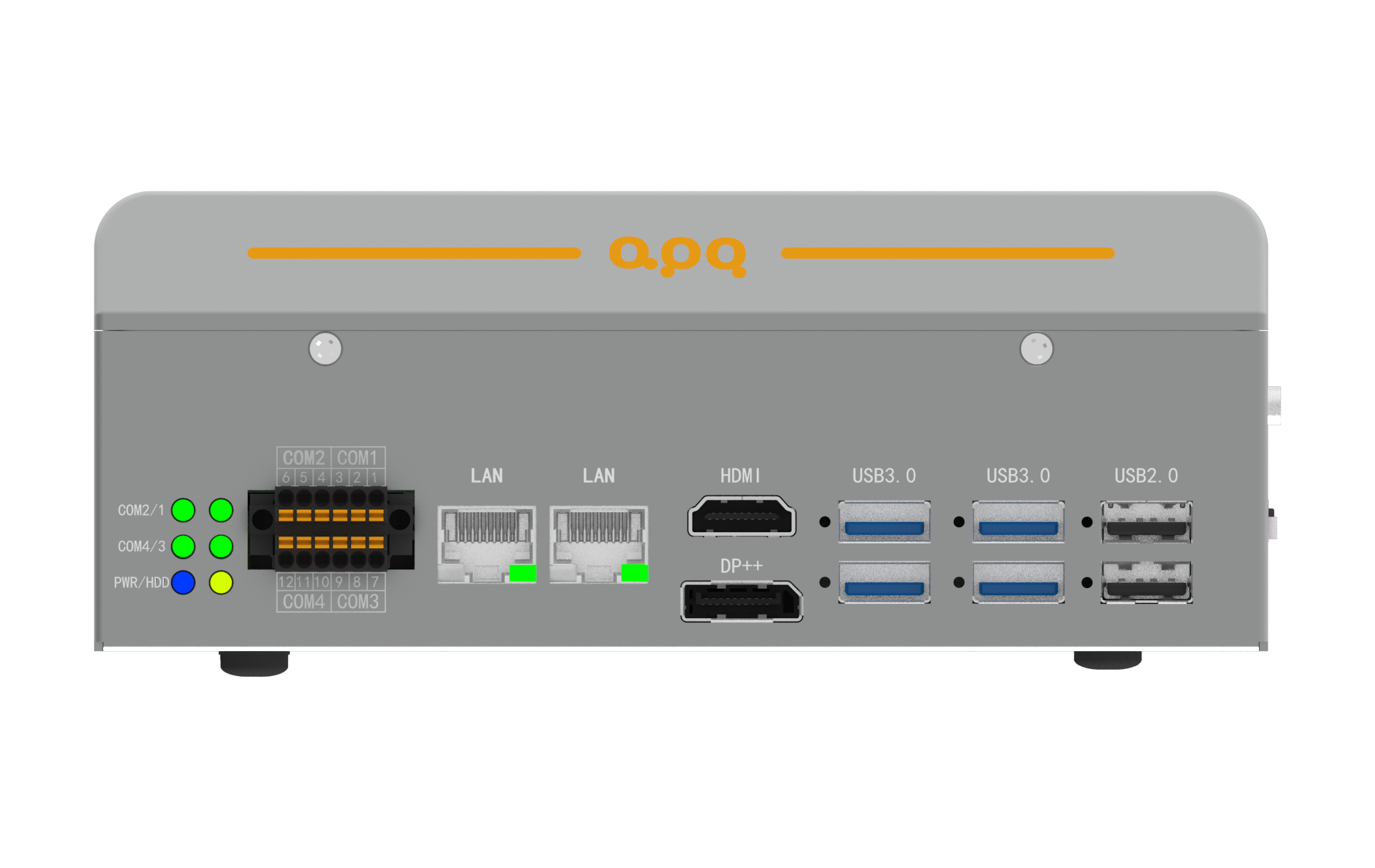

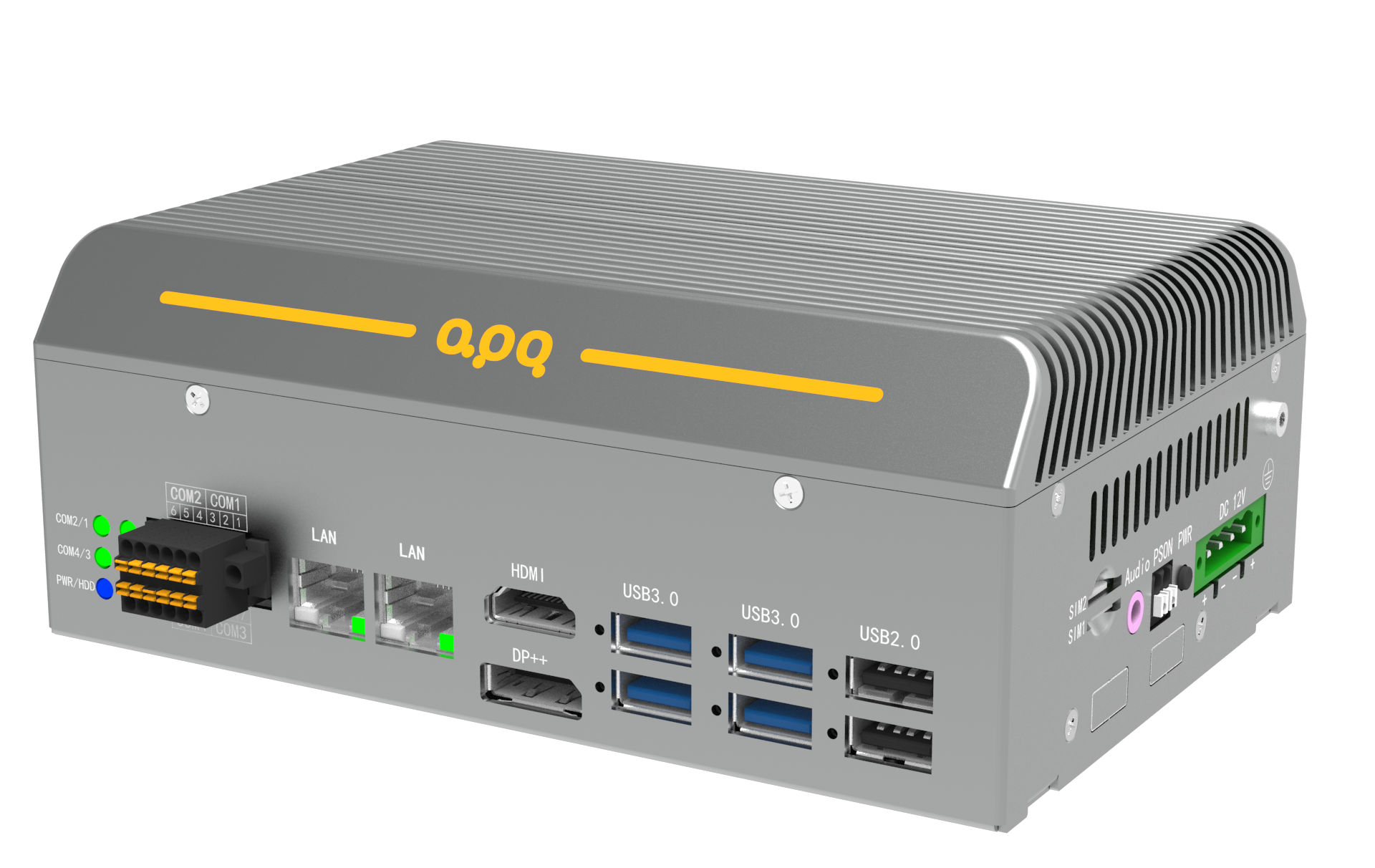

Front I/O |
USB | 4 * USB3.0 (Type-A) 2 * USB2.0 (Type-A) |
|
| Ethernet | 2 * RJ45 | ||
| Display | 1 * DP: max resolution up to 3840*2160@24Hz 1 * HDMI (Type-A): max resolution up to 3840*2160@24Hz |
||
| Serial | 4 * RS232/485 (COM1/2/3/4, jumper control) | 4 * RS232/485 (COM1/2/3/4/7/8, jumper control) 2 * RS232 (COM9/10) Note: 11th CPU don't support COM7/8/9/10 |
|
|

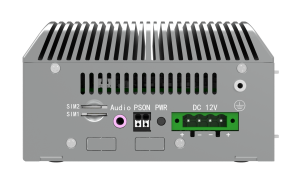

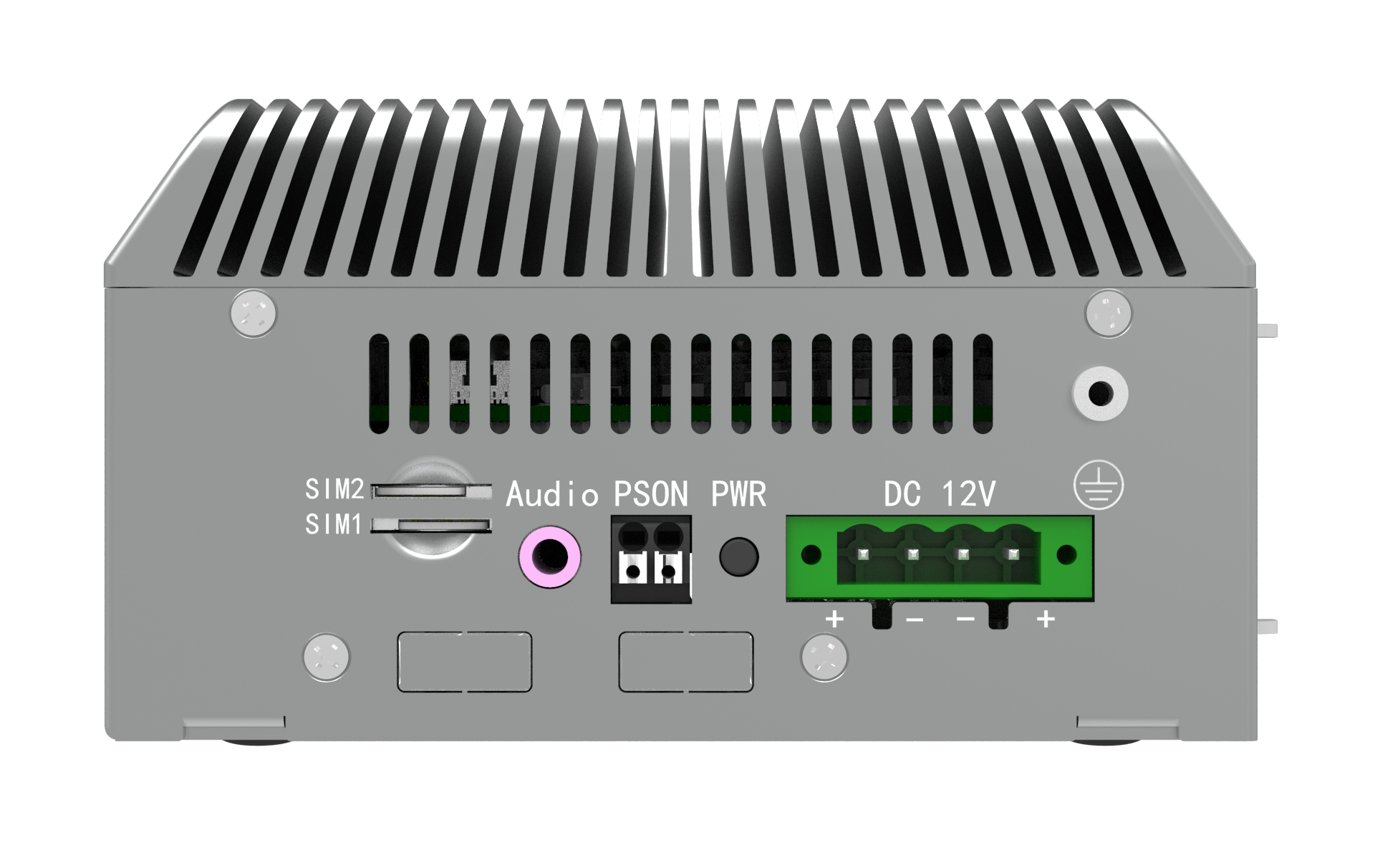

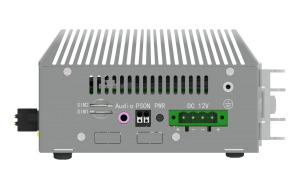

Right I/O |
SIM | 2 * Nano SIM Card Slot (Mini PCIe modules provide functional support) | |
| Audio | 1 * 3.5mm Jack (Line-Out + MIC, CTIA) | ||
| Power | 1 * Power Button 1 * PS_ON 1 * DC Power Input |
||
|
Power Supply |
Type | DC | |
| Power Input Voltage | 12~24VDC (optional 12VDC) | ||
| Connector | 1 * 4Pin Power Input Connector (P= 5.08mm) | ||
| RTC Battery | CR2032 Coin Cell | ||
|
OS Support |
Windows | Windows 10 | |
| Linux | Linux | ||
|
Watchdog |
Output | System Reset | |
| Interval | Programmable 1 ~ 255 sec | ||
|
Mechanical |
Enclosure Material | Radiator: Aluminum, Box: SGCC | |
| Dimensions | 165mm(L) * 115mm(W) * 64.5mm(H) | 165mm(L) * 115mm(W) * 88.2mm(H) | |
| Weight | Net: 1.2kg, Total: 2.2kg | Net: 1.4kg, Total: 2.4kg | |

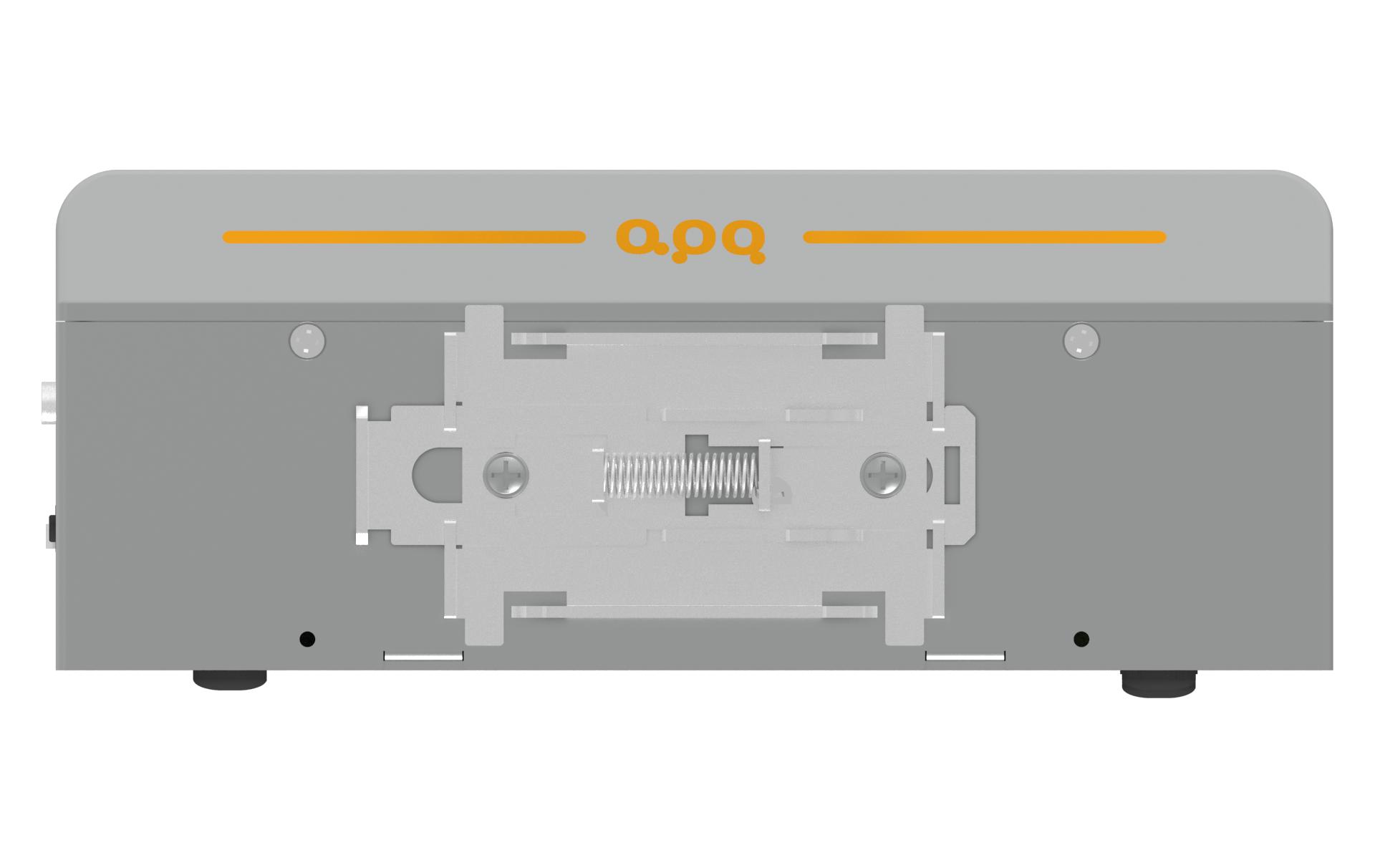

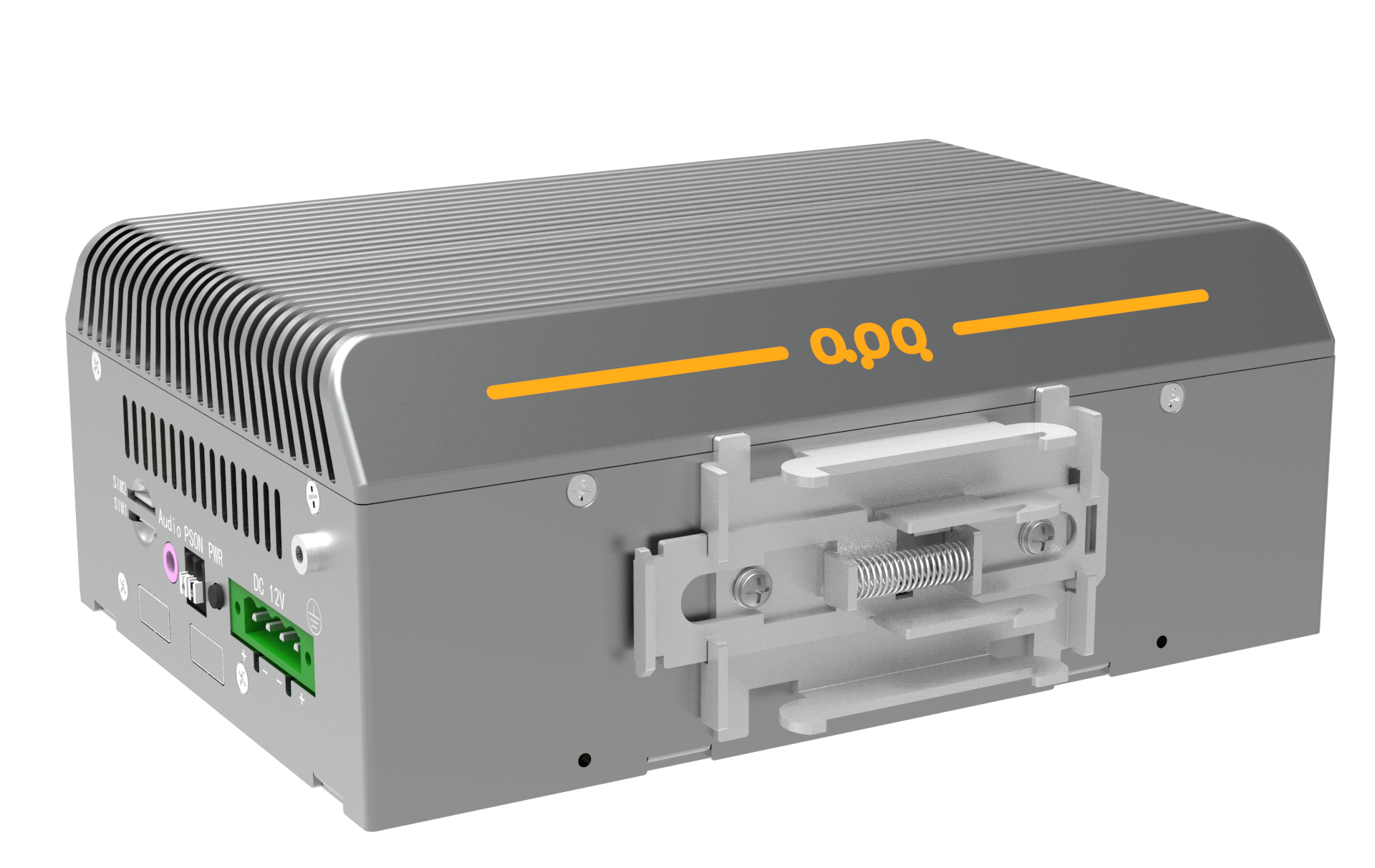

| Mounting | DIN, Wallmount, Desk mounting | ||
|
Environment |
Heat Dissipation System | Passive Heat Dissipation (8th CPU) PWM Air Cooling (11th CPU) |
|
| Operating Temperature | -20~60℃ | ||
| Storage Temperature | -40~80℃ | ||
| Relative Humidity | 5 to 95% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | ||
| Certification | CE | ||
-
